Model no.DSI700-V1.0I
DSI700-V1.0I 7-Inch HDMI TFT-LCD Display
DSI700-V1.0I is a 7-inch hdmi tft-lcd display and a MIPI DSI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI DSI
- capacitive touch
- Module Dimensions: 164.9 × 100 × 10.8 mm
- Interface: MIPI DSI
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: capacitive touch
- Screen Size: 7 inch
- Screen Size
- 7 inch
- Interface
- MIPI DSI
- Touch
- Capacitive touch
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm resolution, display mode against the latest approved specification before design-in.
DSI700-V1.0I product introduction
DSI700-V1.0I is a 7-inch hdmi tft-lcd display and a MIPI DSI interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 164.9 × 100 × 10.8 mm. Brightness: 450 cd/m². Operating Temperature: -20 to 70 °C. Touch: capacitive touch. Use these published characteristics to compare DSI700-V1.0I with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI DSI connection on DSI700-V1.0I should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following DSI700-V1.0I attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Module Dimensions: 164.9 × 100 × 10.8 mm
- Interface: MIPI DSI
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: capacitive touch
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 164.9 × 100 × 10.8 mm |
| Active Area | 154.08 × 85.92 mm |
| Interface | MIPI DSI |
| Viewing Angle | 85/85/85/85 |
| Brightness | 450 cd/m² |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T)mm | 164.9*100*10.8mm |
| Viewing | All/IPS |
| Touch | capacitive touch |
| Screen Size | 7 inch |
Confirm resolution, display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the DSI700-V1.0I electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI DSI |
| Touch | capacitive touch |

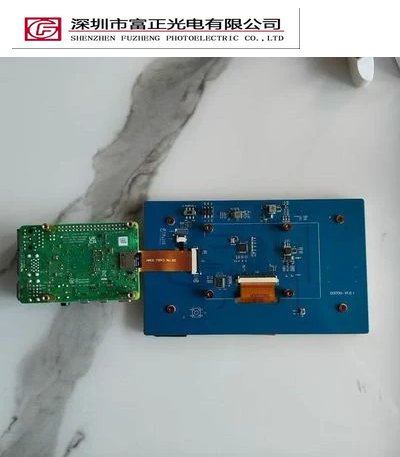

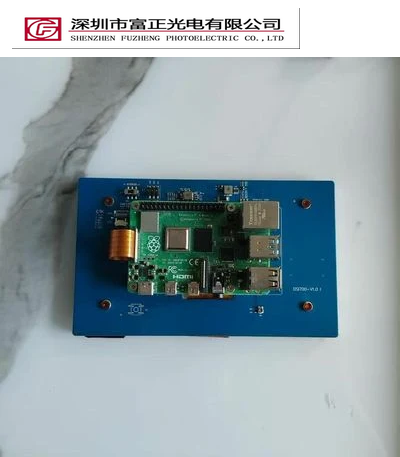

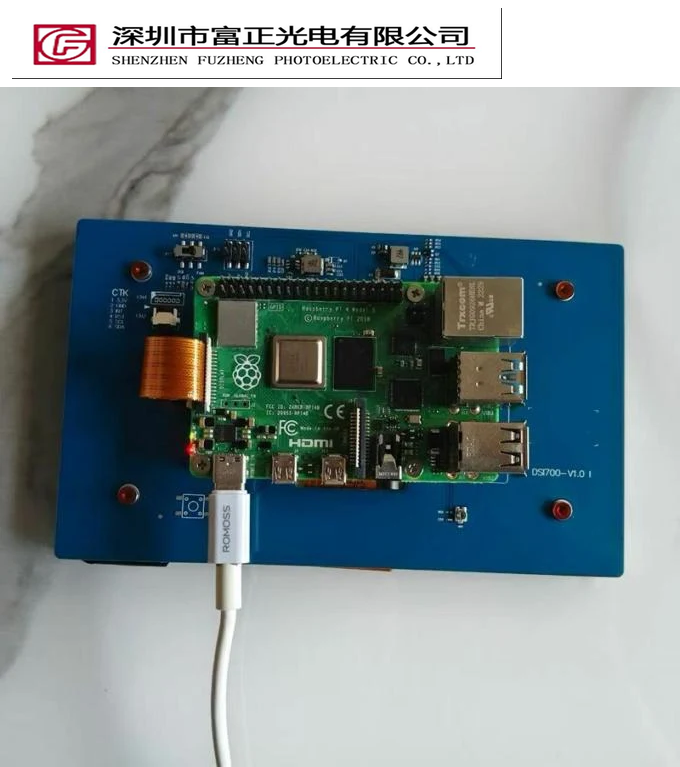

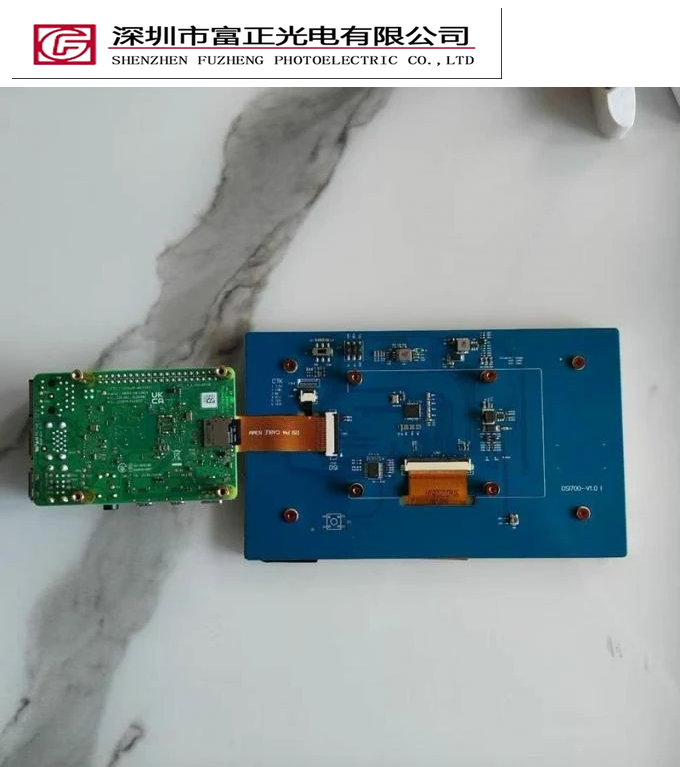

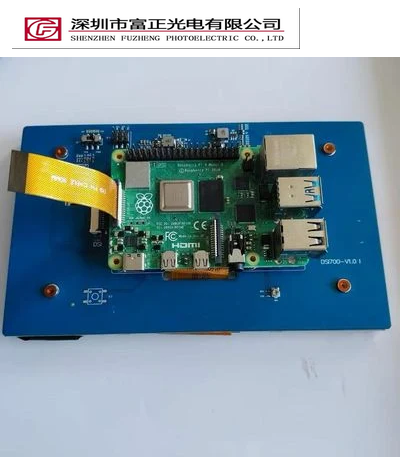

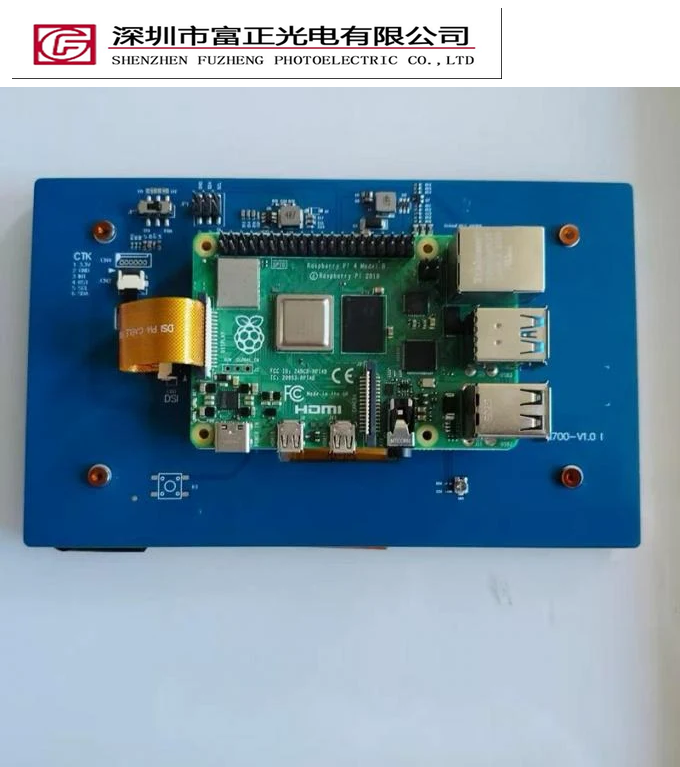

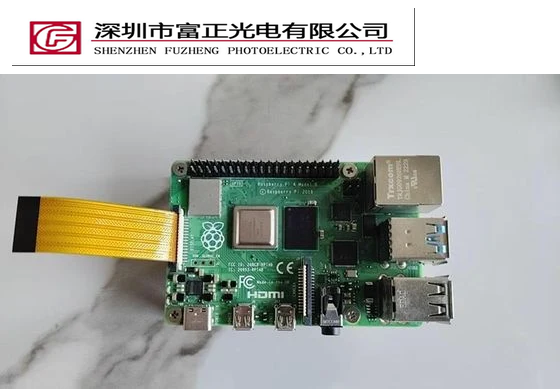

Product photographs

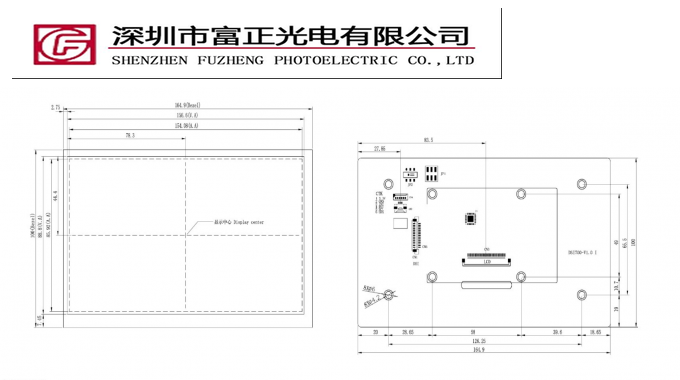

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of DSI700-V1.0I against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
DSI700-V1.0I can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check MIPI DSI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected DSI700-V1.0I configuration.
DSI700-V1.0I frequently asked questions
What specifications are listed for DSI700-V1.0I?
Module Dimensions: 164.9 × 100 × 10.8 mm; Interface: MIPI DSI; Brightness: 450 cd/m²; Operating Temperature: -20 to 70 °C; Touch: capacitive touch; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should DSI700-V1.0I connect to a host system?
DSI700-V1.0I lists a MIPI DSI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for DSI700-V1.0I?
The listed touch configuration is capacitive touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for DSI700-V1.0I?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a DSI700-V1.0I sample?
Include the model DSI700-V1.0I, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the DSI700-V1.0I reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
