Model no.DSI500-V1.0

DSI500-V1.0 5-Inch 800 × 480 HDMI TFT-LCD Display

MIPI DSI
capacitive touch
Resolution: 800 × 480 pixels
Interface: MIPI DSI
Brightness: 400 cd/m²
Touch: capacitive touch
Operating Temperature: -20 to 70 °C
Screen Size: 5 inch

Screen Size: 5 inch
Resolution: 800 × 480 pixels
Interface: MIPI DSI
Touch: Capacitive touch

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, active area, display mode against the latest approved specification before design-in.

DSI500-V1.0 product introduction

DSI500-V1.0 is a 5-inch hdmi tft-lcd display with 800 × 480 resolution and a MIPI DSI interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 400 cd/m². Touch: capacitive touch. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare DSI500-V1.0 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI DSI connection on DSI500-V1.0 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following DSI500-V1.0 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 480 pixels
Interface: MIPI DSI
Brightness: 400 cd/m²
Touch: capacitive touch
Operating Temperature: -20 to 70 °C
Screen Size: 5 inch

Technical specifications

DSI500-V1.0 technical parameters
Parameter	Value
Resolution	800 × 480 pixels
Interface	MIPI DSI
Working Temperatures	-20 To 70 Degree
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	120.7x98x12.4mm
Viewing	All/IPS
Brightness	400 cd/m²
Touch	capacitive touch
Operating Temperature	-20 to 70 °C
Screen Size	5 inch

Confirm module dimensions, active area, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the DSI500-V1.0 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

DSI500-V1.0 technical parameters
Parameter	Value
Interface	MIPI DSI
Touch	capacitive touch

Product photographs

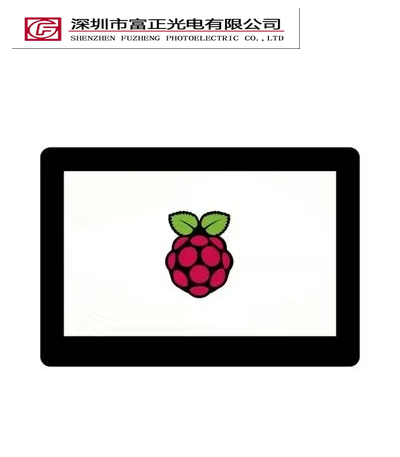

DSI500-V1.0 product view 1

DSI500-V1.0 product view 2

DSI500-V1.0 product view 3

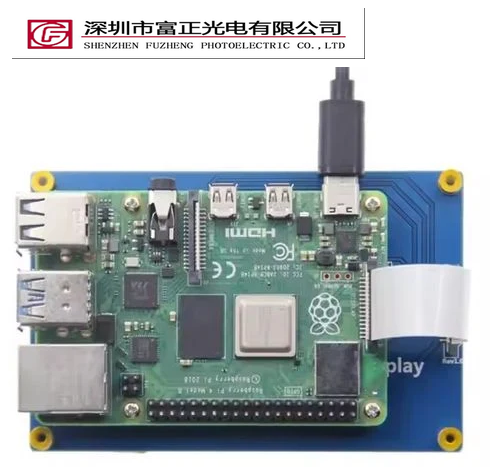

DSI500-V1.0 product view 4

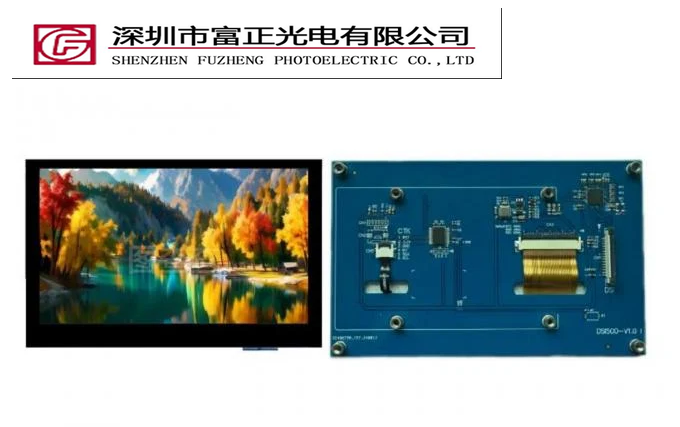

DSI500-V1.0 product view 5

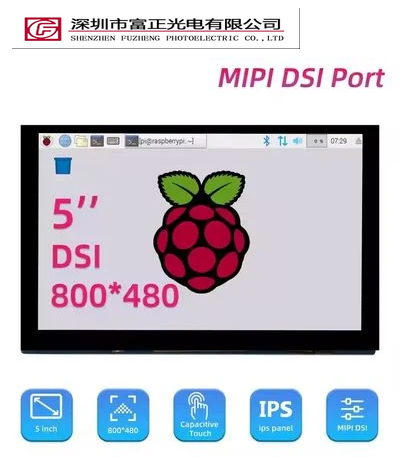

DSI500-V1.0 product view 6

Mechanical drawings & documents

Request the DSI500-V1.0 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

DSI500-V1.0 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 5-inch display format with your available viewing area, then check 800 × 480 pixel resolution, MIPI DSI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected DSI500-V1.0 configuration.

DSI500-V1.0 frequently asked questions

What specifications are listed for DSI500-V1.0?

Resolution: 800 × 480 pixels; Interface: MIPI DSI; Brightness: 400 cd/m²; Touch: capacitive touch; Operating Temperature: -20 to 70 °C; Screen Size: 5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should DSI500-V1.0 connect to a host system?

DSI500-V1.0 lists a MIPI DSI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for DSI500-V1.0?

The listed touch configuration is capacitive touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for DSI500-V1.0?

Request the mechanical drawing and electrical datasheet for DSI500-V1.0. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a DSI500-V1.0 sample?

Include the model DSI500-V1.0, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the DSI500-V1.0 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a DSI500-V1.0 quote or evaluation sample →
