EV Charging & Energy Systems Display Integration

Review display integration for EV chargers and energy systems, including brightness, touch, interface, mounting and operating-condition requirements.

Buyer advantages

Host-product context
Begin with how the equipment is used before narrowing the display format.
Prepared review checklist
Keep viewing, interface, enclosure and operating requirements in one discussion.
Relevant reference path
Compare 3 relevant display families before opening a project-specific inquiry.
Integration priorities

Requirements to review together

EV charging and energy equipment should review display size, outdoor or indoor readability, touch interaction, host interface, front-panel sealing and operating conditions together.

  • Viewing distance and interface information density
  • Brightness and reflection in the installation setting
  • Touch, cover lens and front-panel integration
  • LVDS, RGB, MIPI or HDMI host interface
  • Mounting, cable routing and operating conditions

Readability at the installation site

A charger status screen, payment workflow and energy dashboard can have different information density and viewing distances. Evaluate those actual screens in the intended installation position, with the planned cover lens and front surface. Record ambient-light conditions and reflections rather than selecting a brightness value from a catalog without context.

Touch and front-panel review

Define which interactions must remain usable at the installation site and which environmental conditions the project must demonstrate. Include the cover-lens outline, touch active area, bonding arrangement and enclosure opening in the drawing review. Display-module data alone does not establish the sealing performance of the completed charger.

Host board and service access

Confirm the available display and touch interfaces with the host-board team before selecting a module. Review connector access, cable routing, mounting and the intended replacement procedure. Carry the final enclosure, power supply and relevant operating conditions into sample evaluation.

Product-family path

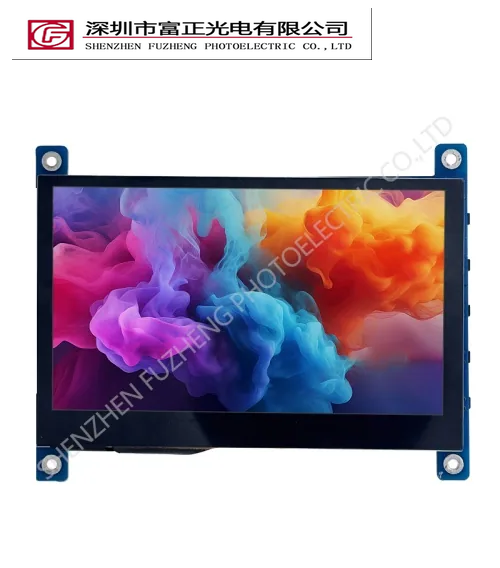

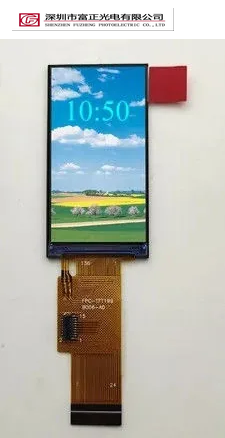

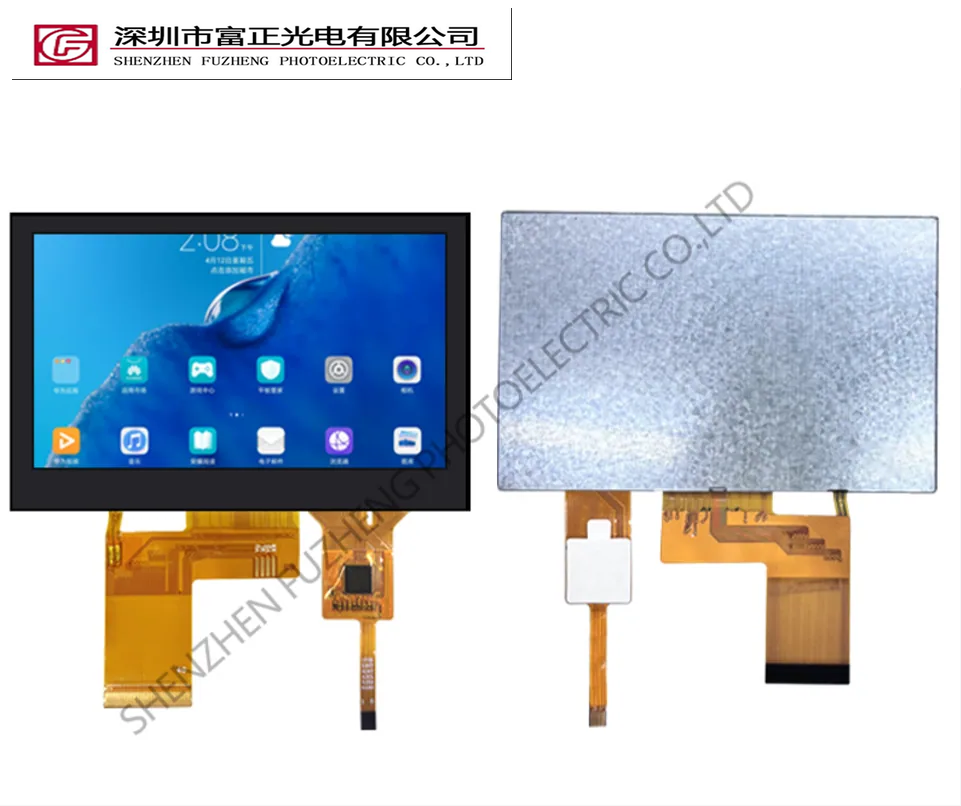

Relevant display families

From application requirements to a sample

For ev charging & energy systems, begin with the requirements above and the actual host enclosure. A reference device or a display-family listing helps narrow the discussion, but does not establish an interchangeable module or a qualified final assembly.

Prepare the engineering review

Bring the target screen layout, available enclosure dimensions, host-board interface and intended operating conditions. Separate fixed constraints from preferences so the review can identify which published modules need a closer drawing and electrical comparison.

Evaluate the complete configuration

Test the selected sample with the intended UI, front surface, power supply and touch configuration. Record the exact drawing revision and test conditions, including unresolved requirements, before approving the next project stage.

Interface compatibility checklist · Drawing and touch integration checklist

Start your project

Bring your display requirements to an engineer.

Share the target size, resolution, interface, touch, brightness, environment, quantity and project stage.
