Model no.Z40WQ01-CT
Z40WQ01-CT 3.95-Inch 480 × 480 Square TFT-LCD Display
Z40WQ01-CT is a 3.95-inch square tft-lcd display with 480 × 480 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB
- Capacitive Touch Panel
- Resolution: 480 × 480 pixels
- Module Dimensions: 84.76 × 84.76 × 3.68 mm
- Interface: RGB
- Brightness: 300 cd/m²
- Touch: Capacitive Touch Panel
- Operating Temperature: -30 to 80 °C
- Screen Size
- 3.95 inch
- Resolution
- 480 × 480 pixels
- Display Mode
- Normally black,Transmissive
- Interface
- RGB
- Touch
- Capacitive touch
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm storage temperature against the latest approved specification before design-in.
Z40WQ01-CT product introduction
Z40WQ01-CT is a 3.95-inch square tft-lcd display with 480 × 480 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The square tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 84.76 × 84.76 × 3.68 mm. Brightness: 300 cd/m². Touch: Capacitive Touch Panel. Operating Temperature: -30 to 80 °C. Use these published characteristics to compare Z40WQ01-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB connection on Z40WQ01-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z40WQ01-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 480 pixels
- Module Dimensions: 84.76 × 84.76 × 3.68 mm
- Interface: RGB
- Brightness: 300 cd/m²
- Touch: Capacitive Touch Panel
- Operating Temperature: -30 to 80 °C
- Screen Size: 3.95 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 480 pixels |
| Module Dimensions | 84.76 × 84.76 × 3.68 mm |
| Active Area | 71.86 × 70.18 mm |
| Interface | RGB |
| Viewing Angle | 80/80/80/80 |
| Driver Controller | ST7701S |
| Working Temperatures | -30℃~ +80℃ |
| Model Size (W*H*T)mm | 84.76(H) X 84.76(V) X 3.68(T) |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 300 cd/m² |
| Pin Count | 40 |
| Touch | Capacitive Touch Panel |
| Operating Temperature | -30 to 80 °C |
| Screen Size | 3.95 inch |
Confirm storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z40WQ01-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB |
| Pin Count | 40 |
| Touch | Capacitive Touch Panel |

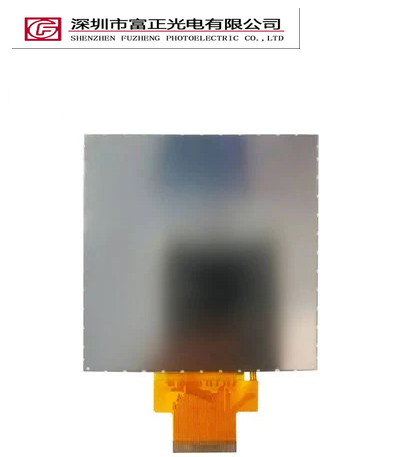

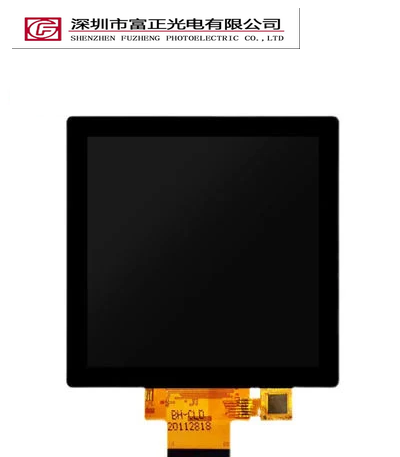

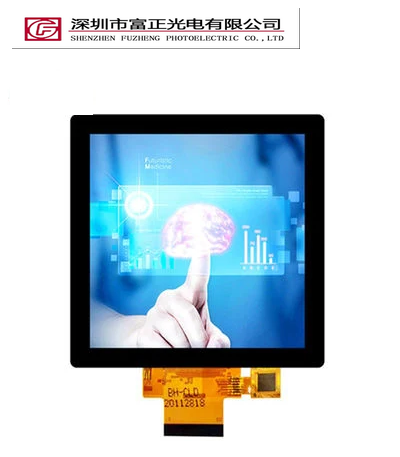

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z40WQ01-CT against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z40WQ01-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.95-inch display format with your available viewing area, then check 480 × 480 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z40WQ01-CT configuration.
Z40WQ01-CT frequently asked questions
What specifications are listed for Z40WQ01-CT?
Resolution: 480 × 480 pixels; Module Dimensions: 84.76 × 84.76 × 3.68 mm; Interface: RGB; Brightness: 300 cd/m²; Touch: Capacitive Touch Panel; Operating Temperature: -30 to 80 °C; Screen Size: 3.95 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z40WQ01-CT connect to a host system?
Z40WQ01-CT lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z40WQ01-CT?
The listed touch configuration is Capacitive Touch Panel. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z40WQ01-CT?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z40WQ01-CT sample?
Include the model Z40WQ01-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
