Model no.Z076WU01

Z076WU01 7.6-Inch 1200 × 1200 Square TFT-LCD Display

MIPI
capacitive touch Available
Resolution: 1200 × 1200 pixels
Interface: MIPI
Brightness: 1000 cd/m²
Touch: capacitive touch Available
Driver IC: ILI9881C
Screen Size: 7.6 inch

Screen Size: 7.6 inch
Resolution: 1200 × 1200 pixels
Display Mode: Normally black
Interface: MIPI
Touch: Capacitive touch
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, operating temperature, storage temperature against the latest approved specification before design-in.

Z076WU01 product introduction

Z076WU01 is a 7.6-inch square tft-lcd display with 1200 × 1200 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The square tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 1000 cd/m². Touch: capacitive touch Available. Driver IC: ILI9881C. Use these published characteristics to compare Z076WU01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on Z076WU01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z076WU01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1200 × 1200 pixels
Interface: MIPI
Brightness: 1000 cd/m²
Touch: capacitive touch Available
Driver IC: ILI9881C
Screen Size: 7.6 inch

Technical specifications

Z076WU01 technical parameters
Parameter	Value
Resolution	1200 × 1200 pixels
Active Area	135.36 × 135.36 mm
Interface	MIPI
Viewing Angle	85/85/85/85
Brightness	1000 cd/m²
Display Mode	Normally Black
Touch	capacitive touch Available
Dimensional outline	142.56X148.14X5.1mm
Driver IC	ILI9881C
Viewing Direction	Free
Screen Size	7.6 inch

Confirm module dimensions, operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z076WU01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z076WU01 technical parameters
Parameter	Value
Interface	MIPI
Touch	capacitive touch Available
Driver IC	ILI9881C

Product photographs

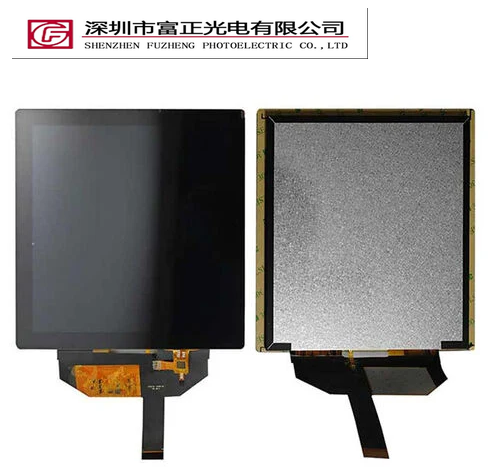

Z076WU01 product view 1

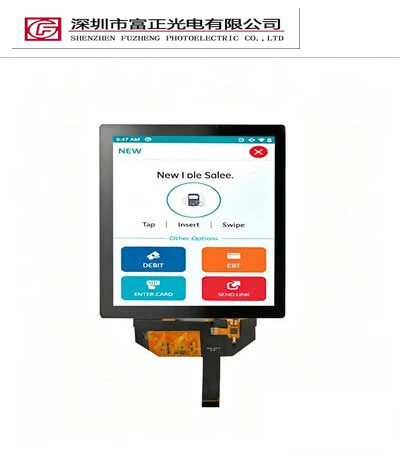

Z076WU01 product view 2

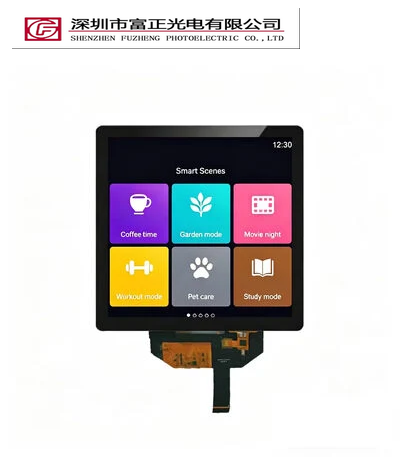

Z076WU01 product view 3

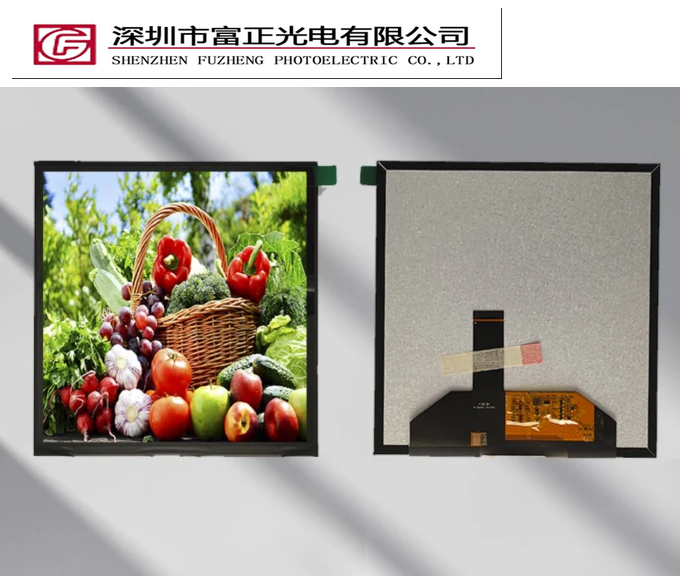

Z076WU01 product view 4

Z076WU01 product view 5

Mechanical drawings & documents

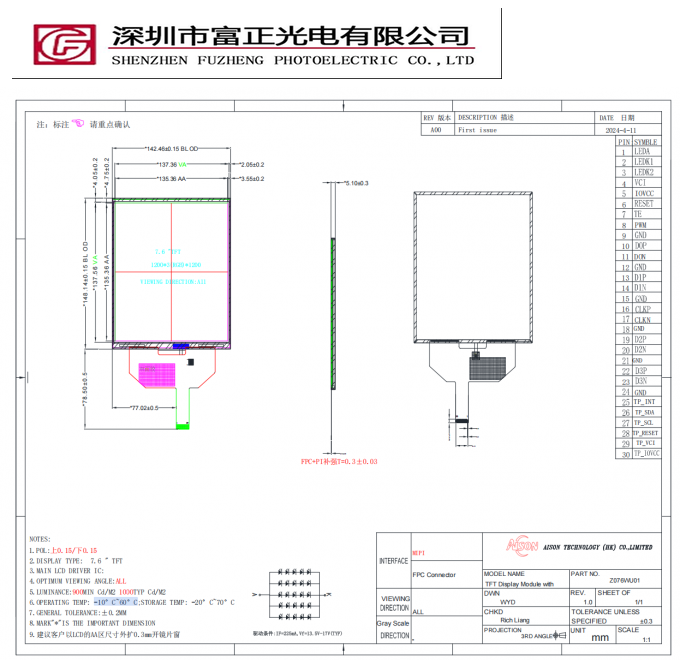

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z076WU01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z076WU01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7.6-inch display format with your available viewing area, then check 1200 × 1200 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z076WU01 configuration.

Z076WU01 frequently asked questions

What specifications are listed for Z076WU01?

Resolution: 1200 × 1200 pixels; Interface: MIPI; Brightness: 1000 cd/m²; Touch: capacitive touch Available; Driver IC: ILI9881C; Screen Size: 7.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z076WU01 connect to a host system?

Z076WU01 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z076WU01?

The listed touch configuration is capacitive touch Available. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for Z076WU01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z076WU01 sample?

Include the model Z076WU01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
