Model no.Z076-30MB-B1
Z076-30MB-B1 7.6-Inch 800 × 800 Square TFT-LCD Display
Z076-30MB-B1 is a 7.6-inch square tft-lcd display with 800 × 800 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI
- PCAP Available
- Resolution: 800 × 800 pixels
- Module Dimensions: 142.56 × 148.24 × 5.1 mm
- Interface: MIPI
- Brightness: 1000 cd/m²
- Driver IC: ILI9881C
- Touch: PCAP Available
- Screen Size
- 7.6 inch
- Resolution
- 800 × 800 pixels
- Interface
- MIPI
- Touch
- PCAP Available
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm operating temperature against the latest approved specification before design-in.
Z076-30MB-B1 product introduction
Z076-30MB-B1 is a 7.6-inch square tft-lcd display with 800 × 800 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The square tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 142.56 × 148.24 × 5.1 mm. Brightness: 1000 cd/m². Driver IC: ILI9881C. Touch: PCAP Available. Use these published characteristics to compare Z076-30MB-B1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI connection on Z076-30MB-B1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z076-30MB-B1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 800 pixels
- Module Dimensions: 142.56 × 148.24 × 5.1 mm
- Interface: MIPI
- Brightness: 1000 cd/m²
- Driver IC: ILI9881C
- Touch: PCAP Available
- Screen Size: 7.6 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 800 pixels |
| Module Dimensions | 142.56 × 148.24 × 5.1 mm |
| Active Area | 135.36 × 135.36 mm |
| Interface | MIPI |
| Viewing Angle | 80/80/80/80 |
| Brightness | 1000 cd/m² |
| Driver IC | ILI9881C |
| Touch | PCAP Available |
| Dimensional outline | 142.56 (H)*148.24 (V)*5.1(D) |
| Viewing Direction | Free |
| Storage Temperature | -30°C to 75 °C |
| Screen Size | 7.6 inch |
Confirm operating temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z076-30MB-B1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI |
| Driver IC | ILI9881C |
| Touch | PCAP Available |

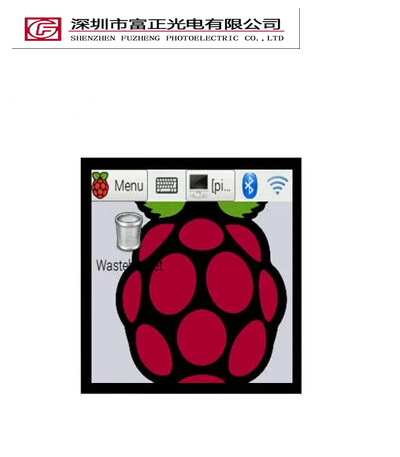

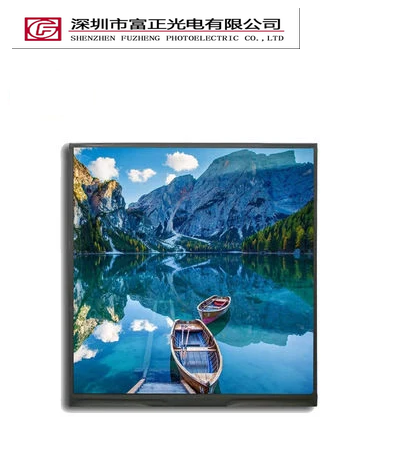

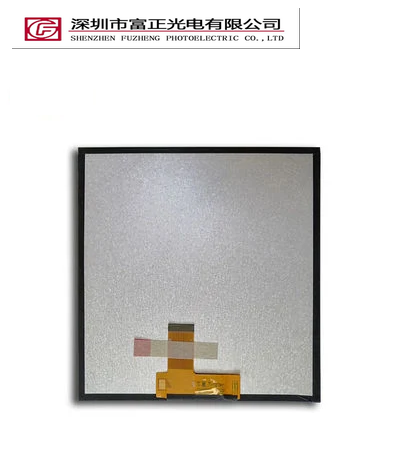

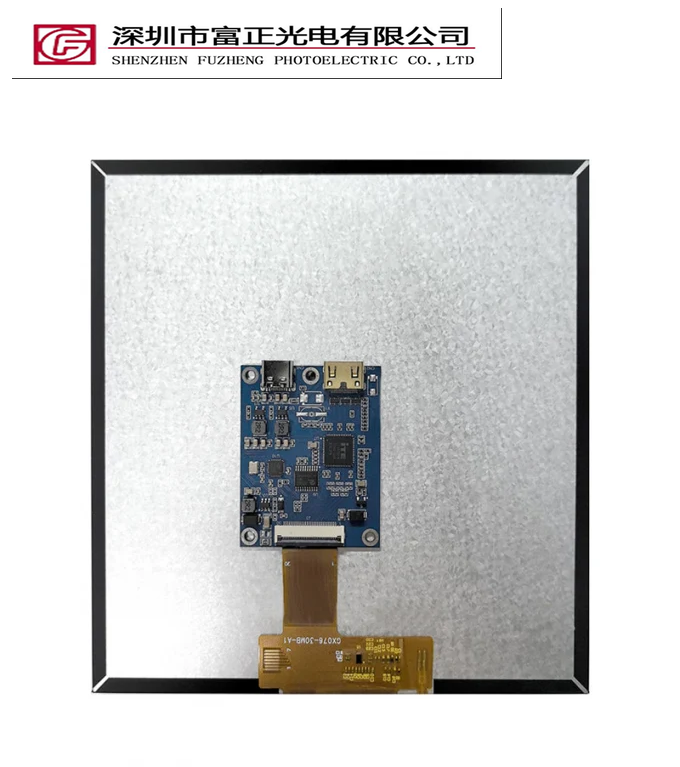

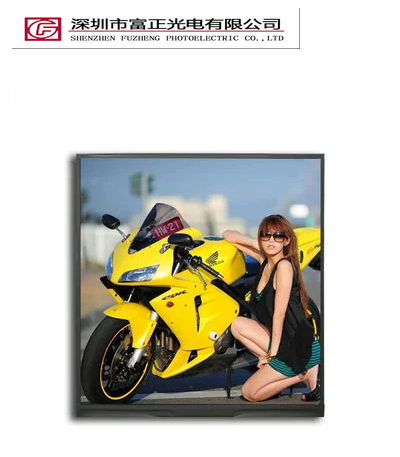

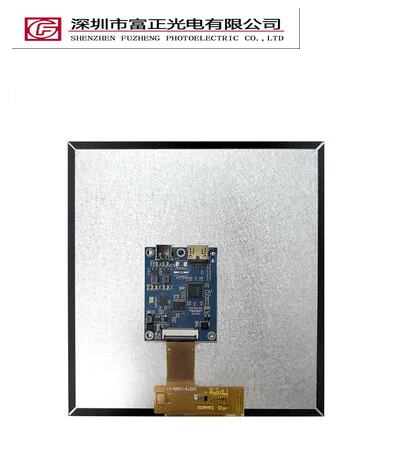

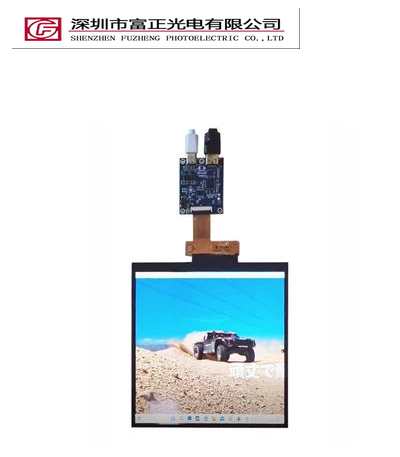

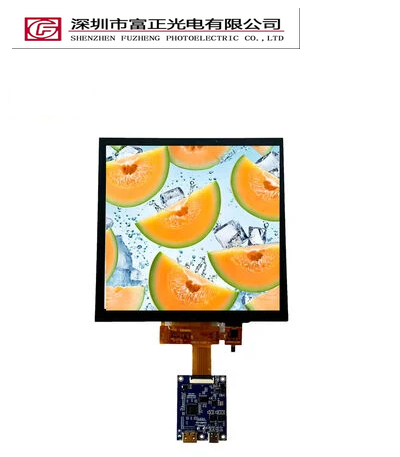

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z076-30MB-B1 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z076-30MB-B1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7.6-inch display format with your available viewing area, then check 800 × 800 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z076-30MB-B1 configuration.
Z076-30MB-B1 frequently asked questions
What specifications are listed for Z076-30MB-B1?
Resolution: 800 × 800 pixels; Module Dimensions: 142.56 × 148.24 × 5.1 mm; Interface: MIPI; Brightness: 1000 cd/m²; Driver IC: ILI9881C; Touch: PCAP Available; Screen Size: 7.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z076-30MB-B1 connect to a host system?
Z076-30MB-B1 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z076-30MB-B1?
The listed touch configuration is PCAP Available. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z076-30MB-B1?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z076-30MB-B1 sample?
Include the model Z076-30MB-B1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z076-30MB-B1 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
