Model no.Z076-30MB-B1

Z076-30MB-B1 7.6-Inch 1200 × 1200 Square TFT-LCD Display

MIPI
Resolution: 1200 × 1200 pixels
Interface: MIPI
Brightness: 1000 cd/m²
Driver IC: ILI9881C
Screen Size: 7.6 inch

Screen Size: 7.6 inch
Resolution: 1200 × 1200 pixels
Display Mode: Normally black
Interface: MIPI
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, operating temperature, storage temperature against the latest approved specification before design-in.

Z076-30MB-B1 product introduction

Z076-30MB-B1 is a 7.6-inch square tft-lcd display with 1200 × 1200 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The square tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 1000 cd/m². Driver IC: ILI9881C. Use these published characteristics to compare Z076-30MB-B1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on Z076-30MB-B1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z076-30MB-B1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1200 × 1200 pixels
Interface: MIPI
Brightness: 1000 cd/m²
Driver IC: ILI9881C
Screen Size: 7.6 inch

Technical specifications

Z076-30MB-B1 technical parameters
Parameter	Value
Resolution	1200 × 1200 pixels
Active Area	135.36 × 135.36 mm
Interface	MIPI
Viewing Angle	80/80/80/80
Brightness	1000 cd/m²
Display Mode	Normally Black
Driver IC	ILI9881C
Dimensional outline	142.56 (H)148.24 (V)5.1(D)
Viewing Direction	Normally Black
Screen Size	7.6 inch

Confirm module dimensions, operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z076-30MB-B1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z076-30MB-B1 technical parameters
Parameter	Value
Interface	MIPI
Driver IC	ILI9881C

Product photographs

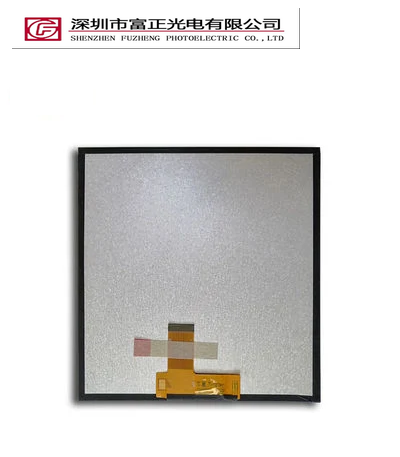

Z076-30MB-B1 product view 1

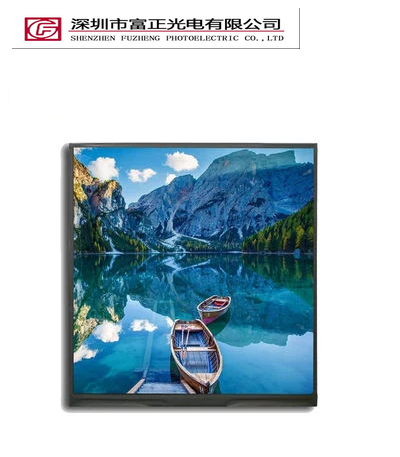

Z076-30MB-B1 product view 2

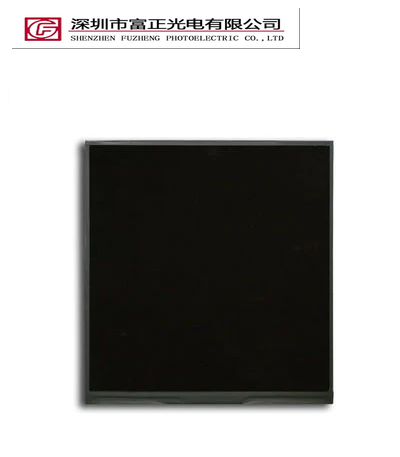

Z076-30MB-B1 product view 3

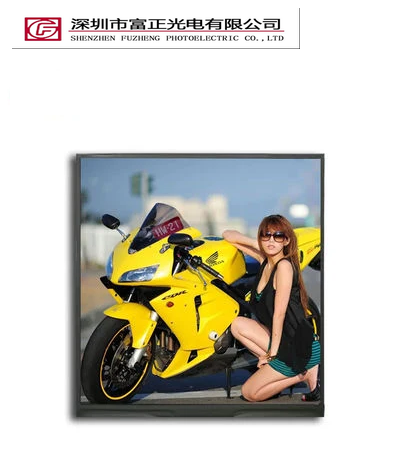

Z076-30MB-B1 product view 4

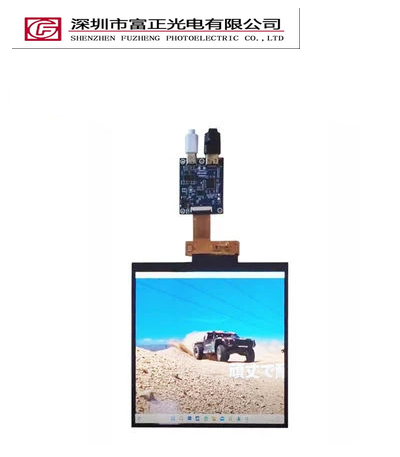

Z076-30MB-B1 product view 5

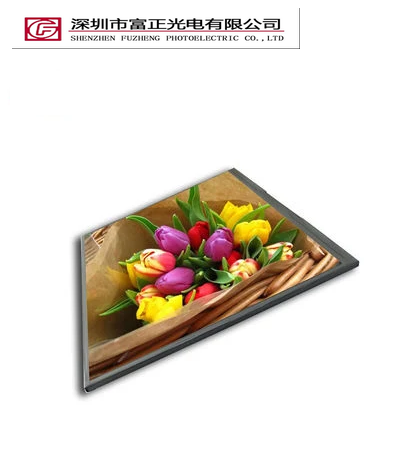

Z076-30MB-B1 product view 6

Z076-30MB-B1 product view 7

Z076-30MB-B1 product view 8

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z076-30MB-B1 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z076-30MB-B1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7.6-inch display format with your available viewing area, then check 1200 × 1200 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z076-30MB-B1 configuration.

Z076-30MB-B1 frequently asked questions

What specifications are listed for Z076-30MB-B1?

Resolution: 1200 × 1200 pixels; Interface: MIPI; Brightness: 1000 cd/m²; Driver IC: ILI9881C; Screen Size: 7.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z076-30MB-B1 connect to a host system?

Z076-30MB-B1 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z076-30MB-B1?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z076-30MB-B1 so the exact assembly can be reviewed.

Where can I find the drawing for Z076-30MB-B1?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z076-30MB-B1 sample?

Include the model Z076-30MB-B1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
