Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z040-40RH-A1
Z040-40RH-A1 4-Inch 480 × 480 Square TFT-LCD Display — Ref 52731494
Z040-40RH-A1 is a 4-inch square tft-lcd display with 480 × 480 resolution and a 3SPI+RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 3SPI+RGB
- Capacitive Touch Panel
- Resolution: 480 × 480 pixels
- Module Dimensions: 84 × 84 × 3.05 mm
- Interface: 3SPI+RGB
- Brightness: 400 cd/m²
- Touch: Capacitive Touch Panel
- Operating Temperature: -20 to 70 °C
- Screen Size
- 4 inch
- Resolution
- 480 × 480 pixels
- Interface
- 3SPI+RGB
- Touch
- Capacitive touch
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
Z040-40RH-A1 product introduction
Z040-40RH-A1 is a 4-inch square tft-lcd display with 480 × 480 resolution and a 3SPI+RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The square tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 84 × 84 × 3.05 mm. Brightness: 400 cd/m². Touch: Capacitive Touch Panel. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z040-40RH-A1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 3SPI+RGB connection on Z040-40RH-A1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z040-40RH-A1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 480 pixels
- Module Dimensions: 84 × 84 × 3.05 mm
- Interface: 3SPI+RGB
- Brightness: 400 cd/m²
- Touch: Capacitive Touch Panel
- Operating Temperature: -20 to 70 °C
- Screen Size: 4 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 480 pixels |
| Module Dimensions | 84 × 84 × 3.05 mm |
| Interface | 3SPI+RGB |
| Touch Driver IC | FT6336U |
| LCD Display Driver IC | ST7701S |
| Model Size (W*H*T) | 84*84*3.05 mm |
| Active Area | 71.86 × 70.18 mm |
| Viewing | All/IPS |
| Brightness | 400 cd/m² |
| Pin Count | 40 |
| Touch | Capacitive Touch Panel |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 4 inch |
Confirm display mode against the latest approved module specification before design-in.

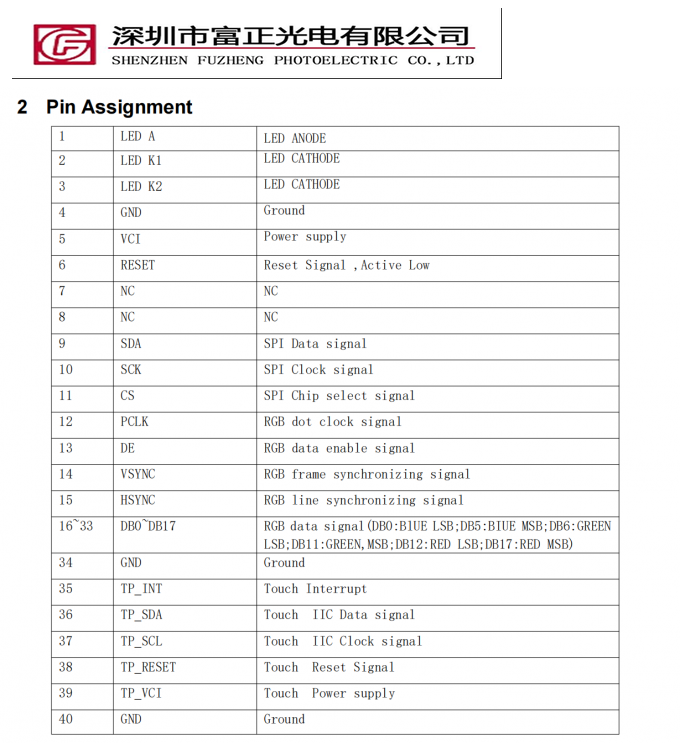

Interface & pin definition
Use the Z040-40RH-A1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 3SPI+RGB |
| Pin Count | 40 |
| Touch | Capacitive Touch Panel |

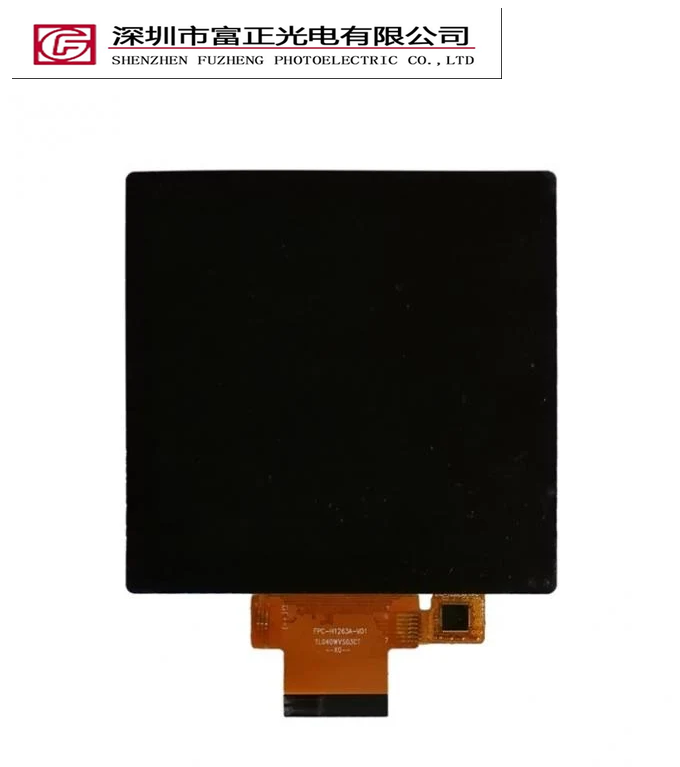

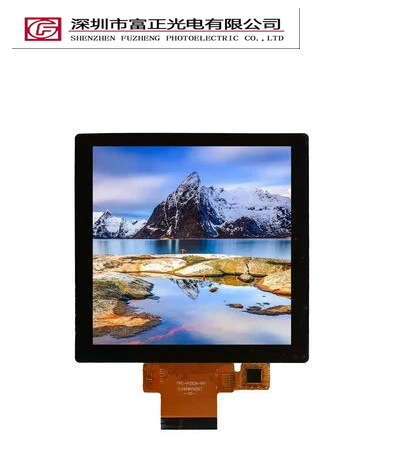

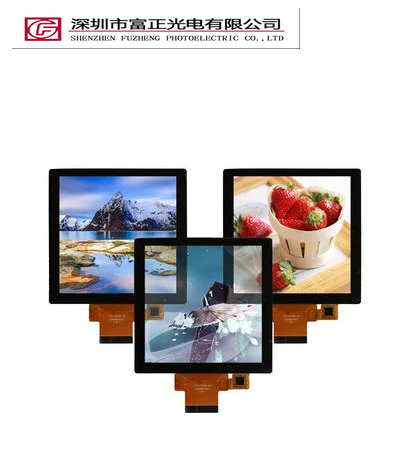

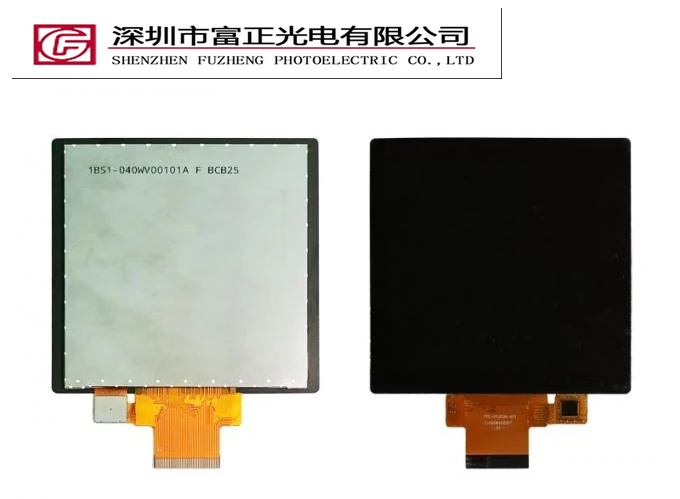

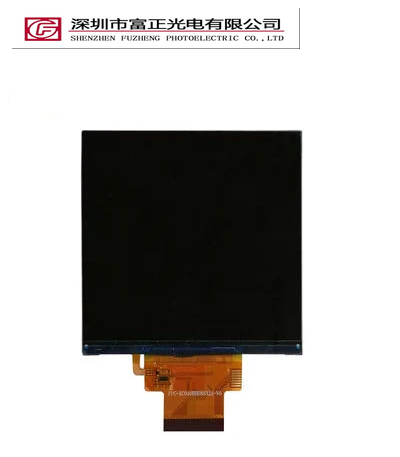

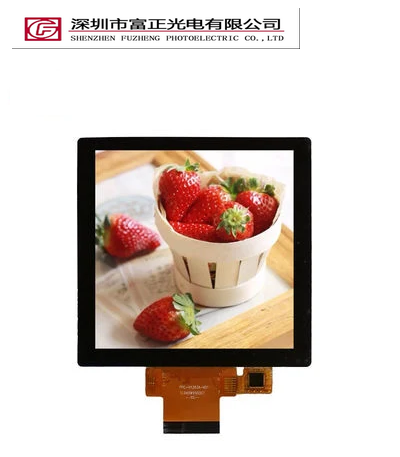

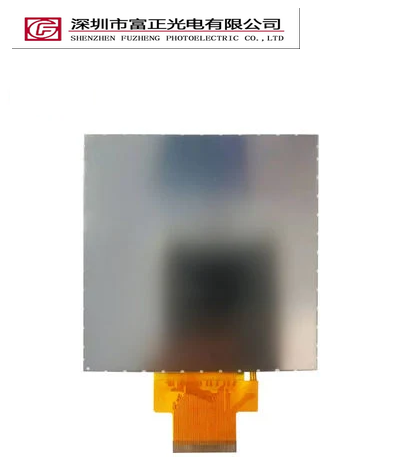

Product photographs

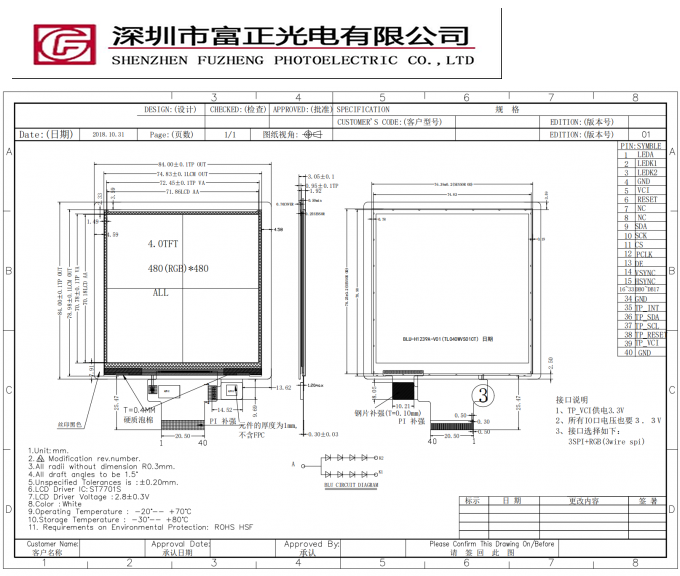

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z040-40RH-A1 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z040-40RH-A1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4-inch display format with your available viewing area, then check 480 × 480 pixel resolution, 3SPI+RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z040-40RH-A1 configuration.
Z040-40RH-A1 frequently asked questions
What specifications are listed for Z040-40RH-A1?
Resolution: 480 × 480 pixels; Module Dimensions: 84 × 84 × 3.05 mm; Interface: 3SPI+RGB; Brightness: 400 cd/m²; Touch: Capacitive Touch Panel; Operating Temperature: -20 to 70 °C; Screen Size: 4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z040-40RH-A1 connect to a host system?
Z040-40RH-A1 lists a 3SPI+RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z040-40RH-A1?
The listed touch configuration is Capacitive Touch Panel. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z040-40RH-A1?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z040-40RH-A1 sample?
Include the model Z040-40RH-A1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z040-40RH-A1 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
