Model no.Z0395003C30
Z0395003C30 3.95-Inch 720 × 720 Square TFT-LCD Display
Z0395003C30 is a 3.95-inch square tft-lcd display with 720 × 720 resolution and a MIPI 4 LANE interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI 4 LANE
- Capacitive Touch Panel Optional
- Resolution: 720 × 720 pixels
- Module Dimensions: 84.2(L)*84.2 × 3.12 mm
- Interface: MIPI 4 LANE
- Brightness: 300 cd/m²
- Driver IC: FL7707N
- Touch: Capacitive Touch Panel Optional
- Screen Size
- 3.95 inch
- Resolution
- 720 × 720 pixels
- Interface
- MIPI 4 LANE
- Touch
- Capacitive touch
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm display mode, operating temperature, storage temperature against the latest approved specification before design-in.
Z0395003C30 product introduction
Z0395003C30 is a 3.95-inch square tft-lcd display with 720 × 720 resolution and a MIPI 4 LANE interface. Review the module specifications, product images and integration requirements before requesting a sample. The square tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 84.2(L)*84.2 × 3.12 mm. Brightness: 300 cd/m². Driver IC: FL7707N. Touch: Capacitive Touch Panel Optional. Use these published characteristics to compare Z0395003C30 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI 4 LANE connection on Z0395003C30 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z0395003C30 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 720 × 720 pixels
- Module Dimensions: 84.2(L)*84.2 × 3.12 mm
- Interface: MIPI 4 LANE
- Brightness: 300 cd/m²
- Driver IC: FL7707N
- Touch: Capacitive Touch Panel Optional
- Screen Size: 3.95 inch

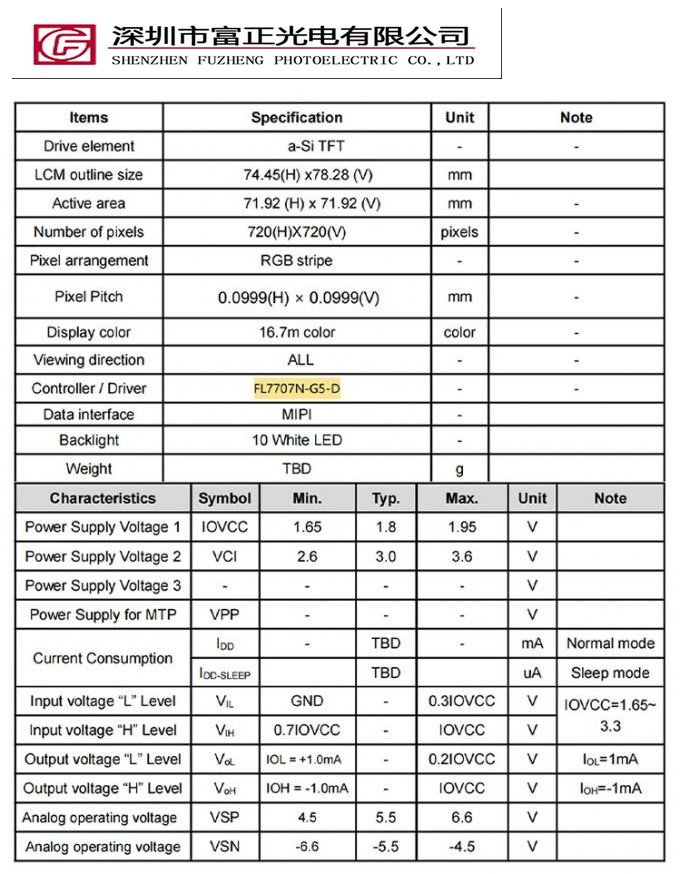

Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 720 × 720 pixels |
| Module Dimensions | 84.2(L)*84.2 × 3.12 mm |
| Active Area | 71.93 × 71.93 mm |
| Interface | MIPI 4 LANE |
| Viewing Angle | 85/85/85/85 |
| Brightness | 300 cd/m² |
| Driver IC | FL7707N |
| Model Size (W*H*T) | 74.83x78.98x2.59mm |
| Viewing | All/IPS |
| Pin Count | 30 |
| Touch | Capacitive Touch Panel Optional |
| Screen Size | 3.95 inch |
Confirm display mode, operating temperature, storage temperature against the latest approved module specification before design-in.

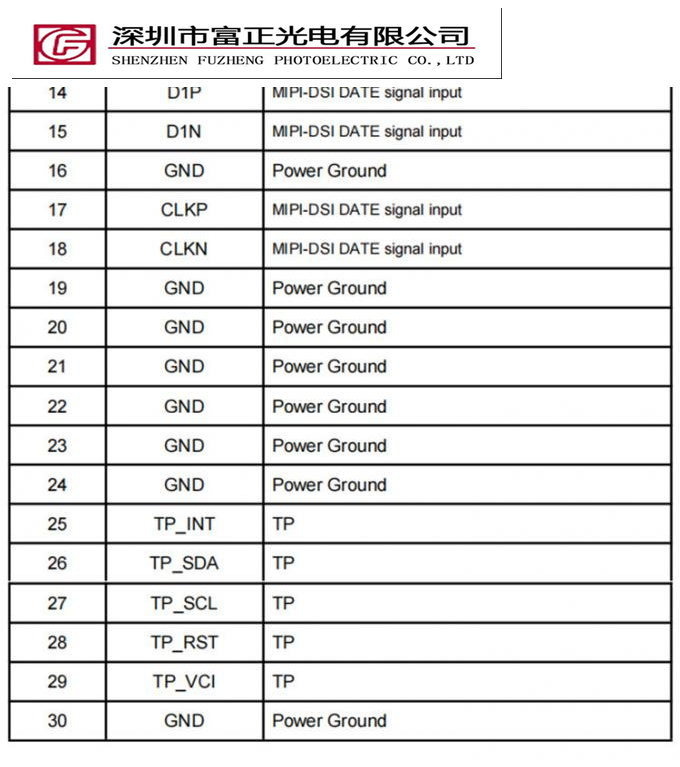

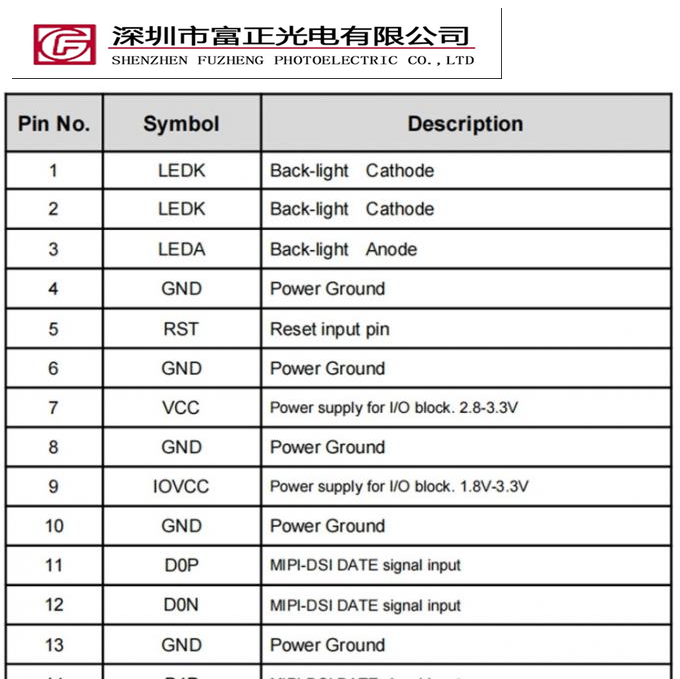

Interface & pin definition
Use the Z0395003C30 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI 4 LANE |
| Driver IC | FL7707N |
| Pin Count | 30 |
| Touch | Capacitive Touch Panel Optional |

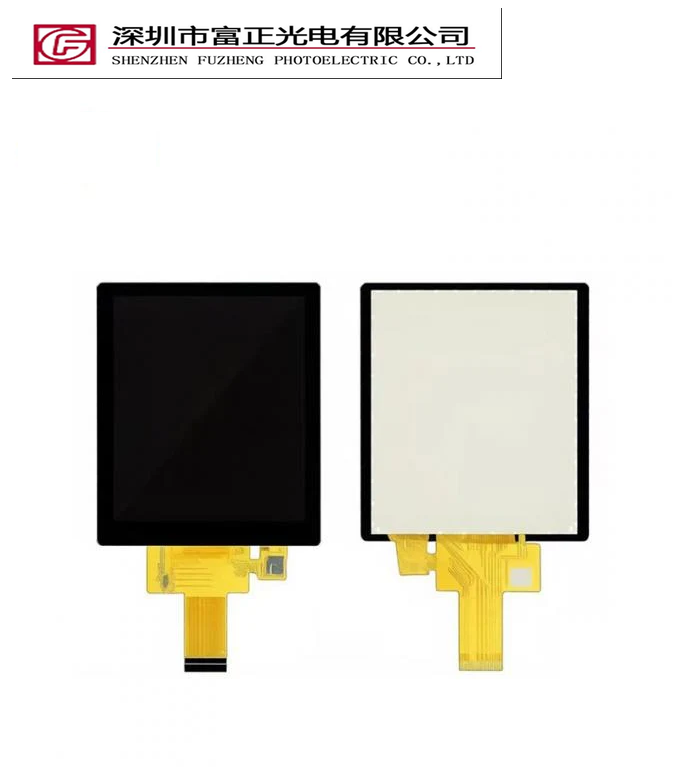

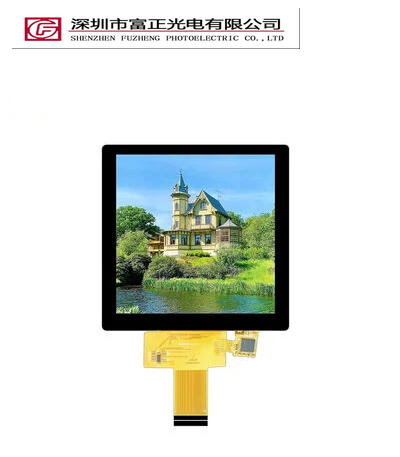

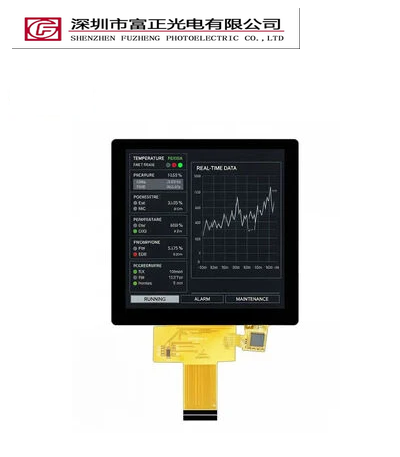

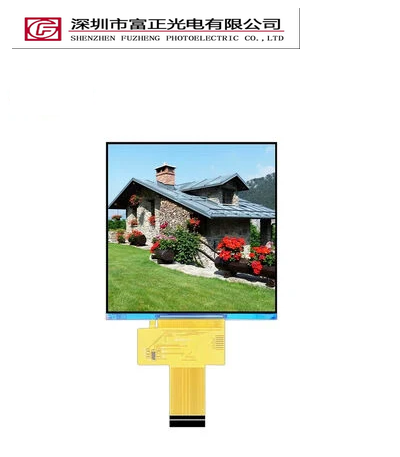

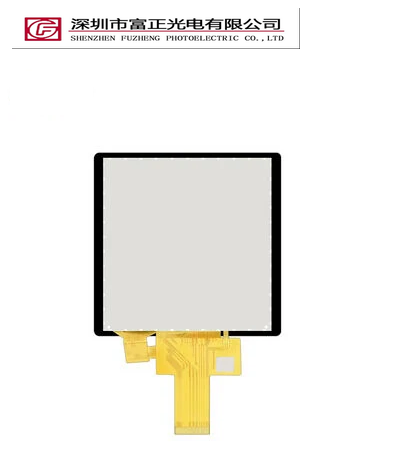

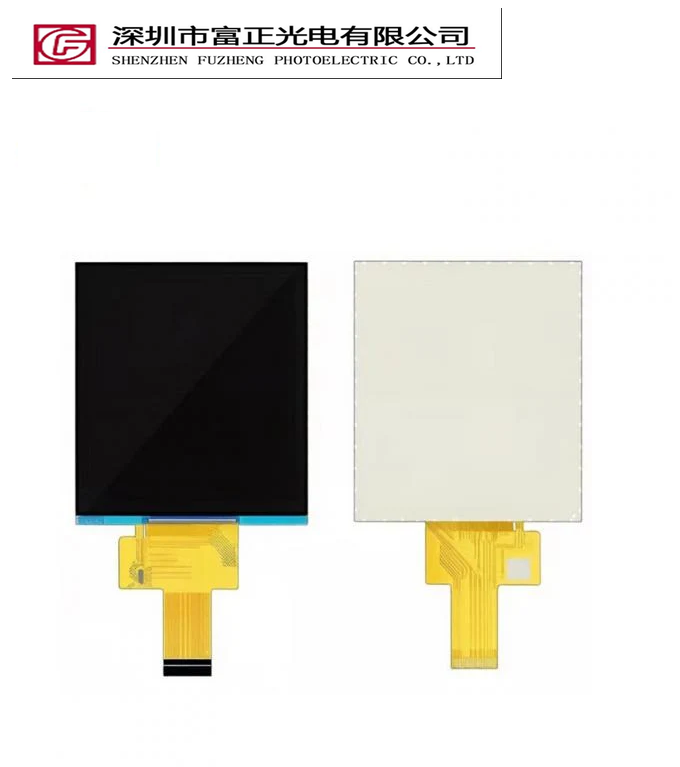

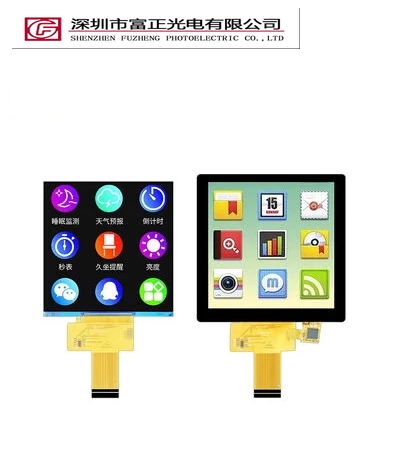

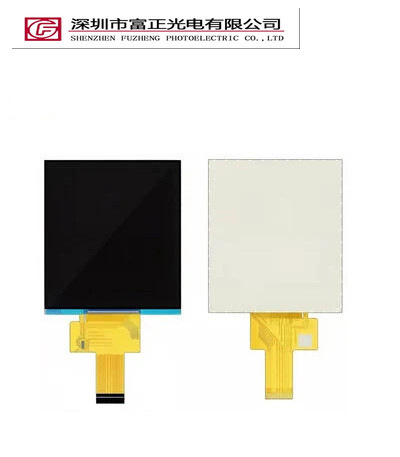

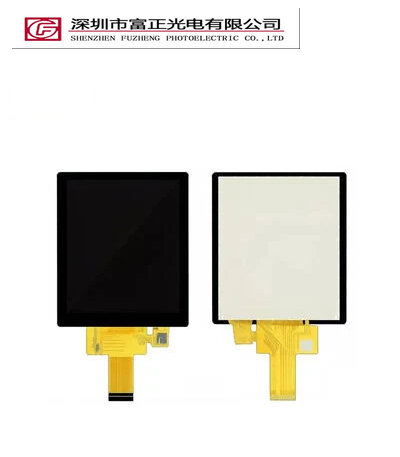

Product photographs

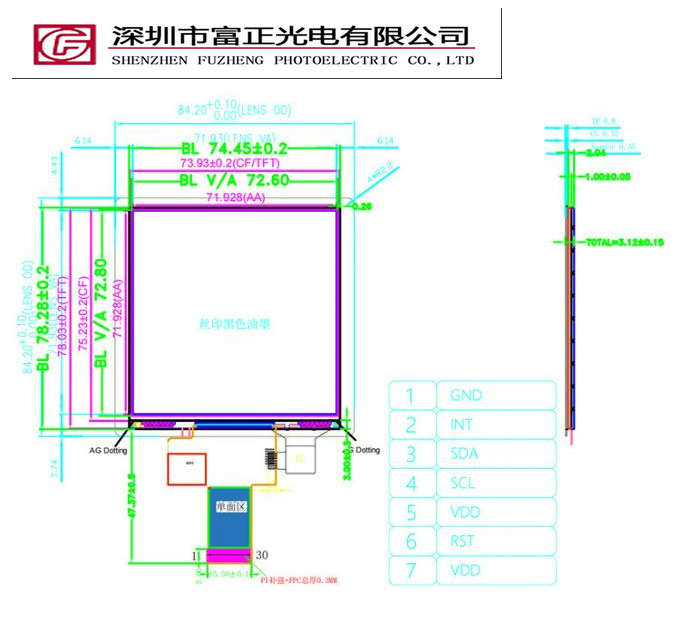

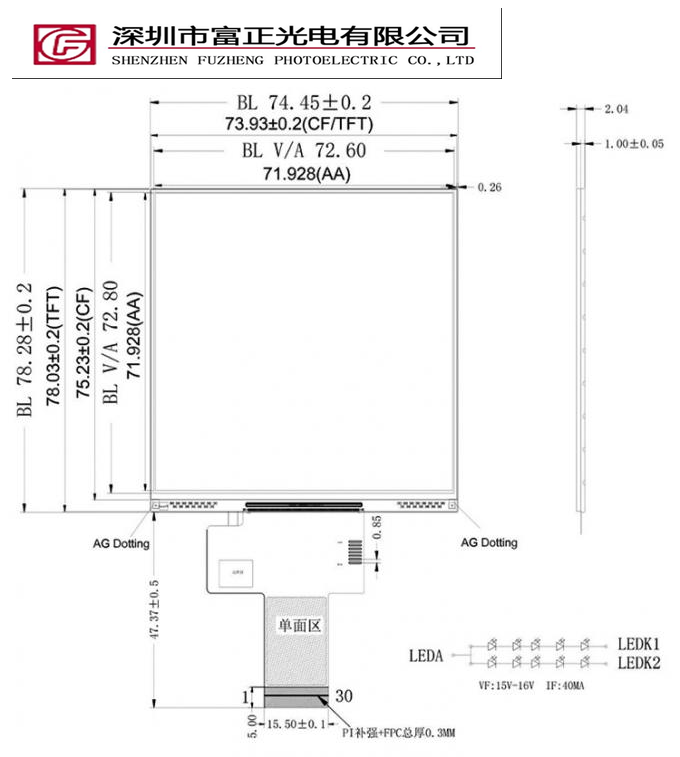

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z0395003C30 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z0395003C30 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.95-inch display format with your available viewing area, then check 720 × 720 pixel resolution, MIPI 4 LANE host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0395003C30 configuration.
Z0395003C30 frequently asked questions
What specifications are listed for Z0395003C30?
Resolution: 720 × 720 pixels; Module Dimensions: 84.2(L)*84.2 × 3.12 mm; Interface: MIPI 4 LANE; Brightness: 300 cd/m²; Driver IC: FL7707N; Touch: Capacitive Touch Panel Optional; Screen Size: 3.95 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z0395003C30 connect to a host system?
Z0395003C30 lists a MIPI 4 LANE interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z0395003C30?
The listed touch configuration is Capacitive Touch Panel Optional. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z0395003C30?
The drawing section contains 5 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z0395003C30 sample?
Include the model Z0395003C30, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
