Model no.Z050YMM-J40-68P0C
Z050YMM-J40-68P0C 5-Inch 1080 × 1080 Round TFT-LCD Display — Ref 52161182
Z050YMM-J40-68P0C is a 5-inch round tft-lcd display with 1080 × 1080 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 1080 × 1080 pixels
- Module Dimensions: 148.1 × 148.1 × 3.205 mm
- Operating Temperature: -20 to 70 °C
- Screen Size: 5 inch
- Screen Size
- 5 inch
- Resolution
- 1080 × 1080 pixels
- Display Mode
- Normally black
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm interface against the latest approved specification before design-in.
Z050YMM-J40-68P0C product introduction
Z050YMM-J40-68P0C is a 5-inch round tft-lcd display with 1080 × 1080 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 148.1 × 148.1 × 3.205 mm. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z050YMM-J40-68P0C with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z050YMM-J40-68P0C. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z050YMM-J40-68P0C attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1080 × 1080 pixels
- Module Dimensions: 148.1 × 148.1 × 3.205 mm
- Operating Temperature: -20 to 70 °C
- Screen Size: 5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1080 × 1080 pixels |
| Module Dimensions | 148.1 × 148.1 × 3.205 mm |
| Viewing Area | 127.01 (H) *127.01 (V)mm |
| Display Mode | Normally Black |
| Active Area | 127.01 × 127.01 mm |
| LCM (W x H x D) | 148.1*148.1*3.205mm |
| LCD Driver IC | HX8399C |
| CTP Driver IC | GT911 |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1300:1 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 5 inch |
Confirm interface against the latest approved module specification before design-in.
Interface & pin definition
Use the Z050YMM-J40-68P0C electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|

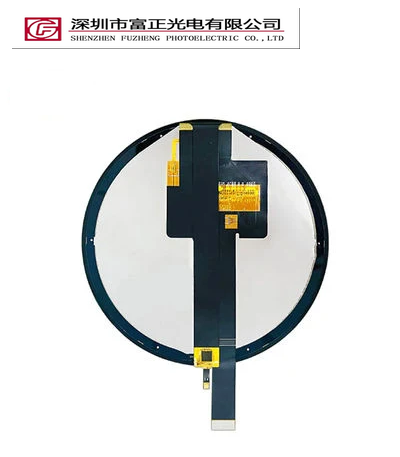

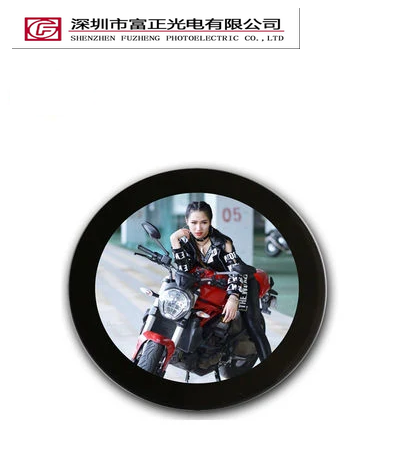

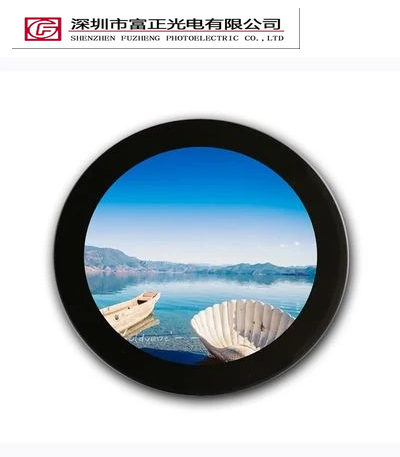

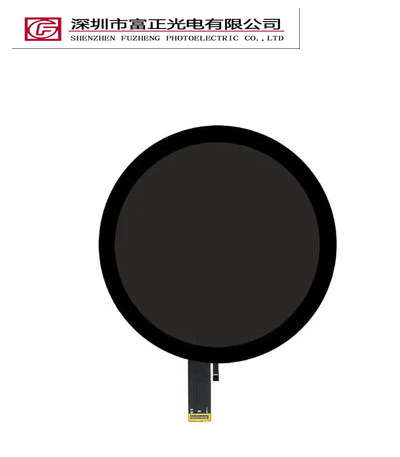

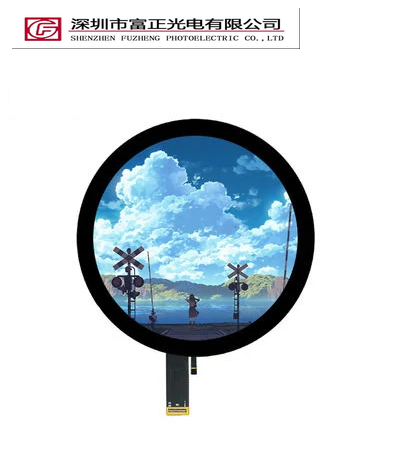

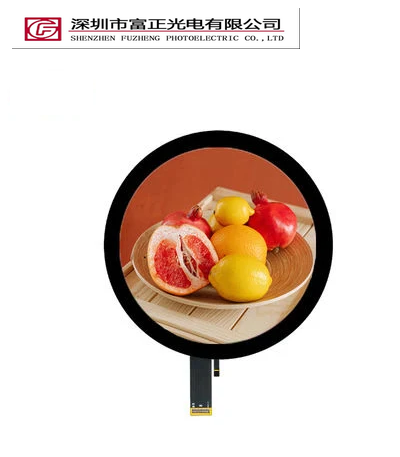

Product photographs
Mechanical drawings & documents
Request the Z050YMM-J40-68P0C mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z050YMM-J40-68P0C can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5-inch display format with your available viewing area, then check 1080 × 1080 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z050YMM-J40-68P0C configuration.
Z050YMM-J40-68P0C frequently asked questions
What specifications are listed for Z050YMM-J40-68P0C?
Resolution: 1080 × 1080 pixels; Module Dimensions: 148.1 × 148.1 × 3.205 mm; Operating Temperature: -20 to 70 °C; Screen Size: 5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z050YMM-J40-68P0C connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z050YMM-J40-68P0C?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z050YMM-J40-68P0C so the exact assembly can be reviewed.
Where can I find the drawing for Z050YMM-J40-68P0C?
Request the mechanical drawing and electrical datasheet for Z050YMM-J40-68P0C. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z050YMM-J40-68P0C sample?
Include the model Z050YMM-J40-68P0C, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
