Model no.Z040WX-B30MPY
Z040WX-B30MPY 4-Inch 720 × 720 Round TFT-LCD Display — Ref 51811938
Z040WX-B30MPY is a 4-inch round tft-lcd display with 720 × 720 resolution and a 4 LANE MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 4 LANE MIPI
- Resolution: 720 × 720 pixels
- Interface: 4 LANE MIPI
- Operating Temperature: -20°C to +70 °C
- Module Dimensions: 105.6 × 109.565 × 2.2 mm
- Screen Size: 4 inch
- Screen Size
- 4 inch
- Resolution
- 720 × 720 pixels
- Display Mode
- TFT,Normally black
- Interface
- 4 LANE MIPI
- Viewing Angle
- 80/80/80/80
Z040WX-B30MPY product introduction
Z040WX-B30MPY is a 4-inch round tft-lcd display with 720 × 720 resolution and a 4 LANE MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Operating Temperature: -20°C to +70 °C. Module Dimensions: 105.6 × 109.565 × 2.2 mm. Use these published characteristics to compare Z040WX-B30MPY with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 4 LANE MIPI connection on Z040WX-B30MPY should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z040WX-B30MPY attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 720 × 720 pixels
- Interface: 4 LANE MIPI
- Operating Temperature: -20°C to +70 °C
- Module Dimensions: 105.6 × 109.565 × 2.2 mm
- Screen Size: 4 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 720 × 720 pixels |
| Interface | 4 LANE MIPI |
| Display Mode | TFT,Normally Black |
| Operating Temperature | -20°C to +70 °C |
| Viewing Angle | 80/80/80/80 |
| Active Area | 101.52 × 101.52 mm |
| Module Dimensions | 105.6 × 109.565 × 2.2 mm |
| Viewing Direction | IPS/ALL |
| Screen Size | 4 inch |
Interface & pin definition
Use the Z040WX-B30MPY electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 4 LANE MIPI |

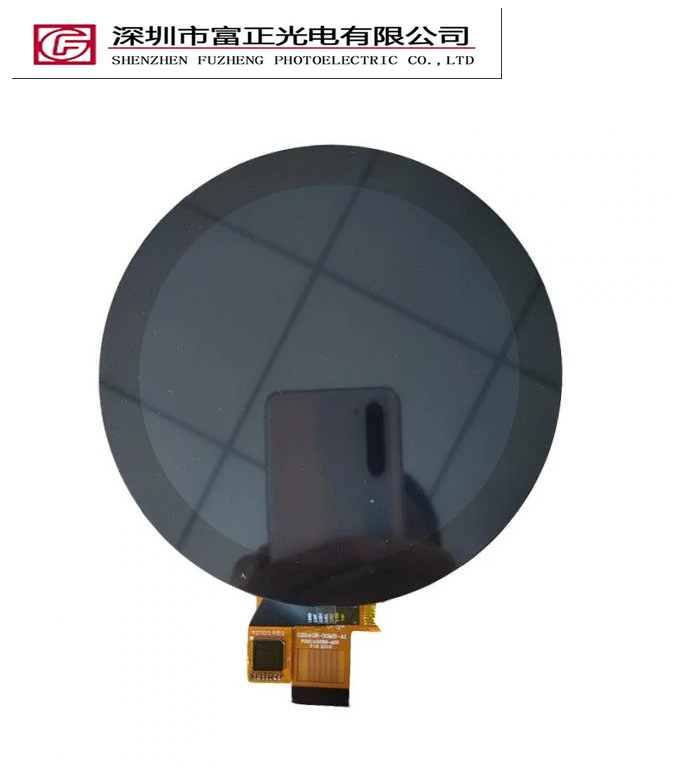

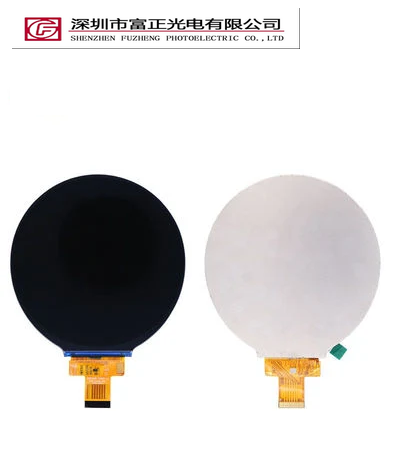

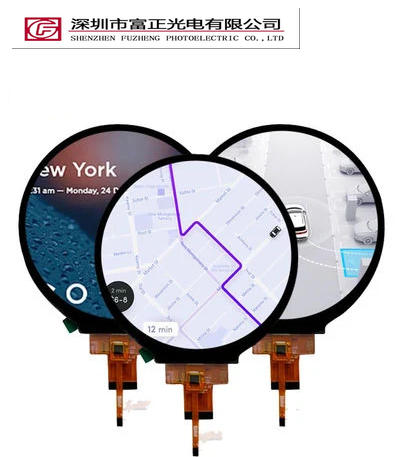

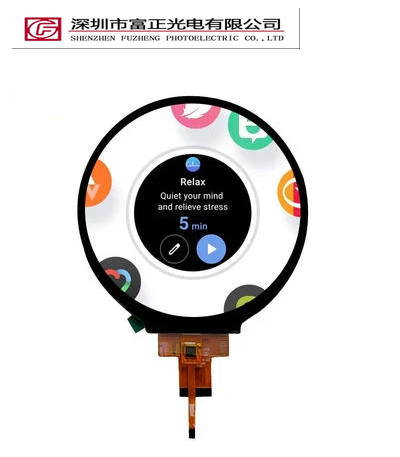

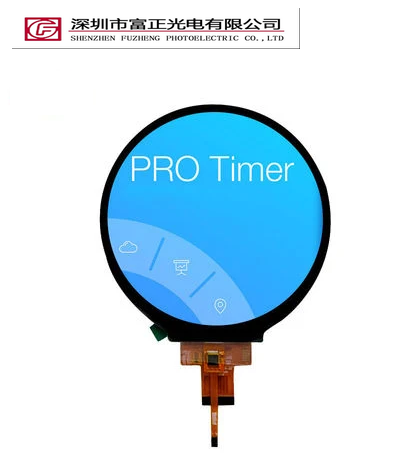

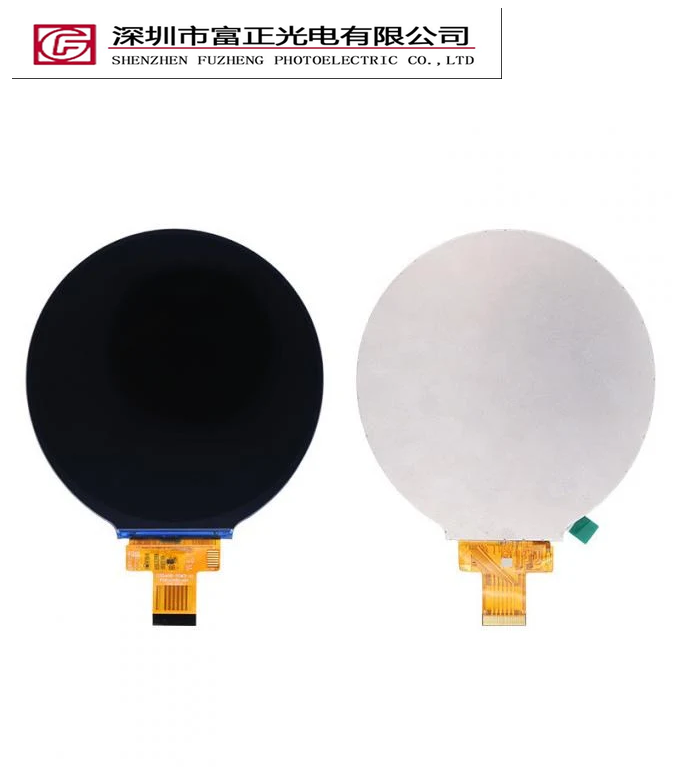

Product photographs
Mechanical drawings & documents
Request the Z040WX-B30MPY mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z040WX-B30MPY can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4-inch display format with your available viewing area, then check 720 × 720 pixel resolution, 4 LANE MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z040WX-B30MPY configuration.
Z040WX-B30MPY frequently asked questions
What specifications are listed for Z040WX-B30MPY?
Resolution: 720 × 720 pixels; Interface: 4 LANE MIPI; Operating Temperature: -20°C to +70 °C; Module Dimensions: 105.6 × 109.565 × 2.2 mm; Screen Size: 4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z040WX-B30MPY connect to a host system?
Z040WX-B30MPY lists a 4 LANE MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z040WX-B30MPY?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z040WX-B30MPY so the exact assembly can be reviewed.
Where can I find the drawing for Z040WX-B30MPY?
Request the mechanical drawing and electrical datasheet for Z040WX-B30MPY. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z040WX-B30MPY sample?
Include the model Z040WX-B30MPY, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
