Model no.Z040WX-B30MPY
Z040WX-B30MPY 4-Inch 720 × 720 Round TFT-LCD Display — Ref 50941707
Z040WX-B30MPY is a 4-inch round tft-lcd display with 720 × 720 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 720 × 720 pixels
- Module Dimensions: 105.6 × 109.565 × 2.2 mm
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 4 inch
- Screen Size
- 4 inch
- Resolution
- 720 × 720 pixels
- Display Mode
- Normally black
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm active area, interface, viewing direction against the latest approved specification before design-in.
Z040WX-B30MPY product introduction
Z040WX-B30MPY is a 4-inch round tft-lcd display with 720 × 720 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.6 × 109.565 × 2.2 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z040WX-B30MPY with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z040WX-B30MPY. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z040WX-B30MPY attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 720 × 720 pixels
- Module Dimensions: 105.6 × 109.565 × 2.2 mm
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 4 inch

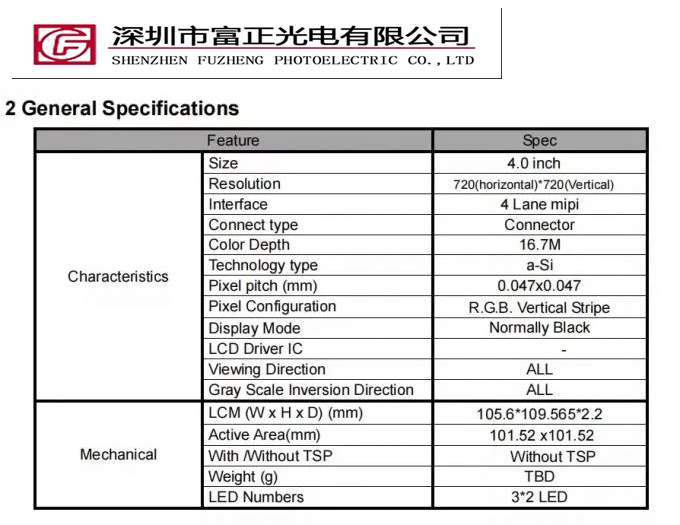

Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 720 × 720 pixels |
| Module Dimensions | 105.6 × 109.565 × 2.2 mm |
| Viewing Angle | 80/80/80/80 |
| Brightness | 300 cd/m² |
| Display Mode | Normally Black |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| LCM (W x H x D) | 101.52 x101.52mm |
| Screen Size | 4 inch |
Confirm active area, interface, viewing direction against the latest approved module specification before design-in.
Interface & pin definition
Use the Z040WX-B30MPY electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|
Product photographs

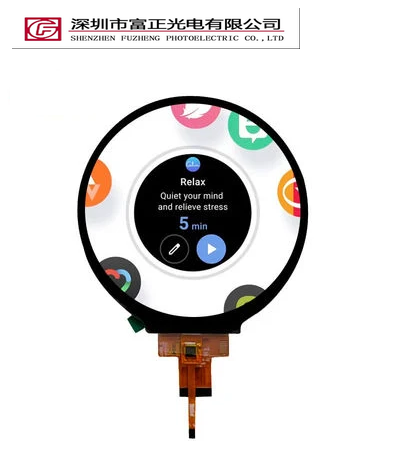

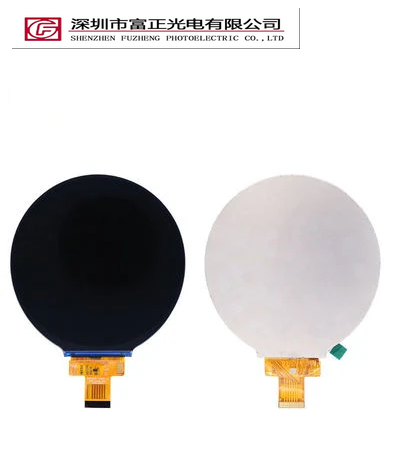

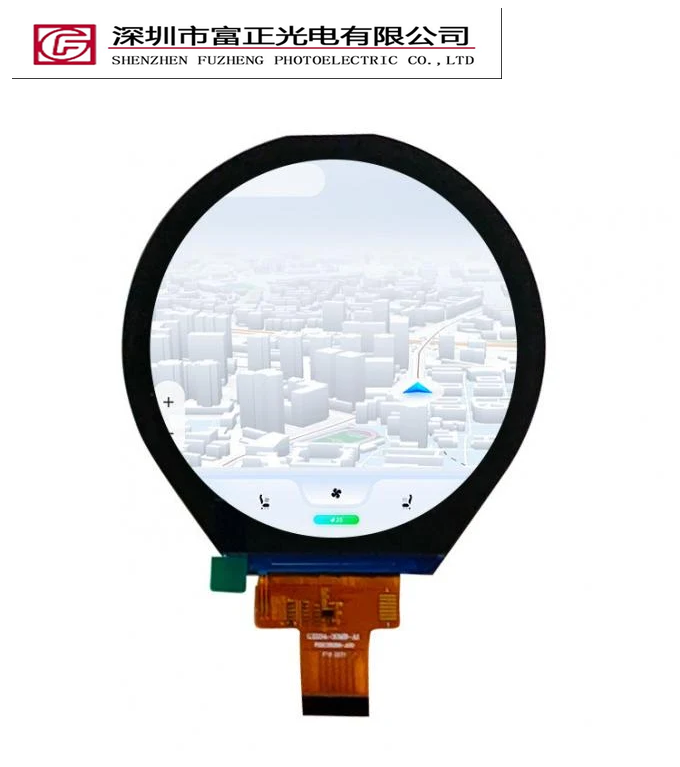

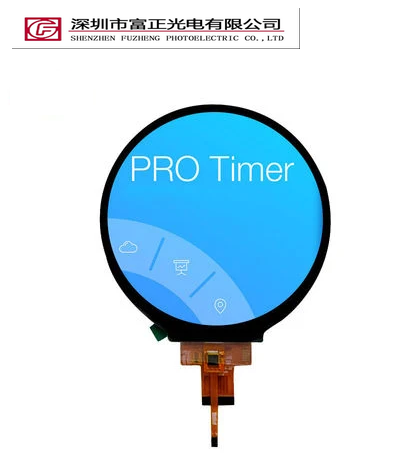

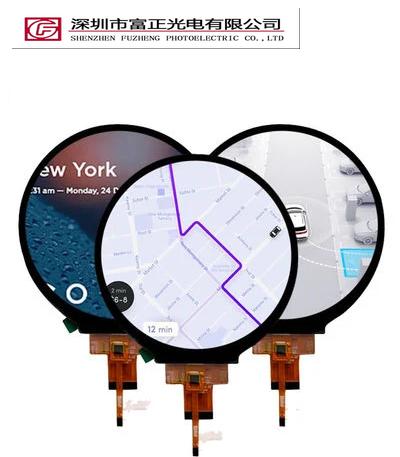

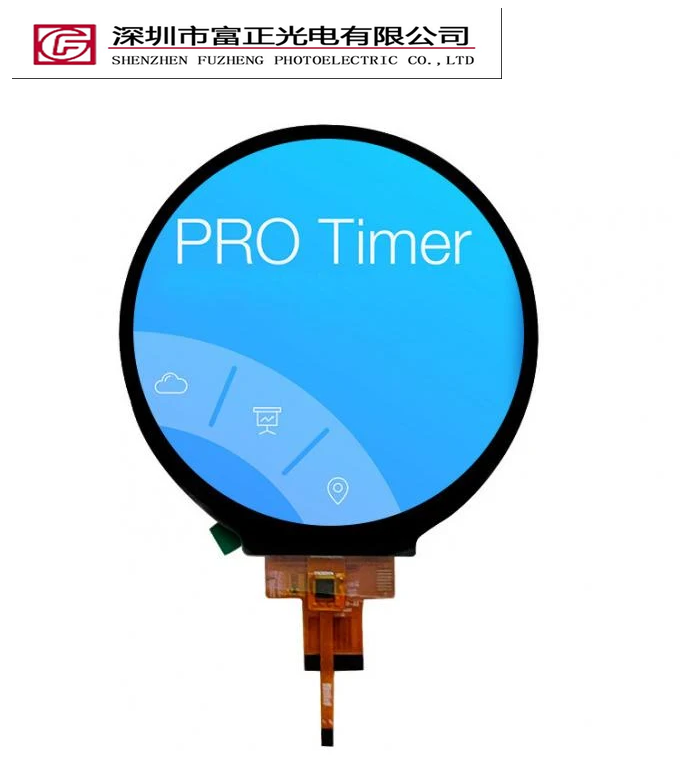

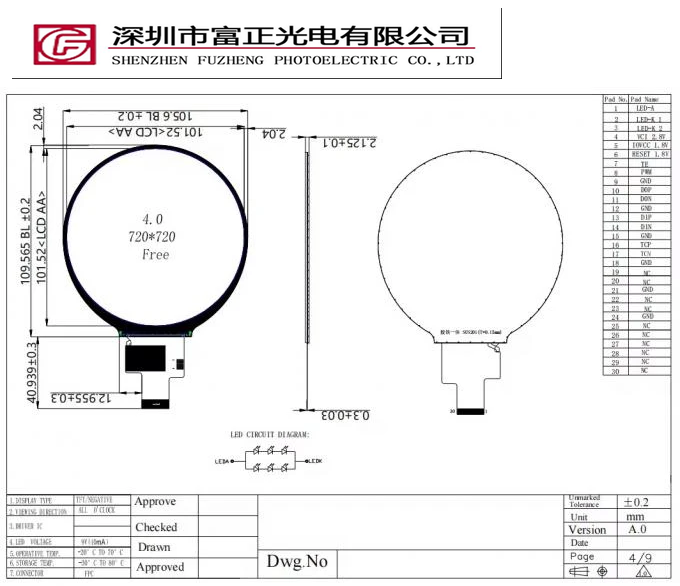

Mechanical drawings & documents
Request the Z040WX-B30MPY mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z040WX-B30MPY can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4-inch display format with your available viewing area, then check 720 × 720 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z040WX-B30MPY configuration.
Z040WX-B30MPY frequently asked questions
What specifications are listed for Z040WX-B30MPY?
Resolution: 720 × 720 pixels; Module Dimensions: 105.6 × 109.565 × 2.2 mm; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z040WX-B30MPY connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z040WX-B30MPY?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z040WX-B30MPY so the exact assembly can be reviewed.
Where can I find the drawing for Z040WX-B30MPY?
Request the mechanical drawing and electrical datasheet for Z040WX-B30MPY. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z040WX-B30MPY sample?
Include the model Z040WX-B30MPY, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
