Model no.Z0354X-H401000
Z0354X-H401000 3.54-Inch 800 × 640 Round TFT-LCD Display — Ref 51675821
Z0354X-H401000 is a 3.54-inch round tft-lcd display with 800 × 640 resolution and a 3SPI+18BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 3SPI+18BIT RGB
- Resolution: 800 × 640 pixels
- Module Dimensions: 97.6 × 83.79 × 4.0 mm
- Interface: 3SPI+18BIT RGB
- Brightness: 1000 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 3.54 inch
- Screen Size
- 3.54 inch
- Resolution
- 800 × 640 pixels
- Display Mode
- Normally black
- Interface
- 3SPI+18BIT RGB
- Viewing Angle
- 85/85/85/85
Z0354X-H401000 product introduction
Z0354X-H401000 is a 3.54-inch round tft-lcd display with 800 × 640 resolution and a 3SPI+18BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 97.6 × 83.79 × 4.0 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z0354X-H401000 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 3SPI+18BIT RGB connection on Z0354X-H401000 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z0354X-H401000 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 640 pixels
- Module Dimensions: 97.6 × 83.79 × 4.0 mm
- Interface: 3SPI+18BIT RGB
- Brightness: 1000 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 3.54 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 640 pixels |
| Module Dimensions | 97.6 × 83.79 × 4.0 mm |
| Active Area | 90 × 72 mm |
| Interface | 3SPI+18BIT RGB |
| Viewing Angle | 85/85/85/85 |
| Brightness | 1000 cd/m² |
| Display Mode | Normally Black |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| LCM (W x H x D) | 97.6*83.79*4.0 mm |
| Screen Size | 3.54 inch |
Interface & pin definition
Use the Z0354X-H401000 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 3SPI+18BIT RGB |

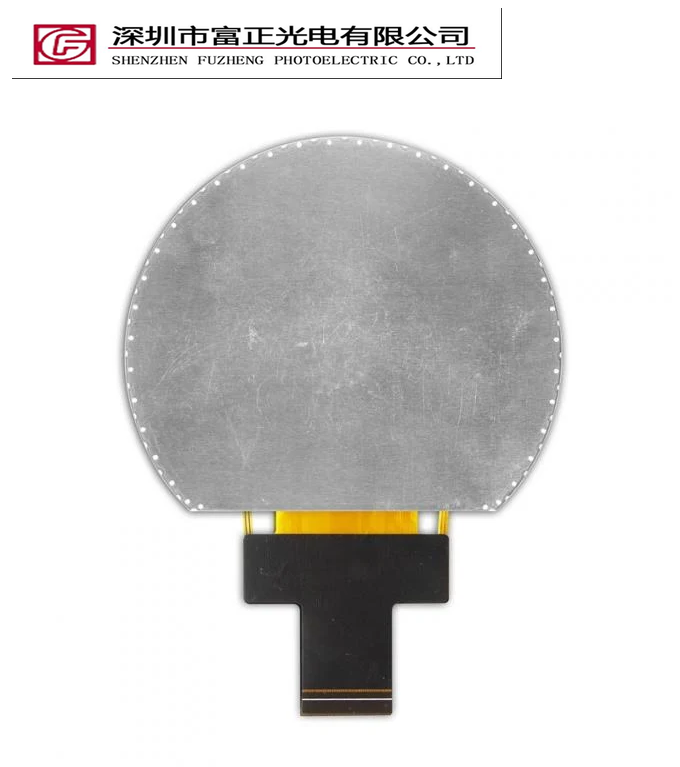

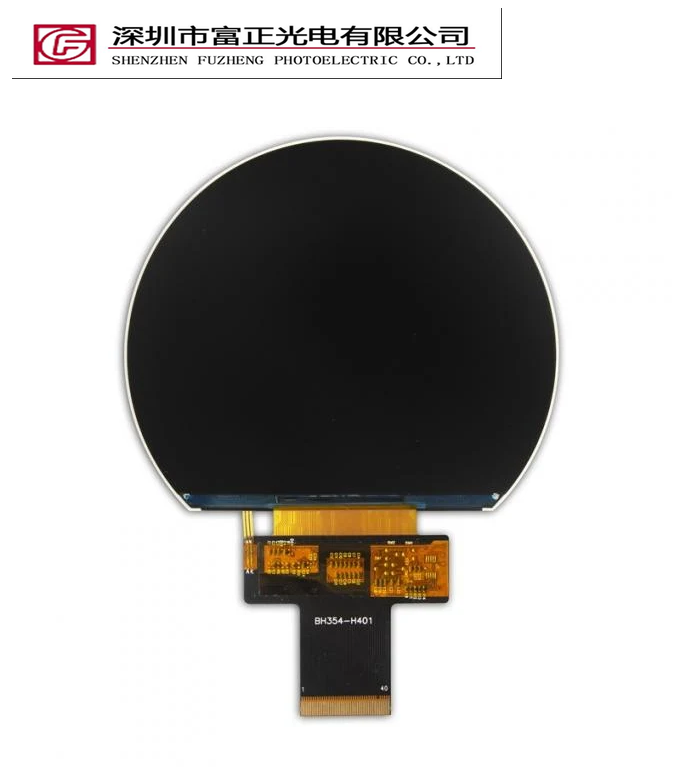

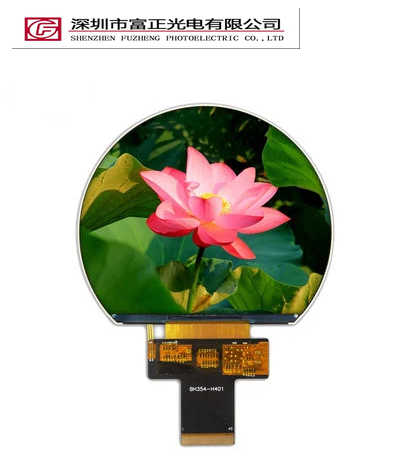

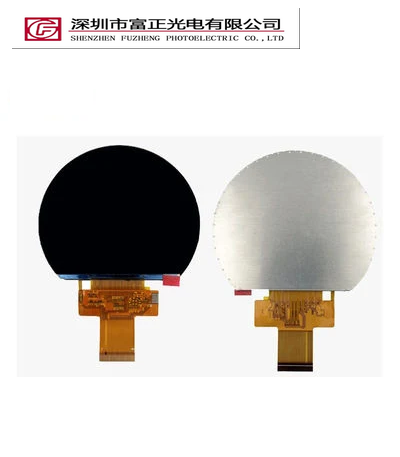

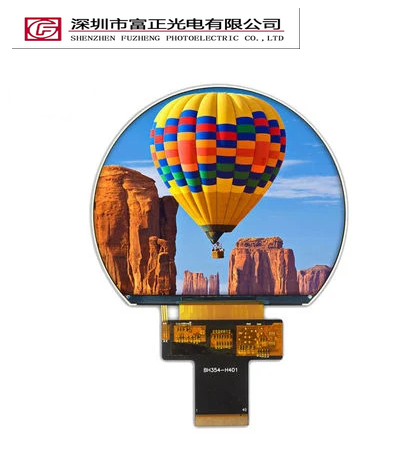

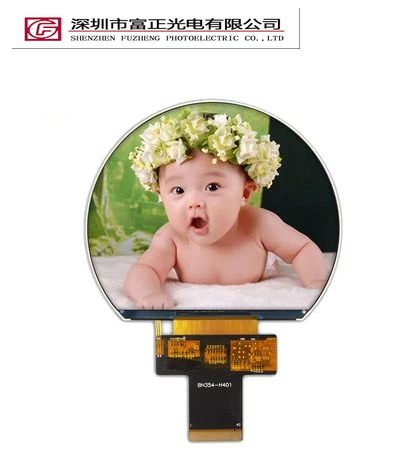

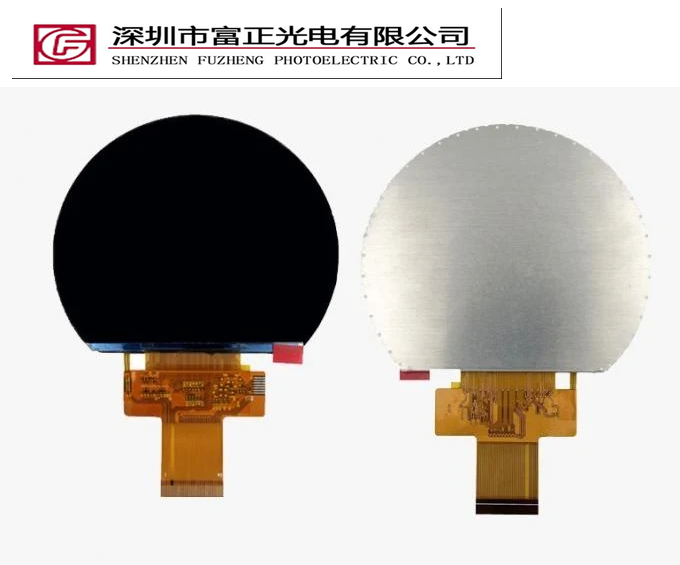

Product photographs

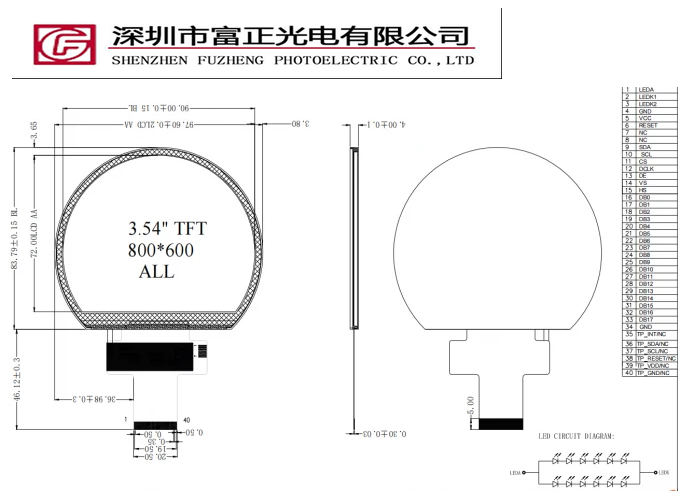

Mechanical drawings & documents
Request the Z0354X-H401000 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z0354X-H401000 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.54-inch display format with your available viewing area, then check 800 × 640 pixel resolution, 3SPI+18BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0354X-H401000 configuration.
Z0354X-H401000 frequently asked questions
What specifications are listed for Z0354X-H401000?
Resolution: 800 × 640 pixels; Module Dimensions: 97.6 × 83.79 × 4.0 mm; Interface: 3SPI+18BIT RGB; Brightness: 1000 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 3.54 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z0354X-H401000 connect to a host system?
Z0354X-H401000 lists a 3SPI+18BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z0354X-H401000?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z0354X-H401000 so the exact assembly can be reviewed.
Where can I find the drawing for Z0354X-H401000?
Request the mechanical drawing and electrical datasheet for Z0354X-H401000. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z0354X-H401000 sample?
Include the model Z0354X-H401000, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
