Model no.Z034-30MB-A1
Z034-30MB-A1 3.4-Inch 800 × 800 Round TFT-LCD Display — Ref 53129446
Z034-30MB-A1 is a 3.4-inch round tft-lcd display with 800 × 800 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI
- Optional
- Resolution: 800 × 800 pixels
- Module Dimensions: 94.9 × 96.95 × 2.22 mm
- Interface: MIPI
- Brightness: 300 cd/m²
- Driver IC: JD9365DA
- Touch: Optional
- Screen Size
- 3.4 inch
- Resolution
- 800 × 800 pixels
- Interface
- MIPI
- Touch
- Optional
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm active area, display mode, operating temperature, storage temperature against the latest approved specification before design-in.
Z034-30MB-A1 product introduction
Z034-30MB-A1 is a 3.4-inch round tft-lcd display with 800 × 800 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 94.9 × 96.95 × 2.22 mm. Brightness: 300 cd/m². Driver IC: JD9365DA. Touch: Optional. Use these published characteristics to compare Z034-30MB-A1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI connection on Z034-30MB-A1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z034-30MB-A1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 800 pixels
- Module Dimensions: 94.9 × 96.95 × 2.22 mm
- Interface: MIPI
- Brightness: 300 cd/m²
- Driver IC: JD9365DA
- Touch: Optional
- Screen Size: 3.4 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 800 pixels |
| Module Dimensions | 94.9 × 96.95 × 2.22 mm |
| Interface | MIPI |
| Viewing Angle | 85/85/85/85 |
| Brightness | 300 cd/m² |
| Driver IC | JD9365DA |
| Touch | Optional |
| Contrast Ratio | 1200:1 |
| Screen Size | 3.4 inch |
Confirm active area, display mode, operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z034-30MB-A1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI |
| Driver IC | JD9365DA |
| Touch | Optional |

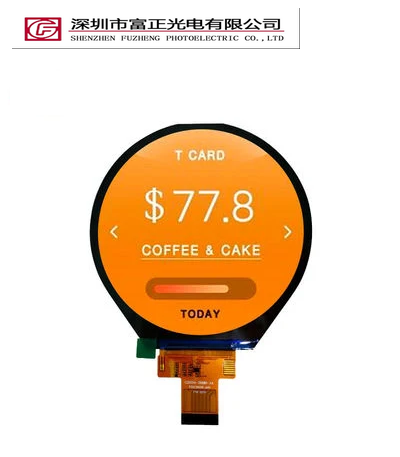

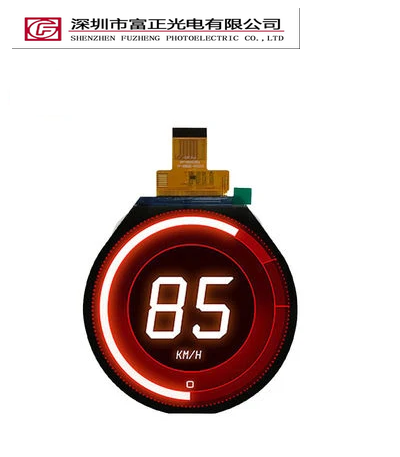

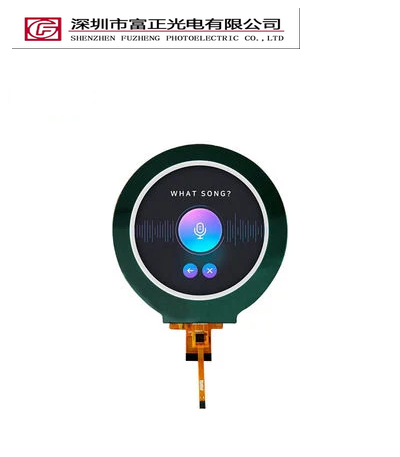

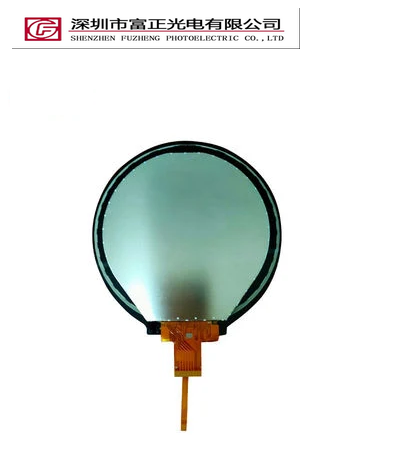

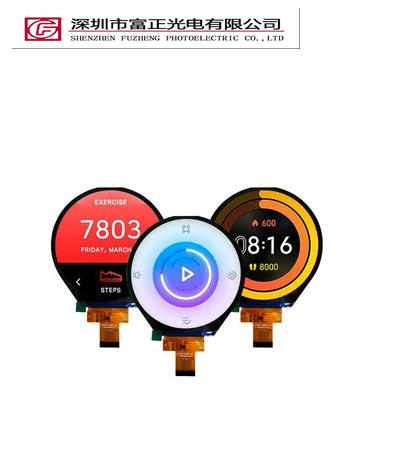

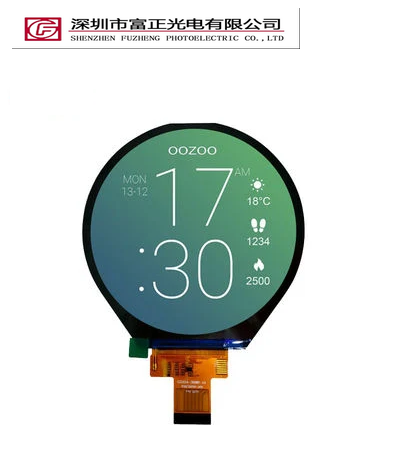

Product photographs
Mechanical drawings & documents
Request the Z034-30MB-A1 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z034-30MB-A1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.4-inch display format with your available viewing area, then check 800 × 800 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z034-30MB-A1 configuration.
Z034-30MB-A1 frequently asked questions
What specifications are listed for Z034-30MB-A1?
Resolution: 800 × 800 pixels; Module Dimensions: 94.9 × 96.95 × 2.22 mm; Interface: MIPI; Brightness: 300 cd/m²; Driver IC: JD9365DA; Touch: Optional; Screen Size: 3.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z034-30MB-A1 connect to a host system?
Z034-30MB-A1 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z034-30MB-A1?
The listed touch configuration is Optional. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z034-30MB-A1?
Request the mechanical drawing and electrical datasheet for Z034-30MB-A1. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z034-30MB-A1 sample?
Include the model Z034-30MB-A1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
