Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z028-40RB-A1

Z028-40RB-A1 2.8-Inch 480 × 480 Round TFT-LCD Display — Ref 51829035

RGB
Resolution: 480 × 480 pixels
Module Dimensions: 73.03 × 76.48 × 2.3 mm
Interface: RGB
Brightness: 300 cd/m²
Driver IC: ST7701
Operating Temperature: -20 to 70 ℃
Screen Size: 2.8 inch

Screen Size: 2.8 inch
Resolution: 480 × 480 pixels
Interface: RGB
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode, storage temperature against the latest approved specification before design-in.

Z028-40RB-A1 product introduction

Z028-40RB-A1 is a 2.8-inch round tft-lcd display with 480 × 480 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 73.03 × 76.48 × 2.3 mm. Brightness: 300 cd/m². Driver IC: ST7701. Operating Temperature: -20 to 70 ℃. Use these published characteristics to compare Z028-40RB-A1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The RGB connection on Z028-40RB-A1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z028-40RB-A1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 480 × 480 pixels
Module Dimensions: 73.03 × 76.48 × 2.3 mm
Interface: RGB
Brightness: 300 cd/m²
Driver IC: ST7701
Operating Temperature: -20 to 70 ℃
Screen Size: 2.8 inch

Technical specifications

Z028-40RB-A1 technical parameters
Parameter	Value
Resolution	480 × 480 pixels
Module Dimensions	73.03 × 76.48 × 2.3 mm
Interface	RGB
Viewing Angle	85/85/85/85
Brightness	300 cd/m²
Working Temperatures	-20 To 70 Degree
Model Size (WHT)	73.03x76.48x2.3 mm
Active Area	70.128 × 70.128 mm
Pin Count	40 pin
Driver IC	ST7701
Operating Temperature	-20 to 70 ℃
Screen Size	2.8 inch

Confirm display mode, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z028-40RB-A1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z028-40RB-A1 technical parameters
Parameter	Value
Interface	RGB
Pin Count	40 pin
Driver IC	ST7701

Product photographs

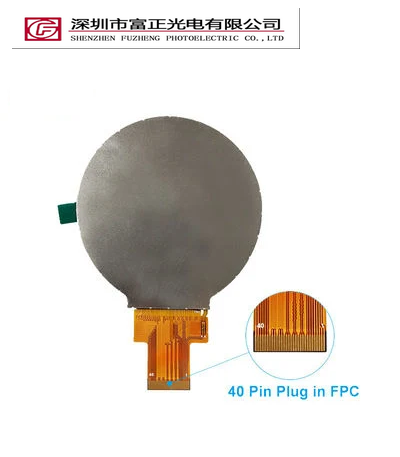

Z028-40RB-A1 product view 1

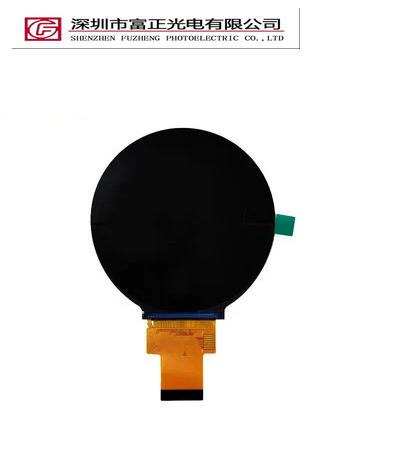

Z028-40RB-A1 product view 2

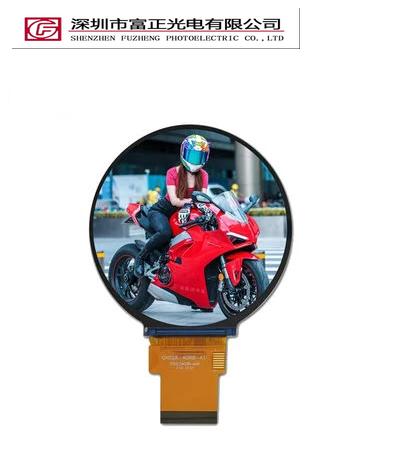

Z028-40RB-A1 product view 3

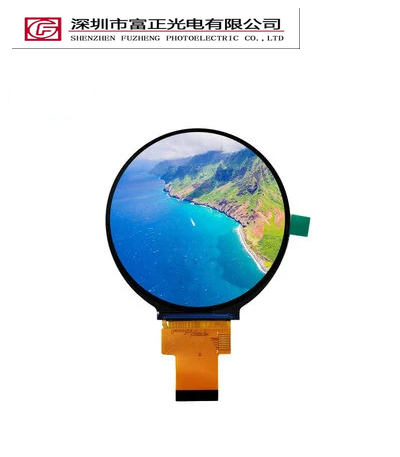

Z028-40RB-A1 product view 4

Z028-40RB-A1 product view 5

Z028-40RB-A1 product view 6

Z028-40RB-A1 product view 7

Mechanical drawings & documents

Request the Z028-40RB-A1 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z028-40RB-A1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 2.8-inch display format with your available viewing area, then check 480 × 480 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z028-40RB-A1 configuration.

Z028-40RB-A1 frequently asked questions

What specifications are listed for Z028-40RB-A1?

Resolution: 480 × 480 pixels; Module Dimensions: 73.03 × 76.48 × 2.3 mm; Interface: RGB; Brightness: 300 cd/m²; Driver IC: ST7701; Operating Temperature: -20 to 70 ℃; Screen Size: 2.8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z028-40RB-A1 connect to a host system?

Z028-40RB-A1 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z028-40RB-A1?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z028-40RB-A1 so the exact assembly can be reviewed.

Where can I find the drawing for Z028-40RB-A1?

Request the mechanical drawing and electrical datasheet for Z028-40RB-A1. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a Z028-40RB-A1 sample?

Include the model Z028-40RB-A1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z028-40RB-A1 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
