Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z021WQI-B40L-0623
Z021WQI-B40L-0623 2.1-Inch 480 × 480 Round TFT-LCD Display — Ref 51828868
Z021WQI-B40L-0623 is a 2.1-inch round tft-lcd display with 480 × 480 resolution and a 3SPI+18RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 3SPI+18RGB
- Capacitive Touch Panel
- Resolution: 480 × 480 pixels
- Module Dimensions: 76.175(W ) ×59.71 × 3.375 mm
- Interface: 3SPI+18RGB
- Brightness: 300 cd/m²
- Touch: Capacitive Touch Panel
- Screen Size: 2.1 inch
- Screen Size
- 2.1 inch
- Resolution
- 480 × 480 pixels
- Display Mode
- TFT, Normally black, Transmissive
- Interface
- 3SPI+18RGB
- Touch
- Capacitive touch
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.
Z021WQI-B40L-0623 product introduction
Z021WQI-B40L-0623 is a 2.1-inch round tft-lcd display with 480 × 480 resolution and a 3SPI+18RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 76.175(W ) ×59.71 × 3.375 mm. Brightness: 300 cd/m². Touch: Capacitive Touch Panel. Use these published characteristics to compare Z021WQI-B40L-0623 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 3SPI+18RGB connection on Z021WQI-B40L-0623 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z021WQI-B40L-0623 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 480 pixels
- Module Dimensions: 76.175(W ) ×59.71 × 3.375 mm
- Interface: 3SPI+18RGB
- Brightness: 300 cd/m²
- Touch: Capacitive Touch Panel
- Screen Size: 2.1 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 480 pixels |
| Module Dimensions | 76.175(W ) ×59.71 × 3.375 mm |
| Active Area | 53.28 × 53.28 mm |
| Interface | 3SPI+18RGB |
| Viewing Angle | 85/85/85/85 |
| Brightness | 300 cd/m² |
| Display Mode | TFT, Normally Black, Transmissive |
| LCD Driver IC | ST7701S |
| Touch Driver IC | CST328 |
| Viewing Direction | ALL |
| Touch | Capacitive Touch Panel |
| Screen Size | 2.1 inch |
Confirm operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z021WQI-B40L-0623 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 3SPI+18RGB |
| Touch | Capacitive Touch Panel |

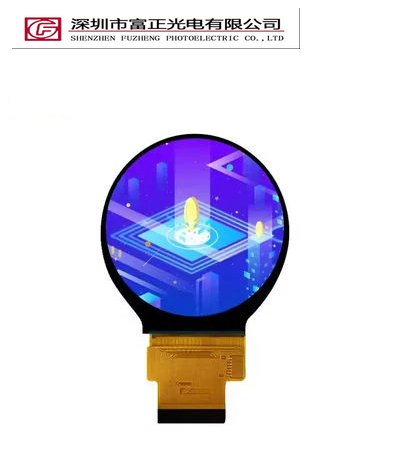

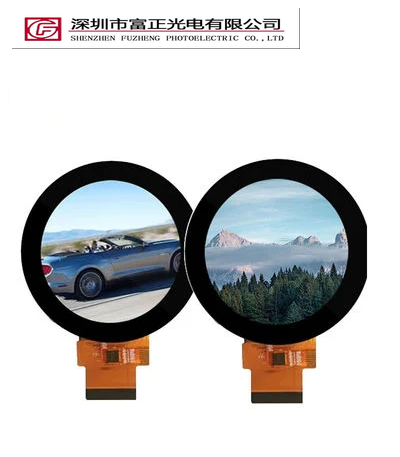

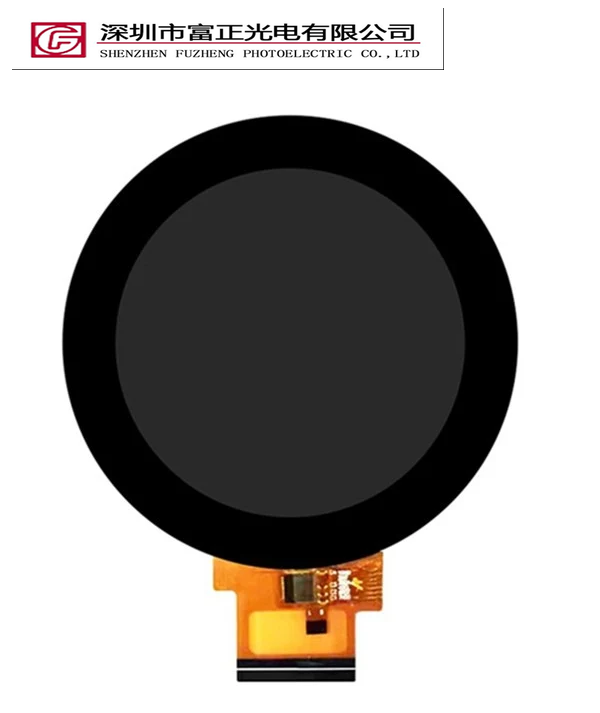

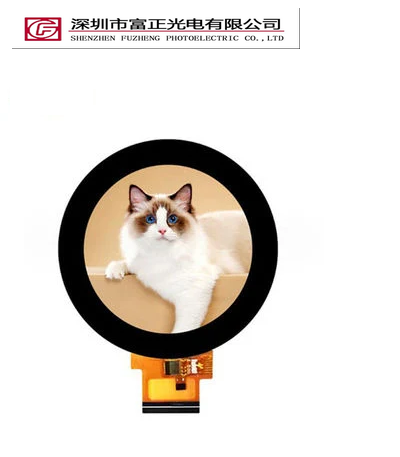

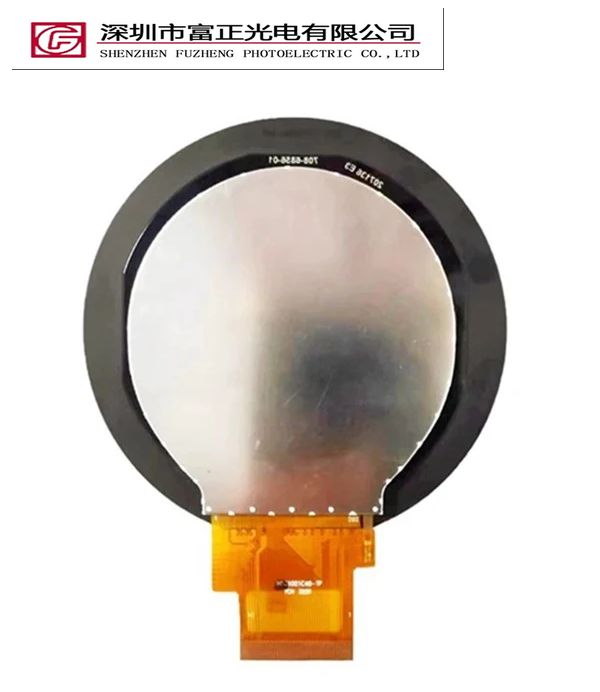

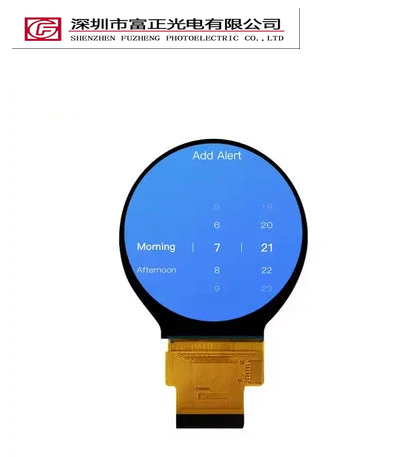

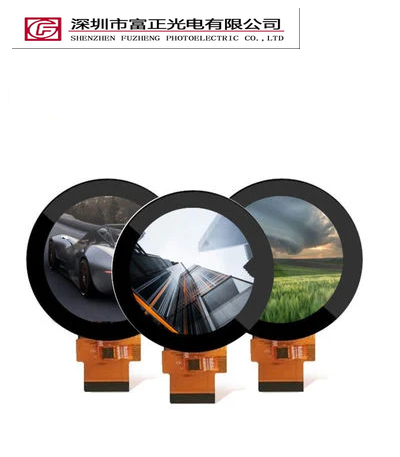

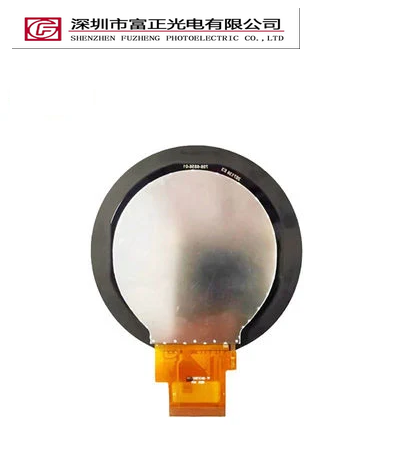

Product photographs

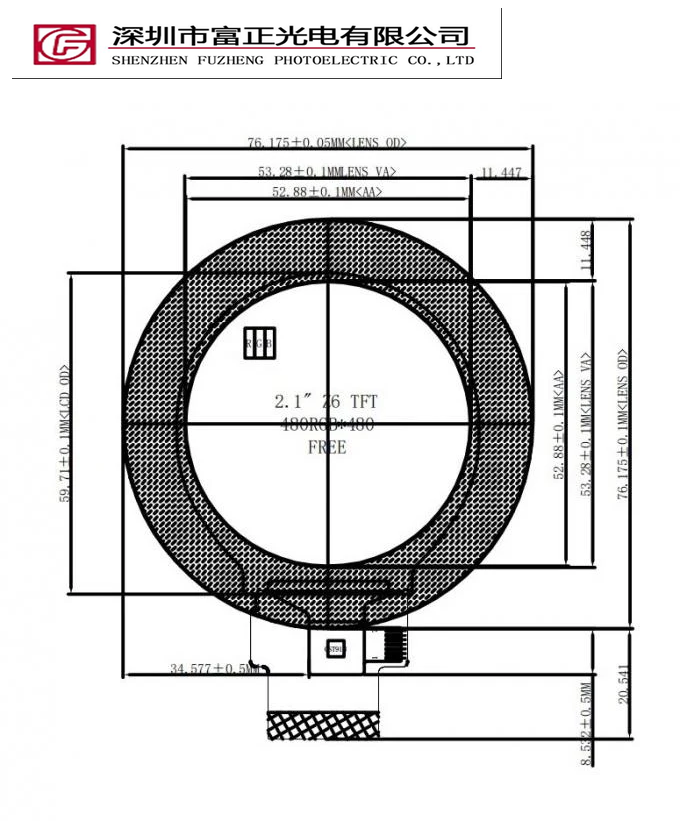

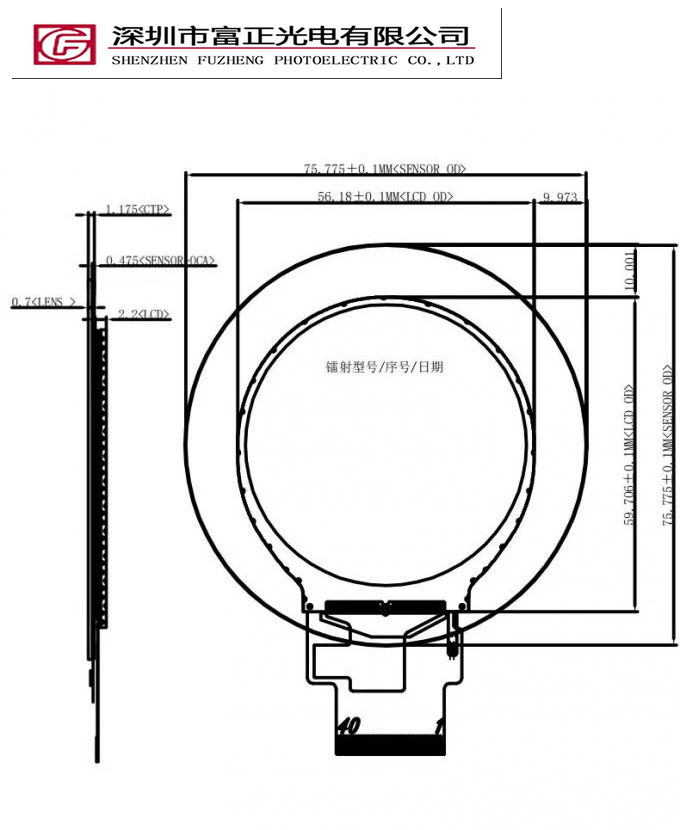

Mechanical drawings & documents
Request the Z021WQI-B40L-0623 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z021WQI-B40L-0623 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 2.1-inch display format with your available viewing area, then check 480 × 480 pixel resolution, 3SPI+18RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z021WQI-B40L-0623 configuration.
Z021WQI-B40L-0623 frequently asked questions
What specifications are listed for Z021WQI-B40L-0623?
Resolution: 480 × 480 pixels; Module Dimensions: 76.175(W ) ×59.71 × 3.375 mm; Interface: 3SPI+18RGB; Brightness: 300 cd/m²; Touch: Capacitive Touch Panel; Screen Size: 2.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z021WQI-B40L-0623 connect to a host system?
Z021WQI-B40L-0623 lists a 3SPI+18RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z021WQI-B40L-0623?
The listed touch configuration is Capacitive Touch Panel. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z021WQI-B40L-0623?
Request the mechanical drawing and electrical datasheet for Z021WQI-B40L-0623. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z021WQI-B40L-0623 sample?
Include the model Z021WQI-B40L-0623, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z021WQI-B40L-0623 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
