Model no.Z018WQ01
Z018WQ01 1.28-Inch 240 × 240 Round TFT-LCD Display
Z018WQ01 is a 1.28-inch round tft-lcd display with 240 × 240 resolution and a 4 LINE SPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 4 LINE SPI
- Resolution: 240 × 240 pixels
- Module Dimensions: 35.6 × 38.1 × 1.5 mm
- Interface: 4 LINE SPI
- Brightness: 400 cd/m²
- Driver IC: GC9A01
- Screen Size: 1.28 inch
- Screen Size
- 1.28 inch
- Resolution
- 240 × 240 pixels
- Interface
- 4 LINE SPI
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm display mode, operating temperature against the latest approved specification before design-in.
Z018WQ01 product introduction
Z018WQ01 is a 1.28-inch round tft-lcd display with 240 × 240 resolution and a 4 LINE SPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 35.6 × 38.1 × 1.5 mm. Brightness: 400 cd/m². Driver IC: GC9A01. Use these published characteristics to compare Z018WQ01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 4 LINE SPI connection on Z018WQ01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z018WQ01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 240 × 240 pixels
- Module Dimensions: 35.6 × 38.1 × 1.5 mm
- Interface: 4 LINE SPI
- Brightness: 400 cd/m²
- Driver IC: GC9A01
- Screen Size: 1.28 inch

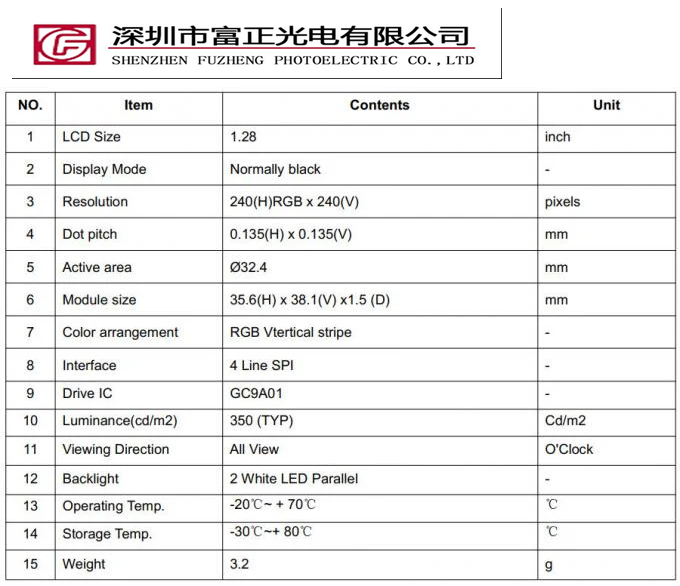

Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 240 × 240 pixels |
| Module Dimensions | 35.6 × 38.1 × 1.5 mm |
| Active Area | 32.4 × 32.4 mm |
| Interface | 4 LINE SPI |
| Viewing Angle | 85/85/85/85 |
| Brightness | 400 cd/m² |
| LCD Driver IC | GC9A01 |
| Model Size (W*H*T) | 35.6*38.1*1.5mm |
| Pin Count | 12 pin |
| Driver IC | GC9A01 |
| Storage Temperature | -30 to 80 ℃ |
| Screen Size | 1.28 inch |
Confirm display mode, operating temperature against the latest approved module specification before design-in.

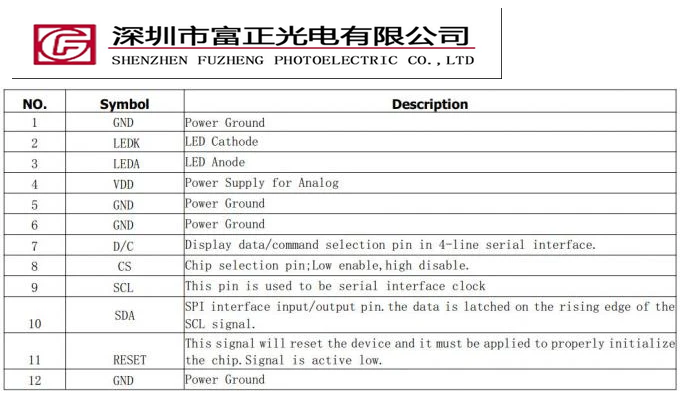

Interface & pin definition
Use the Z018WQ01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 4 LINE SPI |
| Pin Count | 12 pin |
| Driver IC | GC9A01 |

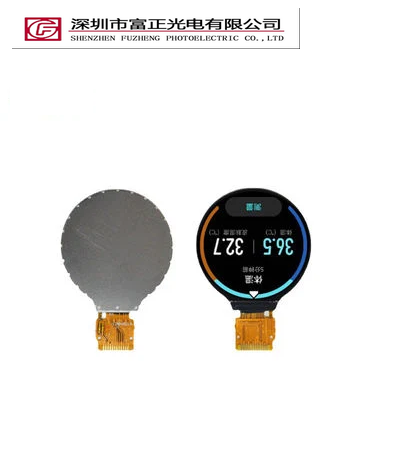

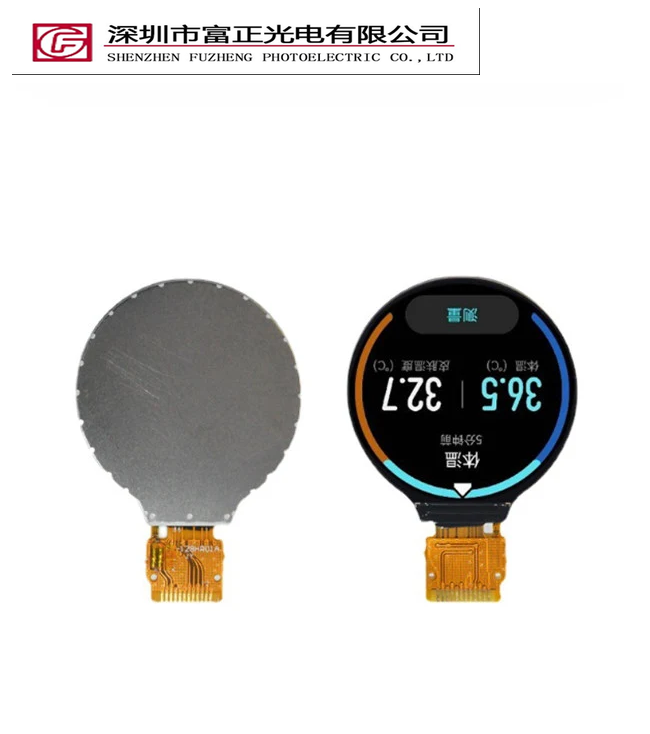

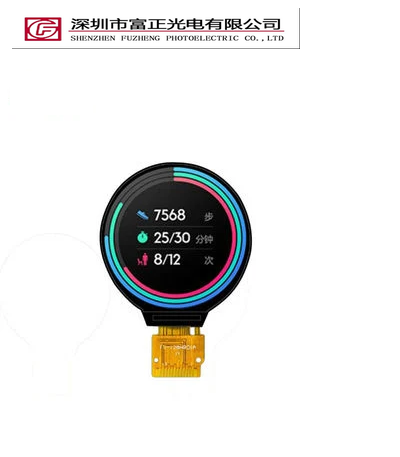

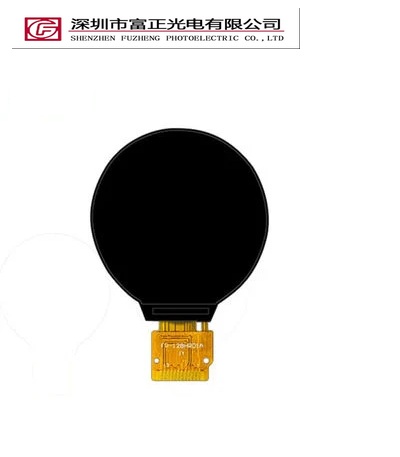

Product photographs

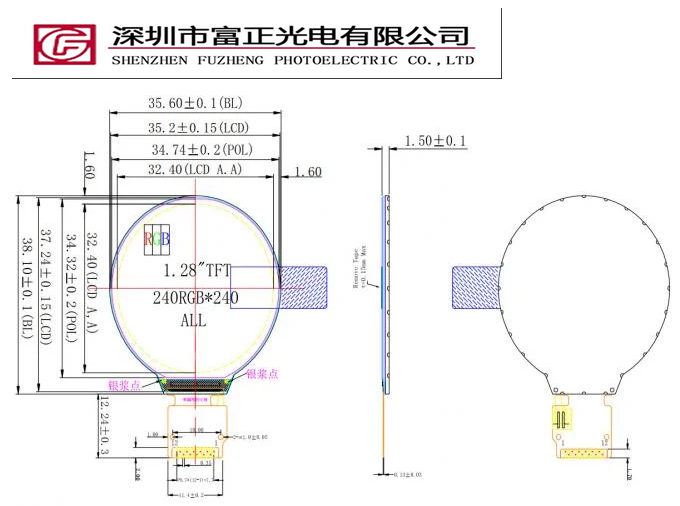

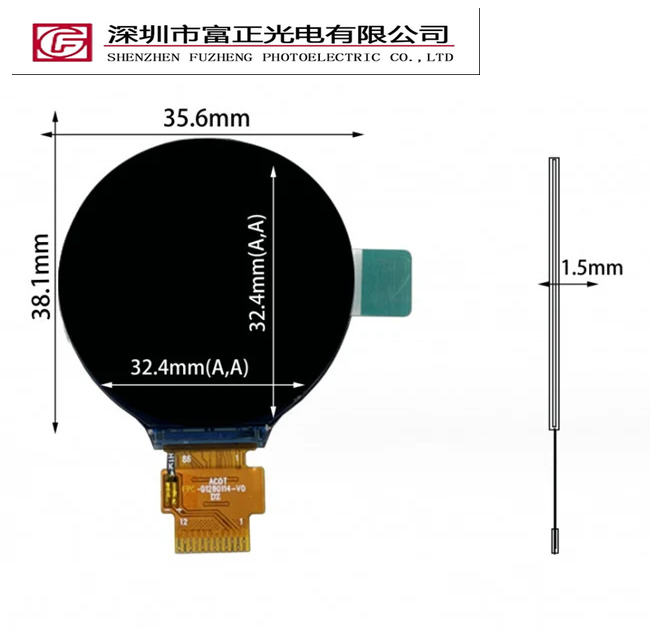

Mechanical drawings & documents
Request the Z018WQ01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z018WQ01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 1.28-inch display format with your available viewing area, then check 240 × 240 pixel resolution, 4 LINE SPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z018WQ01 configuration.
Z018WQ01 frequently asked questions
What specifications are listed for Z018WQ01?
Resolution: 240 × 240 pixels; Module Dimensions: 35.6 × 38.1 × 1.5 mm; Interface: 4 LINE SPI; Brightness: 400 cd/m²; Driver IC: GC9A01; Screen Size: 1.28 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z018WQ01 connect to a host system?
Z018WQ01 lists a 4 LINE SPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z018WQ01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z018WQ01 so the exact assembly can be reviewed.
Where can I find the drawing for Z018WQ01?
Request the mechanical drawing and electrical datasheet for Z018WQ01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z018WQ01 sample?
Include the model Z018WQ01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z018WQ01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
