Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z016WQ01
Z016WQ01 1.6-Inch 400 × 400 Round TFT-LCD Display — Ref 51834062
Z016WQ01 is a 1.6-inch round tft-lcd display with 400 × 400 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 400 × 400 pixels
- Driver IC: ST77903
- Brightness: 230 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 1.6 inch
- Screen Size
- 1.6 inch
- Resolution
- 400 × 400 pixels
- Viewing Angle
- Full viewing angle
Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.
Z016WQ01 product introduction
Z016WQ01 is a 1.6-inch round tft-lcd display with 400 × 400 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Driver IC: ST77903. Brightness: 230 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z016WQ01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z016WQ01. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z016WQ01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 400 × 400 pixels
- Driver IC: ST77903
- Brightness: 230 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 1.6 inch

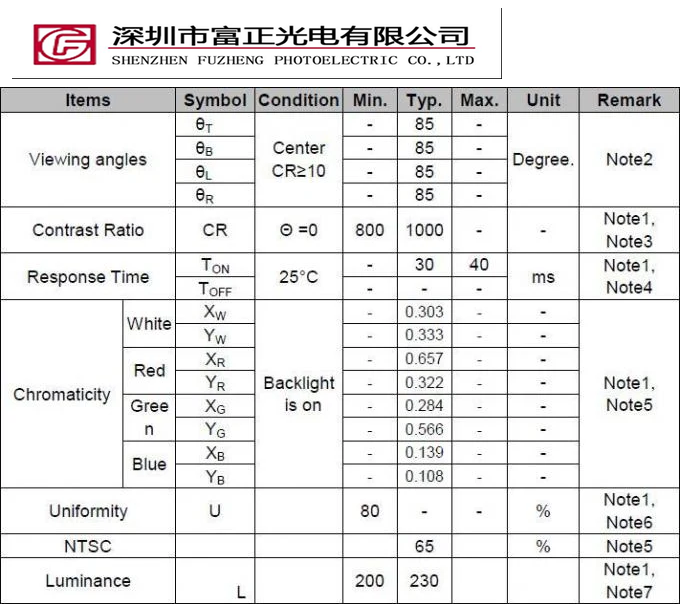

Technical specifications
| Parameter | Value |
|---|---|
| Contrast Ratio | 1000:1 |
| Active Area | 39.840 × 39.840 mm |
| Resolution | 400 × 400 pixels |
| Driver IC | ST77903 |
| Brightness | 230 cd/m² |
| Viewing Direction | ALL |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 1.6 inch |
Confirm interface, display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the Z016WQ01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Driver IC | ST77903 |

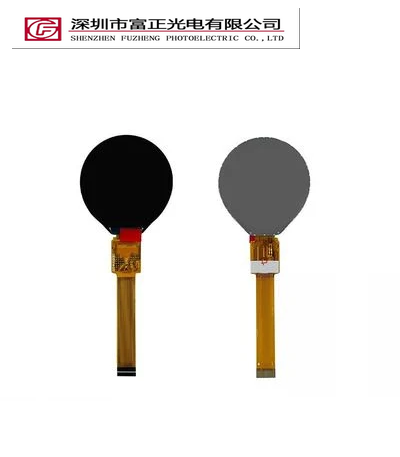

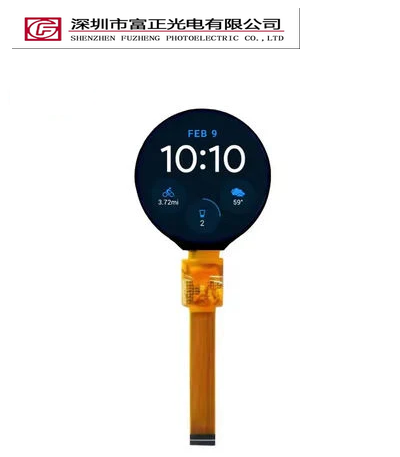

Product photographs

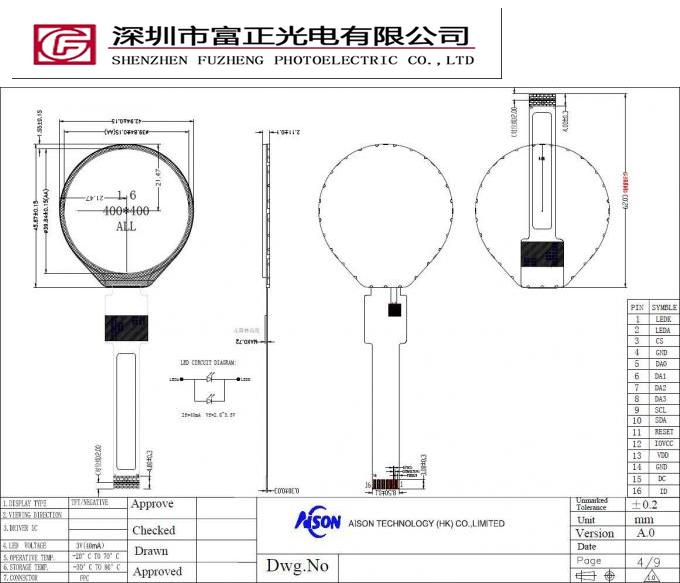

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z016WQ01 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z016WQ01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 1.6-inch display format with your available viewing area, then check 400 × 400 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z016WQ01 configuration.
Z016WQ01 frequently asked questions
What specifications are listed for Z016WQ01?
Resolution: 400 × 400 pixels; Driver IC: ST77903; Brightness: 230 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 1.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z016WQ01 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z016WQ01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z016WQ01 so the exact assembly can be reviewed.
Where can I find the drawing for Z016WQ01?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z016WQ01 sample?
Include the model Z016WQ01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z016WQ01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
