Model no.Z016WQ01

Z016WQ01 1.6-Inch 400 × 400 Round TFT-LCD Display — Ref 51825527

Z016WQ01 is a 1.6-inch round tft-lcd display with 400 × 400 resolution and a QSPI interface. Review the module specifications, product images and integration requirements before requesting a sample.

QSPI
Resolution: 400 × 400 pixels
Module Dimensions: 42.92 × 45.87 × 2.2 mm
Interface: QSPI
Driver IC: ST77903
Brightness: 230 cd/m²
Screen Size: 1.6 inch

Screen Size: 1.6 inch
Resolution: 400 × 400 pixels
Interface: QSPI
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode, operating temperature, contrast ratio against the latest approved specification before design-in.

Z016WQ01 product introduction

Z016WQ01 is a 1.6-inch round tft-lcd display with 400 × 400 resolution and a QSPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 42.92 × 45.87 × 2.2 mm. Driver IC: ST77903. Brightness: 230 cd/m². Use these published characteristics to compare Z016WQ01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The QSPI connection on Z016WQ01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z016WQ01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 400 × 400 pixels
Module Dimensions: 42.92 × 45.87 × 2.2 mm
Interface: QSPI
Driver IC: ST77903
Brightness: 230 cd/m²
Screen Size: 1.6 inch

Technical specifications

Z016WQ01 technical parameters
Parameter	Value
Resolution	400 × 400 pixels
Module Dimensions	42.92 × 45.87 × 2.2 mm
Active Area	39.840 × 39.840 mm
Interface	QSPI
Driver IC	ST77903
Brightness	230 cd/m²
Model Size (WHT)	42.9245.872.2mm
Viewing Angle	85/85/85/85
Pin Count	16 pin
Storage Temperature	-30 to 80 ℃
Screen Size	1.6 inch

Confirm display mode, operating temperature, contrast ratio against the latest approved module specification before design-in.

Interface & pin definition

Use the Z016WQ01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z016WQ01 technical parameters
Parameter	Value
Interface	QSPI
Driver IC	ST77903
Pin Count	16 pin

Product photographs

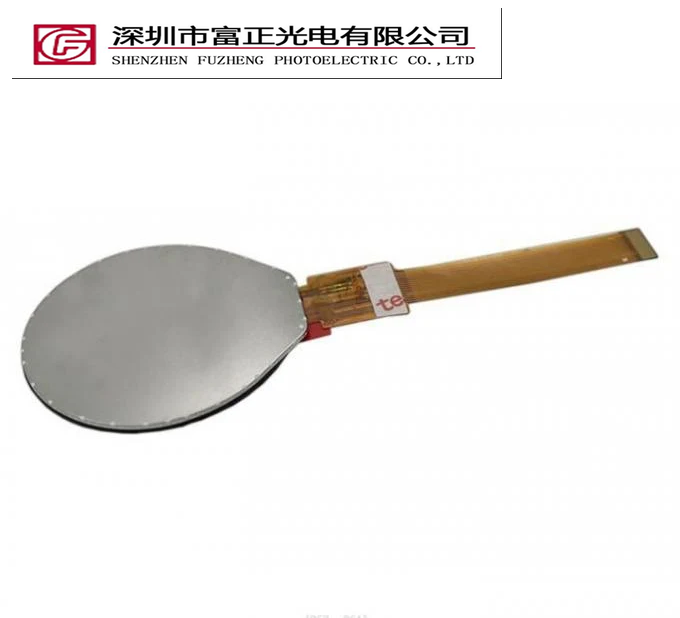

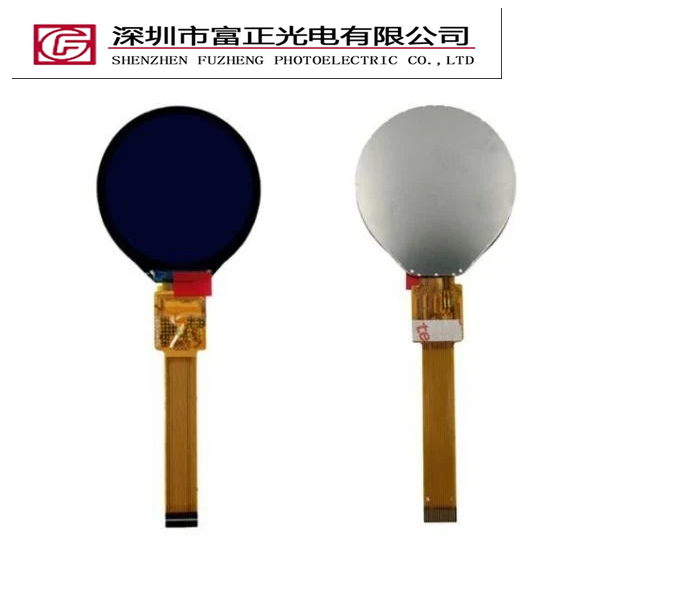

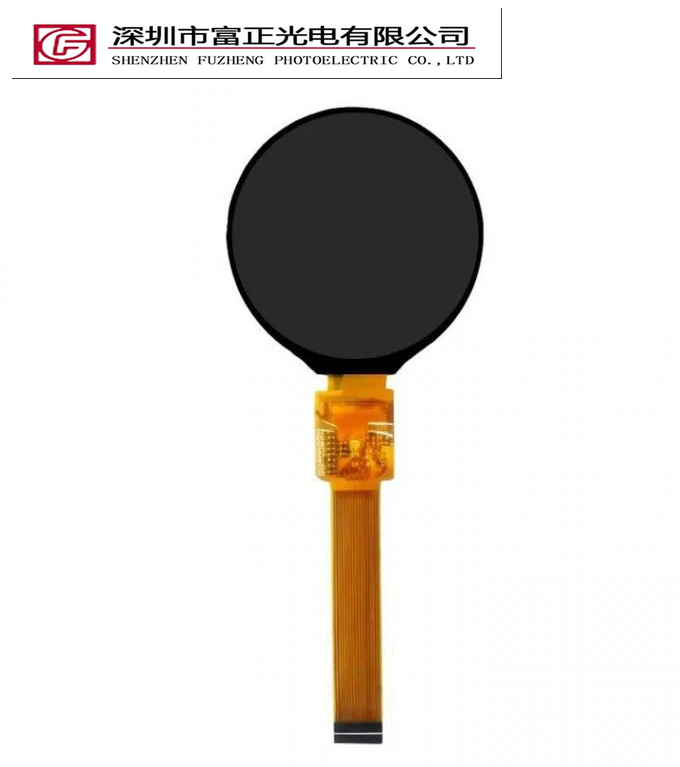

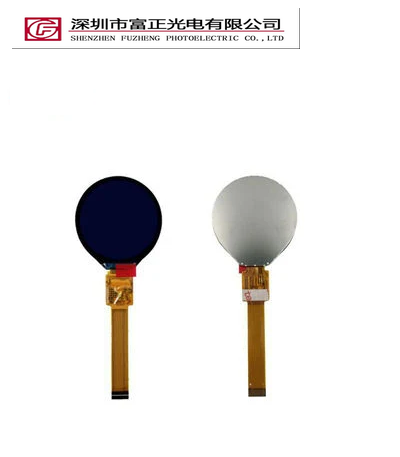

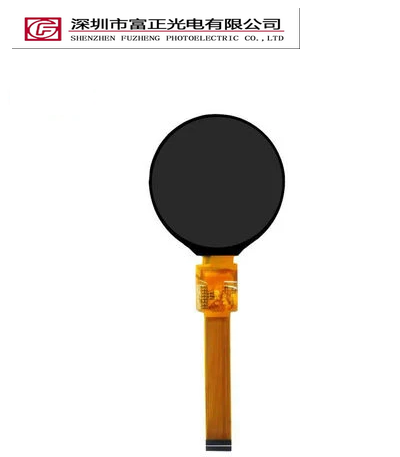

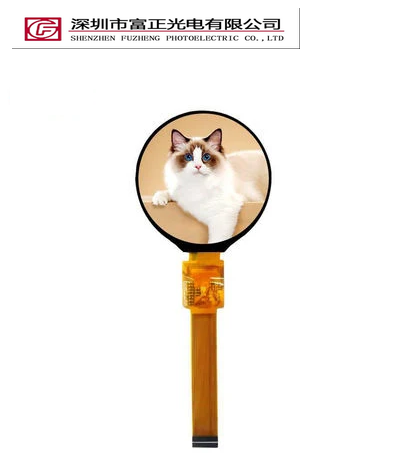

Z016WQ01 product view 1

Z016WQ01 product view 2

Z016WQ01 product view 3

Z016WQ01 product view 4

Z016WQ01 product view 5

Z016WQ01 product view 6

Z016WQ01 product view 7

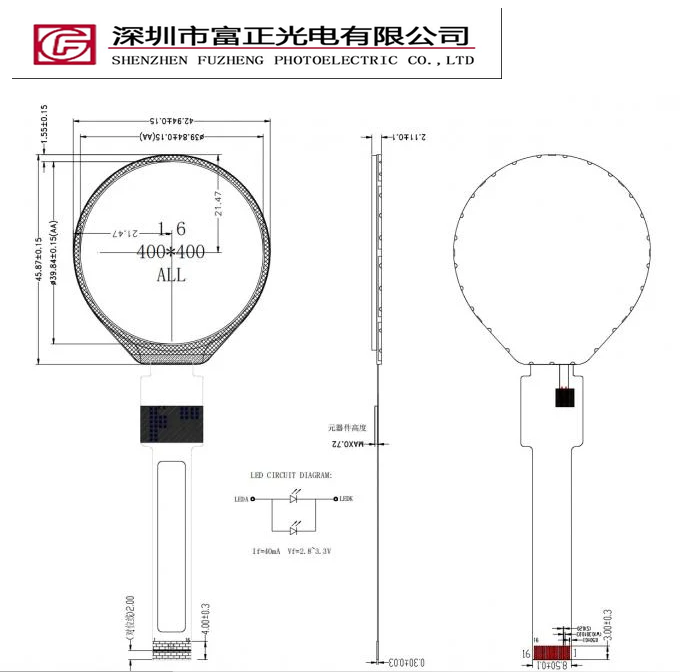

Mechanical drawings & documents

Request the Z016WQ01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z016WQ01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 1.6-inch display format with your available viewing area, then check 400 × 400 pixel resolution, QSPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z016WQ01 configuration.

Z016WQ01 frequently asked questions

What specifications are listed for Z016WQ01?

Resolution: 400 × 400 pixels; Module Dimensions: 42.92 × 45.87 × 2.2 mm; Interface: QSPI; Driver IC: ST77903; Brightness: 230 cd/m²; Screen Size: 1.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z016WQ01 connect to a host system?

Z016WQ01 lists a QSPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z016WQ01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z016WQ01 so the exact assembly can be reviewed.

Where can I find the drawing for Z016WQ01?

Request the mechanical drawing and electrical datasheet for Z016WQ01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a Z016WQ01 sample?

Include the model Z016WQ01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z016WQ01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
