Model no.HD276003C30
HD276003C30 2.76-Inch 480 × 480 Round TFT-LCD Display
HD276003C30 is a 2.76-inch round tft-lcd display with 480 × 480 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI
- Resolution: 480 × 480 pixels
- Module Dimensions: 73.03 × 76.48 × 2.3 mm
- Interface: MIPI
- Brightness: 300 cd/m²
- Driver IC: ST7701
- Operating Temperature: -20 to 70 ℃
- Screen Size: 2.76 inch
- Screen Size
- 2.76 inch
- Resolution
- 480 × 480 pixels
- Interface
- MIPI
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm display mode, storage temperature against the latest approved specification before design-in.
HD276003C30 product introduction
HD276003C30 is a 2.76-inch round tft-lcd display with 480 × 480 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The round tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 73.03 × 76.48 × 2.3 mm. Brightness: 300 cd/m². Driver IC: ST7701. Operating Temperature: -20 to 70 ℃. Use these published characteristics to compare HD276003C30 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI connection on HD276003C30 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following HD276003C30 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 480 pixels
- Module Dimensions: 73.03 × 76.48 × 2.3 mm
- Interface: MIPI
- Brightness: 300 cd/m²
- Driver IC: ST7701
- Operating Temperature: -20 to 70 ℃
- Screen Size: 2.76 inch
Technical specifications

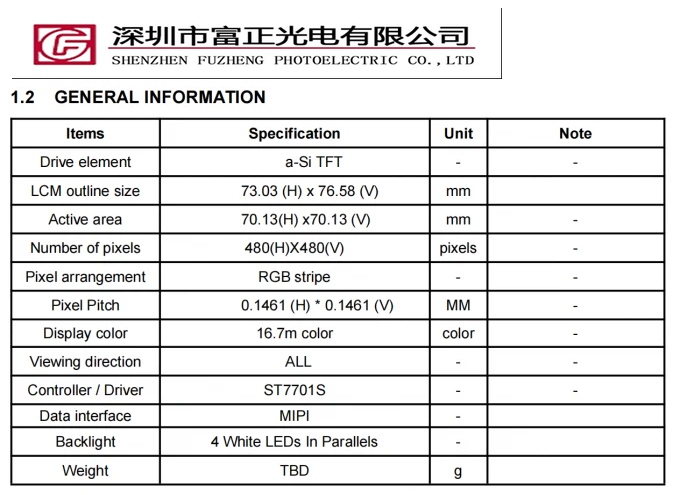

| Parameter | Value |
|---|---|
| Resolution | 480 × 480 pixels |
| Module Dimensions | 73.03 × 76.48 × 2.3 mm |
| Active Area | 70.128 × 70.128 mm |
| Interface | MIPI |
| Working Temperatures | -20 To 70 Degree |
| Model Size (W*H*T) | 73.03x76.48x2.3 mm |
| Viewing Angle | 85/85/85/85 |
| Brightness | 300 cd/m² |
| Pin Count | 30 pin |
| Driver IC | ST7701 |
| Operating Temperature | -20 to 70 ℃ |
| Screen Size | 2.76 inch |
Confirm display mode, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the HD276003C30 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI |
| Pin Count | 30 pin |
| Driver IC | ST7701 |

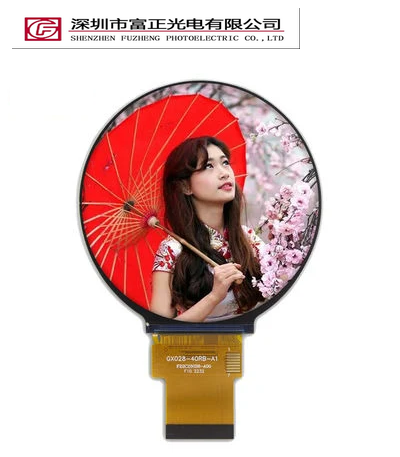

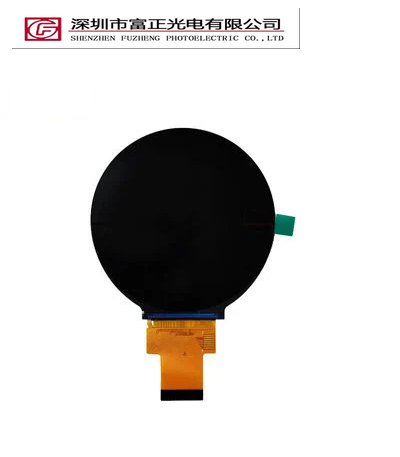

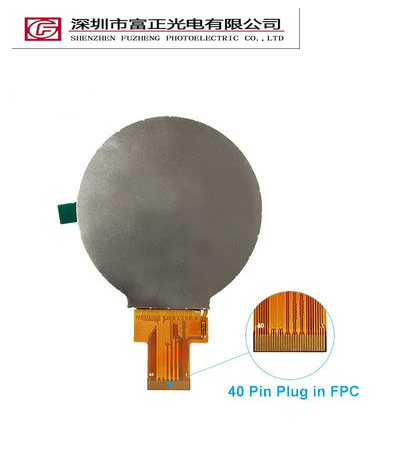

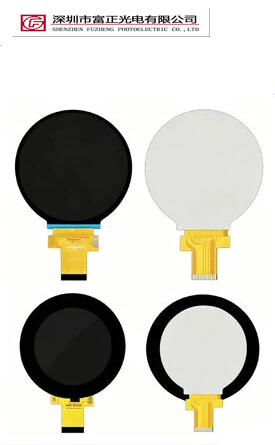

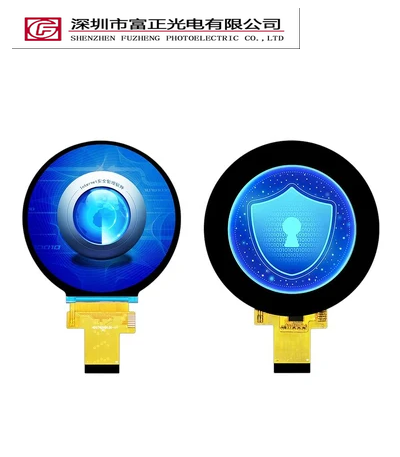

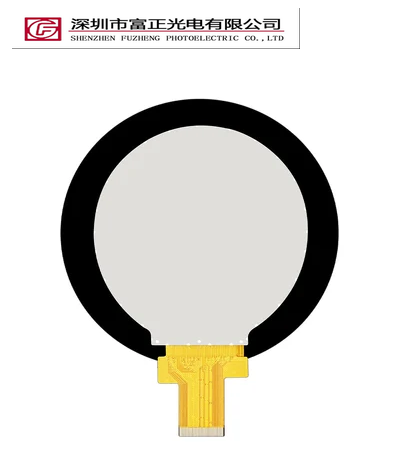

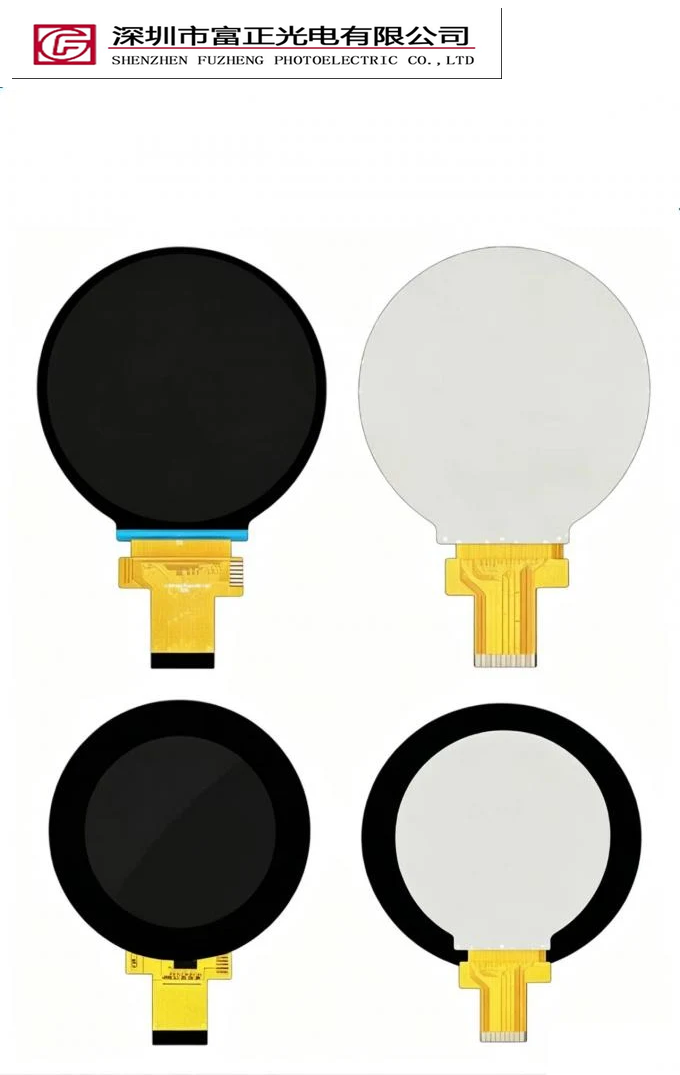

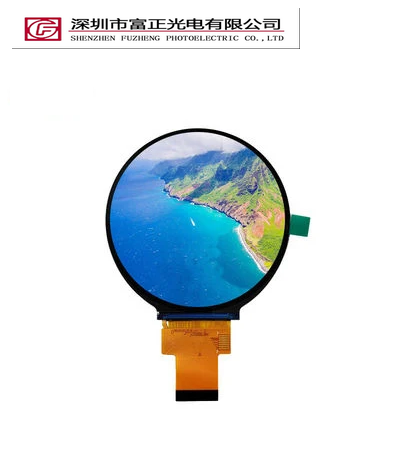

Product photographs
Mechanical drawings & documents

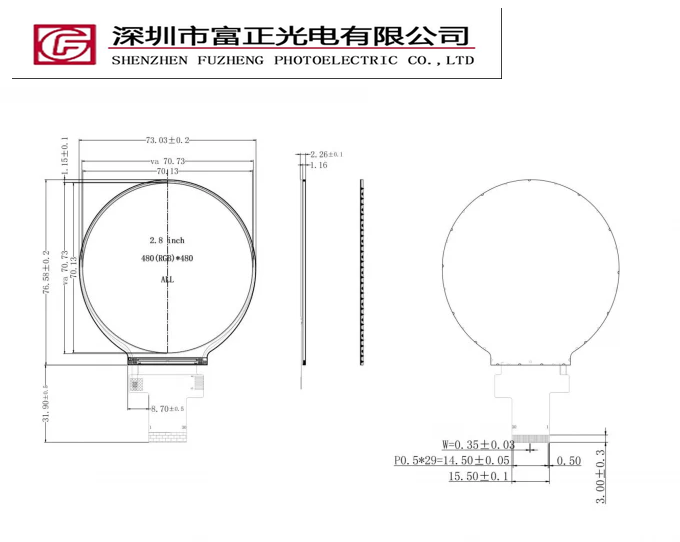

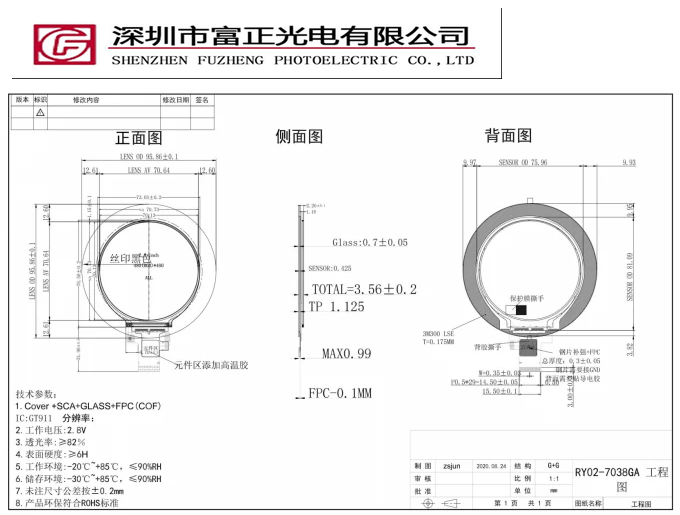

Request the HD276003C30 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
HD276003C30 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 2.76-inch display format with your available viewing area, then check 480 × 480 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected HD276003C30 configuration.
HD276003C30 frequently asked questions
What specifications are listed for HD276003C30?
Resolution: 480 × 480 pixels; Module Dimensions: 73.03 × 76.48 × 2.3 mm; Interface: MIPI; Brightness: 300 cd/m²; Driver IC: ST7701; Operating Temperature: -20 to 70 ℃; Screen Size: 2.76 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should HD276003C30 connect to a host system?
HD276003C30 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for HD276003C30?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for HD276003C30 so the exact assembly can be reviewed.
Where can I find the drawing for HD276003C30?
Request the mechanical drawing and electrical datasheet for HD276003C30. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a HD276003C30 sample?
Include the model HD276003C30, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
