Model no.Z050YMM-J40-68P0
Z050YMM-J40-68P0 5-Inch 1080 × 1080 LCD Panel
Z050YMM-J40-68P0 is a 5-inch lcd panel with 1080 × 1080 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI
- Resolution: 1080 × 1080 pixels
- Module Dimensions: 136.531 × 132.208 × 1.98 mm
- Interface: MIPI
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 5 inch
- Screen Size
- 5 inch
- Resolution
- 1080 × 1080 pixels
- Interface
- MIPI
- Viewing Angle
- 80/80/80/80
Z050YMM-J40-68P0 product introduction
Z050YMM-J40-68P0 is a 5-inch lcd panel with 1080 × 1080 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 136.531 × 132.208 × 1.98 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z050YMM-J40-68P0 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI connection on Z050YMM-J40-68P0 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z050YMM-J40-68P0 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1080 × 1080 pixels
- Module Dimensions: 136.531 × 132.208 × 1.98 mm
- Interface: MIPI
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 5 inch

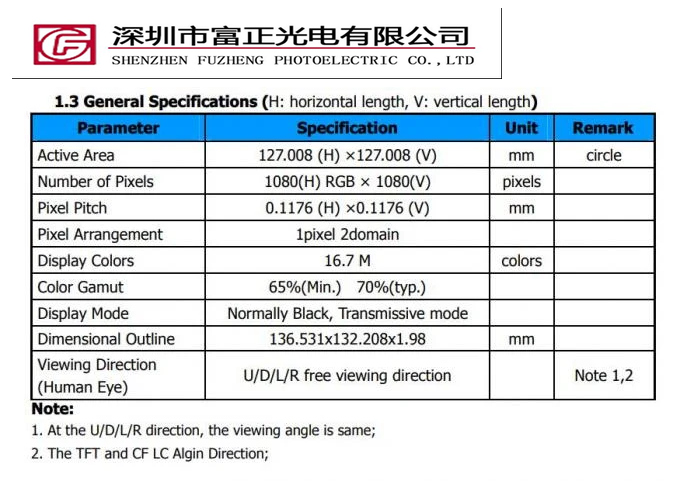

Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1080 × 1080 pixels |
| Module Dimensions | 136.531 × 132.208 × 1.98 mm |
| Active Area | 127.008 × 127.008 mm |
| Interface | MIPI |
| Viewing Angle | 80/80/80/80 |
| Brightness | 350 cd/m² |
| Operating Temperature | -20 to 70 °C |
| LCM (W x H x D) | 136.531*132.208*1.98mm |
| Viewing Direction | ALL/IPS |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 5 inch |
Interface & pin definition
Use the Z050YMM-J40-68P0 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI |

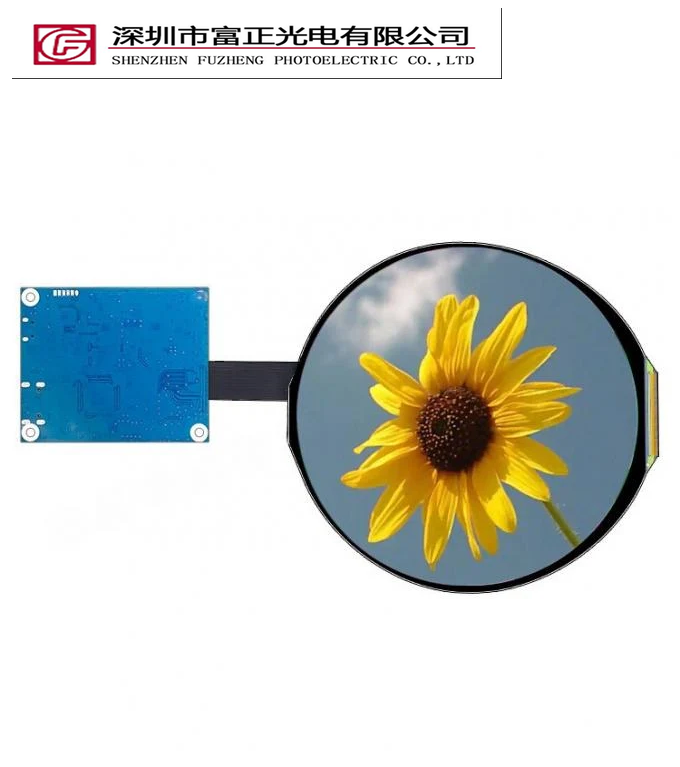

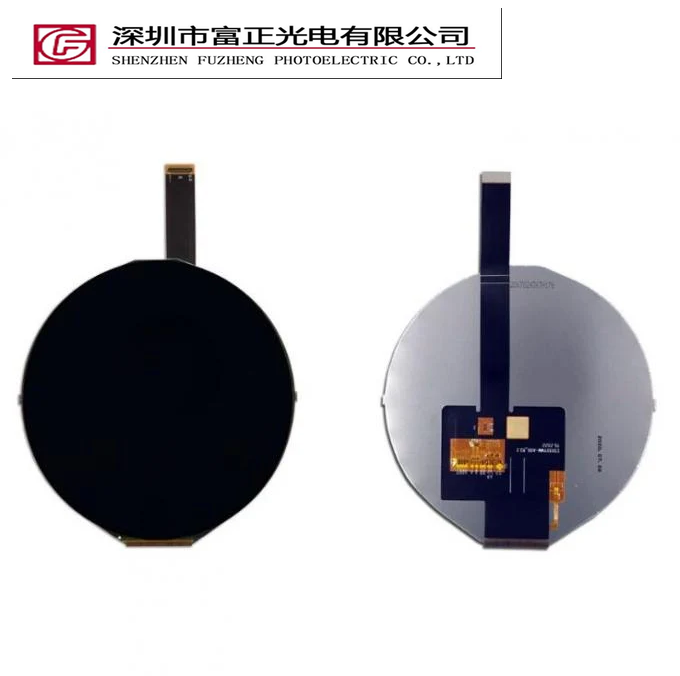

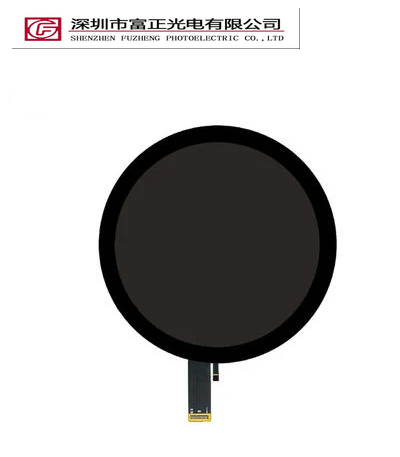

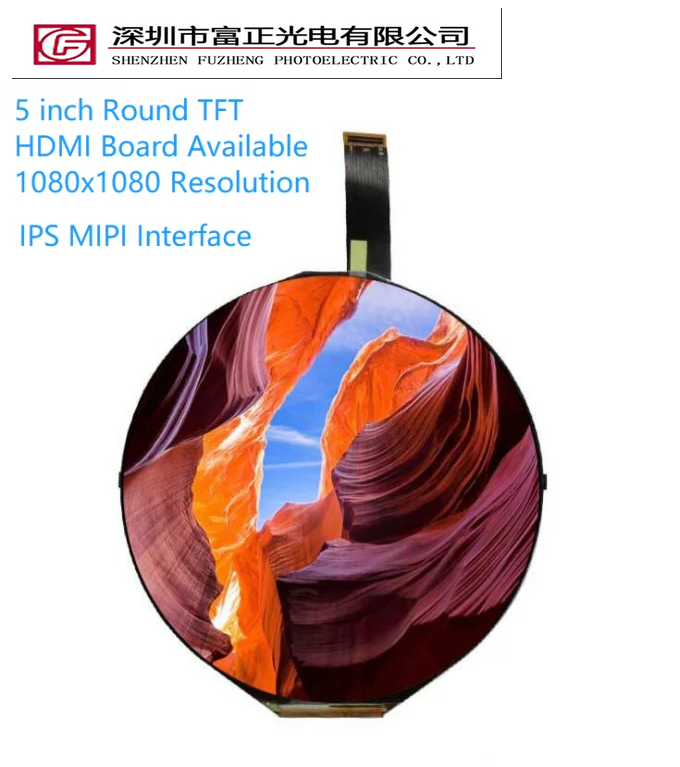

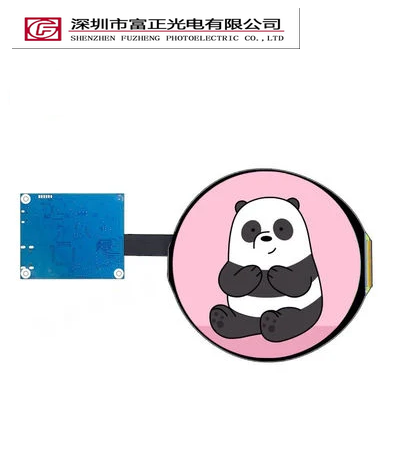

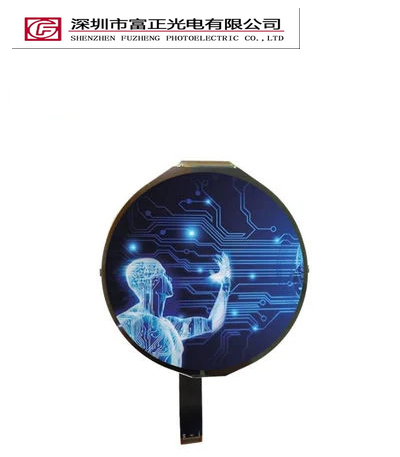

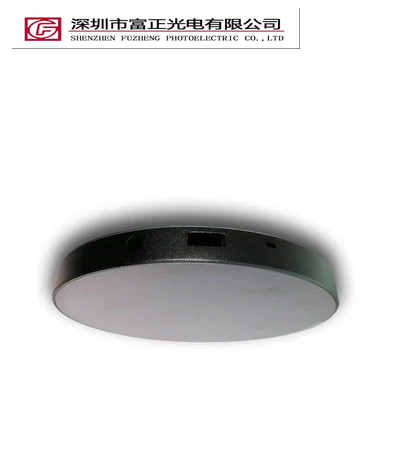

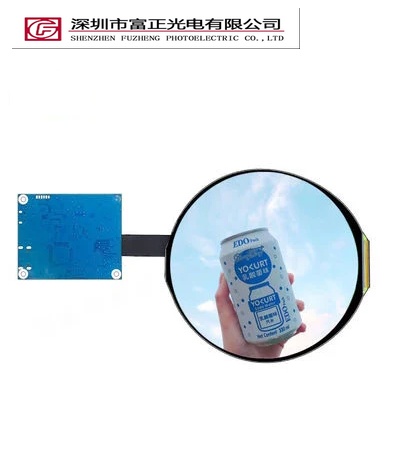

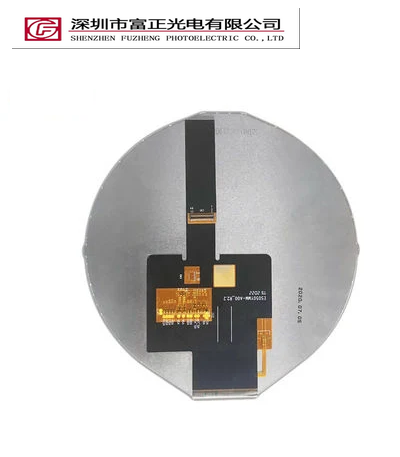

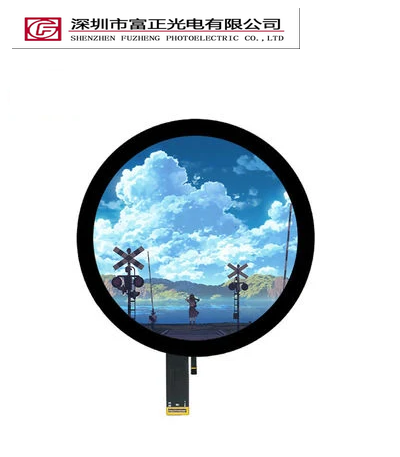

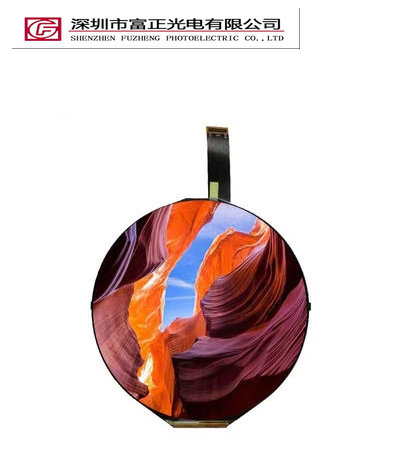

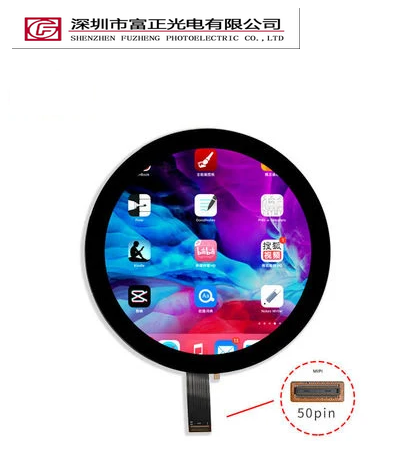

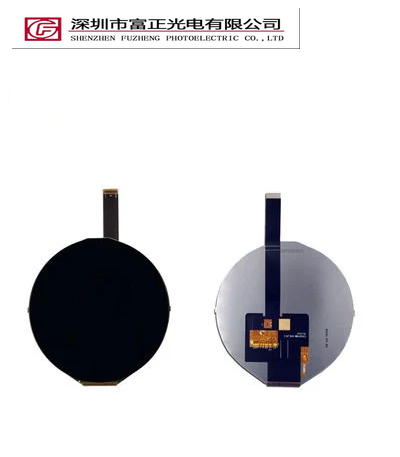

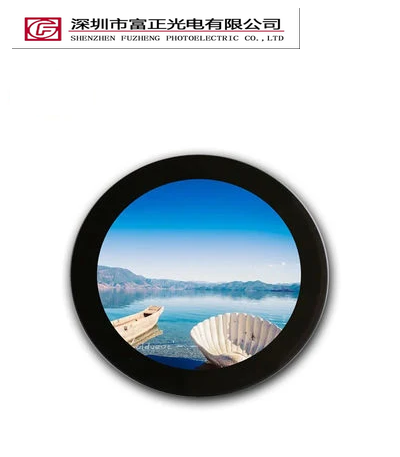

Product photographs

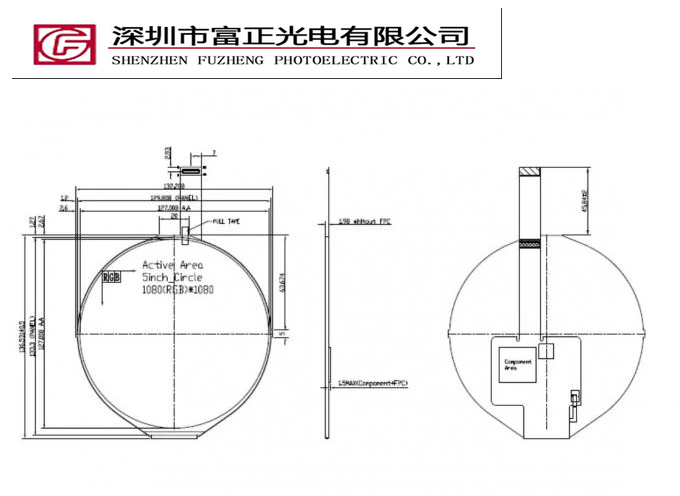

Mechanical drawings & documents
Request the Z050YMM-J40-68P0 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z050YMM-J40-68P0 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5-inch display format with your available viewing area, then check 1080 × 1080 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z050YMM-J40-68P0 configuration.
Z050YMM-J40-68P0 frequently asked questions
What specifications are listed for Z050YMM-J40-68P0?
Resolution: 1080 × 1080 pixels; Module Dimensions: 136.531 × 132.208 × 1.98 mm; Interface: MIPI; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z050YMM-J40-68P0 connect to a host system?
Z050YMM-J40-68P0 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z050YMM-J40-68P0?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z050YMM-J40-68P0 so the exact assembly can be reviewed.
Where can I find the drawing for Z050YMM-J40-68P0?
Request the mechanical drawing and electrical datasheet for Z050YMM-J40-68P0. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z050YMM-J40-68P0 sample?
Include the model Z050YMM-J40-68P0, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z050YMM-J40-68P0 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
