Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.AT070TN94

AT070TN94 7-Inch 800 × 480 LCD Panel

AT070TN94 is a 7-inch lcd panel with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 800 × 480 pixels
Module Dimensions: 164.9 × 100 × 6 mm
Brightness: 400 cd/m²
Operating Temperature: -30 to 85 °C
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 800 × 480 pixels
Display Mode: Normally White TN,Transmissive
Viewing Angle: 12:00 o'clock

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface against the latest approved specification before design-in.

AT070TN94 product introduction

AT070TN94 is a 7-inch lcd panel with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 164.9 × 100 × 6 mm. Brightness: 400 cd/m². Operating Temperature: -30 to 85 °C. Use these published characteristics to compare AT070TN94 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for AT070TN94. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following AT070TN94 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 480 pixels
Module Dimensions: 164.9 × 100 × 6 mm
Brightness: 400 cd/m²
Operating Temperature: -30 to 85 °C
Screen Size: 7 inch

Technical specifications

AT070TN94 technical parameters
Parameter	Value
Resolution	800 × 480 pixels
Module Dimensions	164.9 × 100 × 6 mm
Active Area	154.08 × 85.92 mm
Working Temperature	-30 to 85 °C
Storage Temperature	-30 to 85 °C
Model Size (WHT)mm	164.9(H)×100(V)×6(D) mm
Display Mode	Normally White TN,Transmissive
Viewing Direction	12:00 o'clock
Brightness	400 cd/m²
Pin Count	50
Viewing Angle	70/70/50/70
Operating Temperature	-30 to 85 °C
Screen Size	7 inch

Confirm interface against the latest approved module specification before design-in.

Interface & pin definition

Use the AT070TN94 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

AT070TN94 technical parameters
Parameter	Value
Pin Count	50

Product photographs

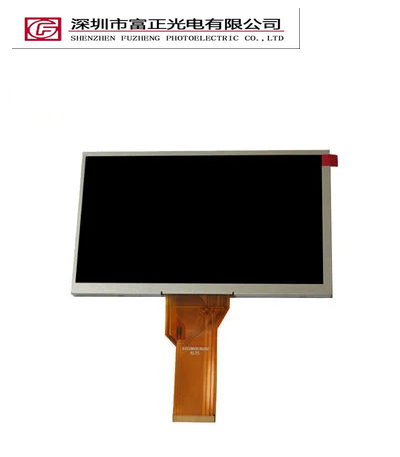

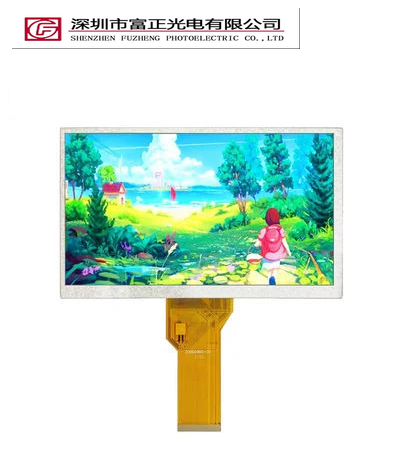

AT070TN94 product view 1

AT070TN94 product view 2

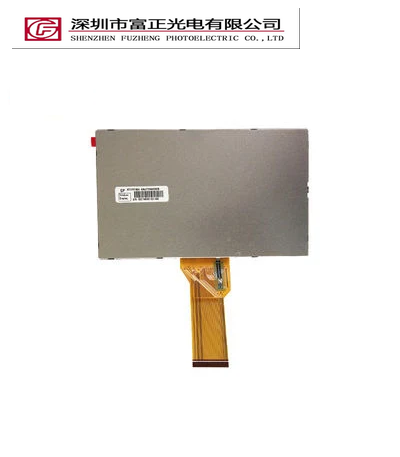

AT070TN94 product view 3

AT070TN94 product view 4

AT070TN94 product view 5

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of AT070TN94 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

AT070TN94 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check 800 × 480 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected AT070TN94 configuration.

AT070TN94 frequently asked questions

What specifications are listed for AT070TN94?

Resolution: 800 × 480 pixels; Module Dimensions: 164.9 × 100 × 6 mm; Brightness: 400 cd/m²; Operating Temperature: -30 to 85 °C; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should AT070TN94 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for AT070TN94?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for AT070TN94 so the exact assembly can be reviewed.

Where can I find the drawing for AT070TN94?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a AT070TN94 sample?

Include the model AT070TN94, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the AT070TN94 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
