Model no.DV185WHM-NM1

DV185WHM-NM1 18.5-Inch 1366 × 768 LCD Panel

DV185WHM-NM1 is a 18.5-inch lcd panel with 1366 × 768 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 1366 × 768 pixels
Module Dimensions: 430.4 × 254.6 × 11.4 mm
Brightness: 250 cd/m²
Operating Temperature: 0 to 50 °C
Screen Size: 18.5 inch

Screen Size: 18.5 inch
Resolution: 1366 × 768 pixels
Viewing Angle: 89/89/89/89

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.

DV185WHM-NM1 product introduction

DV185WHM-NM1 is a 18.5-inch lcd panel with 1366 × 768 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 430.4 × 254.6 × 11.4 mm. Brightness: 250 cd/m². Operating Temperature: 0 to 50 °C. Use these published characteristics to compare DV185WHM-NM1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for DV185WHM-NM1. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following DV185WHM-NM1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1366 × 768 pixels
Module Dimensions: 430.4 × 254.6 × 11.4 mm
Brightness: 250 cd/m²
Operating Temperature: 0 to 50 °C
Screen Size: 18.5 inch

Technical specifications

DV185WHM-NM1 technical parameters
Parameter	Value
Resolution	1366 × 768 pixels
Module Dimensions	430.4 × 254.6 × 11.4 mm
Active Area	409.8 × 230.4 mm
Viewing Angle	89/89/89/89
Brightness	250 cd/m²
Viewing Direction	ALL/IPS
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Model Size (WHT)	430.4 x254.6 x11.4 mm
Viewing	IPS
Pin Count	30 pin
Contrast Ratio	1000:1
Screen Size	18.5 inch

Confirm interface, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the DV185WHM-NM1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

DV185WHM-NM1 technical parameters
Parameter	Value
Pin Count	30 pin

Product photographs

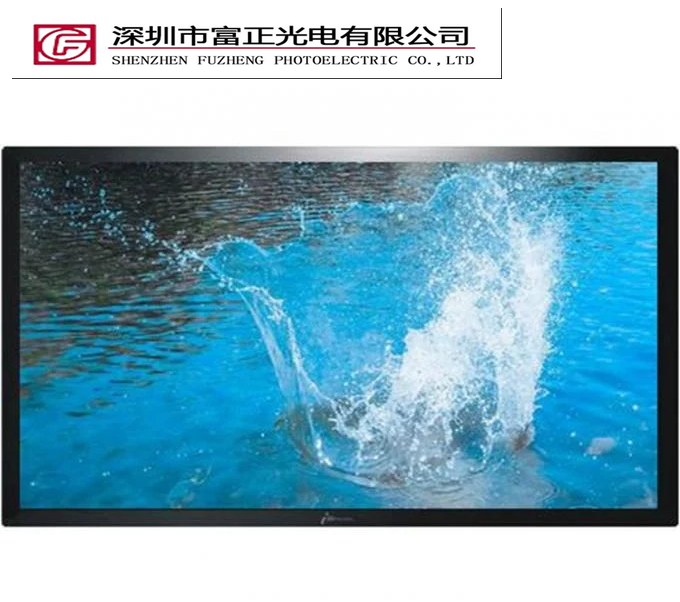

DV185WHM-NM1 product view 1

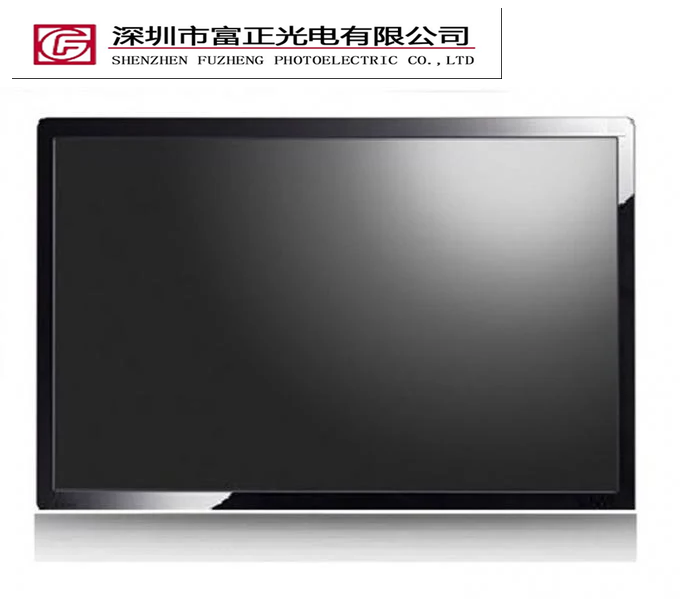

DV185WHM-NM1 product view 2

DV185WHM-NM1 product view 3

Mechanical drawings & documents

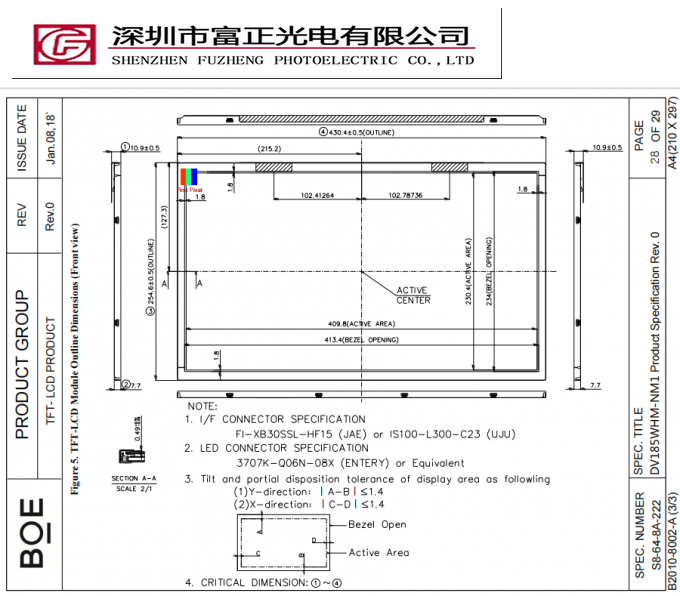

Mechanical reference 1 — open full size to inspect dimensions.

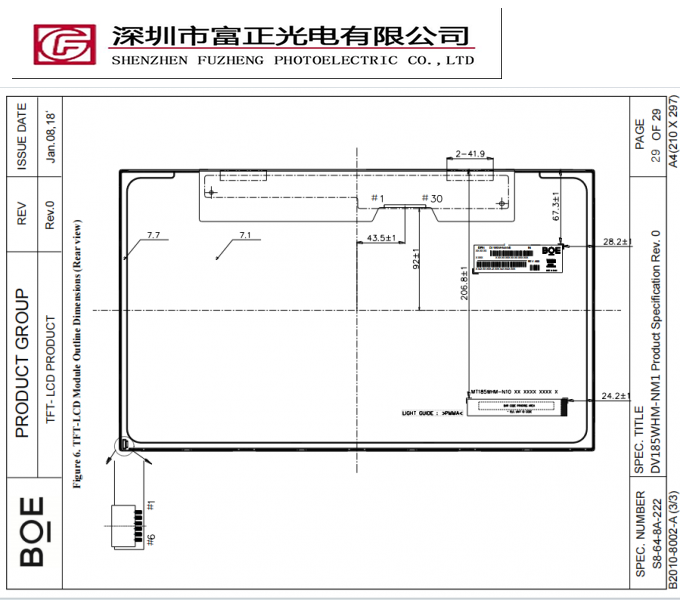

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of DV185WHM-NM1 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

DV185WHM-NM1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 18.5-inch display format with your available viewing area, then check 1366 × 768 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected DV185WHM-NM1 configuration.

DV185WHM-NM1 frequently asked questions

What specifications are listed for DV185WHM-NM1?

Resolution: 1366 × 768 pixels; Module Dimensions: 430.4 × 254.6 × 11.4 mm; Brightness: 250 cd/m²; Operating Temperature: 0 to 50 °C; Screen Size: 18.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should DV185WHM-NM1 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for DV185WHM-NM1?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for DV185WHM-NM1 so the exact assembly can be reviewed.

Where can I find the drawing for DV185WHM-NM1?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a DV185WHM-NM1 sample?

Include the model DV185WHM-NM1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
