Model no.DV150X0M-N10

DV150X0M-N10 15-Inch LCD Panel

DV150X0M-N10 is a 15-inch lcd panel and a LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR interface. Review the module specifications, product images and integration requirements before requesting a sample.

LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR
Optional Touch Panel / Customization
Brightness: 350 cd/m²
Interface: LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR
Operating Temperature: -20°C to +70 °C
Touch: Optional Touch Panel / Customization
Screen Size: 15 inch

Screen Size: 15 inch
Interface: LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR
Touch: Optional Touch Panel / Customization
Viewing Angle: ALL/IPS

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm resolution, module dimensions, display mode against the latest approved specification before design-in.

DV150X0M-N10 product introduction

DV150X0M-N10 is a 15-inch lcd panel and a LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR interface. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 350 cd/m². Operating Temperature: -20°C to +70 °C. Touch: Optional Touch Panel / Customization. Use these published characteristics to compare DV150X0M-N10 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR connection on DV150X0M-N10 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following DV150X0M-N10 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Brightness: 350 cd/m²
Interface: LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR
Operating Temperature: -20°C to +70 °C
Touch: Optional Touch Panel / Customization
Screen Size: 15 inch

Technical specifications

DV150X0M-N10 technical parameters
Parameter	Value
LCM	15 Inch BOE DV150X0M-N10 LCD Display
Active Area	304.128 × 228.096 mm
Signal Interface	LVDS 20 Pin
Brightness	350 cd/m²
Viewing Direction	ALL/IPS
Viewing Angle	89/89/89/89 (Typ.)
Contrast Ratio	1000:1 (Typ.)
LCM Luminance	350cd/m2 (Typ.)
Interface	LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR
Operating Temperature	-20°C to +70 °C
Storage Temperature	-20°C to +70 °C
Touch	Optional Touch Panel / Customization
Screen Size	15 inch

Confirm resolution, module dimensions, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the DV150X0M-N10 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

DV150X0M-N10 technical parameters
Parameter	Value
Interface	LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR
Touch	Optional Touch Panel / Customization

Product photographs

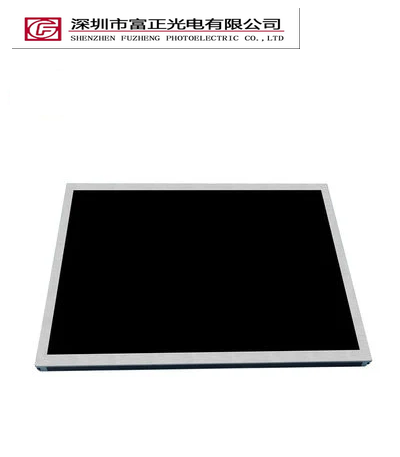

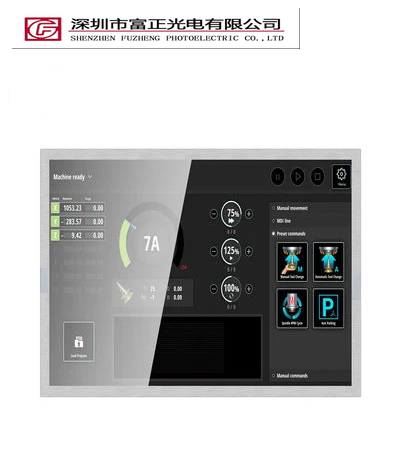

DV150X0M-N10 product view 1

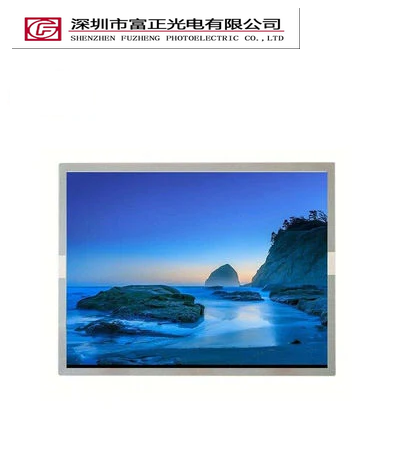

DV150X0M-N10 product view 2

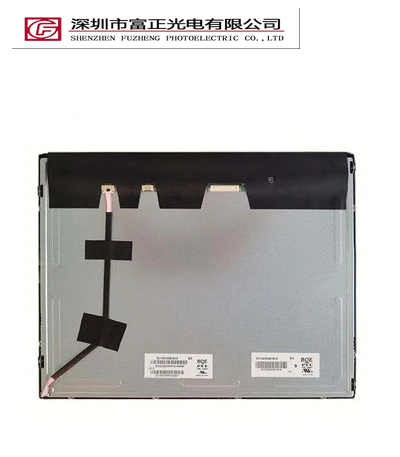

DV150X0M-N10 product view 3

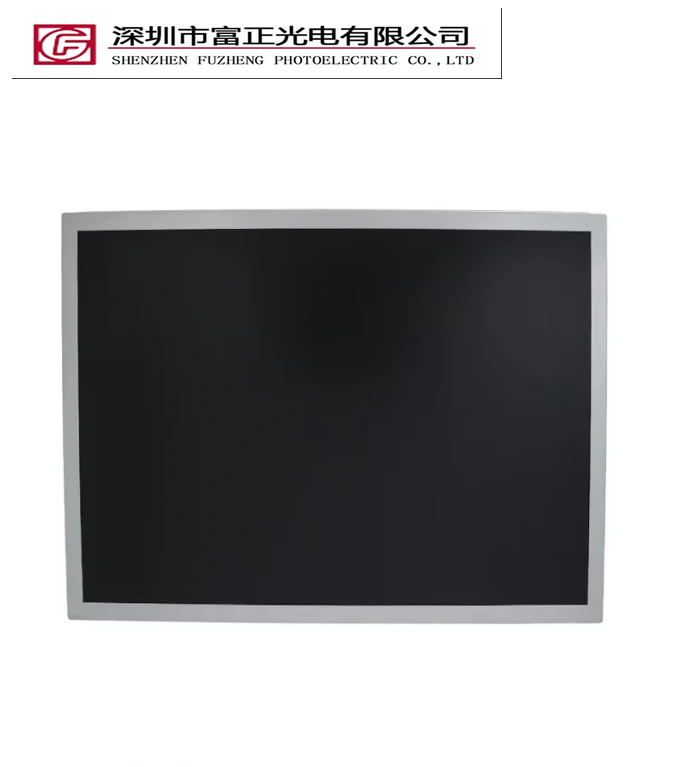

DV150X0M-N10 product view 4

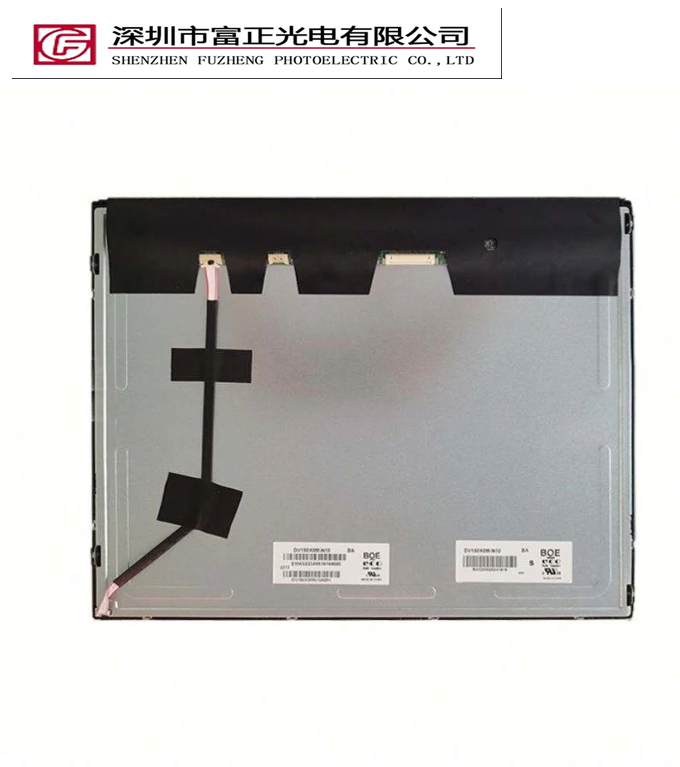

DV150X0M-N10 product view 5

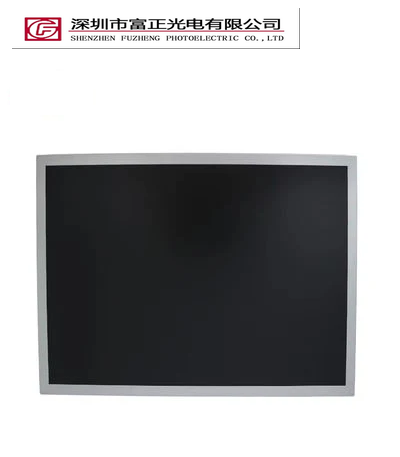

DV150X0M-N10 product view 6

DV150X0M-N10 product view 7

DV150X0M-N10 product view 8

DV150X0M-N10 product view 9

DV150X0M-N10 product view 10

Mechanical drawings & documents

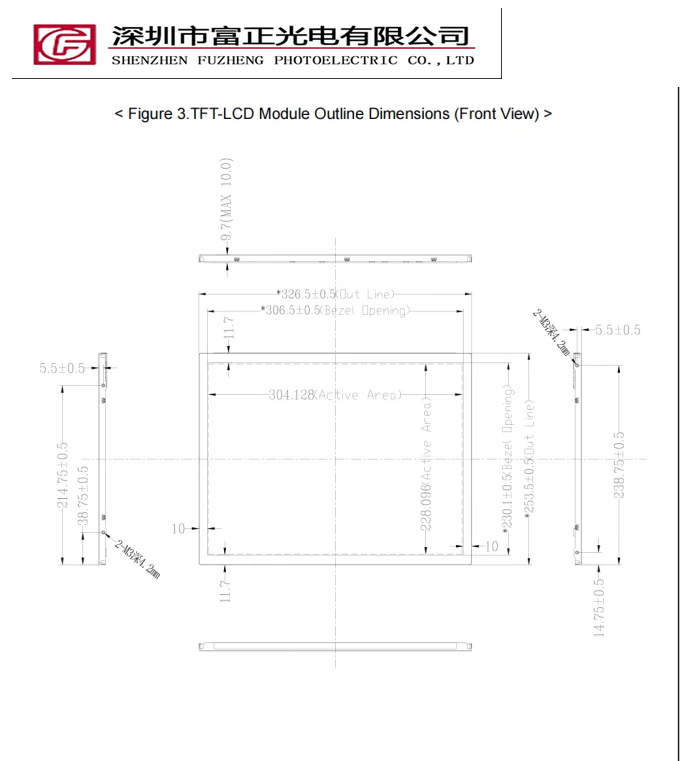

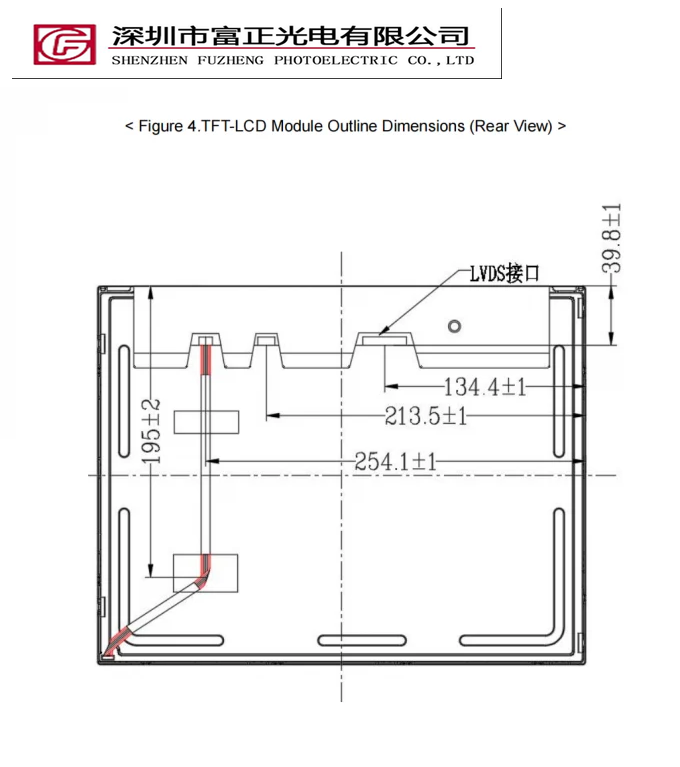

Request the DV150X0M-N10 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

DV150X0M-N10 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 15-inch display format with your available viewing area, then check LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected DV150X0M-N10 configuration.

DV150X0M-N10 frequently asked questions

What specifications are listed for DV150X0M-N10?

Brightness: 350 cd/m²; Interface: LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR; Operating Temperature: -20°C to +70 °C; Touch: Optional Touch Panel / Customization; Screen Size: 15 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should DV150X0M-N10 connect to a host system?

DV150X0M-N10 lists a LVDS (1 CH, 8-BIT) , 20PINS CONNECTOR interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for DV150X0M-N10?

The listed touch configuration is Optional Touch Panel / Customization. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for DV150X0M-N10?

Request the mechanical drawing and electrical datasheet for DV150X0M-N10. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a DV150X0M-N10 sample?

Include the model DV150X0M-N10, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
