Model no.TM034XVZP01

TM034XVZP01 3.4-Inch 800 × 800 LCD Panel

TM034XVZP01 is a 3.4-inch lcd panel with 800 × 800 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Capacitive Touch
Resolution: 800 × 800 pixels
Module Dimensions: 99.0 × 96.6 × 3.98 mm
Touch: Capacitive Touch
Driver IC: ILI9881C
Operating Temperature: -20 to 70 ℃
Screen Size: 3.4 inch

Screen Size: 3.4 inch
Resolution: 800 × 800 pixels
Touch: Capacitive touch
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, brightness, display mode against the latest approved specification before design-in.

TM034XVZP01 product introduction

TM034XVZP01 is a 3.4-inch lcd panel with 800 × 800 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 99.0 × 96.6 × 3.98 mm. Touch: Capacitive Touch. Driver IC: ILI9881C. Operating Temperature: -20 to 70 ℃. Use these published characteristics to compare TM034XVZP01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for TM034XVZP01. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following TM034XVZP01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 800 pixels
Module Dimensions: 99.0 × 96.6 × 3.98 mm
Touch: Capacitive Touch
Driver IC: ILI9881C
Operating Temperature: -20 to 70 ℃
Screen Size: 3.4 inch

Technical specifications

TM034XVZP01 technical parameters
Parameter	Value
Resolution	800 × 800 pixels
Module Dimensions	99.0 × 96.6 × 3.98 mm
Active Area	87.6 × 87.6 mm
Viewing Angle	80/80/80/80
LCD Driver IC	ILI9881C
CTP Driver IC	HX8526-E30
Touch	Capacitive Touch
Model Size (WHT)	99.0 x 96.6 x 3.98mm
Pin Count	39 pin
Driver IC	ILI9881C
Operating Temperature	-20 to 70 ℃
Storage Temperature	-30 to 80 ℃
Screen Size	3.4 inch

Confirm interface, brightness, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the TM034XVZP01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

TM034XVZP01 technical parameters
Parameter	Value
Touch	Capacitive Touch
Pin Count	39 pin
Driver IC	ILI9881C

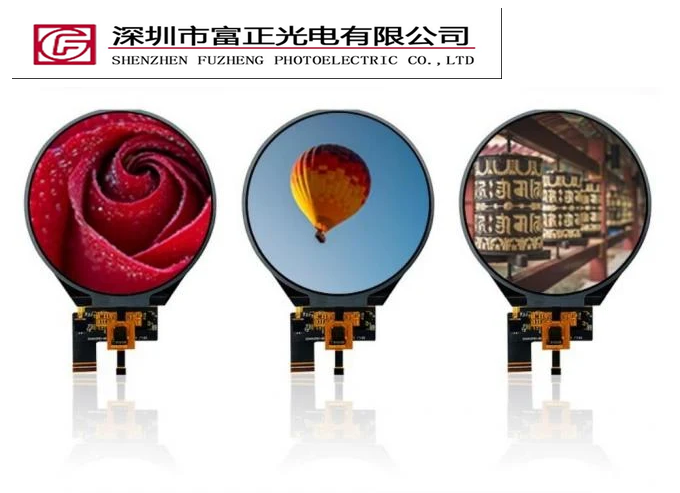

Product photographs

TM034XVZP01 product view 1

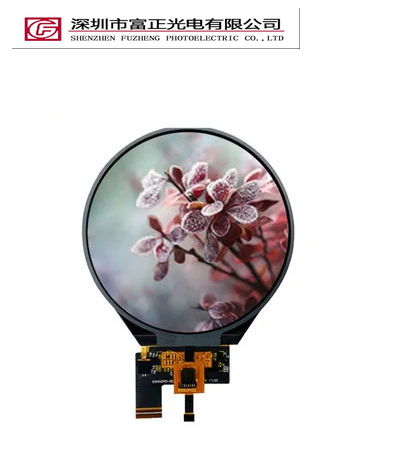

TM034XVZP01 product view 2

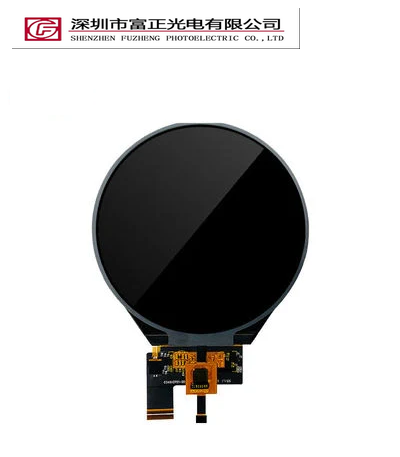

TM034XVZP01 product view 3

TM034XVZP01 product view 4

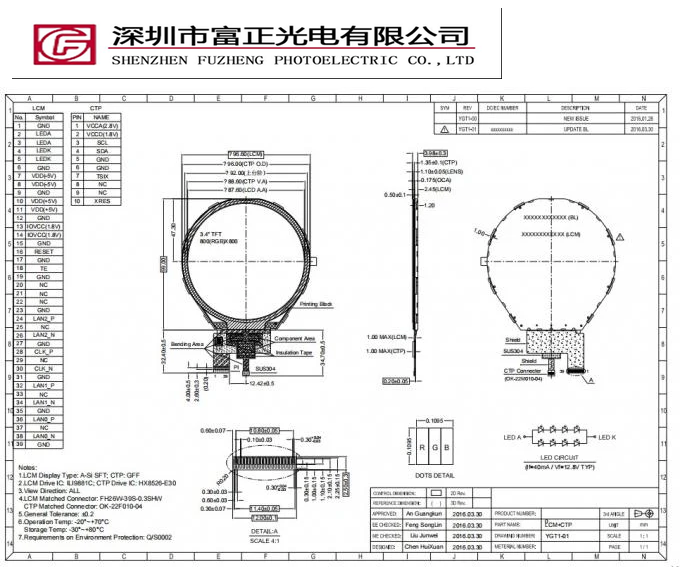

Mechanical drawings & documents

Request the TM034XVZP01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

TM034XVZP01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 3.4-inch display format with your available viewing area, then check 800 × 800 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected TM034XVZP01 configuration.
