LCD-53255523 10.4-Inch 800 × 600 LCD Panel

LCD-53255523 is a 10.4-inch lcd panel with 800 × 600 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 800 × 600 pixels
Module Dimensions: 243 × 184 × 7 mm
Brightness: 400 cd/m²
Operating Temperature: -30 to 80 °C
Screen Size: 10.4 inch

Screen Size: 10.4 inch
Resolution: 800 × 600 pixels
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.

LCD-53255523 product introduction

LCD-53255523 is a 10.4-inch lcd panel with 800 × 600 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 243 × 184 × 7 mm. Brightness: 400 cd/m². Operating Temperature: -30 to 80 °C. Use these published characteristics to compare LCD-53255523 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for LCD-53255523. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following LCD-53255523 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 600 pixels
Module Dimensions: 243 × 184 × 7 mm
Brightness: 400 cd/m²
Operating Temperature: -30 to 80 °C
Screen Size: 10.4 inch

Technical specifications

LCD-53255523 technical parameters
Parameter	Value
Resolution	800 × 600 pixels
Module Dimensions	243 × 184 × 7 mm
Active Area	211.2 × 158.4 mm
Viewing Angle	85/85/85/85
Brightness	400 cd/m²
Viewing Direction	6 O'clock
Operating Temperature	-30 to 80 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)	243(W)×184(H)×7(D) mm
Viewing	6 o'clcok
Pin Count	20 pin
Contrast Ratio	700:1
Screen Size	10.4 inch

Confirm interface, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the LCD-53255523 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

LCD-53255523 technical parameters
Parameter	Value
Pin Count	20 pin

Product photographs

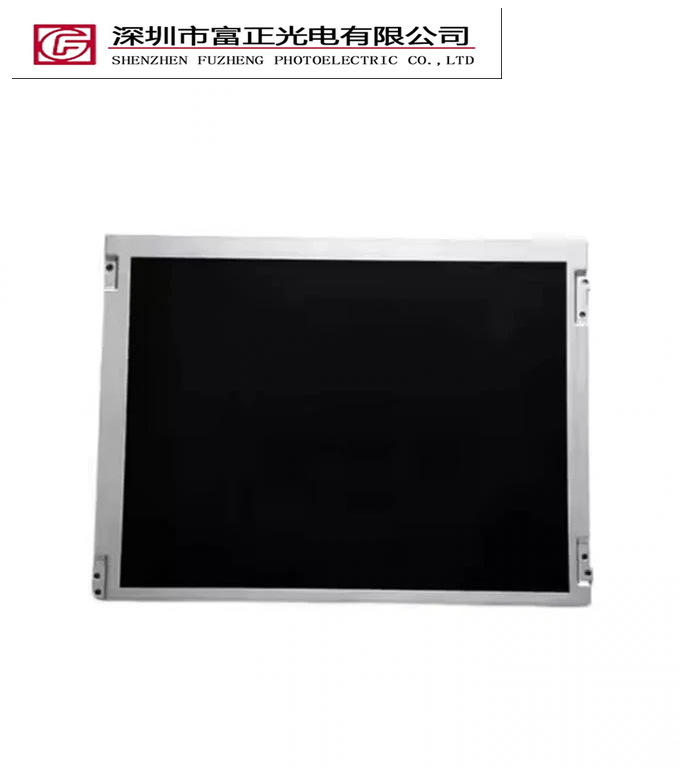

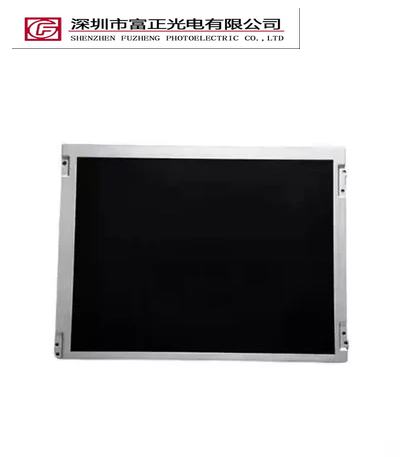

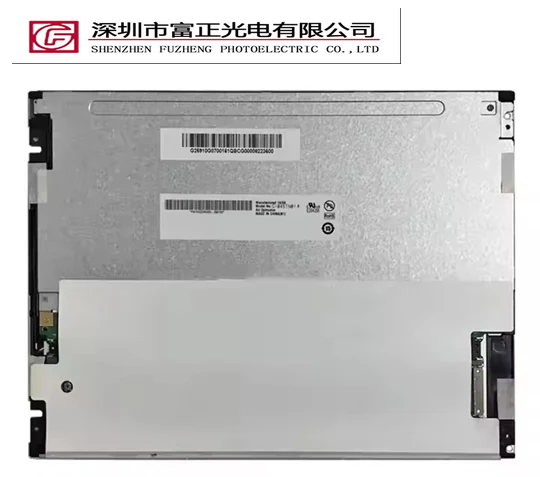

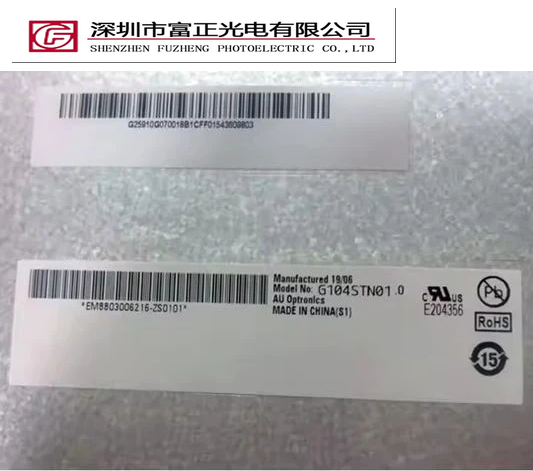

LCD-53255523 product view 1

LCD-53255523 product view 2

LCD-53255523 product view 3

LCD-53255523 product view 4

LCD-53255523 product view 5

Mechanical drawings & documents

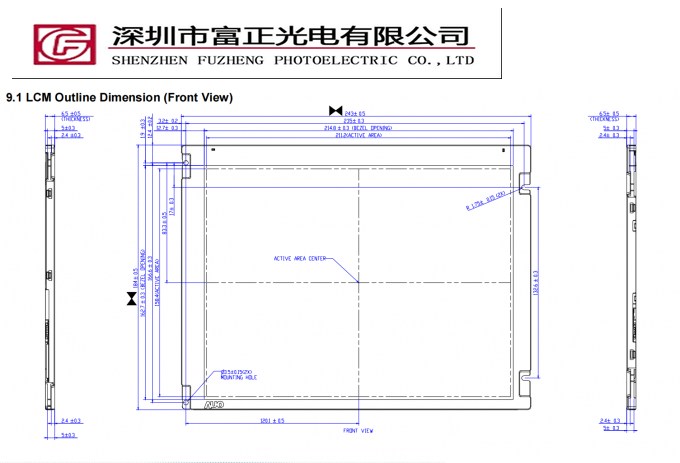

Mechanical reference 1 — open full size to inspect dimensions.

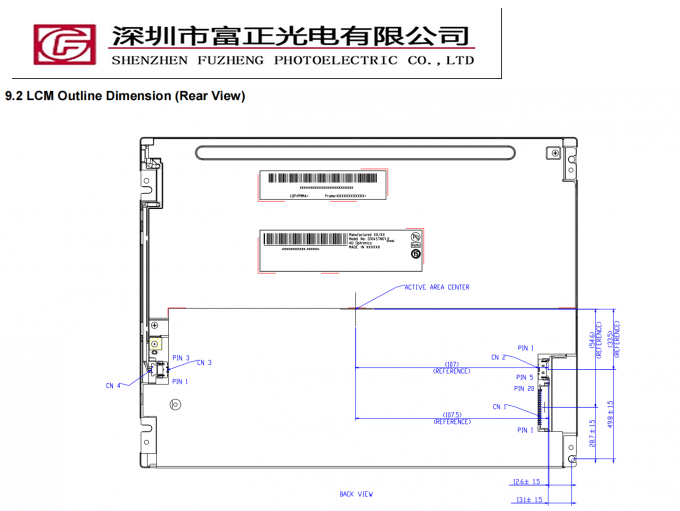

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of LCD-53255523 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

LCD-53255523 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 10.4-inch display format with your available viewing area, then check 800 × 600 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected LCD-53255523 configuration.

LCD-53255523 frequently asked questions

What specifications are listed for LCD-53255523?

Resolution: 800 × 600 pixels; Module Dimensions: 243 × 184 × 7 mm; Brightness: 400 cd/m²; Operating Temperature: -30 to 80 °C; Screen Size: 10.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should LCD-53255523 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for LCD-53255523?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for LCD-53255523 so the exact assembly can be reviewed.

Where can I find the drawing for LCD-53255523?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a LCD-53255523 sample?

Include the model LCD-53255523, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
