Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.GV185FHM-N10-DM30
GV185FHM-N10-DM30 18.5-Inch 1920 × 1080 LCD Panel
GV185FHM-N10-DM30 is a 18.5-inch lcd panel with 1920 × 1080 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 1920 × 1080 pixels
- Module Dimensions: 430.4 × 254.6 × 12.5 mm
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 18.5 inch
- Screen Size
- 18.5 inch
- Resolution
- 1920 × 1080 pixels
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.
GV185FHM-N10-DM30 product introduction
GV185FHM-N10-DM30 is a 18.5-inch lcd panel with 1920 × 1080 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 430.4 × 254.6 × 12.5 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare GV185FHM-N10-DM30 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for GV185FHM-N10-DM30. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following GV185FHM-N10-DM30 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1920 × 1080 pixels
- Module Dimensions: 430.4 × 254.6 × 12.5 mm
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 18.5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1920 × 1080 pixels |
| Module Dimensions | 430.4 × 254.6 × 12.5 mm |
| Active Area | 408.96 × 230.04 mm |
| Viewing Angle | 85/85/85/85 |
| Brightness | 350 cd/m² |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T) | 430.4(H)×254.6(V) ×12.5(D) mm |
| Viewing | IPS |
| Pin Count | 30 pin |
| Contrast Ratio | 1000:1 |
| Screen Size | 18.5 inch |
Confirm interface, display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the GV185FHM-N10-DM30 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 30 pin |

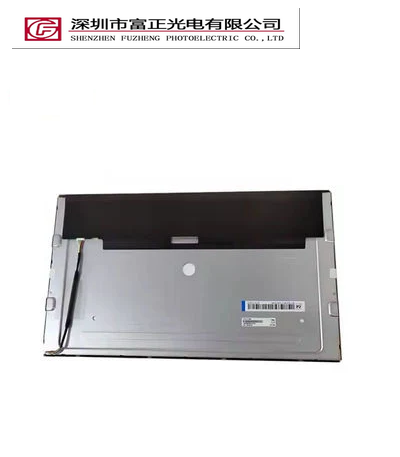

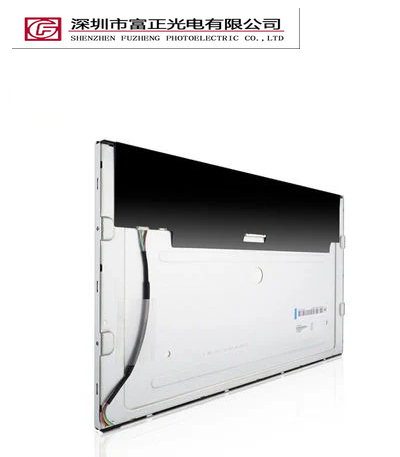

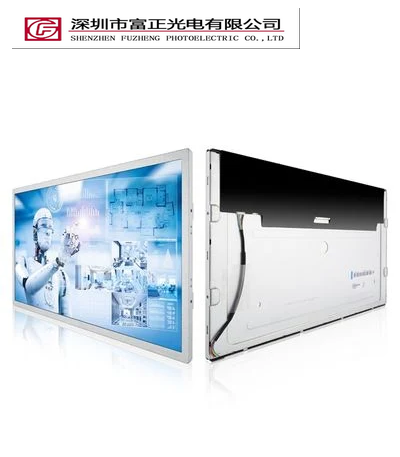

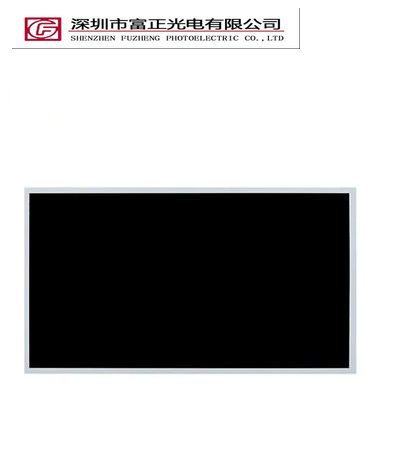

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of GV185FHM-N10-DM30 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
GV185FHM-N10-DM30 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 18.5-inch display format with your available viewing area, then check 1920 × 1080 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected GV185FHM-N10-DM30 configuration.
GV185FHM-N10-DM30 frequently asked questions
What specifications are listed for GV185FHM-N10-DM30?
Resolution: 1920 × 1080 pixels; Module Dimensions: 430.4 × 254.6 × 12.5 mm; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 18.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should GV185FHM-N10-DM30 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for GV185FHM-N10-DM30?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for GV185FHM-N10-DM30 so the exact assembly can be reviewed.
Where can I find the drawing for GV185FHM-N10-DM30?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a GV185FHM-N10-DM30 sample?
Include the model GV185FHM-N10-DM30, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the GV185FHM-N10-DM30 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
