Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.G150XNE-L01
G150XNE-L01 15-Inch 1024 × 768 LCD Panel — Ref 53509097
G150XNE-L01 is a 15-inch lcd panel with 1024 × 768 resolution and a LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR
- Without
- Resolution: 1024 × 768 pixels
- Module Dimensions: 326.5 × 253.5 × 9.6 mm
- Brightness: 500 cd/m²
- Touch: Without
- Interface: LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR
- Screen Size: 15 inch
- Screen Size
- 15 inch
- Resolution
- 1024 × 768 pixels
- Display Mode
- TFT,Normally black
- Interface
- LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR
- Touch
- Without
- Viewing Angle
- ALL/IPS
G150XNE-L01 product introduction
G150XNE-L01 is a 15-inch lcd panel with 1024 × 768 resolution and a LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR interface. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 326.5 × 253.5 × 9.6 mm. Brightness: 500 cd/m². Touch: Without. Use these published characteristics to compare G150XNE-L01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR connection on G150XNE-L01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following G150XNE-L01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 768 pixels
- Module Dimensions: 326.5 × 253.5 × 9.6 mm
- Brightness: 500 cd/m²
- Touch: Without
- Interface: LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR
- Screen Size: 15 inch
Technical specifications
| Parameter | Value |
|---|---|
| LCM | 15 Inch Innolux G150XNE-L01 LCD Display |
| Resolution | 1024 × 768 pixels |
| Module Dimensions | 326.5 × 253.5 × 9.6 mm |
| Active Area | 304.128 × 228.096 mm |
| Signal Interface | LVDS 20 Pin |
| Display Mode | TFT,Normally Black |
| Viewing Direction | ALL/IPS |
| Outline(mm) | 326.5(W)×253.5(H)×9.6(D) mm |
| Brightness | 500 cd/m² |
| Contrast Ratio | 2500:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Touch | Without |
| Voltage Supply | 3.3V (Typ.) |
| Interface | LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR |
| Screen Size | 15 inch |
Interface & pin definition
Use the G150XNE-L01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Touch | Without |
| Interface | LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR |

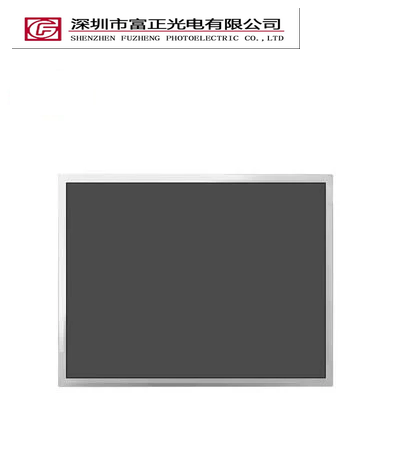

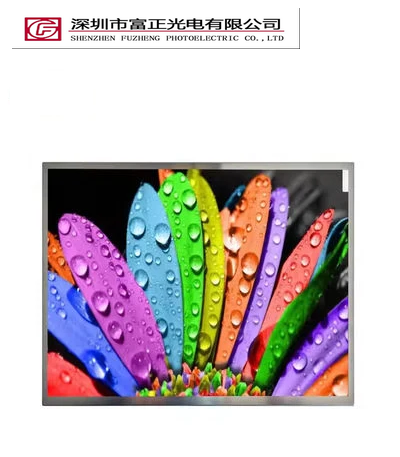

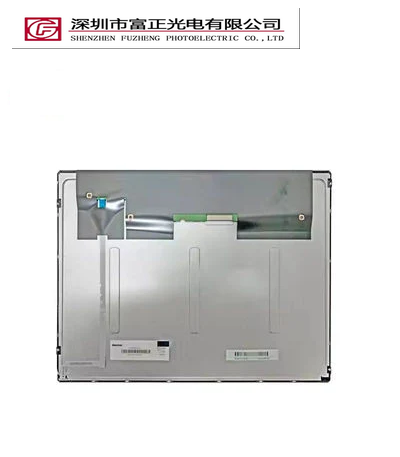

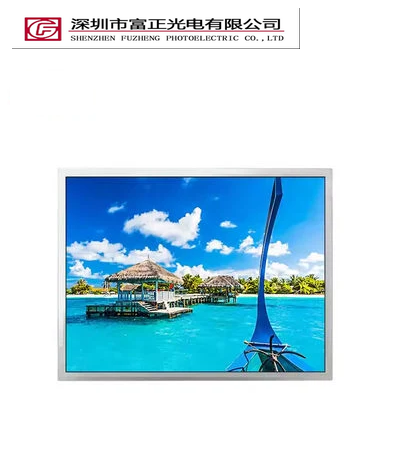

Product photographs
Mechanical drawings & documents
Request the G150XNE-L01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
G150XNE-L01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 15-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected G150XNE-L01 configuration.
G150XNE-L01 frequently asked questions
What specifications are listed for G150XNE-L01?
Resolution: 1024 × 768 pixels; Module Dimensions: 326.5 × 253.5 × 9.6 mm; Brightness: 500 cd/m²; Touch: Without; Interface: LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR; Screen Size: 15 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should G150XNE-L01 connect to a host system?
G150XNE-L01 lists a LVDS (1 CH, 6/8-BIT) 20 PINS CONNECTOR interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for G150XNE-L01?
The listed touch configuration is Without. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for G150XNE-L01?
Request the mechanical drawing and electrical datasheet for G150XNE-L01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a G150XNE-L01 sample?
Include the model G150XNE-L01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the G150XNE-L01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
