Model no.G150XNE-L01
G150XNE-L01 15-Inch 1024 × 768 LCD Panel — Ref 53509066
G150XNE-L01 is a 15-inch lcd panel with 1024 × 768 resolution and a LVDS 20 PIN interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS 20 PIN
- Resolution: 1024 × 768 pixels
- Module Dimensions: 326.5 × 253.5 × 9.6 mm
- Interface: LVDS 20 PIN
- Brightness: 500 cd/m²
- Screen Size: 15 inch
- Screen Size
- 15 inch
- Resolution
- 1024 × 768 pixels
- Display Mode
- Normally black
- Interface
- LVDS 20 PIN
- Viewing Angle
- 88/88/88/88
G150XNE-L01 product introduction
G150XNE-L01 is a 15-inch lcd panel with 1024 × 768 resolution and a LVDS 20 PIN interface. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 326.5 × 253.5 × 9.6 mm. Brightness: 500 cd/m². Use these published characteristics to compare G150XNE-L01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS 20 PIN connection on G150XNE-L01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following G150XNE-L01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 768 pixels
- Module Dimensions: 326.5 × 253.5 × 9.6 mm
- Interface: LVDS 20 PIN
- Brightness: 500 cd/m²
- Screen Size: 15 inch
Technical specifications
| Parameter | Value |
|---|---|
| LCM | Innolux 15 Inch LCD Panel G150XNE-L01 |
| Resolution | 1024 × 768 pixels |
| Module Dimensions | 326.5 × 253.5 × 9.6 mm |
| Active Area | 304.128 × 228.096 mm |
| Interface | LVDS 20 PIN |
| Viewing Angle | 88/88/88/88 (Typ.) |
| Brightness | 500 cd/m² |
| Display Mode | Normally Black |
| Viewing Direction | ALL/IPS |
| Screen Size | 15 inch |
Interface & pin definition
Use the G150XNE-L01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS 20 PIN |

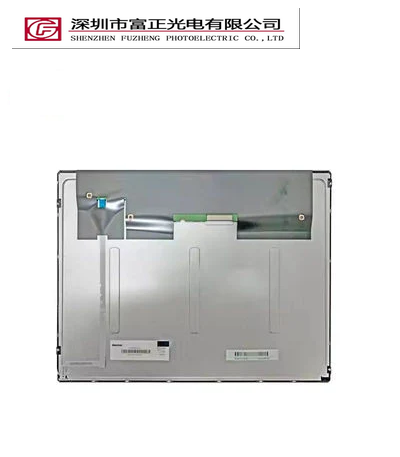

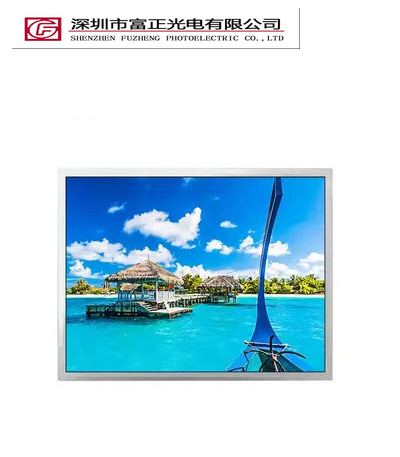

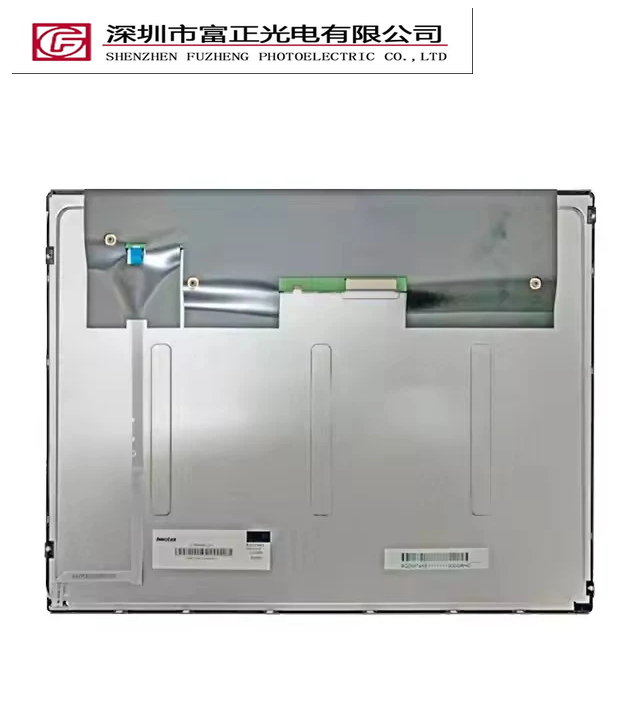

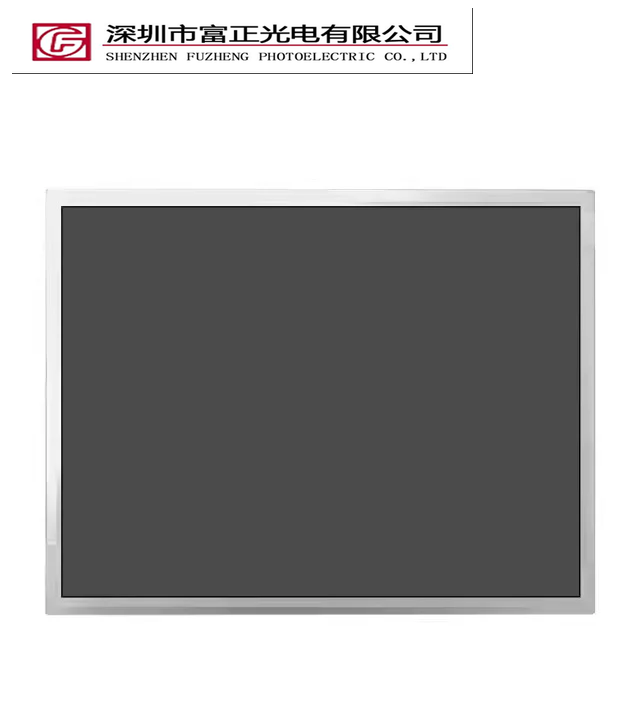

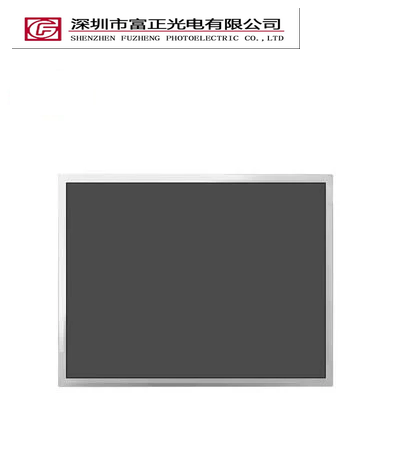

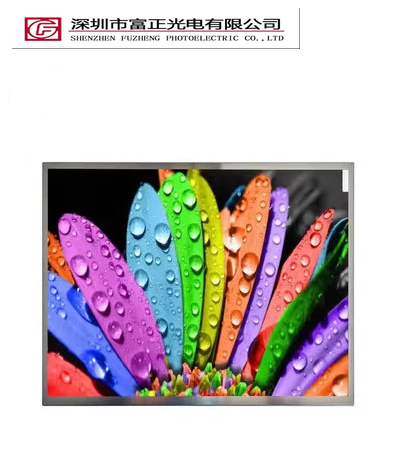

Product photographs
Mechanical drawings & documents
Request the G150XNE-L01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
G150XNE-L01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 15-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, LVDS 20 PIN host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected G150XNE-L01 configuration.
G150XNE-L01 frequently asked questions
What specifications are listed for G150XNE-L01?
Resolution: 1024 × 768 pixels; Module Dimensions: 326.5 × 253.5 × 9.6 mm; Interface: LVDS 20 PIN; Brightness: 500 cd/m²; Screen Size: 15 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should G150XNE-L01 connect to a host system?
G150XNE-L01 lists a LVDS 20 PIN interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for G150XNE-L01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for G150XNE-L01 so the exact assembly can be reviewed.
Where can I find the drawing for G150XNE-L01?
Request the mechanical drawing and electrical datasheet for G150XNE-L01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a G150XNE-L01 sample?
Include the model G150XNE-L01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the G150XNE-L01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
