Model no.G121ICE-L01
G121ICE-L01 12.1-Inch 1280 × 800 LCD Panel
G121ICE-L01 is a 12.1-inch lcd panel with 1280 × 800 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 1280 × 800 pixels
- Module Dimensions: 278 × 184 × 10.5 mm
- Operating Temperature: -20 to 70 °C
- Screen Size: 12.1 inch
- Screen Size
- 12.1 inch
- Resolution
- 1280 × 800 pixels
- Viewing Angle
- 89/89/89/89
Specification confirmation. Confirm interface, brightness, display mode against the latest approved specification before design-in.
G121ICE-L01 product introduction
G121ICE-L01 is a 12.1-inch lcd panel with 1280 × 800 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The original lcd panels format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 278 × 184 × 10.5 mm. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare G121ICE-L01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for G121ICE-L01. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following G121ICE-L01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1280 × 800 pixels
- Module Dimensions: 278 × 184 × 10.5 mm
- Operating Temperature: -20 to 70 °C
- Screen Size: 12.1 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1280 × 800 pixels |
| Module Dimensions | 278 × 184 × 10.5 mm |
| Active Area | 261.12 × 163.2 mm |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | ALL/IPS |
| Model Size (W*H*T) | 278(W)×184(H)×10.5(D) mm |
| Viewing | IPS |
| Pin Count | 30 pin |
| Contrast Ratio | 1000:1 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -20 to 70 °C |
| Screen Size | 12.1 inch |
Confirm interface, brightness, display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the G121ICE-L01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 30 pin |

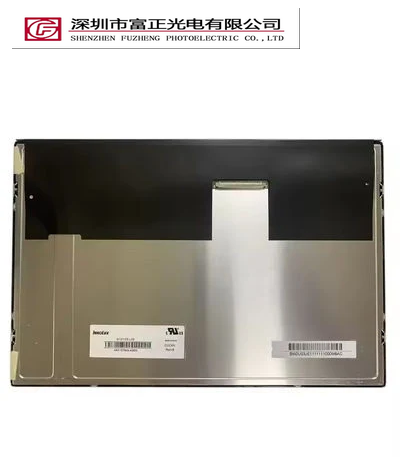

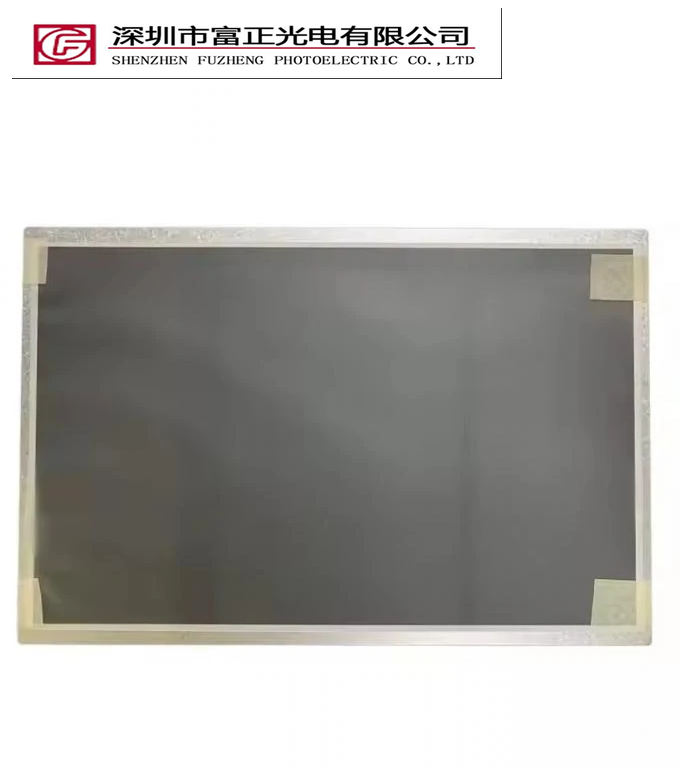

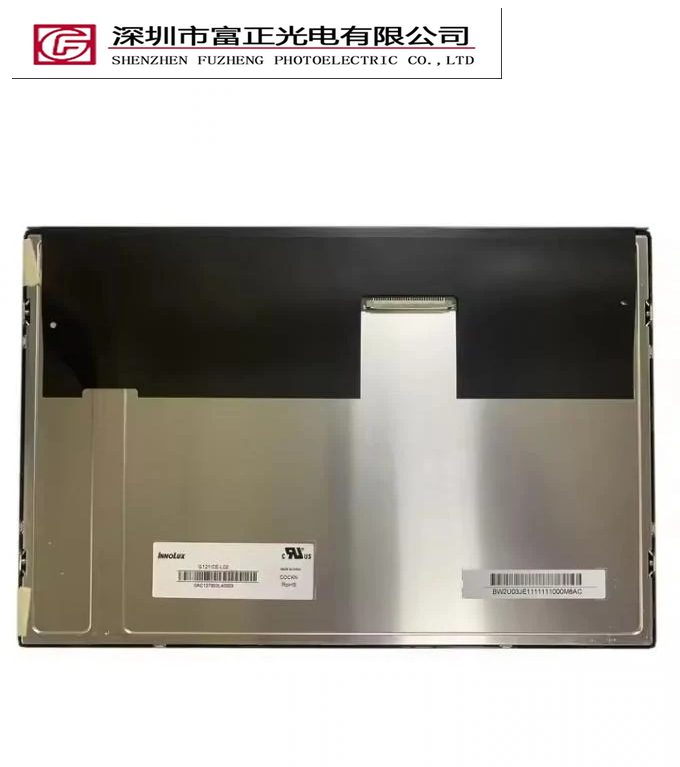

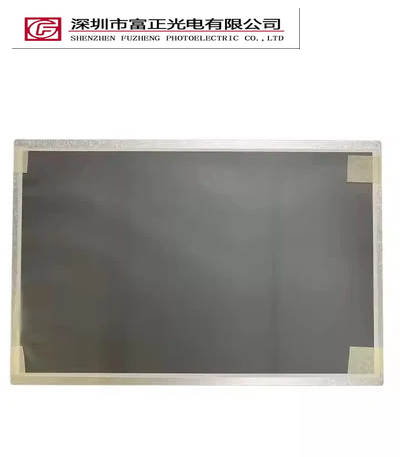

Product photographs
Mechanical drawings & documents
Request the G121ICE-L01 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
G121ICE-L01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 12.1-inch display format with your available viewing area, then check 1280 × 800 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected G121ICE-L01 configuration.
G121ICE-L01 frequently asked questions
What specifications are listed for G121ICE-L01?
Resolution: 1280 × 800 pixels; Module Dimensions: 278 × 184 × 10.5 mm; Operating Temperature: -20 to 70 °C; Screen Size: 12.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should G121ICE-L01 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for G121ICE-L01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for G121ICE-L01 so the exact assembly can be reviewed.
Where can I find the drawing for G121ICE-L01?
Request the mechanical drawing and electrical datasheet for G121ICE-L01. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a G121ICE-L01 sample?
Include the model G121ICE-L01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the G121ICE-L01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
