Model no.ZT080WS04

ZT080WS04 8-Inch 800 × 600 IPS TFT-LCD Display

24 BIT RGB
Resolution: 800 × 600 pixels
Module Dimensions: 182.9 × 141 × 5.5 mm
Interface: 24 BIT RGB
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Screen Size: 8 inch
Resolution: 800 × 600 pixels
Display Mode: Normally black, Transmissive
Interface: 24 BIT RGB
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm active area against the latest approved specification before design-in.

ZT080WS04 product introduction

ZT080WS04 is a 8-inch ips tft-lcd display with 800 × 600 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The ips tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 182.9 × 141 × 5.5 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare ZT080WS04 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 24 BIT RGB connection on ZT080WS04 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following ZT080WS04 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 600 pixels
Module Dimensions: 182.9 × 141 × 5.5 mm
Interface: 24 BIT RGB
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Technical specifications

ZT080WS04 technical parameters
Parameter	Value
LCM	8 Inch 800x600 Color TFT LCD Display
Resolution	800 × 600 pixels
Module Dimensions	182.9 × 141 × 5.5 mm
Interface	24 BIT RGB
Display Mode	Normally Black, Transmissive
Working Temperatures	-20 To 70 Degree
Storage Temperature	-30 to 80 °C
Driver Controller	JD9165A-A3
Model Size (WHT)mm	182.91415.5 mm
Viewing	ALL
Brightness	1000 cd/m²
Pin Count	50
Viewing Angle	80/80/80/80
Operating Temperature	-20 to 70 °C
Screen Size	8 inch

Confirm active area against the latest approved module specification before design-in.

Interface & pin definition

Use the ZT080WS04 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

ZT080WS04 technical parameters
Parameter	Value
Interface	24 BIT RGB
Pin Count	50

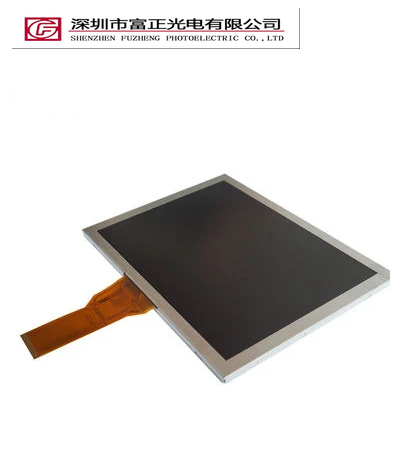

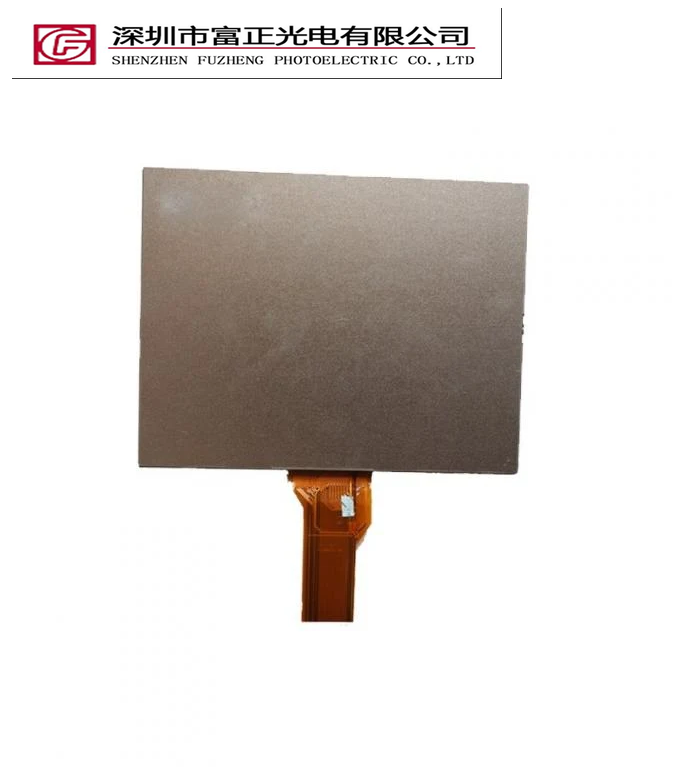

Product photographs

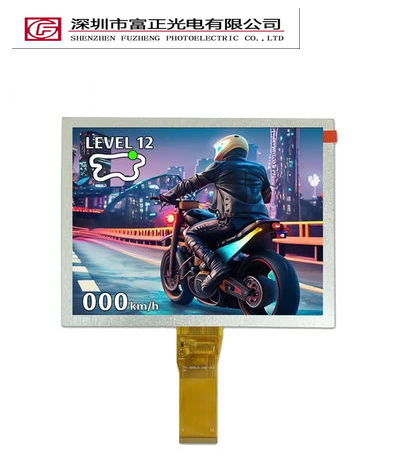

ZT080WS04 product view 1

ZT080WS04 product view 2

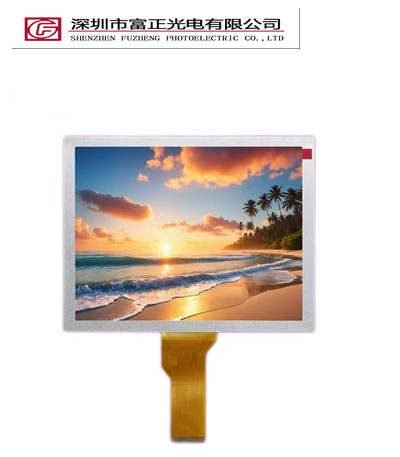

ZT080WS04 product view 3

ZT080WS04 product view 4

ZT080WS04 product view 5

ZT080WS04 product view 6

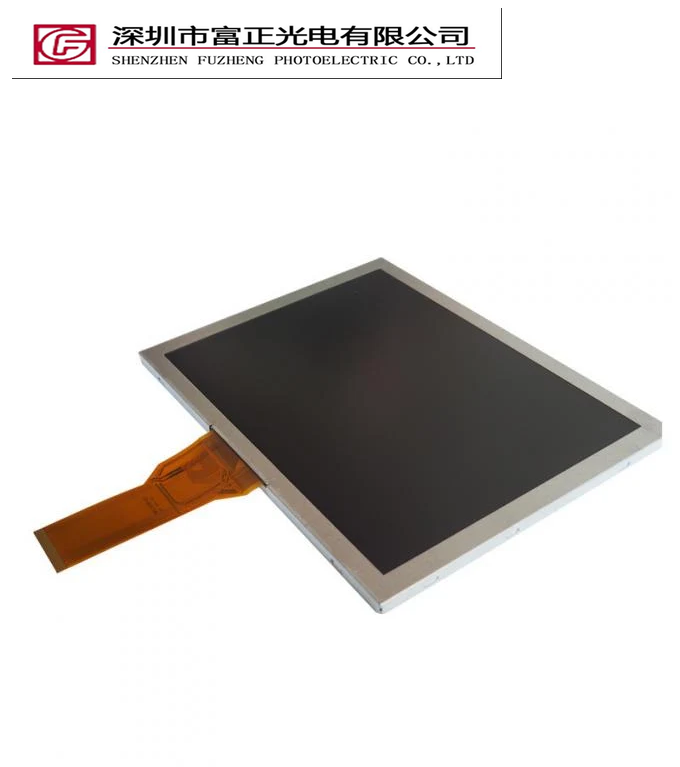

ZT080WS04 product view 7

ZT080WS04 product view 8

ZT080WS04 product view 9

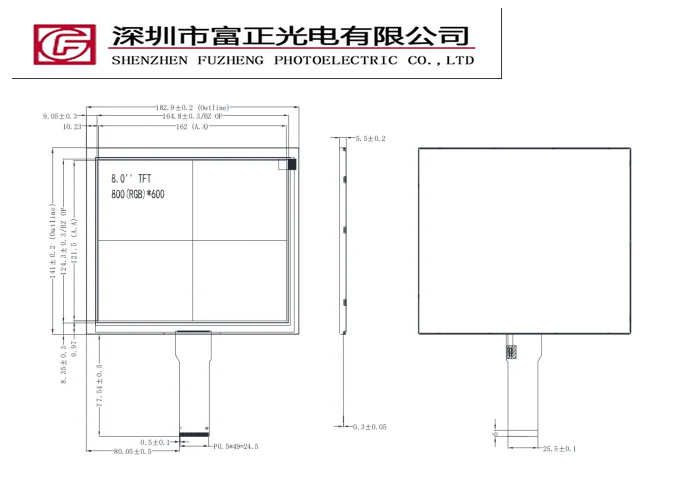

Mechanical drawings & documents

Request the ZT080WS04 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

ZT080WS04 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 8-inch display format with your available viewing area, then check 800 × 600 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected ZT080WS04 configuration.

ZT080WS04 frequently asked questions

What specifications are listed for ZT080WS04?

Resolution: 800 × 600 pixels; Module Dimensions: 182.9 × 141 × 5.5 mm; Interface: 24 BIT RGB; Brightness: 1000 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should ZT080WS04 connect to a host system?

ZT080WS04 lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for ZT080WS04?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for ZT080WS04 so the exact assembly can be reviewed.

Where can I find the drawing for ZT080WS04?

Request the mechanical drawing and electrical datasheet for ZT080WS04. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a ZT080WS04 sample?

Include the model ZT080WS04, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
