Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z0399HD01

Z0399HD01 3.99-Inch 400 × 960 IPS TFT-LCD Display

3SPI+18BIT RGB
Resolution: 400 × 960 pixels
Module Dimensions: 42.9 × 102.08 × 2.25 mm
Interface: 3SPI+18BIT RGB
Brightness: 350 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: ST7701S
Screen Size: 3.99 inch

Screen Size: 3.99 inch
Resolution: 400 × 960 pixels
Interface: 3SPI+18BIT RGB

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z0399HD01 product introduction

Z0399HD01 is a 3.99-inch ips tft-lcd display with 400 × 960 resolution and a 3SPI+18BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The ips tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 42.9 × 102.08 × 2.25 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Driver IC: ST7701S. Use these published characteristics to compare Z0399HD01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 3SPI+18BIT RGB connection on Z0399HD01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z0399HD01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 400 × 960 pixels
Module Dimensions: 42.9 × 102.08 × 2.25 mm
Interface: 3SPI+18BIT RGB
Brightness: 350 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: ST7701S
Screen Size: 3.99 inch

Technical specifications

Z0399HD01 technical parameters
Parameter	Value
Resolution	400 × 960 pixels
Module Dimensions	42.9 × 102.08 × 2.25 mm
Active Area	39.18 × 94.032 mm
Interface	3SPI+18BIT RGB
Brightness	350 cd/m²
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	42.9102.082.25
Viewing	IPS
Pin Count	40 pin
Driver IC	ST7701S
Screen Size	3.99 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z0399HD01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z0399HD01 technical parameters
Parameter	Value
Interface	3SPI+18BIT RGB
Pin Count	40 pin
Driver IC	ST7701S

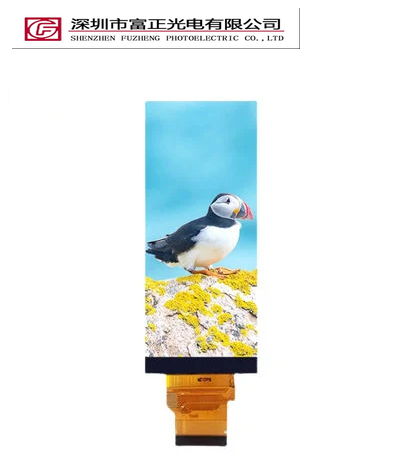

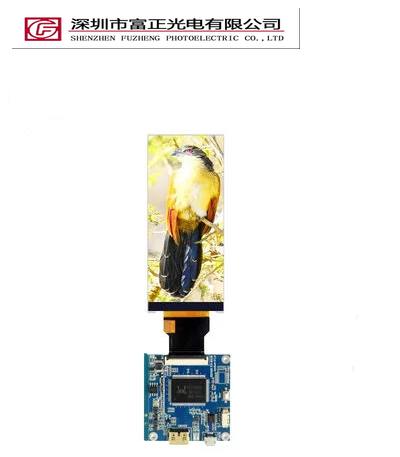

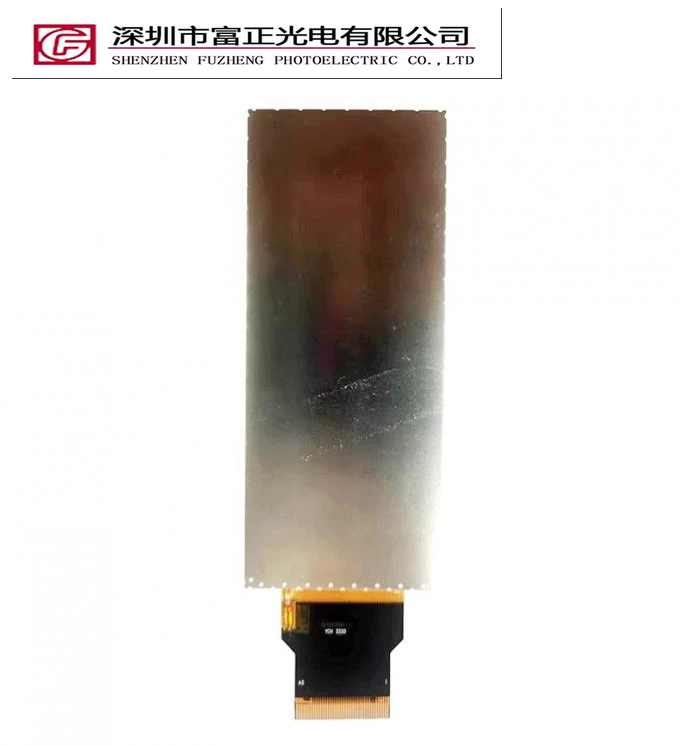

Product photographs

Z0399HD01 product view 1

Z0399HD01 product view 2

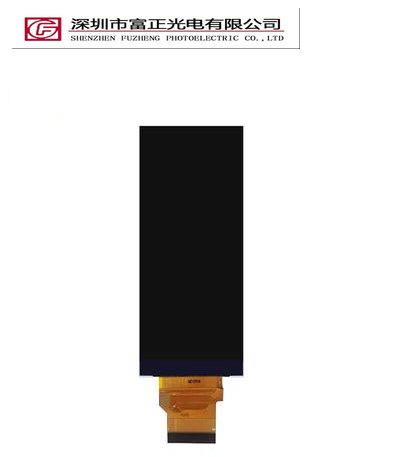

Z0399HD01 product view 3

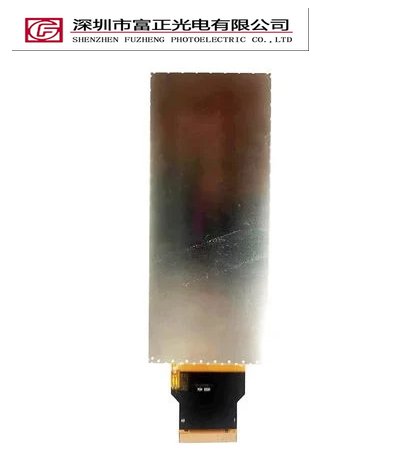

Z0399HD01 product view 4

Z0399HD01 product view 5

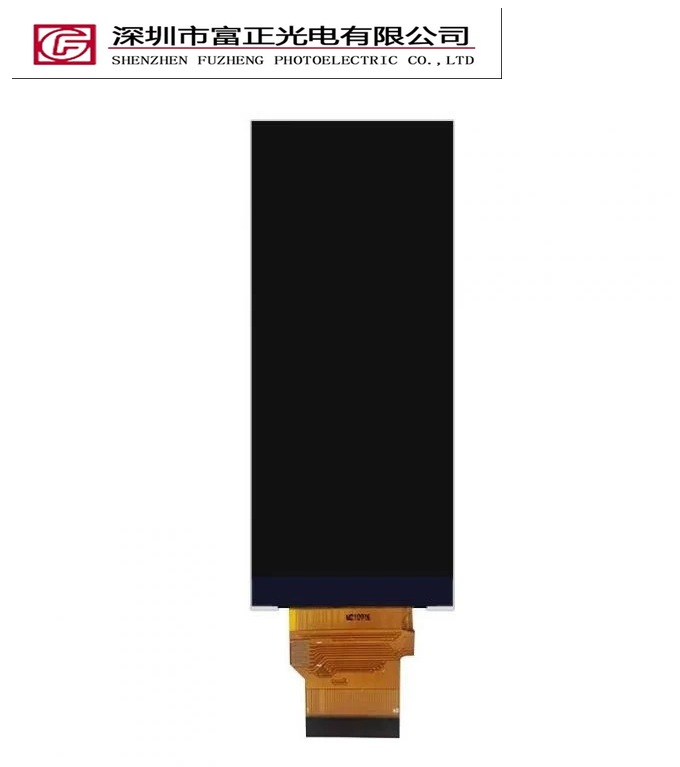

Z0399HD01 product view 6

Mechanical drawings & documents

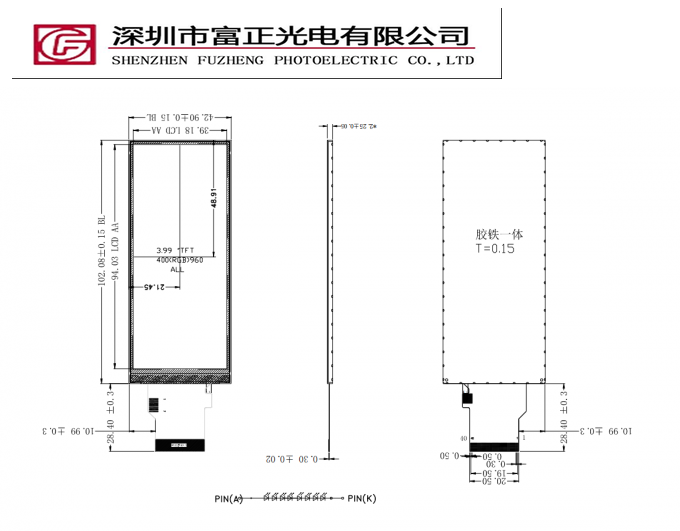

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z0399HD01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z0399HD01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 3.99-inch display format with your available viewing area, then check 400 × 960 pixel resolution, 3SPI+18BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0399HD01 configuration.

Z0399HD01 frequently asked questions

What specifications are listed for Z0399HD01?

Resolution: 400 × 960 pixels; Module Dimensions: 42.9 × 102.08 × 2.25 mm; Interface: 3SPI+18BIT RGB; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Driver IC: ST7701S; Screen Size: 3.99 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z0399HD01 connect to a host system?

Z0399HD01 lists a 3SPI+18BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z0399HD01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z0399HD01 so the exact assembly can be reviewed.

Where can I find the drawing for Z0399HD01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z0399HD01 sample?

Include the model Z0399HD01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
