Model no.Z043WQ34H
Z043WQ34H 4.3-Inch 480 × 272 IPS TFT-LCD Display
Z043WQ34H is a 4.3-inch ips tft-lcd display with 480 × 272 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.45 × 67.15 × 3 mm
- Brightness: 500 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 4.3 inch
- Screen Size
- 4.3 inch
- Resolution
- 480 × 272 pixels
- Viewing Angle
- ALL/IPS
Specification confirmation. Confirm interface against the latest approved specification before design-in.
Z043WQ34H product introduction
Z043WQ34H is a 4.3-inch ips tft-lcd display with 480 × 272 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The ips tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.45 × 67.15 × 3 mm. Brightness: 500 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z043WQ34H with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z043WQ34H. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z043WQ34H attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.45 × 67.15 × 3 mm
- Brightness: 500 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 4.3 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 272 pixels |
| Module Dimensions | 105.45 × 67.15 × 3 mm |
| Active Area | 95.04 × 53.856 mm |
| Brightness | 500 cd/m² |
| LCM (W x H x D) | 105.45*67.15*3 mm |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 4.3 inch |
Confirm interface against the latest approved module specification before design-in.
Interface & pin definition
Use the Z043WQ34H electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|

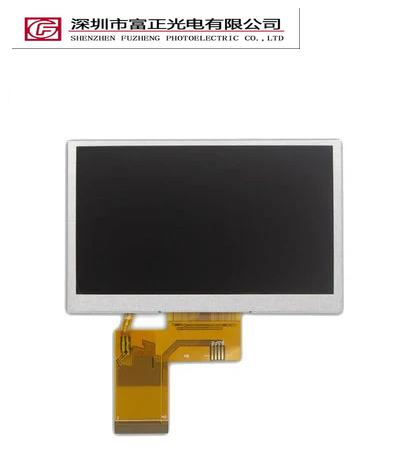

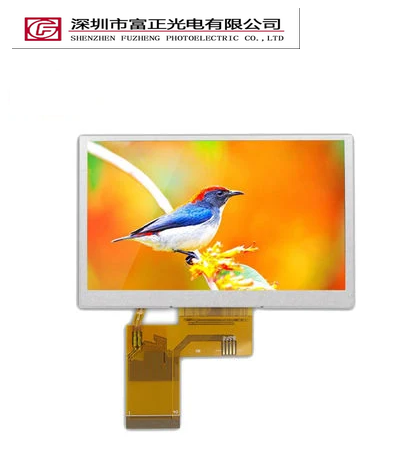

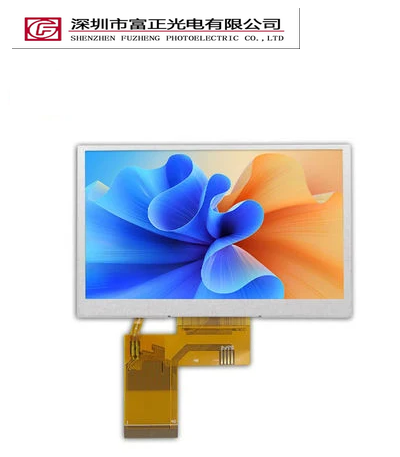

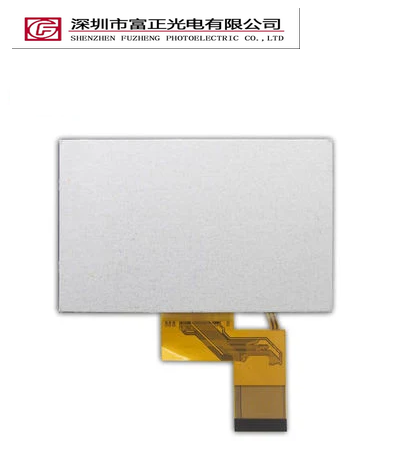

Product photographs

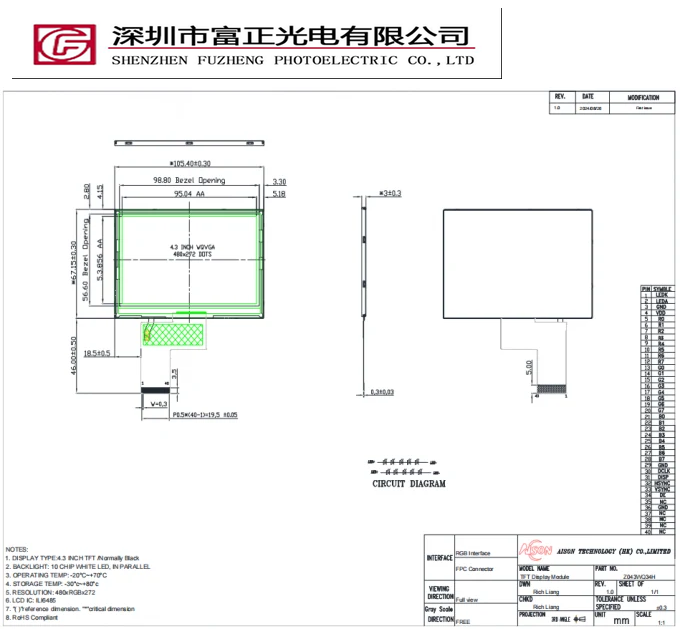

Mechanical drawings & documents
