Model no.Z035Q20
Z035Q20 3.5-Inch 320 × 240 IPS TFT-LCD Display
Z035Q20 is a 3.5-inch ips tft-lcd display with 320 × 240 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 320 × 240 pixels
- Module Dimensions: 76.90 × 63.9 × 3.26 mm
- Brightness: 350 cd/m²
- Driver IC: ST7272A
- Screen Size: 3.5 inch
- Screen Size
- 3.5 inch
- Resolution
- 320 × 240 pixels
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm interface, display mode, operating temperature, storage temperature against the latest approved specification before design-in.
Z035Q20 product introduction
Z035Q20 is a 3.5-inch ips tft-lcd display with 320 × 240 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The ips tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 76.90 × 63.9 × 3.26 mm. Brightness: 350 cd/m². Driver IC: ST7272A. Use these published characteristics to compare Z035Q20 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z035Q20. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z035Q20 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 320 × 240 pixels
- Module Dimensions: 76.90 × 63.9 × 3.26 mm
- Brightness: 350 cd/m²
- Driver IC: ST7272A
- Screen Size: 3.5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 320 × 240 pixels |
| Module Dimensions | 76.90 × 63.9 × 3.26 mm |
| Active Area | 70.08 × 52.56 mm |
| Viewing Angle | 80/80/80/80 |
| Brightness | 350 cd/m² |
| Model Size (W*H*T) | 76.90*63.9*3.26mm |
| Viewing | IPS |
| Pin Count | 40 pin |
| Driver IC | ST7272A |
| Screen Size | 3.5 inch |
Confirm interface, display mode, operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z035Q20 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 40 pin |
| Driver IC | ST7272A |

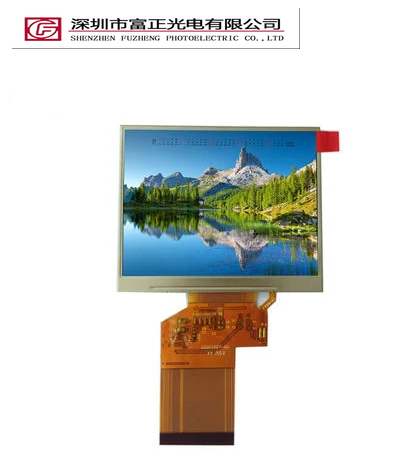

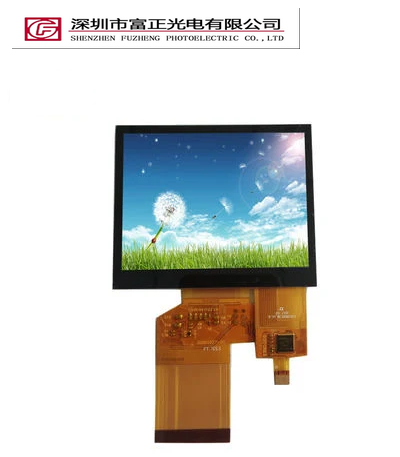

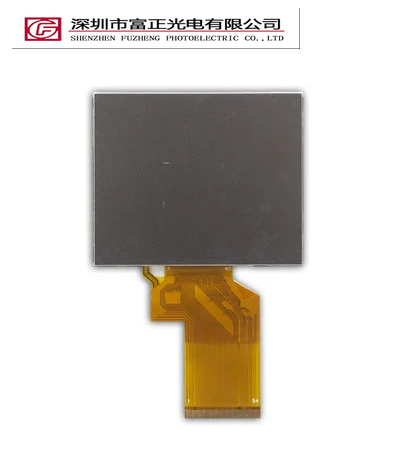

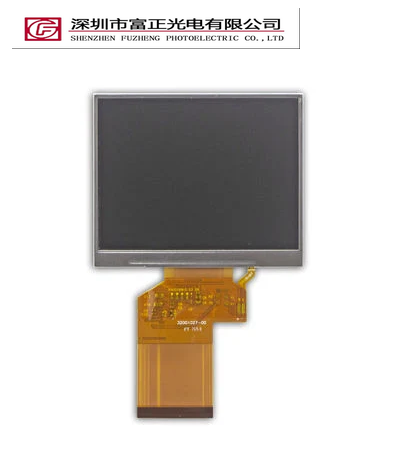

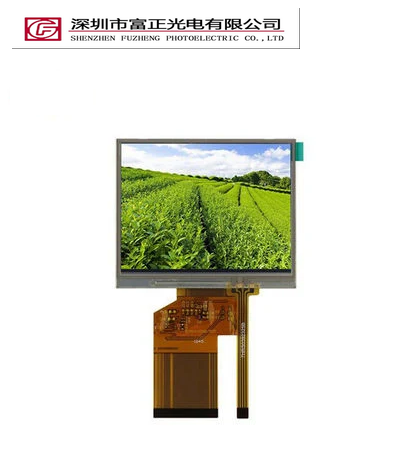

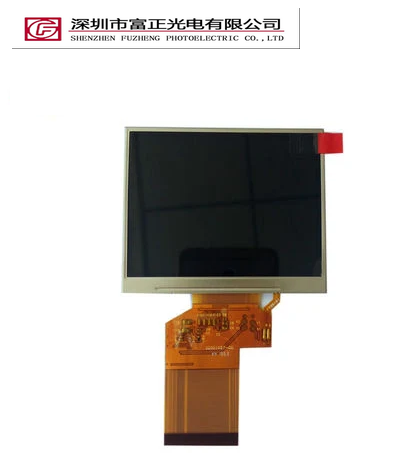

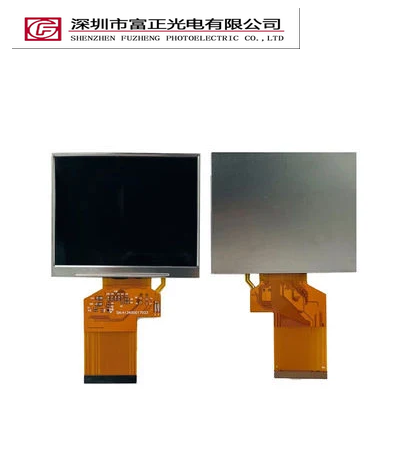

Product photographs

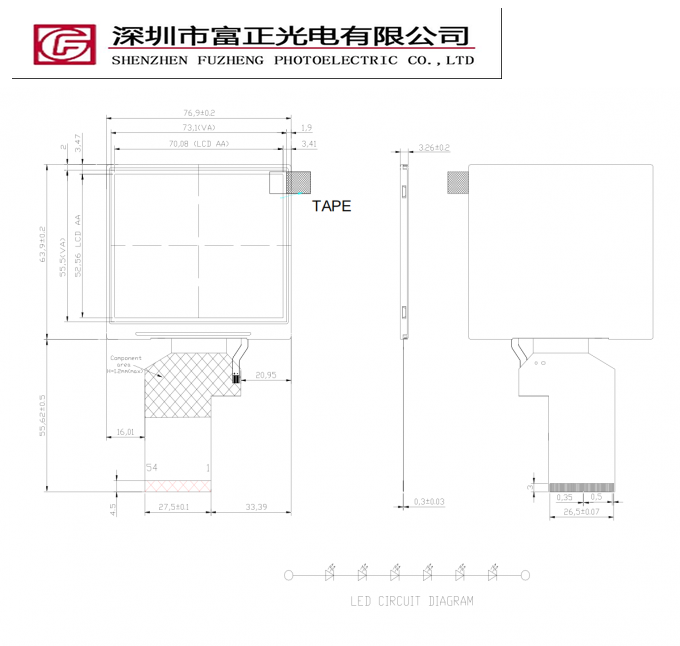

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z035Q20 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z035Q20 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.5-inch display format with your available viewing area, then check 320 × 240 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035Q20 configuration.
Z035Q20 frequently asked questions
What specifications are listed for Z035Q20?
Resolution: 320 × 240 pixels; Module Dimensions: 76.90 × 63.9 × 3.26 mm; Brightness: 350 cd/m²; Driver IC: ST7272A; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z035Q20 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z035Q20?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035Q20 so the exact assembly can be reviewed.
Where can I find the drawing for Z035Q20?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z035Q20 sample?
Include the model Z035Q20, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
