Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z070WV45-CT
Z070WV45-CT 7-Inch 800 × 480 IPS TFT-LCD Display
Z070WV45-CT is a 7-inch ips tft-lcd display with 800 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 24 BIT RGB
- Resolution: 800 × 480 pixels
- Module Dimensions: 164.9 × 100 × 7.25 mm
- Interface: 24 BIT RGB
- Operating Temperature: -20 to 70 °C
- Screen Size: 7 inch
- Screen Size
- 7 inch
- Resolution
- 800 × 480 pixels
- Interface
- 24 BIT RGB
- Viewing Angle
- IPS
Specification confirmation. Confirm brightness against the latest approved specification before design-in.
Z070WV45-CT product introduction
Z070WV45-CT is a 7-inch ips tft-lcd display with 800 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The ips tft lcd displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 164.9 × 100 × 7.25 mm. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z070WV45-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 24 BIT RGB connection on Z070WV45-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z070WV45-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 480 pixels
- Module Dimensions: 164.9 × 100 × 7.25 mm
- Interface: 24 BIT RGB
- Operating Temperature: -20 to 70 °C
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 480 pixels |
| Module Dimensions | 164.9 × 100 × 7.25 mm |
| Active Area | 153.84 × 85.63 mm |
| Interface | 24 BIT RGB |
| Display Technology | TFT, Normally Black, Transmissive |
| Viewing Direction | IPS |
| Model Size (W*H*T)mm | 164.9*100*7.25mm |
| Viewing Angle | 85/85/85/85 |
| Pin Count | 40 |
| Contrast Ratio | 1000:1 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 7 inch |
Confirm brightness against the latest approved module specification before design-in.
Interface & pin definition
Use the Z070WV45-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 24 BIT RGB |
| Pin Count | 40 |

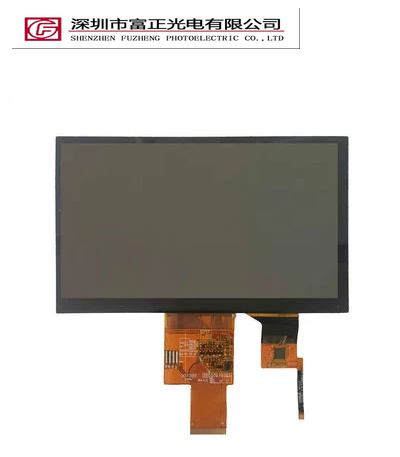

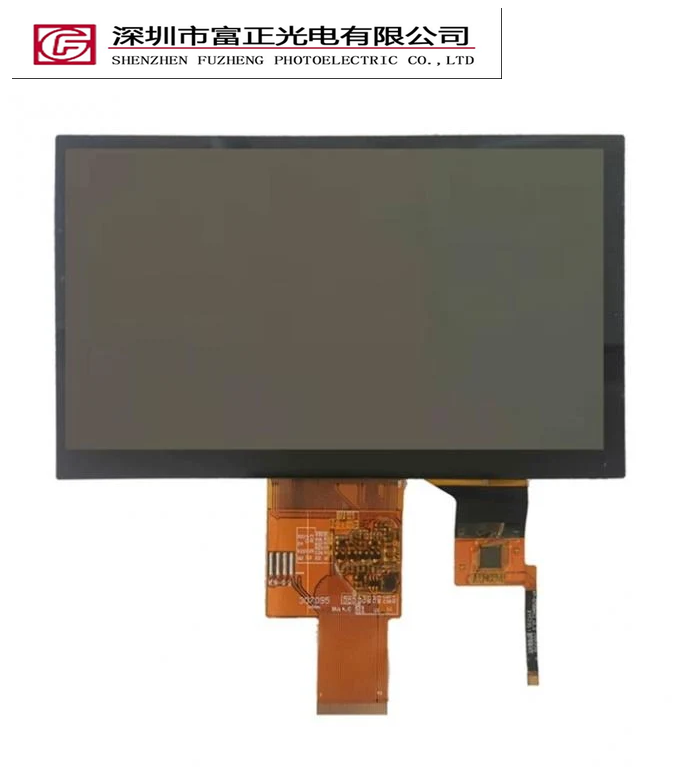

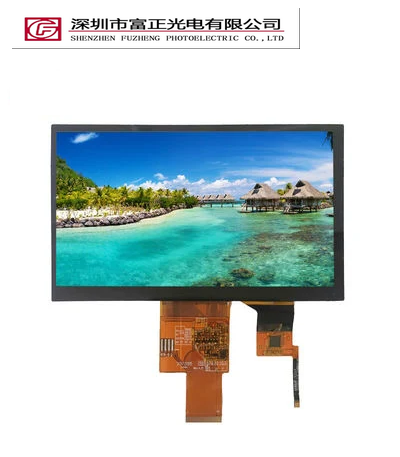

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z070WV45-CT against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z070WV45-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check 800 × 480 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WV45-CT configuration.
Z070WV45-CT frequently asked questions
What specifications are listed for Z070WV45-CT?
Resolution: 800 × 480 pixels; Module Dimensions: 164.9 × 100 × 7.25 mm; Interface: 24 BIT RGB; Operating Temperature: -20 to 70 °C; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z070WV45-CT connect to a host system?
Z070WV45-CT lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z070WV45-CT?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WV45-CT so the exact assembly can be reviewed.
Where can I find the drawing for Z070WV45-CT?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z070WV45-CT sample?
Include the model Z070WV45-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z070WV45-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
