Model no.ZHD55017C31

ZHD55017C31 5.5-Inch 1080(H)X1920(V) Capacitive Touch TFT-LCD Display

MIPI
Capacitive Touch screen
Interface: MIPI
Driver IC: JD9522Z
Touch: Capacitive Touch screen
Resolution: 1080(H)X1920(V)
Screen Size: 5.5 inch

Screen Size: 5.5 inch
Resolution: 1080(H)X1920
Interface: MIPI
Touch: Capacitive touch
Viewing Angle: ALL/IPS

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, brightness, display mode, operating temperature, storage temperature against the latest approved specification before design-in.

ZHD55017C31 product introduction

ZHD55017C31 is a 5.5-inch capacitive touch tft-lcd display with 1080(H)X1920(V) resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Driver IC: JD9522Z. Touch: Capacitive Touch screen. Use these published characteristics to compare ZHD55017C31 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on ZHD55017C31 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following ZHD55017C31 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Interface: MIPI
Driver IC: JD9522Z
Touch: Capacitive Touch screen
Resolution: 1080(H)X1920(V)
Screen Size: 5.5 inch

Technical specifications

ZHD55017C31 technical parameters
Parameter	Value
Active Area	68.04 × 120.96 mm
Interface	MIPI
Viewing Direction	ALL/IPS
Driver IC	JD9522Z
Dimensional outline	70.84 (H) x128.78 (V)
Touch	Capacitive Touch screen
Resolution	1080(H)X1920(V)
LCD Driver IC	JD9522Z
Viewing Angle	ALL O'CLOCK
Screen Size	5.5 inch

Confirm module dimensions, brightness, display mode, operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the ZHD55017C31 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

ZHD55017C31 technical parameters
Parameter	Value
Interface	MIPI
Driver IC	JD9522Z
Touch	Capacitive Touch screen

Product photographs

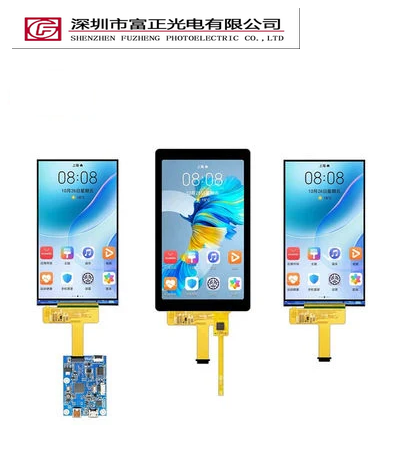

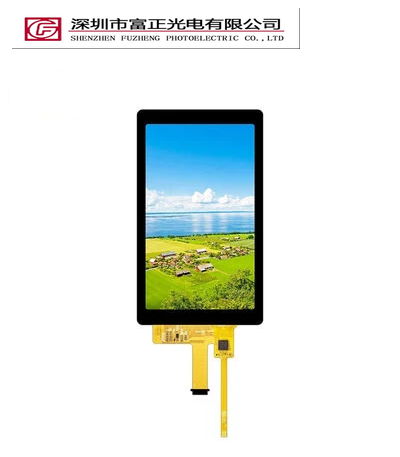

ZHD55017C31 product view 1

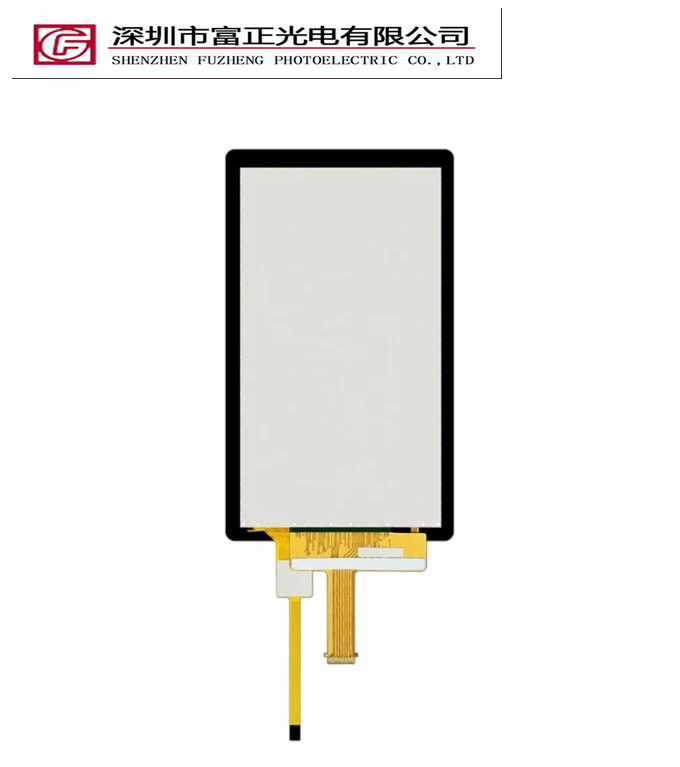

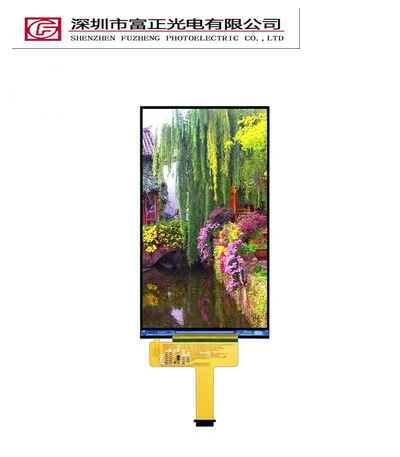

ZHD55017C31 product view 2

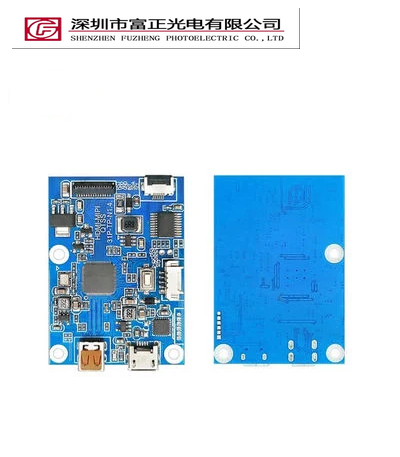

ZHD55017C31 product view 3

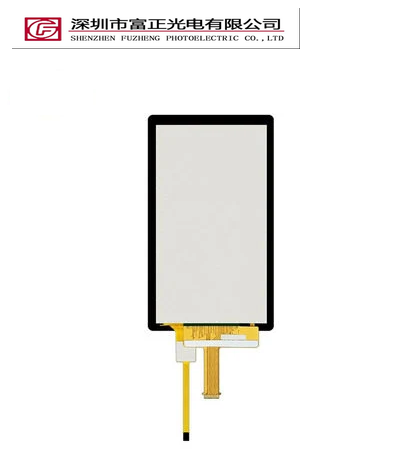

ZHD55017C31 product view 4

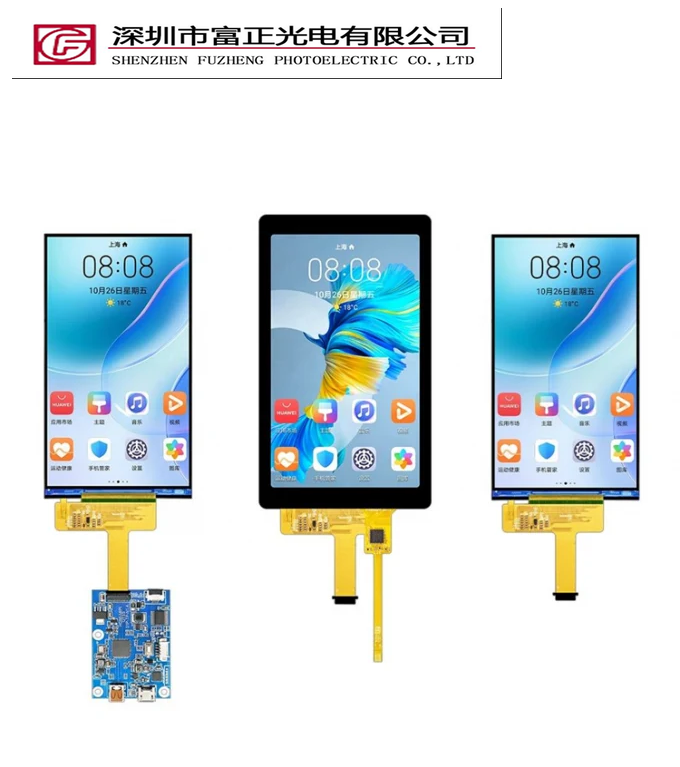

ZHD55017C31 product view 5

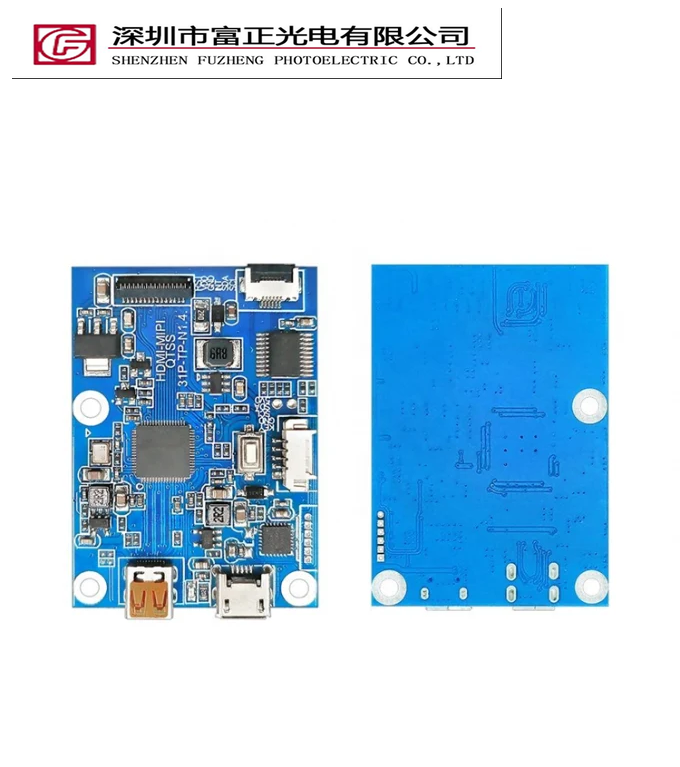

ZHD55017C31 product view 6

ZHD55017C31 product view 7

ZHD55017C31 product view 8

Mechanical drawings & documents

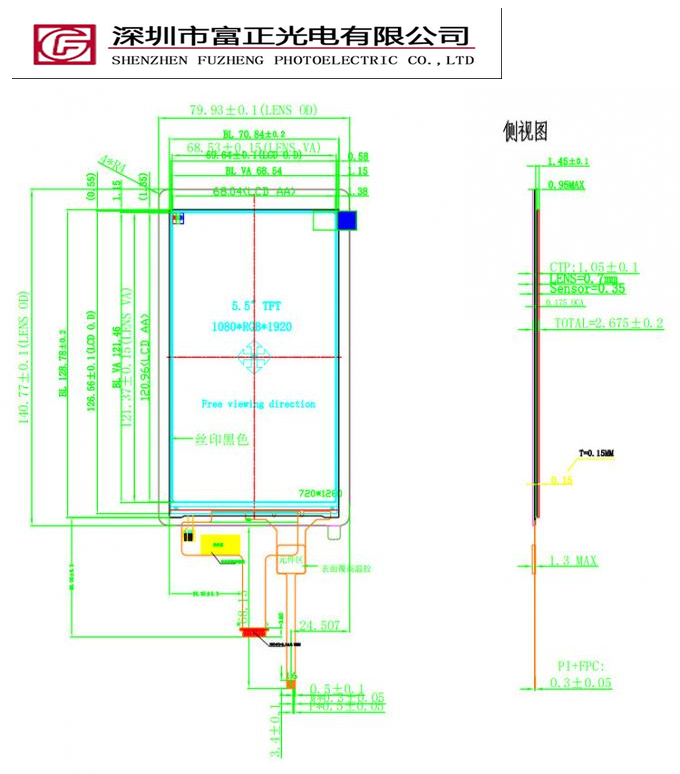

Mechanical reference 1 — open full size to inspect dimensions.

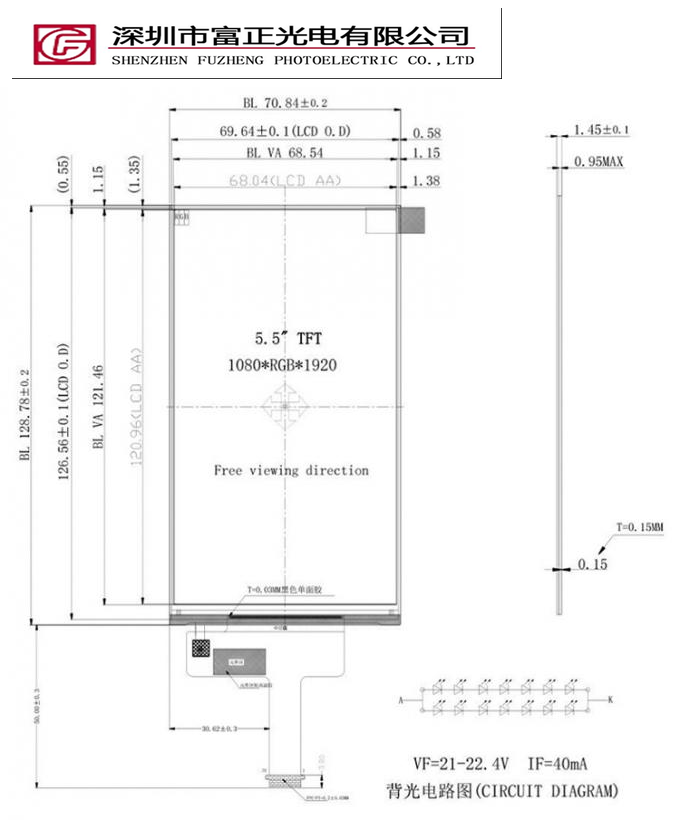

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of ZHD55017C31 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

ZHD55017C31 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 5.5-inch display format with your available viewing area, then check 1080(H)X1920(V) pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected ZHD55017C31 configuration.

ZHD55017C31 frequently asked questions

What specifications are listed for ZHD55017C31?

Interface: MIPI; Driver IC: JD9522Z; Touch: Capacitive Touch screen; Resolution: 1080(H)X1920(V); Screen Size: 5.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should ZHD55017C31 connect to a host system?

ZHD55017C31 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for ZHD55017C31?

The listed touch configuration is Capacitive Touch screen. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for ZHD55017C31?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a ZHD55017C31 sample?

Include the model ZHD55017C31, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
