Model no.Z035NC111-CT
Z035NC111-CT 3.5-Inch 320 × 240 Capacitive Touch TFT-LCD Display
Z035NC111-CT is a 3.5-inch capacitive touch tft-lcd display with 320 × 240 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 320 × 240 pixels
- Module Dimensions: 76.90 × 63.9 × 4.71 mm
- Brightness: 300 cd/m²
- Driver IC: HX8238D
- Operating Temperature: -20 to 70 ℃
- Screen Size: 3.5 inch
- Screen Size
- 3.5 inch
- Resolution
- 320 × 240 pixels
- Display Mode
- Normally White,Transmissive
Specification confirmation. Confirm interface, storage temperature against the latest approved specification before design-in.
Z035NC111-CT product introduction
Z035NC111-CT is a 3.5-inch capacitive touch tft-lcd display with 320 × 240 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 76.90 × 63.9 × 4.71 mm. Brightness: 300 cd/m². Driver IC: HX8238D. Operating Temperature: -20 to 70 ℃. Use these published characteristics to compare Z035NC111-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z035NC111-CT. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z035NC111-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 320 × 240 pixels
- Module Dimensions: 76.90 × 63.9 × 4.71 mm
- Brightness: 300 cd/m²
- Driver IC: HX8238D
- Operating Temperature: -20 to 70 ℃
- Screen Size: 3.5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 320 × 240 pixels |
| Module Dimensions | 76.90 × 63.9 × 4.71 mm |
| Brightness | 300 cd/m² |
| Working Temperatures | -20 To 70 Degree |
| Model Size (W*H*T) | 76.90*63.9*4.71mm |
| Active Area | 70.08 × 52.56 mm |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Pin Count | 54 pin |
| Driver IC | HX8238D |
| Operating Temperature | -20 to 70 ℃ |
| Screen Size | 3.5 inch |
Confirm interface, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z035NC111-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 54 pin |
| Driver IC | HX8238D |

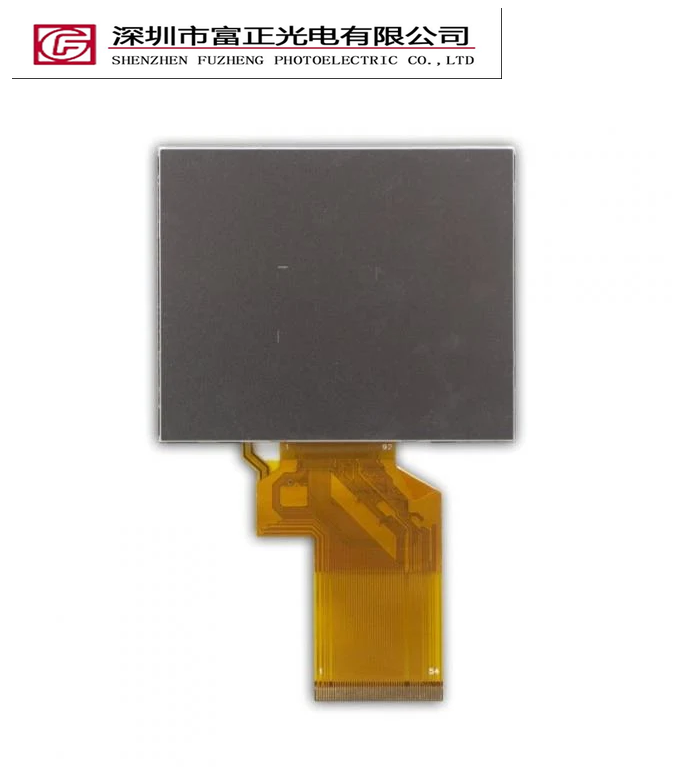

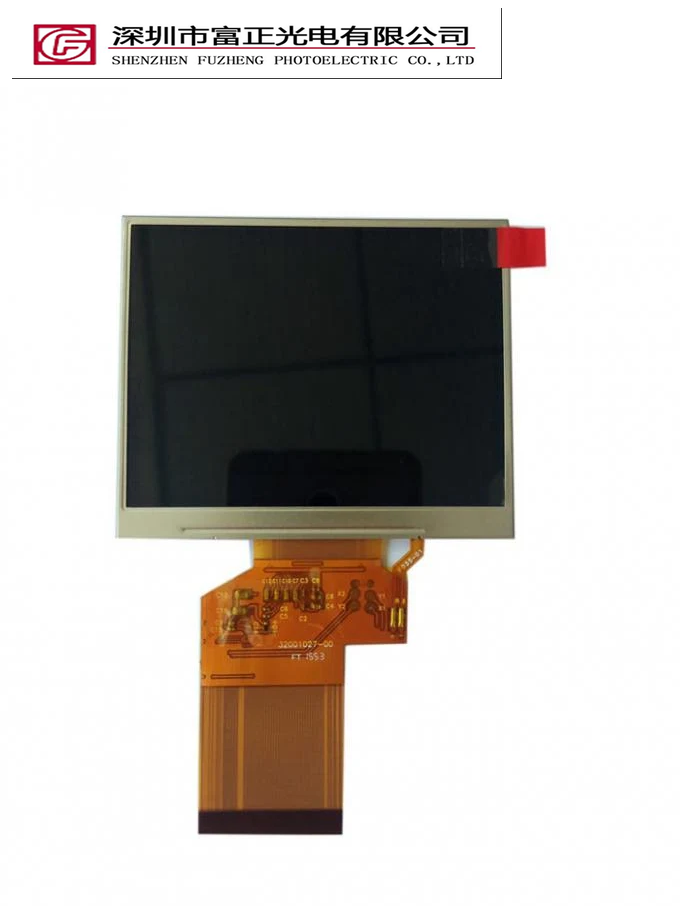

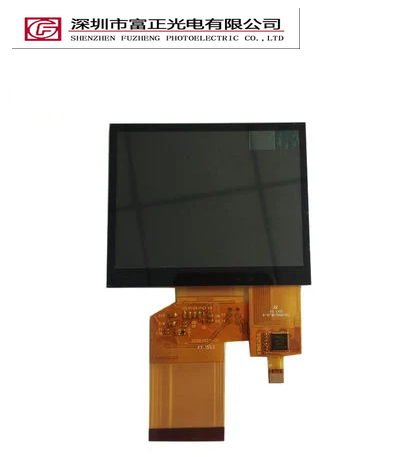

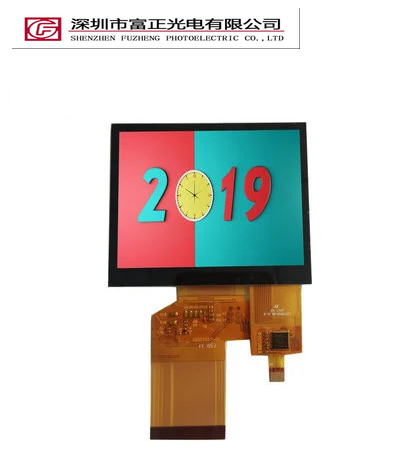

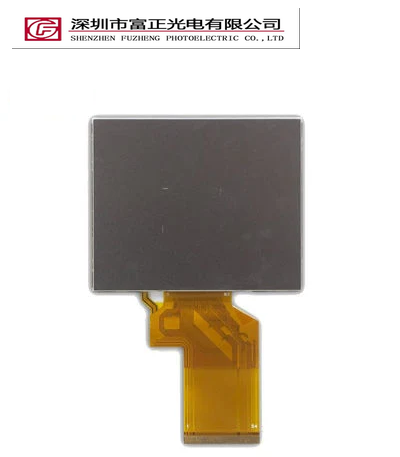

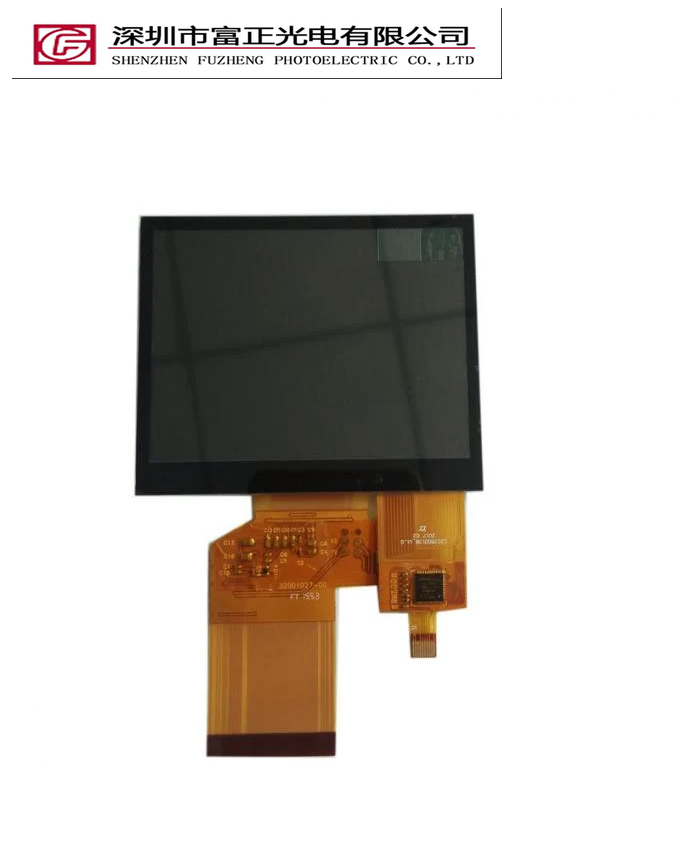

Product photographs

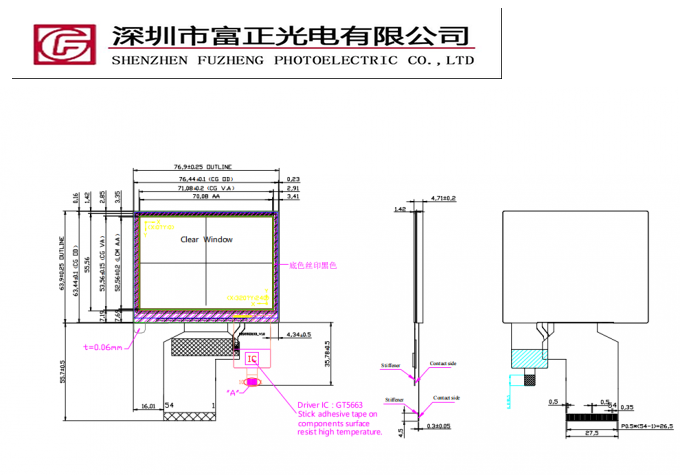

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z035NC111-CT against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z035NC111-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.5-inch display format with your available viewing area, then check 320 × 240 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035NC111-CT configuration.
Z035NC111-CT frequently asked questions
What specifications are listed for Z035NC111-CT?
Resolution: 320 × 240 pixels; Module Dimensions: 76.90 × 63.9 × 4.71 mm; Brightness: 300 cd/m²; Driver IC: HX8238D; Operating Temperature: -20 to 70 ℃; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z035NC111-CT connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z035NC111-CT?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035NC111-CT so the exact assembly can be reviewed.
Where can I find the drawing for Z035NC111-CT?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z035NC111-CT sample?
Include the model Z035NC111-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
