Model no.Z035HV19-CT

Z035HV19-CT 3.5-Inch 320 × 480 Capacitive Touch TFT-LCD Display

MIPI
Resolution: 320 × 480 pixels
Module Dimensions: 54.86 × 83.43 × 4.1 mm
Interface: MIPI
Brightness: 200 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 3.5 inch

Screen Size: 3.5 inch
Resolution: 320 × 480 pixels
Display Mode: TFT,Normally White
Interface: MIPI
Viewing Angle: 12 O'clock

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm active area against the latest approved specification before design-in.

Z035HV19-CT product introduction

Z035HV19-CT is a 3.5-inch capacitive touch tft-lcd display with 320 × 480 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 54.86 × 83.43 × 4.1 mm. Brightness: 200 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z035HV19-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on Z035HV19-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z035HV19-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 320 × 480 pixels
Module Dimensions: 54.86 × 83.43 × 4.1 mm
Interface: MIPI
Brightness: 200 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 3.5 inch

Technical specifications

Z035HV19-CT technical parameters
Parameter	Value
Resolution	320 × 480 pixels
Module Dimensions	54.86 × 83.43 × 4.1 mm
Interface	MIPI
Brightness	200 cd/m²
Display Mode	TFT,Normally White
Operating Temperature	-20 to 70 °C
LCM (W x H x D)	54.5832.45 mm
Viewing Direction	12 O'clock
Storage Temperature	-30 to 80 °C
Screen Size	3.5 inch

Confirm active area against the latest approved module specification before design-in.

Interface & pin definition

Use the Z035HV19-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z035HV19-CT technical parameters
Parameter	Value
Interface	MIPI

Product photographs

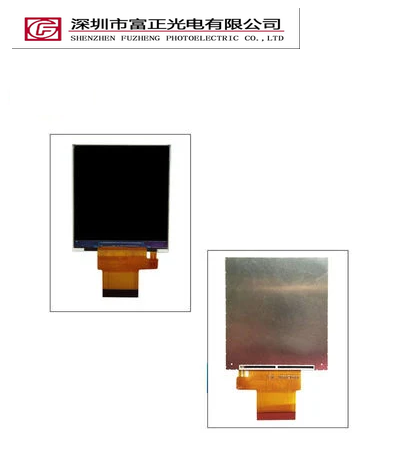

Z035HV19-CT product view 1

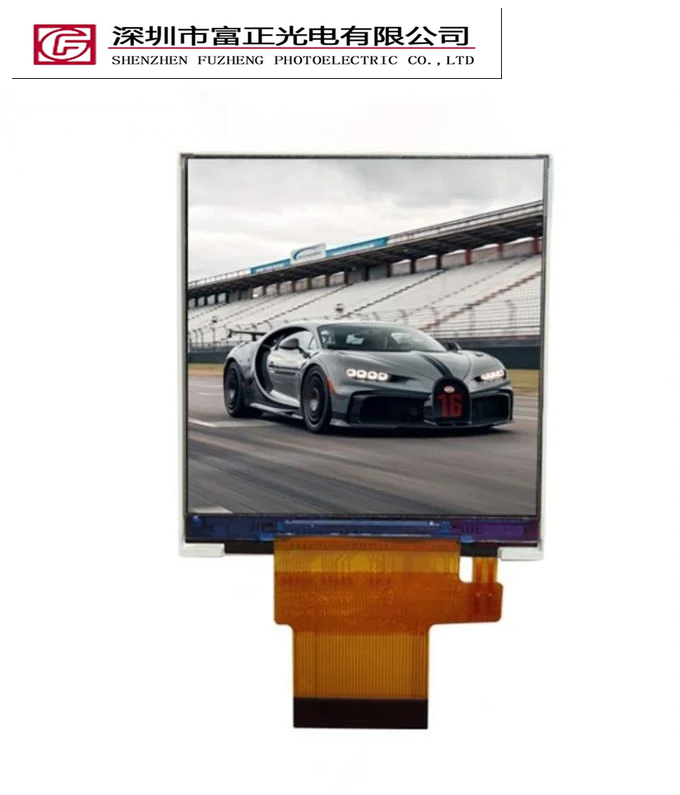

Z035HV19-CT product view 2

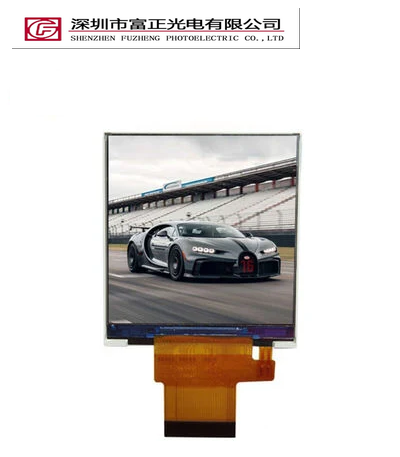

Z035HV19-CT product view 3

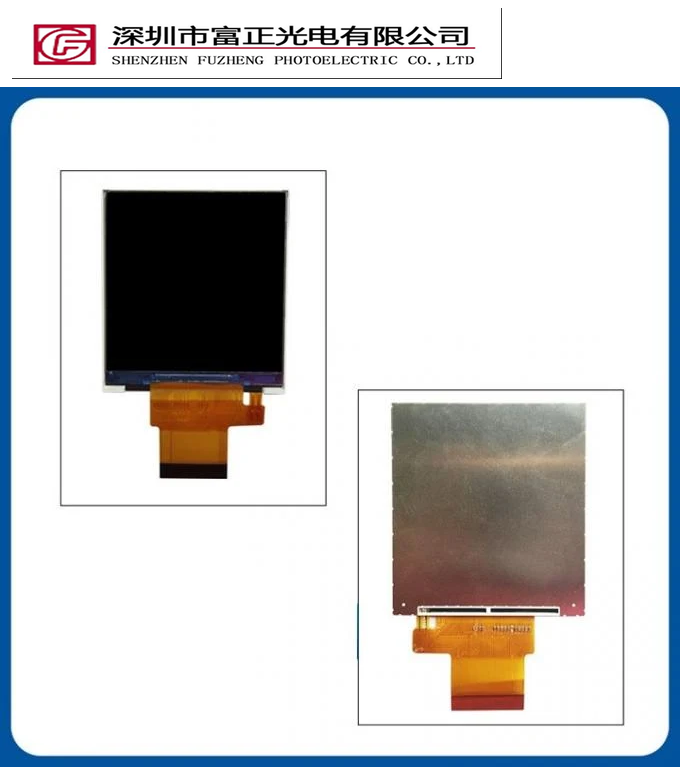

Z035HV19-CT product view 4

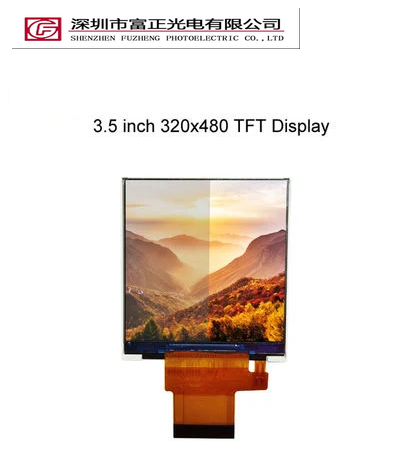

Z035HV19-CT product view 5

Mechanical drawings & documents

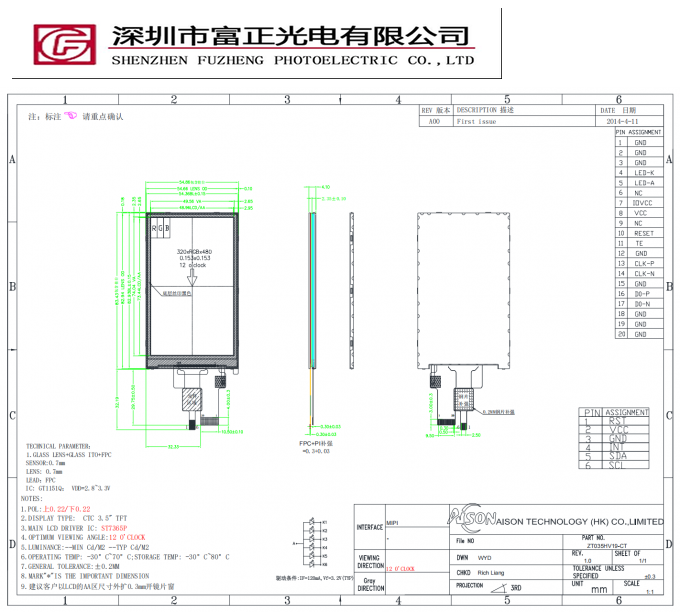

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z035HV19-CT against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z035HV19-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 3.5-inch display format with your available viewing area, then check 320 × 480 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z035HV19-CT configuration.

Z035HV19-CT frequently asked questions

What specifications are listed for Z035HV19-CT?

Resolution: 320 × 480 pixels; Module Dimensions: 54.86 × 83.43 × 4.1 mm; Interface: MIPI; Brightness: 200 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 3.5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z035HV19-CT connect to a host system?

Z035HV19-CT lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z035HV19-CT?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z035HV19-CT so the exact assembly can be reviewed.

Where can I find the drawing for Z035HV19-CT?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z035HV19-CT sample?

Include the model Z035HV19-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
