Model no.ZHD50004C30

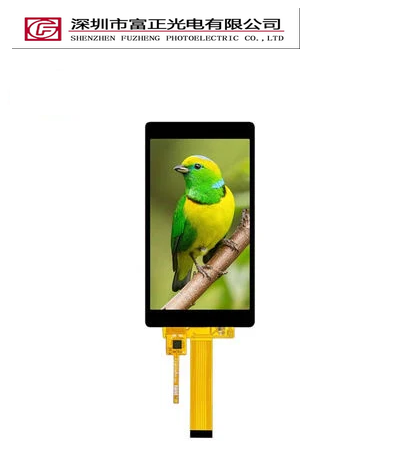

ZHD50004C30 5-Inch 720 × 1280 Capacitive Touch TFT-LCD Display
ZHD50004C30 is a 5-inch capacitive touch tft-lcd display with 720 × 1280 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MIPI
- Module Dimensions: 64.6 × 117.43 × 1.56 mm
- Interface: MIPI
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 ℃
- Driver IC: ILI9881C
- Resolution: 720 × 1280 pixels
- Screen Size: 5 inch
- Screen Size
- 5 inch
- Resolution
- 720 × 1280 pixels
- Interface
- MIPI
- Viewing Angle
- ALL/IPS
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
ZHD50004C30 product introduction
ZHD50004C30 is a 5-inch capacitive touch tft-lcd display with 720 × 1280 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 64.6 × 117.43 × 1.56 mm. Brightness: 450 cd/m². Operating Temperature: -20 to 70 ℃. Driver IC: ILI9881C. Use these published characteristics to compare ZHD50004C30 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MIPI connection on ZHD50004C30 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following ZHD50004C30 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Module Dimensions: 64.6 × 117.43 × 1.56 mm
- Interface: MIPI
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 ℃
- Driver IC: ILI9881C
- Resolution: 720 × 1280 pixels
- Screen Size: 5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 64.6 × 117.43 × 1.56 mm |
| Active Area | 61.78 × 109.82 mm |
| Interface | MIPI |
| Brightness | 450 cd/m² |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -30 to 80 ℃ |
| Driver IC | ILI9881C |
| Resolution | 720 × 1280 pixels |
| Model Size (W*H*T) | 64.6 x117.43 x1.56mm |
| Viewing Angels | 80/80/80/80 |
| Pin Count | 30 |
| Contrast Ratio | 1000:1 |
| Screen Size | 5 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the ZHD50004C30 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MIPI |
| Driver IC | ILI9881C |
| Pin Count | 30 |

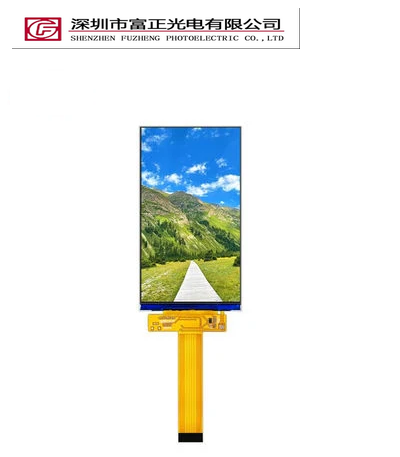

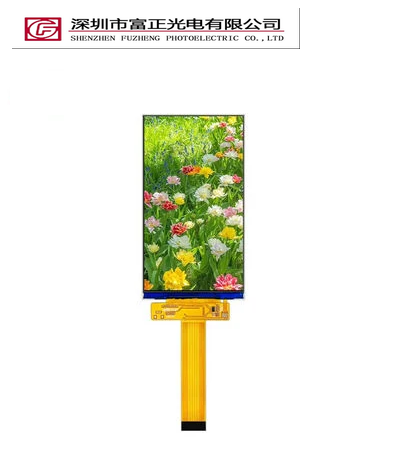

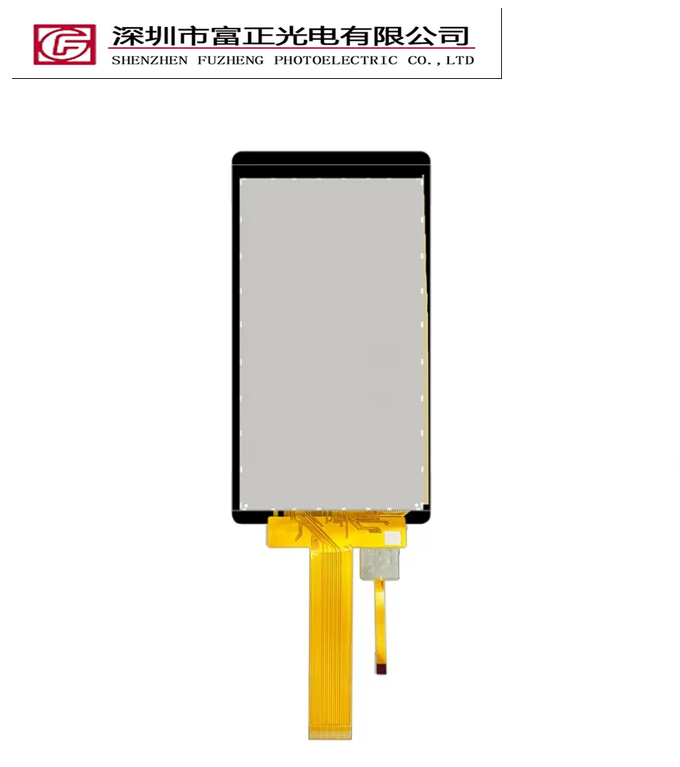

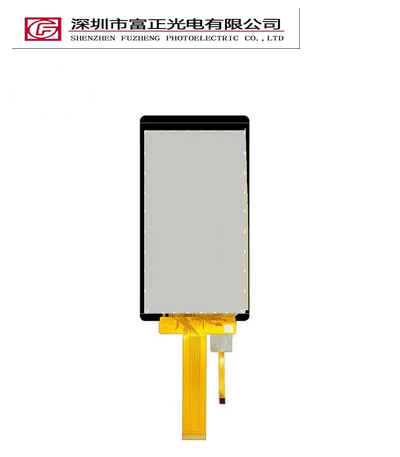

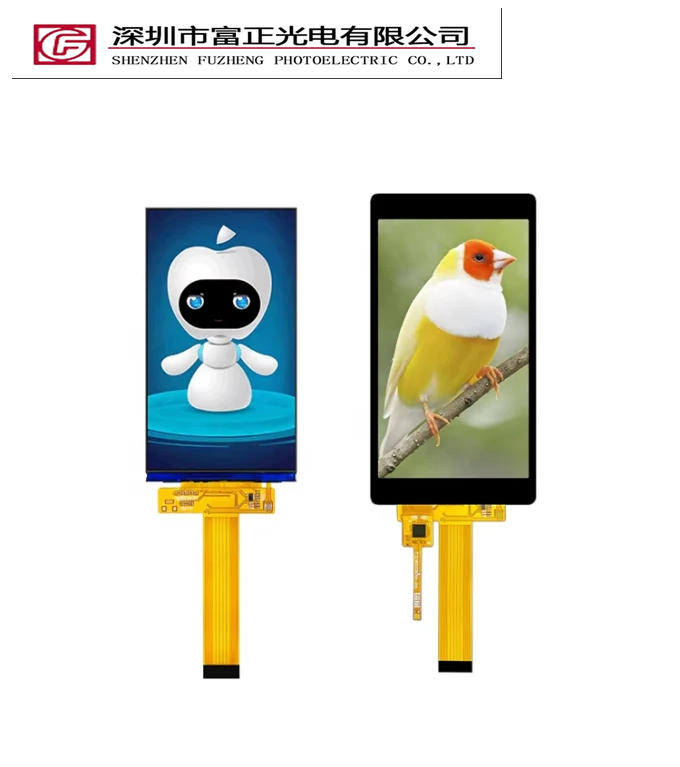

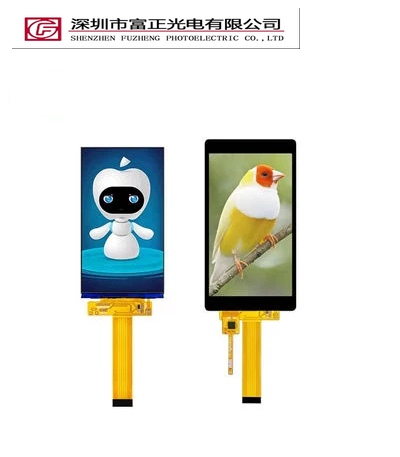

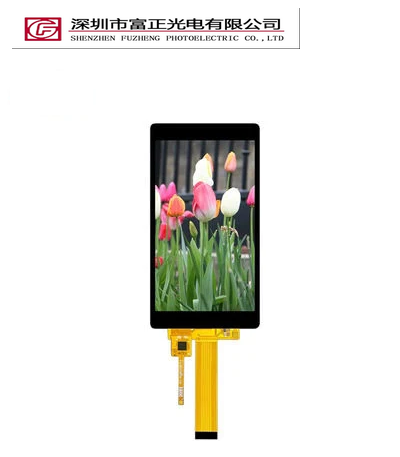

Product photographs

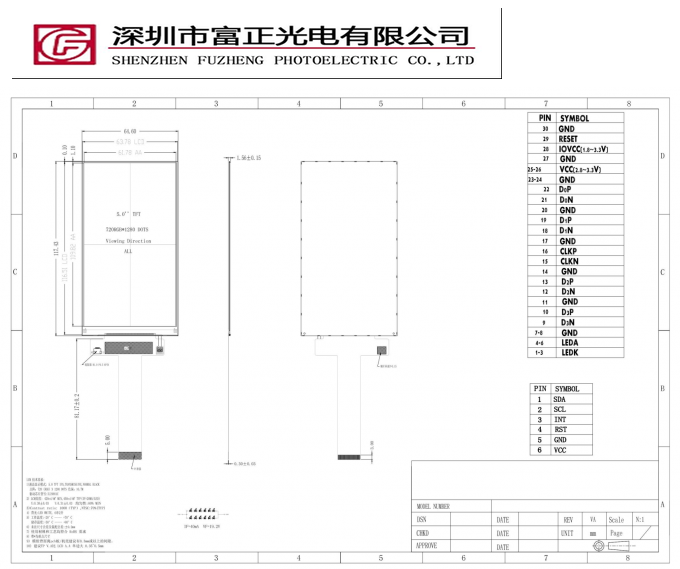

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of ZHD50004C30 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
ZHD50004C30 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5-inch display format with your available viewing area, then check 720 × 1280 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected ZHD50004C30 configuration.
ZHD50004C30 frequently asked questions
What specifications are listed for ZHD50004C30?
Module Dimensions: 64.6 × 117.43 × 1.56 mm; Interface: MIPI; Brightness: 450 cd/m²; Operating Temperature: -20 to 70 ℃; Driver IC: ILI9881C; Resolution: 720 × 1280 pixels; Screen Size: 5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should ZHD50004C30 connect to a host system?
ZHD50004C30 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for ZHD50004C30?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for ZHD50004C30 so the exact assembly can be reviewed.
Where can I find the drawing for ZHD50004C30?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a ZHD50004C30 sample?
Include the model ZHD50004C30, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the ZHD50004C30 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
