Model no.Z104WX01-CT

Z104WX01-CT 10.4-Inch 1024 × 768 Capacitive Touch TFT-LCD Display

Z104WX01-CT is a 10.4-inch capacitive touch tft-lcd display with 1024 × 768 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 1024 × 768 pixels
Module Dimensions: 258.2 × 207.2 × 11.58 mm
Operating Temperature: -30 to 80 °C
Brightness: 500 cd/m²
Screen Size: 10.4 inch

Screen Size: 10.4 inch
Resolution: 1024 × 768 pixels
Display Mode: Normally White TN,Transmissive
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface against the latest approved specification before design-in.

Z104WX01-CT product introduction

Z104WX01-CT is a 10.4-inch capacitive touch tft-lcd display with 1024 × 768 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 258.2 × 207.2 × 11.58 mm. Operating Temperature: -30 to 80 °C. Brightness: 500 cd/m². Use these published characteristics to compare Z104WX01-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z104WX01-CT. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z104WX01-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1024 × 768 pixels
Module Dimensions: 258.2 × 207.2 × 11.58 mm
Operating Temperature: -30 to 80 °C
Brightness: 500 cd/m²
Screen Size: 10.4 inch

Technical specifications

Z104WX01-CT technical parameters
Parameter	Value
Resolution	1024 × 768 pixels
Module Dimensions	258.2 × 207.2 × 11.58 mm
Active Area	210.43 × 157.82 mm
Display Technology	TFT, Normally Black, Transmissive
Contrast Ratio	1000:1
Operating Temperature	-30 to 80 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	258.2207.211.58mm
Display Mode	Normally White TN,Transmissive
Viewing Angle	85/85/85/85
Brightness	500 cd/m²
Pin Count	30 pin
Screen Size	10.4 inch

Confirm interface against the latest approved module specification before design-in.

Interface & pin definition

Use the Z104WX01-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z104WX01-CT technical parameters
Parameter	Value
Pin Count	30 pin

Product photographs

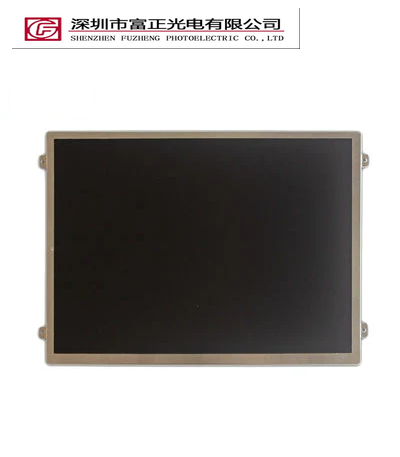

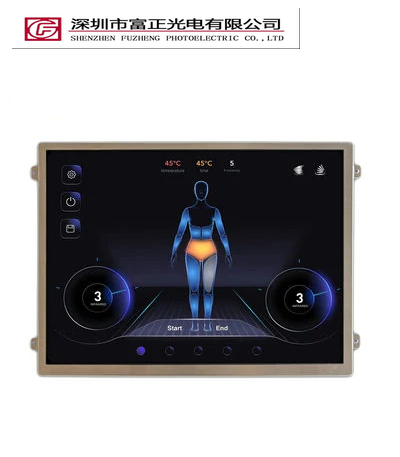

Z104WX01-CT product view 1

Z104WX01-CT product view 2

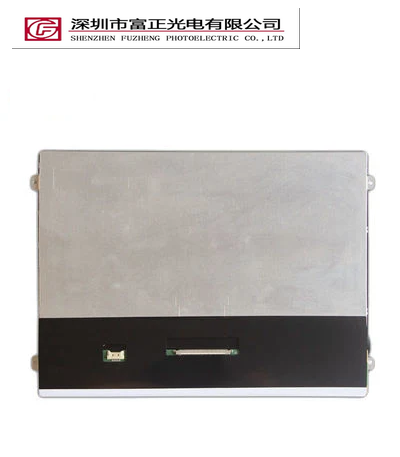

Z104WX01-CT product view 3

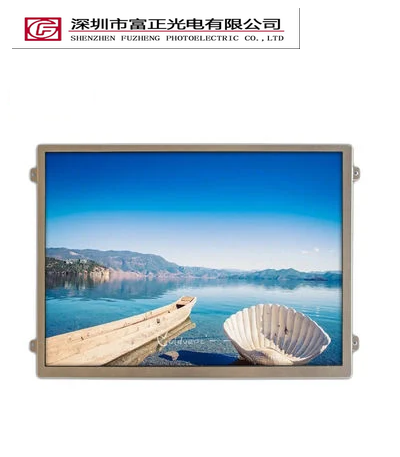

Z104WX01-CT product view 4

Mechanical drawings & documents

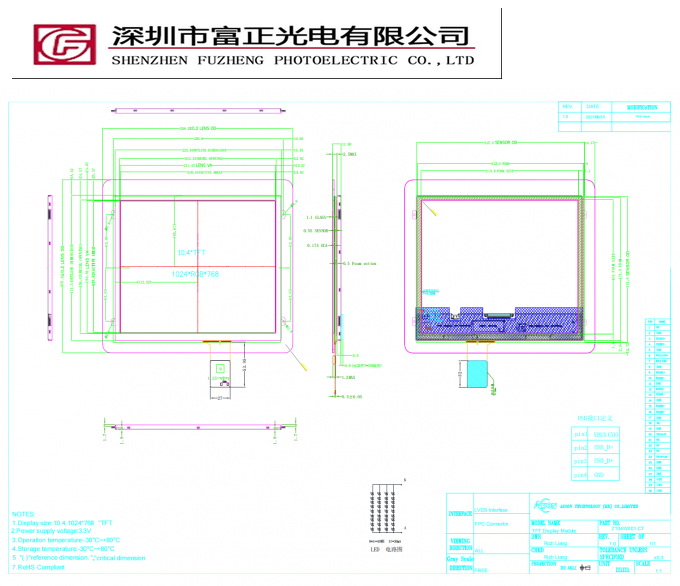

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z104WX01-CT against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z104WX01-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 10.4-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z104WX01-CT configuration.

Z104WX01-CT frequently asked questions

What specifications are listed for Z104WX01-CT?

Resolution: 1024 × 768 pixels; Module Dimensions: 258.2 × 207.2 × 11.58 mm; Operating Temperature: -30 to 80 °C; Brightness: 500 cd/m²; Screen Size: 10.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z104WX01-CT connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z104WX01-CT?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z104WX01-CT so the exact assembly can be reviewed.

Where can I find the drawing for Z104WX01-CT?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z104WX01-CT sample?

Include the model Z104WX01-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z104WX01-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
