Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z101WX28J-CT

Z101WX28J-CT 10.1-Inch 1280 × 800 Capacitive Touch TFT-LCD Display

LVDS
Resolution: 1280 × 800 pixels
Module Dimensions: 260 × 169 × 7.8 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -30 to 85 °C
Screen Size: 10.1 inch

Screen Size: 10.1 inch
Resolution: 1280 × 800 pixels
Display Mode: Normally black, Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z101WX28J-CT product introduction

Z101WX28J-CT is a 10.1-inch capacitive touch tft-lcd display with 1280 × 800 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 260 × 169 × 7.8 mm. Brightness: 1000 cd/m². Operating Temperature: -30 to 85 °C. Use these published characteristics to compare Z101WX28J-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z101WX28J-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z101WX28J-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1280 × 800 pixels
Module Dimensions: 260 × 169 × 7.8 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -30 to 85 °C
Screen Size: 10.1 inch

Technical specifications

Z101WX28J-CT technical parameters
Parameter	Value
Resolution	1280 × 800 pixels
Module Dimensions	260 × 169 × 7.8 mm
Active Area	216.96 × 135.6 mm
Interface	LVDS
Display Mode	Normally Black, Transmissive
Brightness	1000 cd/m²
Operating Temperature	-30 to 85 °C
Storage Temperature	-40 to 85 °C
Model Size (WHT)mm	260X169*7.8 mm
Viewing	IPS/ALL
Pin Count	40
Viewing Angle	85/85/85/85
CTP Driver IC	GT928
Screen Size	10.1 inch

Interface & pin definition

Use the Z101WX28J-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z101WX28J-CT technical parameters
Parameter	Value
Interface	LVDS
Pin Count	40

Product photographs

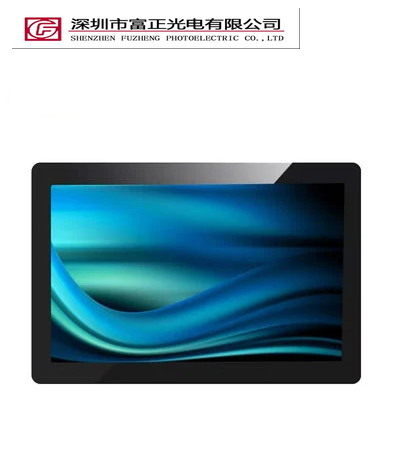

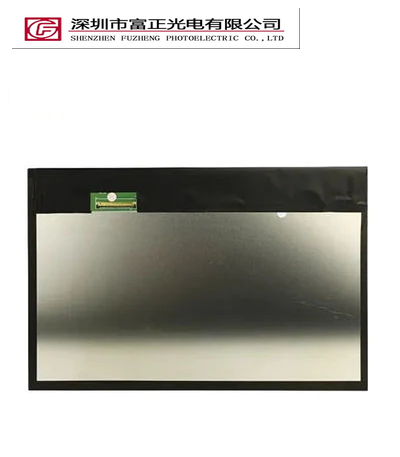

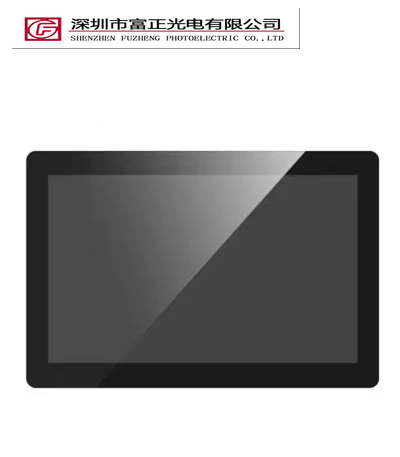

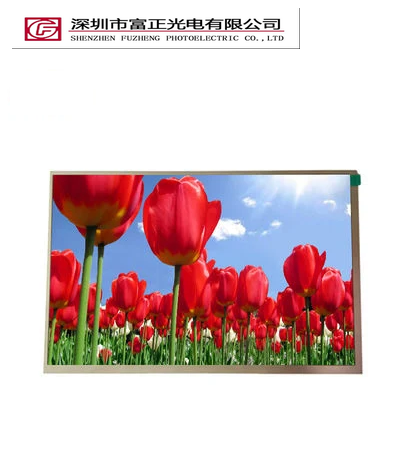

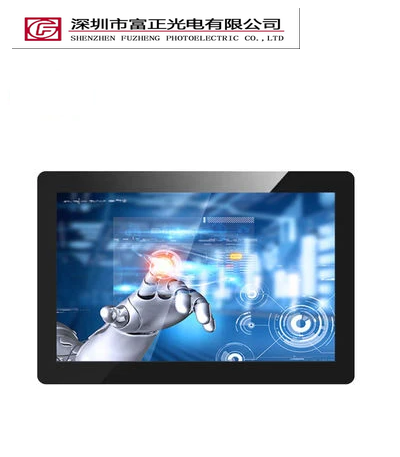

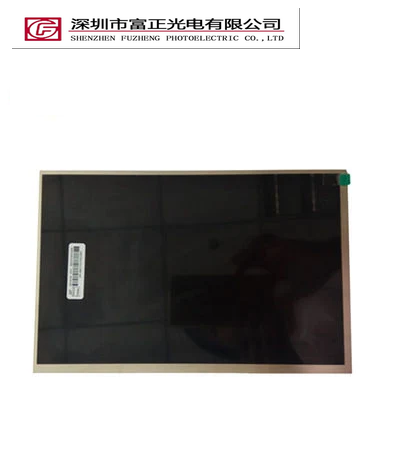

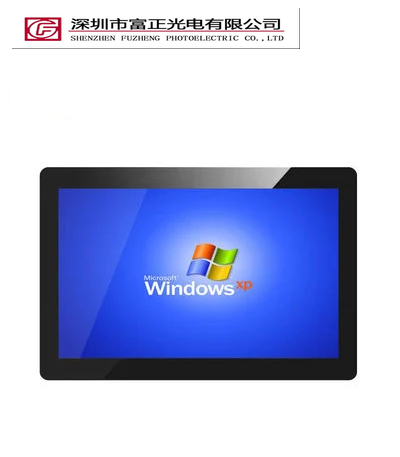

Z101WX28J-CT product view 1

Z101WX28J-CT product view 2

Z101WX28J-CT product view 3

Z101WX28J-CT product view 4

Z101WX28J-CT product view 5

Z101WX28J-CT product view 6

Z101WX28J-CT product view 7

Z101WX28J-CT product view 8

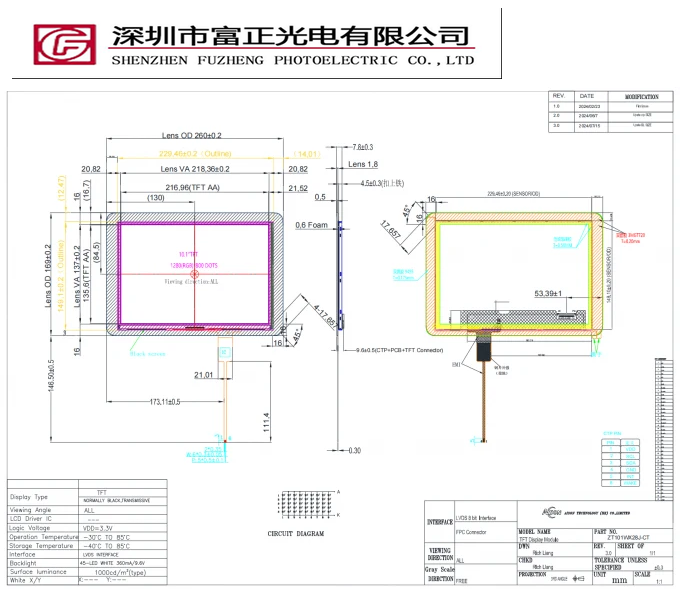

Mechanical drawings & documents

Request the Z101WX28J-CT mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z101WX28J-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 10.1-inch display format with your available viewing area, then check 1280 × 800 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z101WX28J-CT configuration.

Z101WX28J-CT frequently asked questions

What specifications are listed for Z101WX28J-CT?

Resolution: 1280 × 800 pixels; Module Dimensions: 260 × 169 × 7.8 mm; Interface: LVDS; Brightness: 1000 cd/m²; Operating Temperature: -30 to 85 °C; Screen Size: 10.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z101WX28J-CT connect to a host system?

Z101WX28J-CT lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z101WX28J-CT?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z101WX28J-CT so the exact assembly can be reviewed.

Where can I find the drawing for Z101WX28J-CT?

Request the mechanical drawing and electrical datasheet for Z101WX28J-CT. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a Z101WX28J-CT sample?

Include the model Z101WX28J-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z101WX28J-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z101WX28J-CT quote or evaluation sample →

Discuss this display with our team

Z101WX28J-CT

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
