Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z080XG01J-CT1
Z080XG01J-CT1 8-Inch 1024 × 768 Capacitive Touch TFT-LCD Display
Z080XG01J-CT1 is a 8-inch capacitive touch tft-lcd display with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Interface: LVDS
- Brightness: 800 cd/m²
- Resolution: 1024 × 768 pixels
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
- Screen Size
- 8 inch
- Resolution
- 1024 × 768 pixels
- Display Mode
- Normally black, Transmissive
- Interface
- LVDS
- Viewing Angle
- 85/85/85/85
Z080XG01J-CT1 product introduction
Z080XG01J-CT1 is a 8-inch capacitive touch tft-lcd display with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Brightness: 800 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z080XG01J-CT1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z080XG01J-CT1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z080XG01J-CT1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Interface: LVDS
- Brightness: 800 cd/m²
- Resolution: 1024 × 768 pixels
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
Technical specifications
| Parameter | Value |
|---|---|
| Dimensional Outline | 194.8*150.4*7.72mm |
| Active Area | 162.05 × 121.54 mm |
| Interface | LVDS |
| Display Mode | Normally Black, Transmissive |
| Brightness | 800 cd/m² |
| Working Temperatures | -20 To 70 Degree |
| Storage Temperature | -30 to 80 °C |
| Resolution | 1024 × 768 pixels |
| Model Size (W*H*T)mm | 194.8*150.4*7.72mm |
| Viewing | IPS/ALL |
| Pin Count | 40 |
| Viewing Angle | 85/85/85/85 |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 8 inch |
Interface & pin definition
Use the Z080XG01J-CT1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Pin Count | 40 |

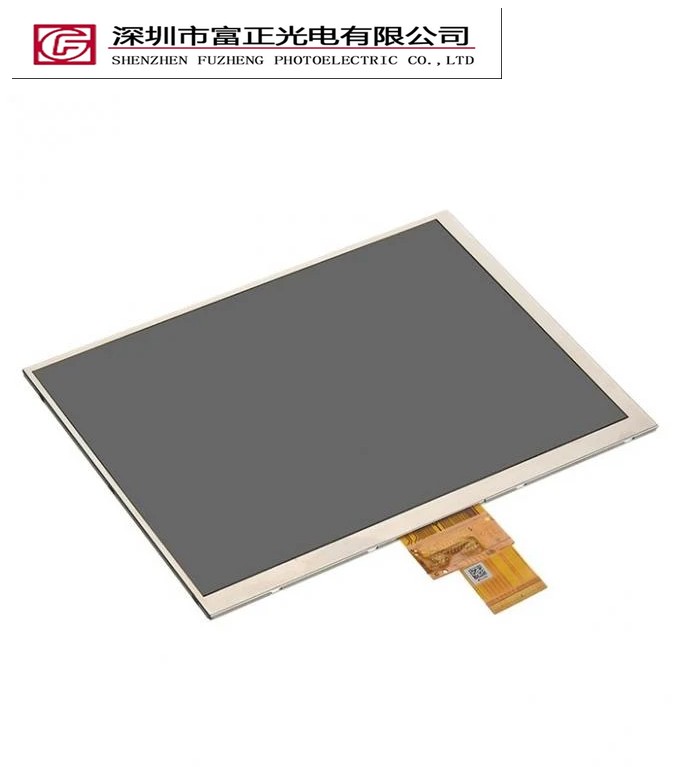

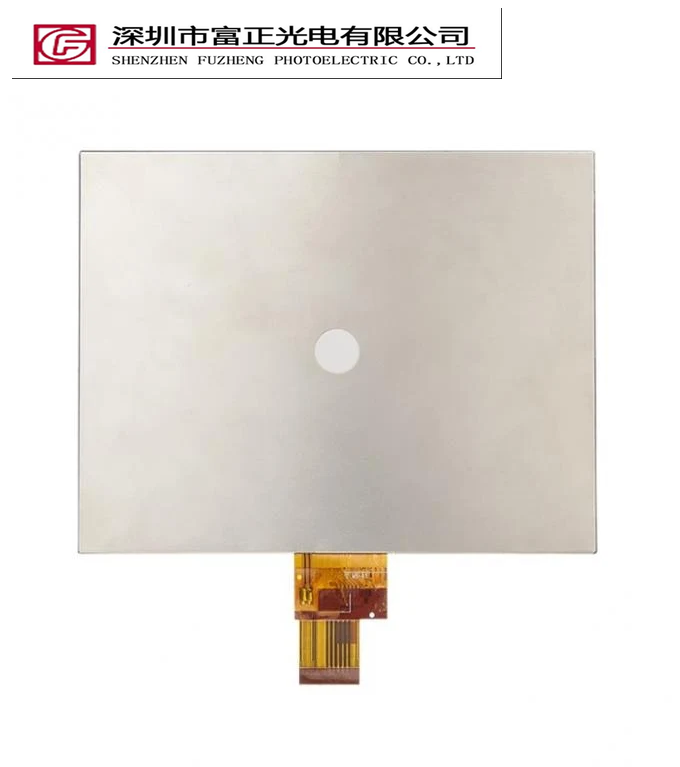

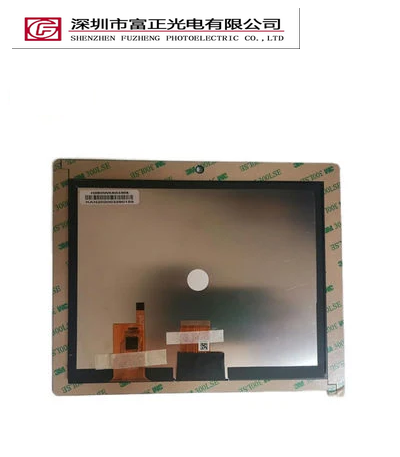

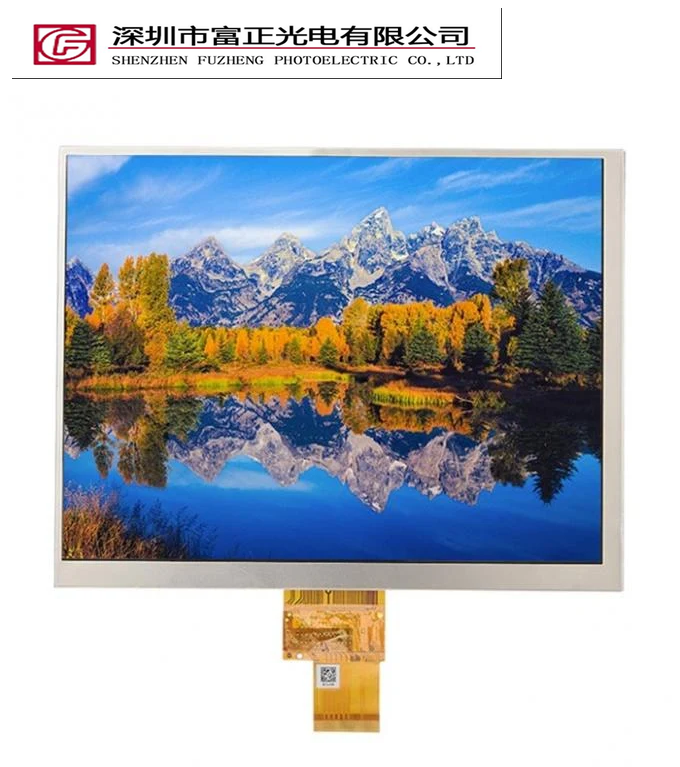

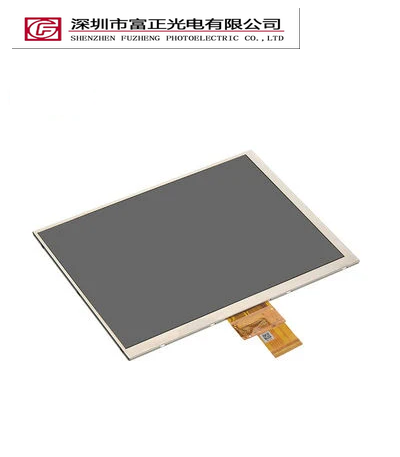

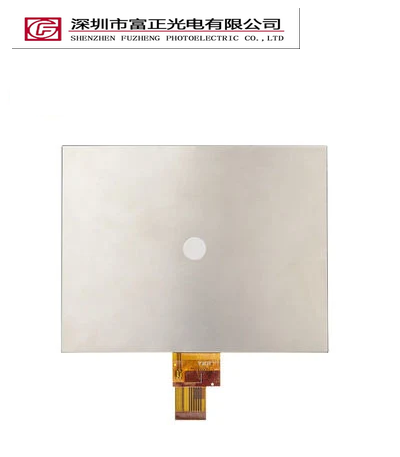

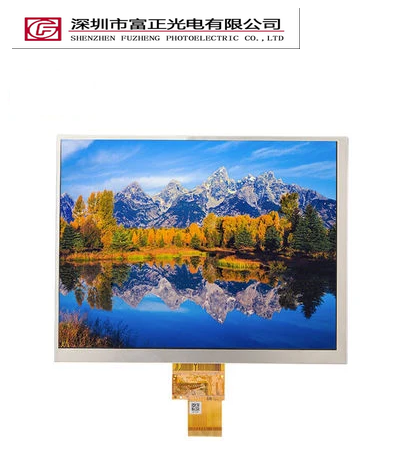

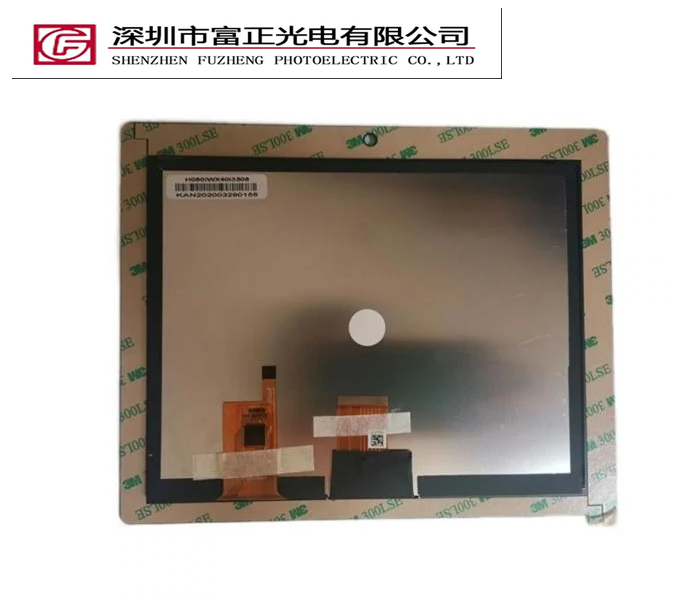

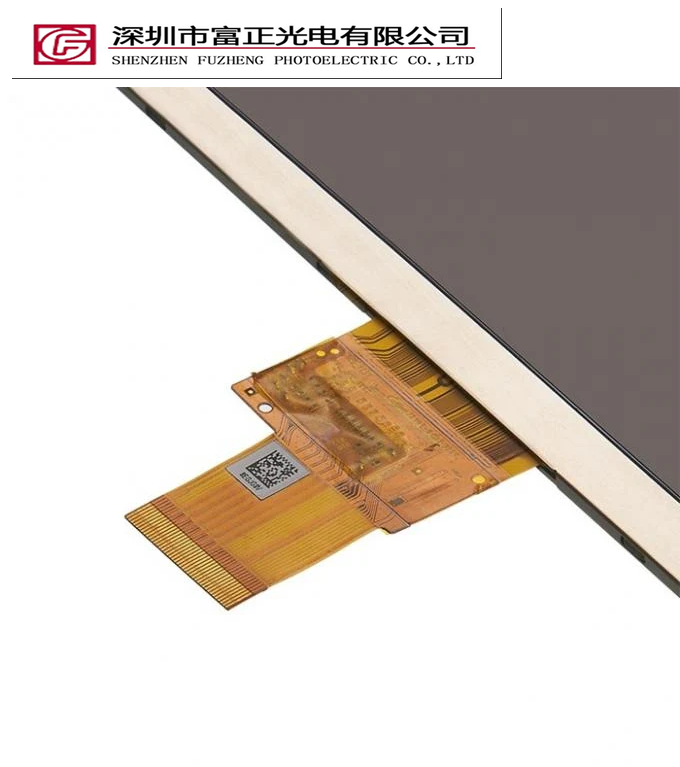

Product photographs

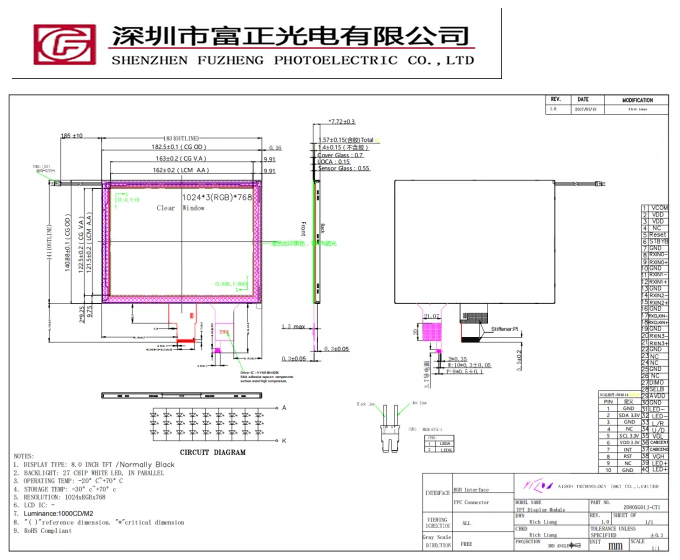

Mechanical drawings & documents
Request the Z080XG01J-CT1 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z080XG01J-CT1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 8-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z080XG01J-CT1 configuration.
Z080XG01J-CT1 frequently asked questions
What specifications are listed for Z080XG01J-CT1?
Interface: LVDS; Brightness: 800 cd/m²; Resolution: 1024 × 768 pixels; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z080XG01J-CT1 connect to a host system?
Z080XG01J-CT1 lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z080XG01J-CT1?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z080XG01J-CT1 so the exact assembly can be reviewed.
Where can I find the drawing for Z080XG01J-CT1?
Request the mechanical drawing and electrical datasheet for Z080XG01J-CT1. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z080XG01J-CT1 sample?
Include the model Z080XG01J-CT1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z080XG01J-CT1 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
