Model no.Z080WS04-CT
Z080WS04-CT 8-Inch 800 × 600 Capacitive Touch TFT-LCD Display
Z080WS04-CT is a 8-inch capacitive touch tft-lcd display with 800 × 600 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 24 BIT RGB
- Resolution: 800 × 600 pixels
- Module Dimensions: 182.9 × 141 × 8.2 mm
- Interface: 24 BIT RGB
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
- Screen Size
- 8 inch
- Resolution
- 800 × 600 pixels
- Display Mode
- Normally black, Transmissive
- Interface
- 24 BIT RGB
- Viewing Angle
- 80/80/80/80
Specification confirmation. Confirm active area against the latest approved specification before design-in.
Z080WS04-CT product introduction
Z080WS04-CT is a 8-inch capacitive touch tft-lcd display with 800 × 600 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 182.9 × 141 × 8.2 mm. Brightness: 450 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z080WS04-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 24 BIT RGB connection on Z080WS04-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z080WS04-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 600 pixels
- Module Dimensions: 182.9 × 141 × 8.2 mm
- Interface: 24 BIT RGB
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
Technical specifications
| Parameter | Value |
|---|---|
| LCM | 8 Inch 800x600 TFT With Captouch |
| Resolution | 800 × 600 pixels |
| Module Dimensions | 182.9 × 141 × 8.2 mm |
| Interface | 24 BIT RGB |
| Display Mode | Normally Black, Transmissive |
| Working Temperatures | -20 To 70 Degree |
| Storage Temperature | -30 to 80 °C |
| Driver Controller | JD9165A-A3 |
| CTP Interface | I2C |
| Brightness | 450 cd/m² |
| Model Size (W*H*T)mm | 182.9*141*8.2mm |
| Viewing | ALL |
| Pin Count | 50 |
| Viewing Angle | 80/80/80/80 |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 8 inch |
Confirm active area against the latest approved module specification before design-in.

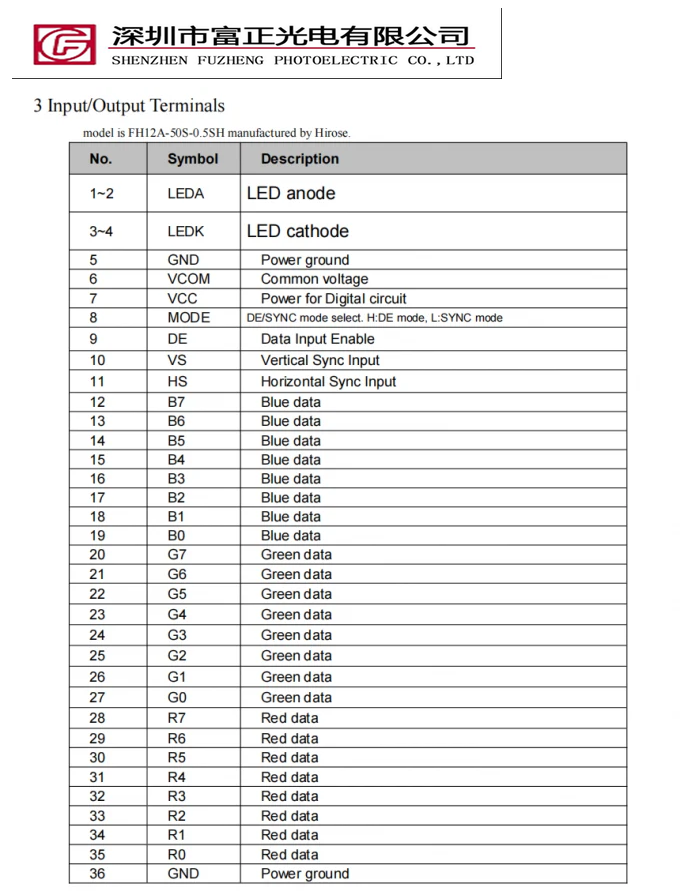

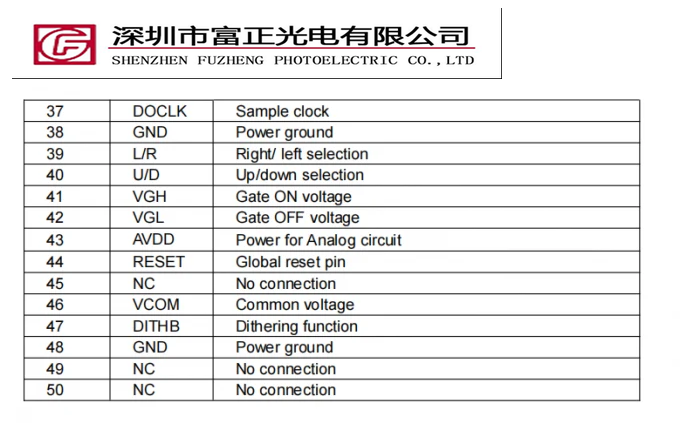

Interface & pin definition
Use the Z080WS04-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 24 BIT RGB |
| Pin Count | 50 |

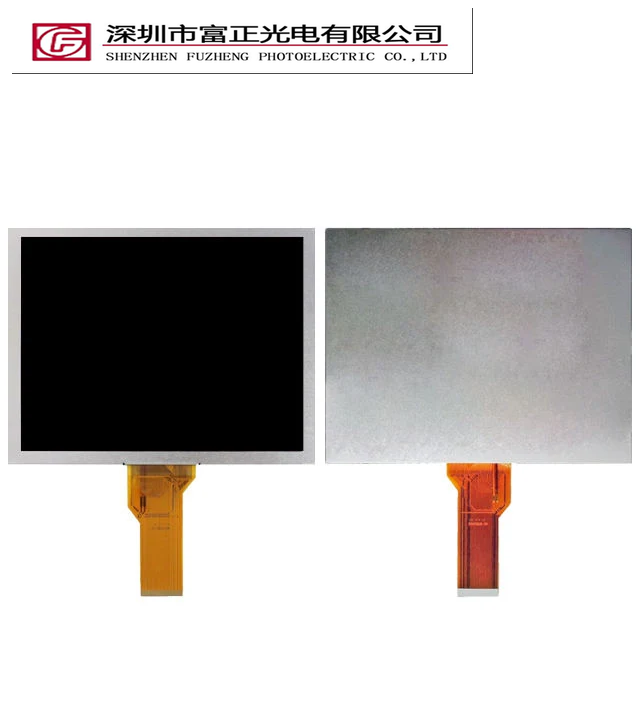

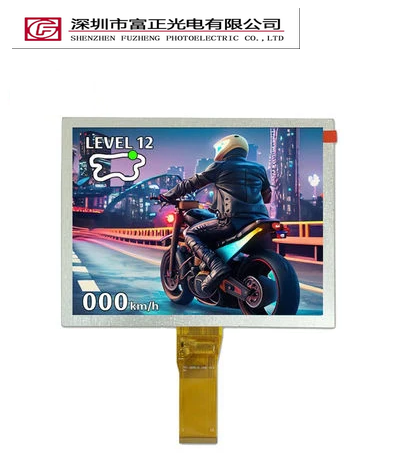

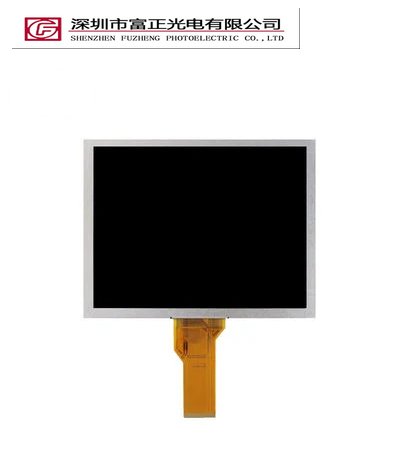

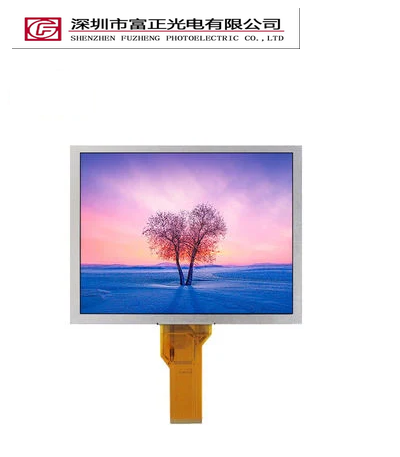

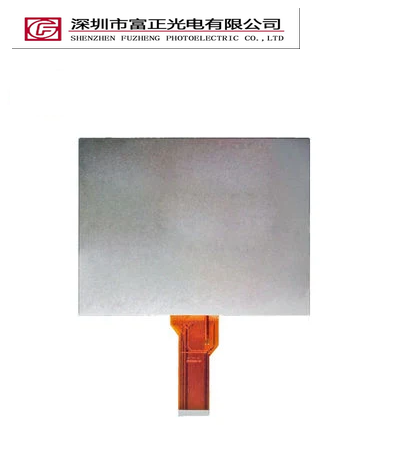

Product photographs

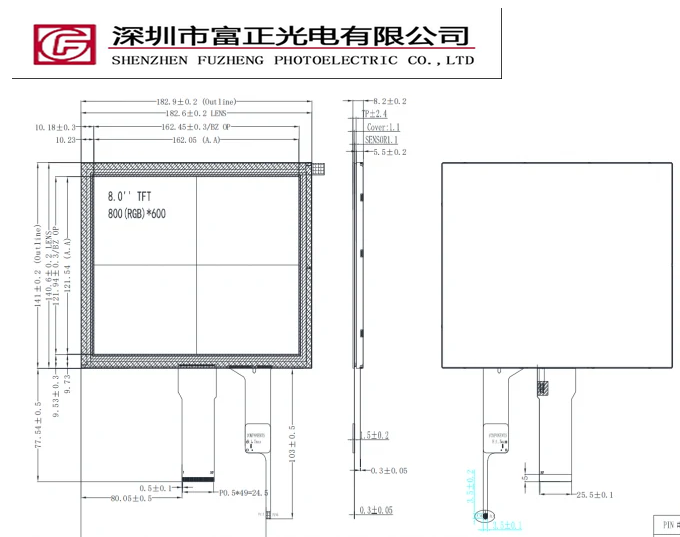

Mechanical drawings & documents
Request the Z080WS04-CT mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z080WS04-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 8-inch display format with your available viewing area, then check 800 × 600 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z080WS04-CT configuration.
Z080WS04-CT frequently asked questions
What specifications are listed for Z080WS04-CT?
Resolution: 800 × 600 pixels; Module Dimensions: 182.9 × 141 × 8.2 mm; Interface: 24 BIT RGB; Brightness: 450 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z080WS04-CT connect to a host system?
Z080WS04-CT lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z080WS04-CT?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z080WS04-CT so the exact assembly can be reviewed.
Where can I find the drawing for Z080WS04-CT?
Request the mechanical drawing and electrical datasheet for Z080WS04-CT. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z080WS04-CT sample?
Include the model Z080WS04-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z080WS04-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
