Model no.Z070WS37-CT
Z070WS37-CT 7-Inch 1024 × 600 Capacitive Touch TFT-LCD Display — Ref 53493721
Z070WS37-CT is a 7-inch capacitive touch tft-lcd display with 1024 × 600 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resolution: 1024 × 600 pixels
- Module Dimensions: 180 × 120 × 7.6 mm
- Brightness: 400 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 7 inch
- Screen Size
- 7 inch
- Resolution
- 1024 × 600 pixels
- Display Mode
- Normally black,Transmissive
Specification confirmation. Confirm interface, storage temperature against the latest approved specification before design-in.
Z070WS37-CT product introduction
Z070WS37-CT is a 7-inch capacitive touch tft-lcd display with 1024 × 600 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The capacitive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 180 × 120 × 7.6 mm. Brightness: 400 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z070WS37-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z070WS37-CT. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z070WS37-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 600 pixels
- Module Dimensions: 180 × 120 × 7.6 mm
- Brightness: 400 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1024 × 600 pixels |
| Module Dimensions | 180 × 120 × 7.6 mm |
| Active Area | 154.21 × 85.92 mm |
| Brightness | 400 cd/m² |
| Display Technology | TFT, Normally Black, Transmissive |
| Working Temperatures | -20 Degree To 70 Degree |
| Touch Interface | I2C&USB |
| Model Size (W*H*T)mm | 180x120x7.6 |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Pin Count | 40 pin |
| Contrast Ratio | 700:1 |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 7 inch |
Confirm interface, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z070WS37-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Pin Count | 40 pin |

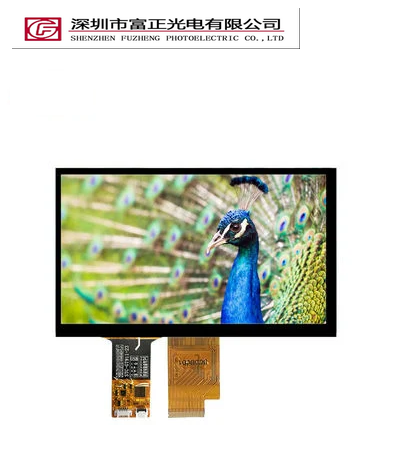

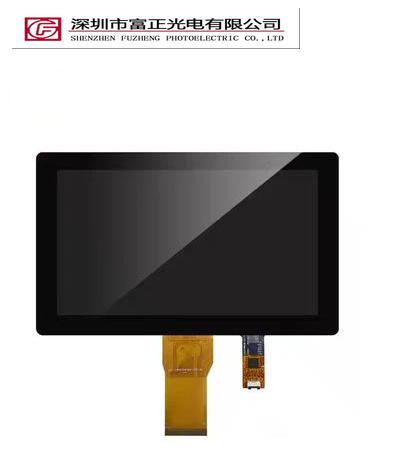

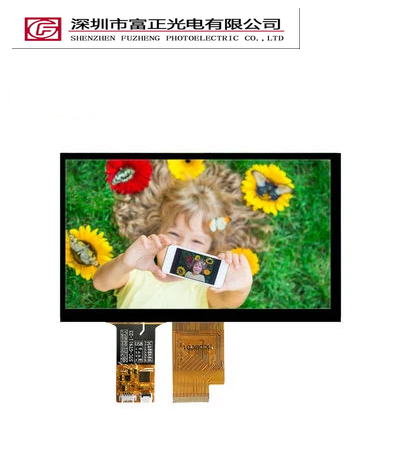

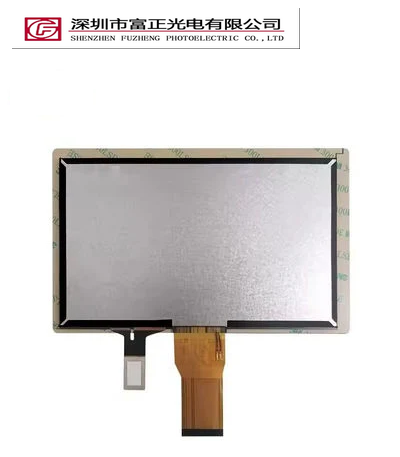

Product photographs
Mechanical drawings & documents
Request the Z070WS37-CT mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z070WS37-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check 1024 × 600 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WS37-CT configuration.
Z070WS37-CT frequently asked questions
What specifications are listed for Z070WS37-CT?
Resolution: 1024 × 600 pixels; Module Dimensions: 180 × 120 × 7.6 mm; Brightness: 400 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z070WS37-CT connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z070WS37-CT?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WS37-CT so the exact assembly can be reviewed.
Where can I find the drawing for Z070WS37-CT?
Request the mechanical drawing and electrical datasheet for Z070WS37-CT. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z070WS37-CT sample?
Include the model Z070WS37-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
