Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z101WS08-T

Z101WS08-T 10.1-Inch 1024 × 600 Resistive Touch TFT-LCD Display

RGB OR LVDS
RTP
Resolution: 1024 × 600 pixels
Module Dimensions: 235 × 143 × 6.49 mm
Interface: RGB OR LVDS
Operating Temperature: -20 to 70 °C
Touch: RTP
Brightness: 250 cd/m²

Screen Size: 10.1 inch
Resolution: 1024 × 600 pixels
Display Mode: Normally black, Transmissive
Interface: RGB OR LVDS
Touch: Resistive touch
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z101WS08-T product introduction

Z101WS08-T is a 10.1-inch resistive touch tft-lcd display with 1024 × 600 resolution and a RGB OR LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The resistive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 235 × 143 × 6.49 mm. Operating Temperature: -20 to 70 °C. Touch: RTP. Brightness: 250 cd/m². Use these published characteristics to compare Z101WS08-T with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The RGB OR LVDS connection on Z101WS08-T should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z101WS08-T attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1024 × 600 pixels
Module Dimensions: 235 × 143 × 6.49 mm
Interface: RGB OR LVDS
Operating Temperature: -20 to 70 °C
Touch: RTP
Brightness: 250 cd/m²
Screen Size: 10.1 inch

Technical specifications

Z101WS08-T technical parameters
Parameter	Value
Resolution	1024 × 600 pixels
Module Dimensions	235 × 143 × 6.49 mm
Active Area	222.72 × 125.28 mm
Interface	RGB OR LVDS
Display Mode	Normally Black, Transmissive
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Touch	RTP
Model Size (WHT)	2351436.49mm
Viewing	IPS/ALL
Brightness	250 cd/m²
Pin Count	50 or 40
Viewing Angle	80/80/80/80
Screen Size	10.1 inch

Interface & pin definition

Use the Z101WS08-T electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z101WS08-T technical parameters
Parameter	Value
Interface	RGB OR LVDS
Touch	RTP
Pin Count	50 or 40

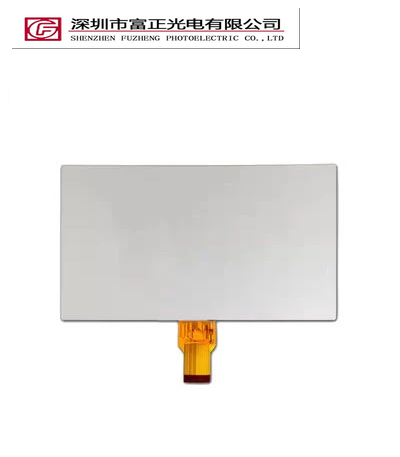

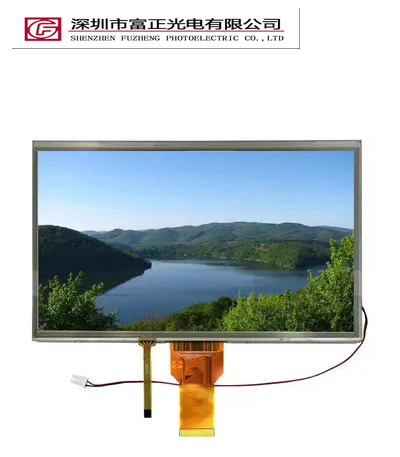

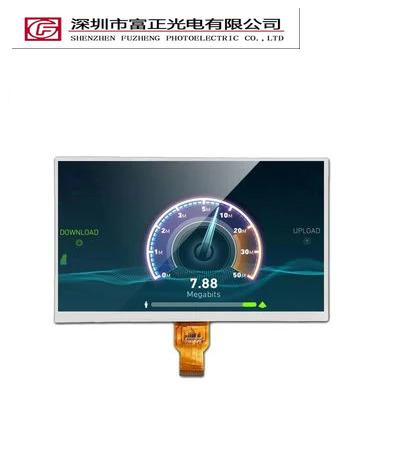

Product photographs

Z101WS08-T product view 1

Z101WS08-T product view 2

Z101WS08-T product view 3

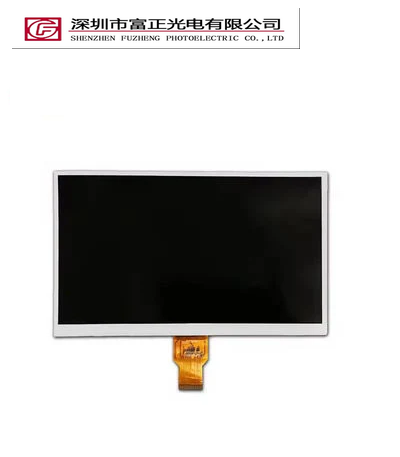

Z101WS08-T product view 4

Z101WS08-T product view 5

Z101WS08-T product view 6

Z101WS08-T product view 7

Z101WS08-T product view 8

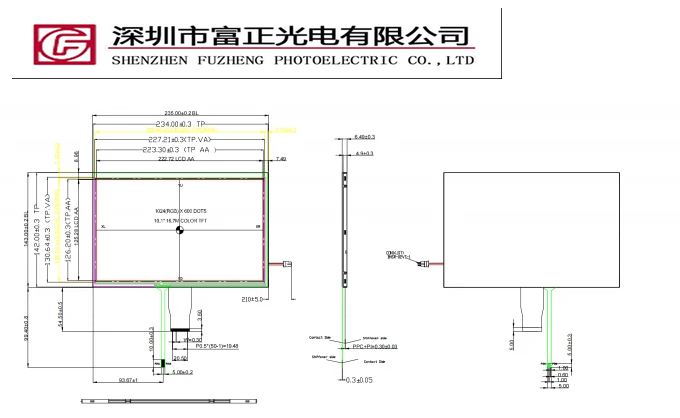

Mechanical drawings & documents

Request the Z101WS08-T mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z101WS08-T can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 10.1-inch display format with your available viewing area, then check 1024 × 600 pixel resolution, RGB OR LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z101WS08-T configuration.

Z101WS08-T frequently asked questions

What specifications are listed for Z101WS08-T?

Resolution: 1024 × 600 pixels; Module Dimensions: 235 × 143 × 6.49 mm; Interface: RGB OR LVDS; Operating Temperature: -20 to 70 °C; Touch: RTP; Brightness: 250 cd/m²; Screen Size: 10.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z101WS08-T connect to a host system?

Z101WS08-T lists a RGB OR LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z101WS08-T?

The listed touch configuration is RTP. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for Z101WS08-T?

Request the mechanical drawing and electrical datasheet for Z101WS08-T. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a Z101WS08-T sample?

Include the model Z101WS08-T, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z101WS08-T reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z101WS08-T quote or evaluation sample →

Discuss this display with our team

Z101WS08-T

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
