Model no.Z043WQ19-T
Z043WQ19-T 4.3-Inch 480 × 272 Resistive Touch TFT-LCD Display — Ref 50942990
Z043WQ19-T is a 4.3-inch resistive touch tft-lcd display with 480 × 272 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- Resistive Touch
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.5 × 67.2 × 4.2 mm
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: Resistive Touch
- Screen Size: 4.3 inch
- Screen Size
- 4.3 inch
- Resolution
- 480 × 272 pixels
- Display Mode
- TFT,Normally White
- Touch
- Resistive touch
- Viewing Angle
- 50/70/70/70
Specification confirmation. Confirm interface against the latest approved specification before design-in.
Z043WQ19-T product introduction
Z043WQ19-T is a 4.3-inch resistive touch tft-lcd display with 480 × 272 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The resistive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.5 × 67.2 × 4.2 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Touch: Resistive Touch. Use these published characteristics to compare Z043WQ19-T with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z043WQ19-T. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z043WQ19-T attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.5 × 67.2 × 4.2 mm
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: Resistive Touch
- Screen Size: 4.3 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 272 pixels |
| Module Dimensions | 105.5 × 67.2 × 4.2 mm |
| Active Area | 95.04 × 53.856 mm |
| Viewing Angle | 50/70/70/70 |
| Brightness | 350 cd/m² |
| Display Mode | TFT,Normally White |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Touch | Resistive Touch |
| LCM (W x H x D) | 105.5*67.2*4.2mm |
| Viewing Direction | 12 O'clock |
| Screen Size | 4.3 inch |
Confirm interface against the latest approved module specification before design-in.
Interface & pin definition
Use the Z043WQ19-T electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Touch | Resistive Touch |

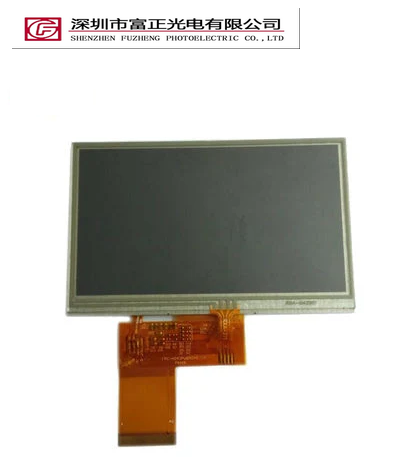

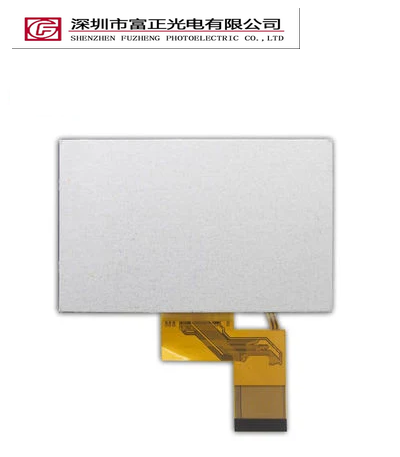

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z043WQ19-T against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z043WQ19-T can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4.3-inch display format with your available viewing area, then check 480 × 272 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z043WQ19-T configuration.
Z043WQ19-T frequently asked questions
What specifications are listed for Z043WQ19-T?
Resolution: 480 × 272 pixels; Module Dimensions: 105.5 × 67.2 × 4.2 mm; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Touch: Resistive Touch; Screen Size: 4.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z043WQ19-T connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z043WQ19-T?
The listed touch configuration is Resistive Touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z043WQ19-T?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z043WQ19-T sample?
Include the model Z043WQ19-T, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
