Model no.Z057Q01-T
Z057Q01-T 5.7-Inch 320 × 240 Resistive Touch TFT-LCD Display
Z057Q01-T is a 5.7-inch resistive touch tft-lcd display with 320 × 240 resolution and a 18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 18 BIT RGB
- Resolution: 320 × 240 pixels
- Module Dimensions: 144.0 × 104.6 × 14.5 mm
- Interface: 18 BIT RGB
- Operating Temperature: -20 to 70 °C
- Brightness: 600 cd/m²
- Screen Size: 5.7 inch
- Screen Size
- 5.7 inch
- Resolution
- 320 × 240 pixels
- Interface
- 18 BIT RGB
Specification confirmation. Confirm active area, display mode against the latest approved specification before design-in.
Z057Q01-T product introduction
Z057Q01-T is a 5.7-inch resistive touch tft-lcd display with 320 × 240 resolution and a 18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The resistive touch displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 144.0 × 104.6 × 14.5 mm. Operating Temperature: -20 to 70 °C. Brightness: 600 cd/m². Use these published characteristics to compare Z057Q01-T with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 18 BIT RGB connection on Z057Q01-T should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z057Q01-T attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 320 × 240 pixels
- Module Dimensions: 144.0 × 104.6 × 14.5 mm
- Interface: 18 BIT RGB
- Operating Temperature: -20 to 70 °C
- Brightness: 600 cd/m²
- Screen Size: 5.7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 320 × 240 pixels |
| Module Dimensions | 144.0 × 104.6 × 14.5 mm |
| Interface | 18 BIT RGB |
| Driver Controller | HX8218C04+HX8615C |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T)mm | 144.0*104.6*14.5 mm |
| Viewing | 12:00 o'clock |
| Brightness | 600 cd/m² |
| Pin Count | 33 |
| Screen Size | 5.7 inch |
Confirm active area, display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the Z057Q01-T electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 18 BIT RGB |
| Pin Count | 33 |

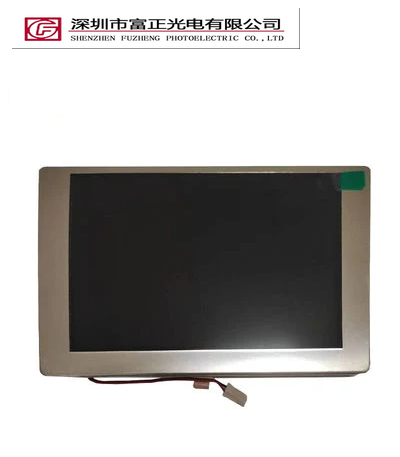

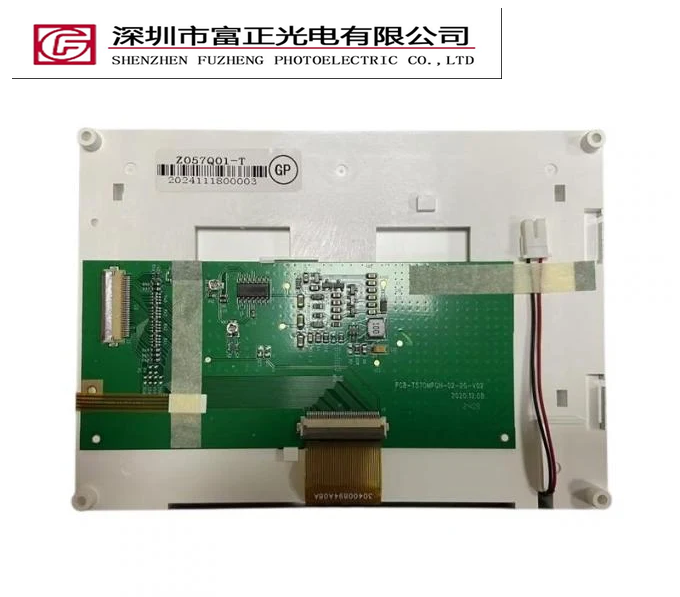

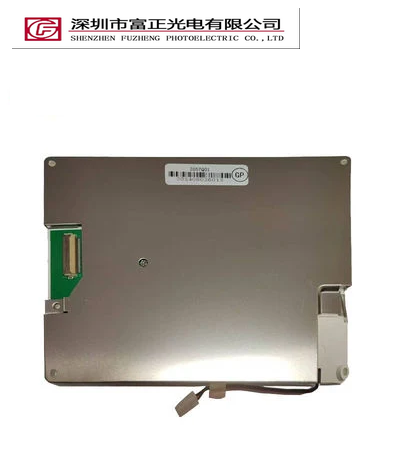

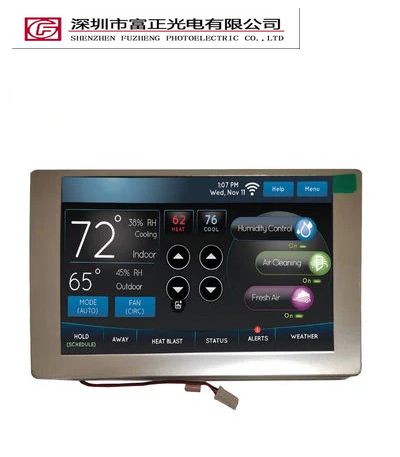

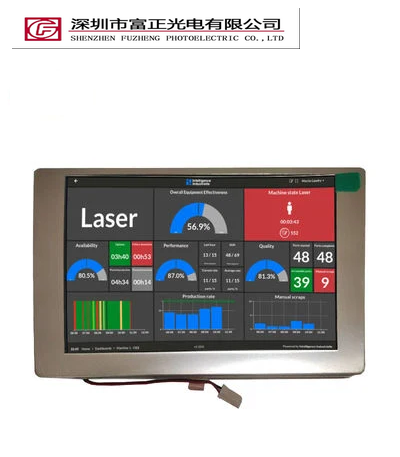

Product photographs

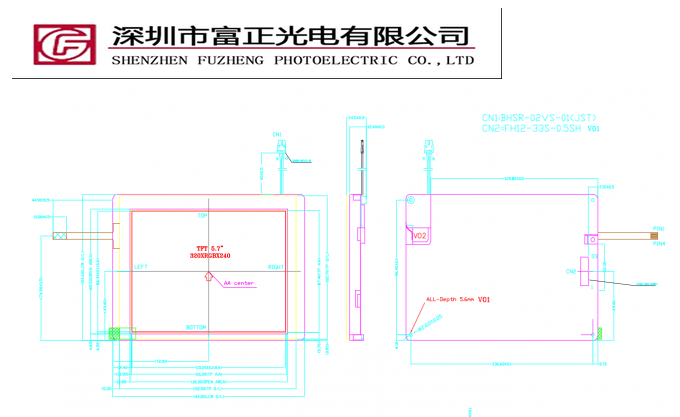

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z057Q01-T against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z057Q01-T can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5.7-inch display format with your available viewing area, then check 320 × 240 pixel resolution, 18 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z057Q01-T configuration.
Z057Q01-T frequently asked questions
What specifications are listed for Z057Q01-T?
Resolution: 320 × 240 pixels; Module Dimensions: 144.0 × 104.6 × 14.5 mm; Interface: 18 BIT RGB; Operating Temperature: -20 to 70 °C; Brightness: 600 cd/m²; Screen Size: 5.7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z057Q01-T connect to a host system?
Z057Q01-T lists a 18 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z057Q01-T?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z057Q01-T so the exact assembly can be reviewed.
Where can I find the drawing for Z057Q01-T?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z057Q01-T sample?
Include the model Z057Q01-T, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z057Q01-T reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
