Model no.Z101WX21-CT
Z101WX21-CT 10.1-Inch 1280 × 800 LCD Display Module
Z101WX21-CT is a 10.1-inch lcd display module with 1280 × 800 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Resolution: 1280 × 800 pixels
- Module Dimensions: 260 × 169 × 5.7 mm
- Interface: LVDS
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 10.1 inch
- Screen Size
- 10.1 inch
- Resolution
- 1280 × 800 pixels
- Display Mode
- Normally black, Transmissive
- Interface
- LVDS
- Viewing Angle
- 85/85/85/85
Z101WX21-CT product introduction
Z101WX21-CT is a 10.1-inch lcd display module with 1280 × 800 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 260 × 169 × 5.7 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z101WX21-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z101WX21-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z101WX21-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1280 × 800 pixels
- Module Dimensions: 260 × 169 × 5.7 mm
- Interface: LVDS
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 10.1 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1280 × 800 pixels |
| Module Dimensions | 260 × 169 × 5.7 mm |
| Active Area | 216.96 × 135.6 mm |
| Interface | LVDS |
| Display Mode | Normally Black, Transmissive |
| Brightness | 300 cd/m² |
| Operating Temperature | -20 to 70 °C |
| Contrast Ratio | 1000:1 |
| Model Size (W*H*T)mm | 260X169*5.7 |
| Viewing | IPS/ALL |
| Pin Count | 40 |
| Viewing Angle | 85/85/85/85 |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 10.1 inch |
Interface & pin definition
Use the Z101WX21-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Pin Count | 40 |

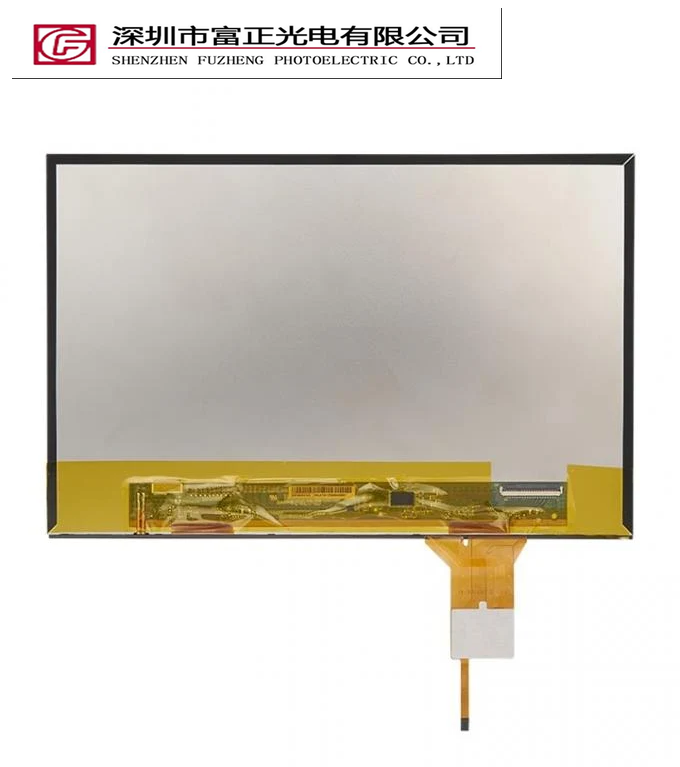

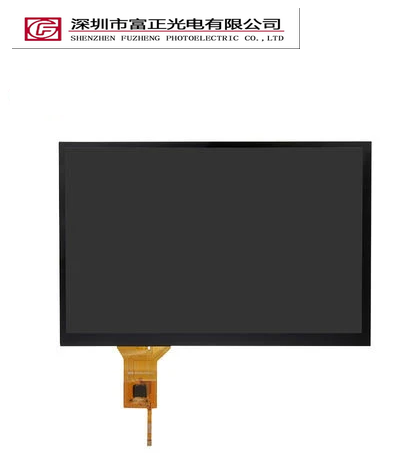

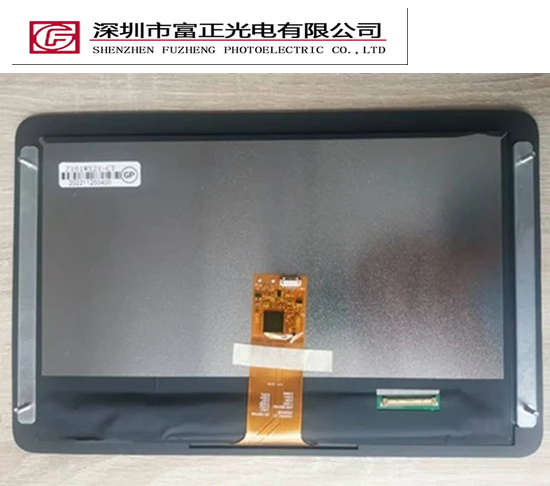

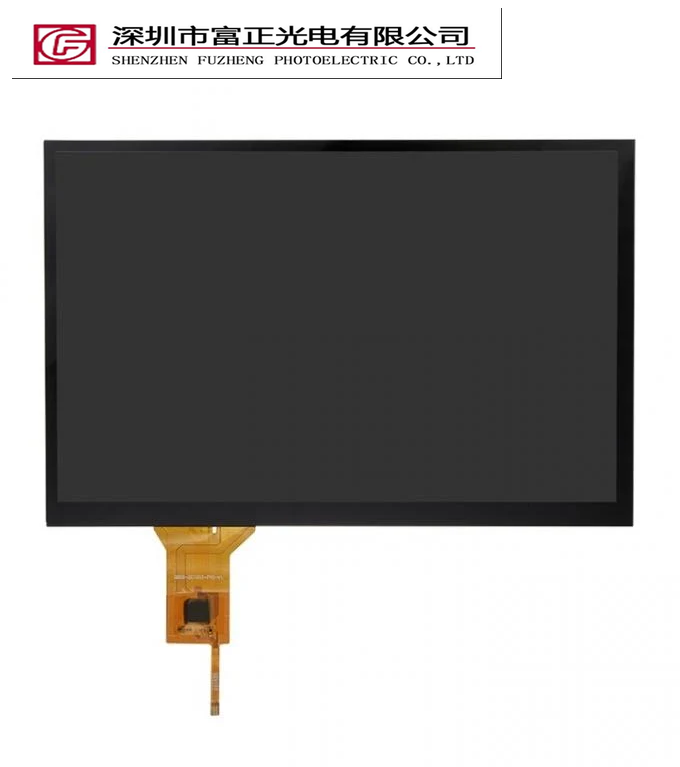

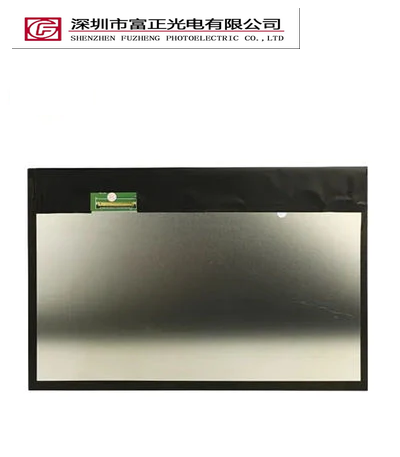

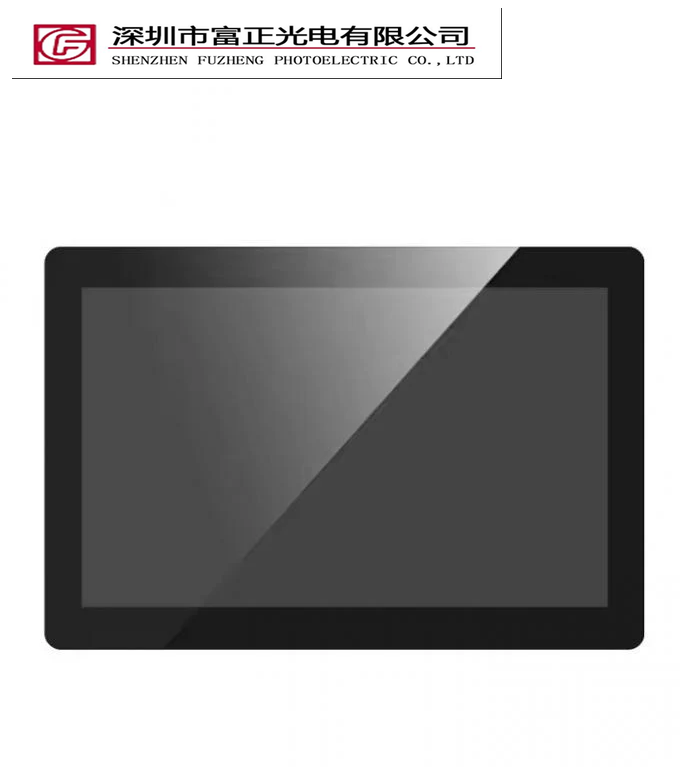

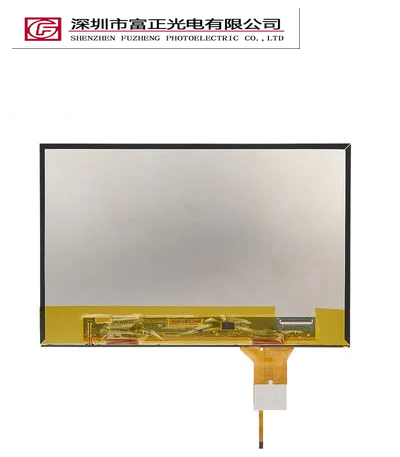

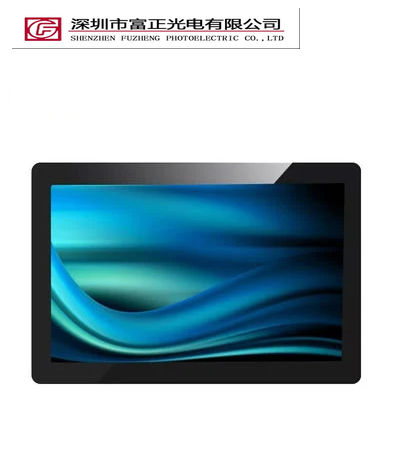

Product photographs
Mechanical drawings & documents

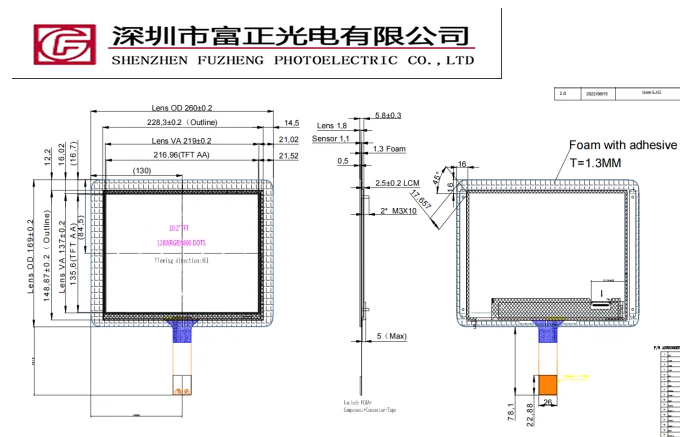

Request the Z101WX21-CT mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z101WX21-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 10.1-inch display format with your available viewing area, then check 1280 × 800 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z101WX21-CT configuration.
Z101WX21-CT frequently asked questions
What specifications are listed for Z101WX21-CT?
Resolution: 1280 × 800 pixels; Module Dimensions: 260 × 169 × 5.7 mm; Interface: LVDS; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 10.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z101WX21-CT connect to a host system?
Z101WX21-CT lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z101WX21-CT?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z101WX21-CT so the exact assembly can be reviewed.
Where can I find the drawing for Z101WX21-CT?
Request the mechanical drawing and electrical datasheet for Z101WX21-CT. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z101WX21-CT sample?
Include the model Z101WX21-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z101WX21-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
