Model no.Z043HWQ40I7079
Z043HWQ40I7079 4.3-Inch 480 × 272 LCD Display Module
Z043HWQ40I7079 is a 4.3-inch lcd display module with 480 × 272 resolution. Review the module specifications, product images and integration requirements before requesting a sample.
- CTP Or RTP
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.60 × 67.40 × 2.90 mm
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Driver IC: SC7283
- Touch: CTP Or RTP
- Screen Size: 4.3 inch
- Screen Size
- 4.3 inch
- Resolution
- 480 × 272 pixels
- Touch
- Capacitive touch
- Viewing Angle
- ALL/IPS
Specification confirmation. Confirm active area, interface against the latest approved specification before design-in.
Z043HWQ40I7079 product introduction
Z043HWQ40I7079 is a 4.3-inch lcd display module with 480 × 272 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.60 × 67.40 × 2.90 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Driver IC: SC7283. Touch: CTP Or RTP. Use these published characteristics to compare Z043HWQ40I7079 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
Confirm the host connection and controller requirements for Z043HWQ40I7079. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z043HWQ40I7079 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 272 pixels
- Module Dimensions: 105.60 × 67.40 × 2.90 mm
- Brightness: 350 cd/m²
- Operating Temperature: -20 to 70 °C
- Driver IC: SC7283
- Touch: CTP Or RTP
- Screen Size: 4.3 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 272 pixels |
| Module Dimensions | 105.60 × 67.40 × 2.90 mm |
| Brightness | 350 cd/m² |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Driver IC | SC7283 |
| Touch | CTP Or RTP |
| LCM (W x H x D) | 105.60*67.40*2.90mm |
| Viewing Direction | ALL/IPS |
| Screen Size | 4.3 inch |
Confirm active area, interface against the latest approved module specification before design-in.

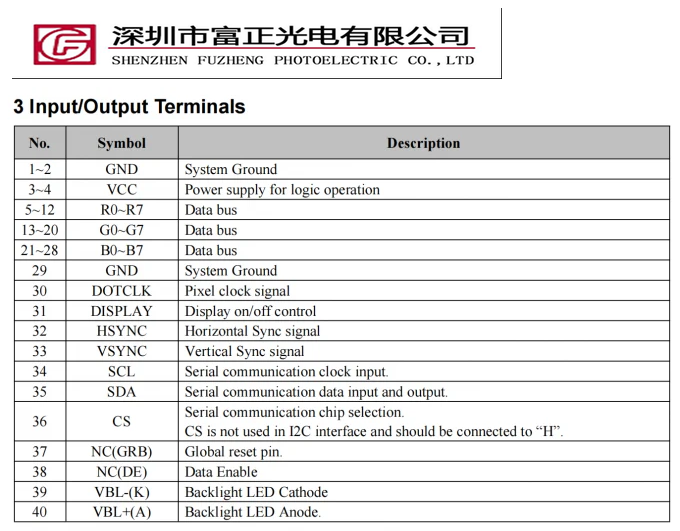

Interface & pin definition
Use the Z043HWQ40I7079 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Driver IC | SC7283 |
| Touch | CTP Or RTP |

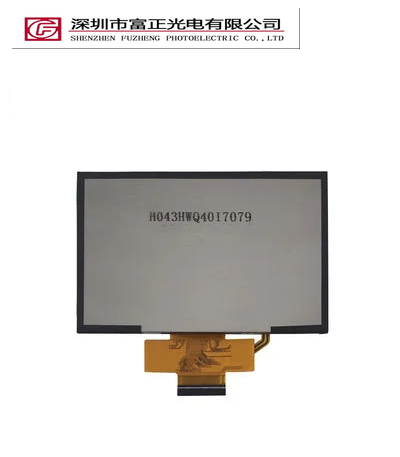

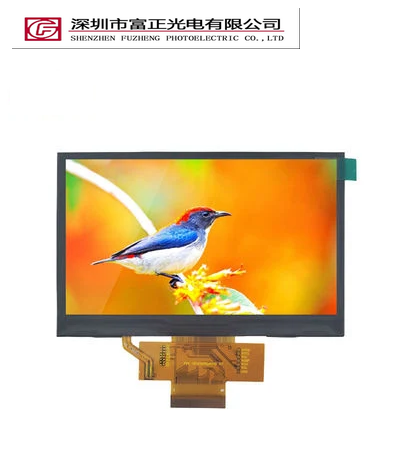

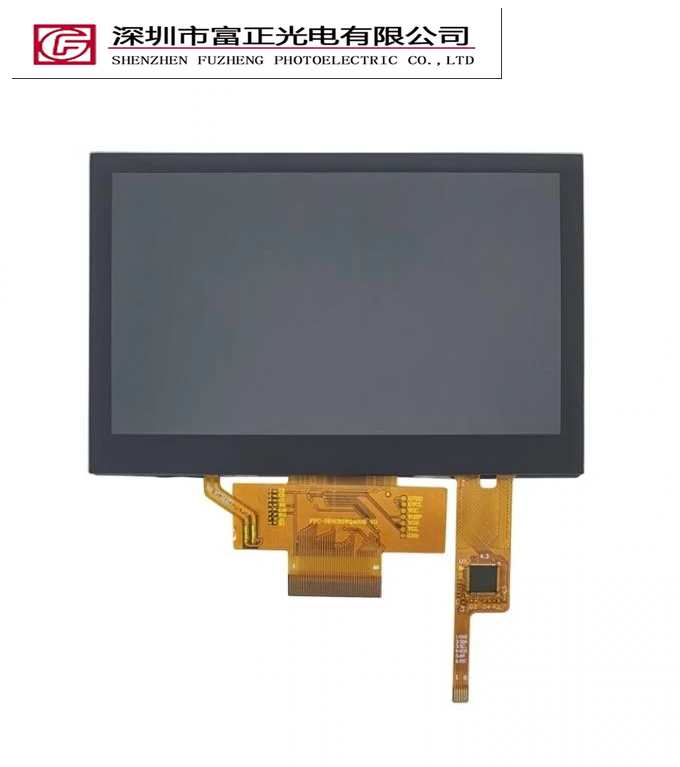

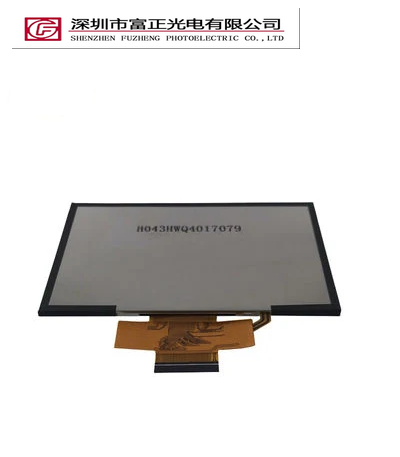

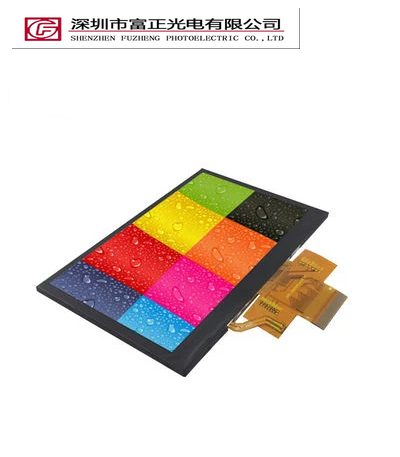

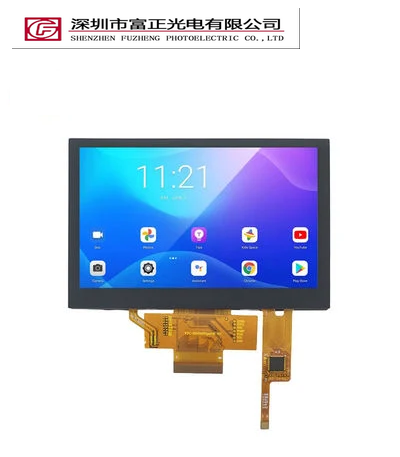

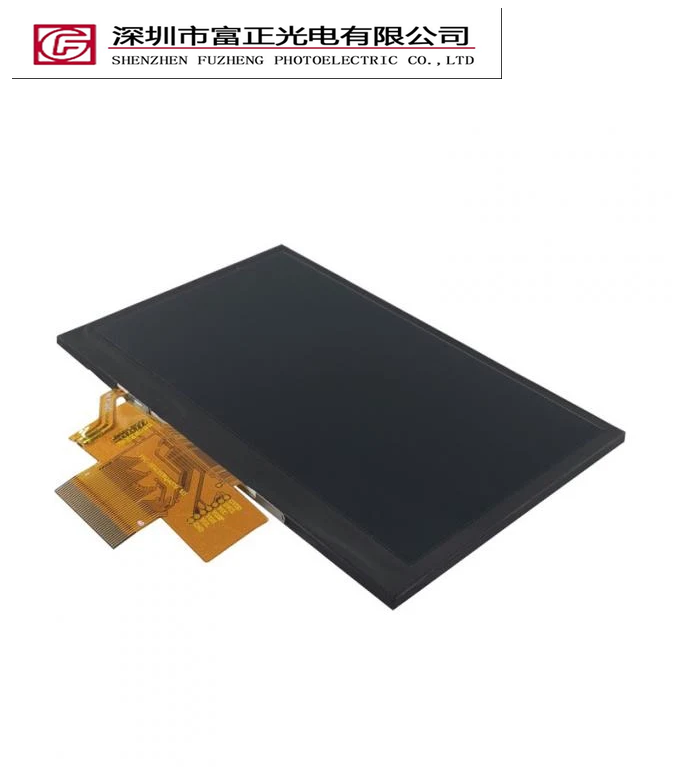

Product photographs

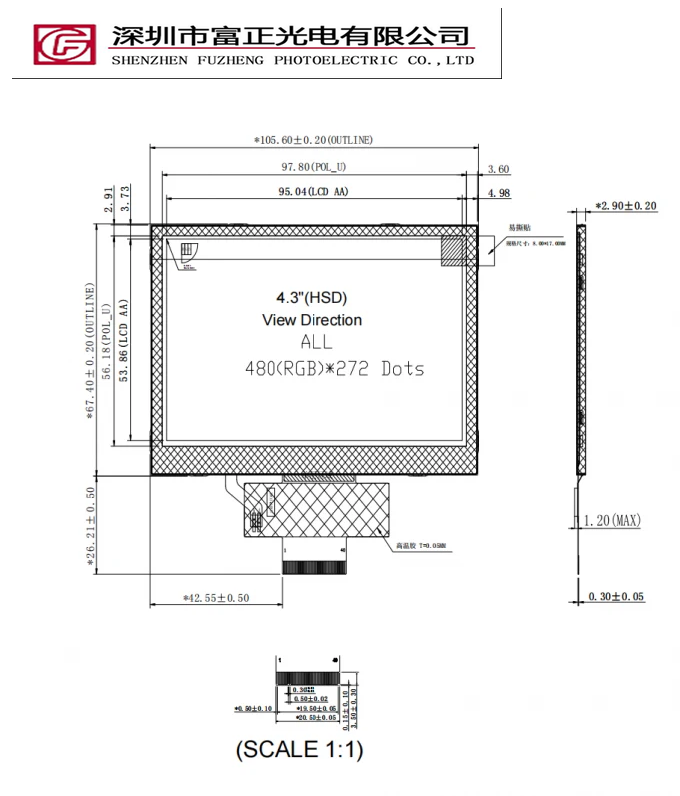

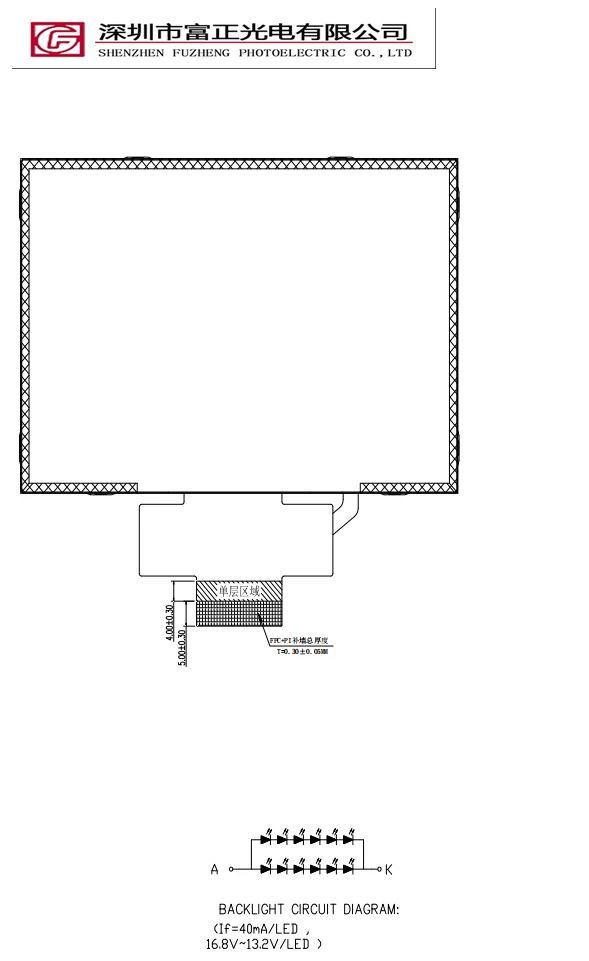

Mechanical drawings & documents
Request the Z043HWQ40I7079 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z043HWQ40I7079 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 4.3-inch display format with your available viewing area, then check 480 × 272 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z043HWQ40I7079 configuration.
Z043HWQ40I7079 frequently asked questions
What specifications are listed for Z043HWQ40I7079?
Resolution: 480 × 272 pixels; Module Dimensions: 105.60 × 67.40 × 2.90 mm; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Driver IC: SC7283; Touch: CTP Or RTP; Screen Size: 4.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z043HWQ40I7079 connect to a host system?
Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z043HWQ40I7079?
The listed touch configuration is CTP Or RTP. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z043HWQ40I7079?
Request the mechanical drawing and electrical datasheet for Z043HWQ40I7079. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z043HWQ40I7079 sample?
Include the model Z043HWQ40I7079, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z043HWQ40I7079 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
Compare more in Custom LCD Display Modules.
