Model no.Z050YMM-J40-68P0C
Z050YMM-J40-68P0C 5-Inch 1080 × 1080 LCD Display Module
Z050YMM-J40-68P0C is a 5-inch lcd display module with 1080 × 1080 resolution and a MINI HDMI interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MINI HDMI
- Resolution: 1080 × 1080 pixels
- Module Dimensions: 148.1 × 148.1 × 3.205 mm
- Interface: MINI HDMI
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 5 inch
- Screen Size
- 5 inch
- Resolution
- 1080 × 1080 pixels
- Display Mode
- Normally black
- Interface
- MINI HDMI
- Viewing Angle
- 80/80/80/80
Z050YMM-J40-68P0C product introduction
Z050YMM-J40-68P0C is a 5-inch lcd display module with 1080 × 1080 resolution and a MINI HDMI interface. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 148.1 × 148.1 × 3.205 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z050YMM-J40-68P0C with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MINI HDMI connection on Z050YMM-J40-68P0C should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z050YMM-J40-68P0C attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1080 × 1080 pixels
- Module Dimensions: 148.1 × 148.1 × 3.205 mm
- Interface: MINI HDMI
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 5 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1080 × 1080 pixels |
| Module Dimensions | 148.1 × 148.1 × 3.205 mm |
| Active Area | 127.01 × 127.01 mm |
| Interface | MINI HDMI |
| Viewing Angle | 80/80/80/80 |
| Brightness | 300 cd/m² |
| Display Mode | Normally Black |
| LCM (W x H x D) | 148.1*148.1*3.205mm |
| LCD Driver IC | HX8399C |
| CTP Driver IC | GT911 |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1300:1 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 5 inch |
Interface & pin definition
Use the Z050YMM-J40-68P0C electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MINI HDMI |

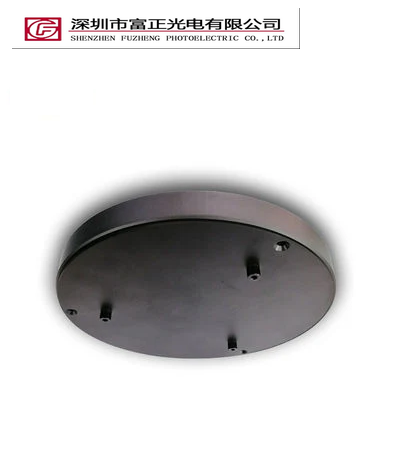

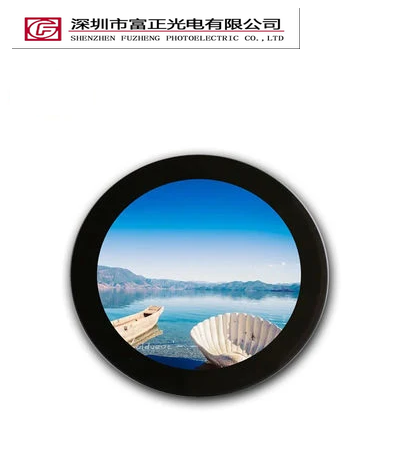

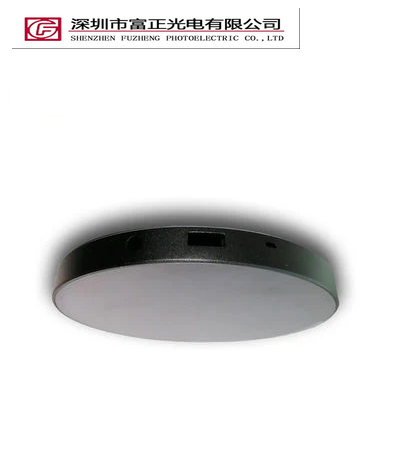

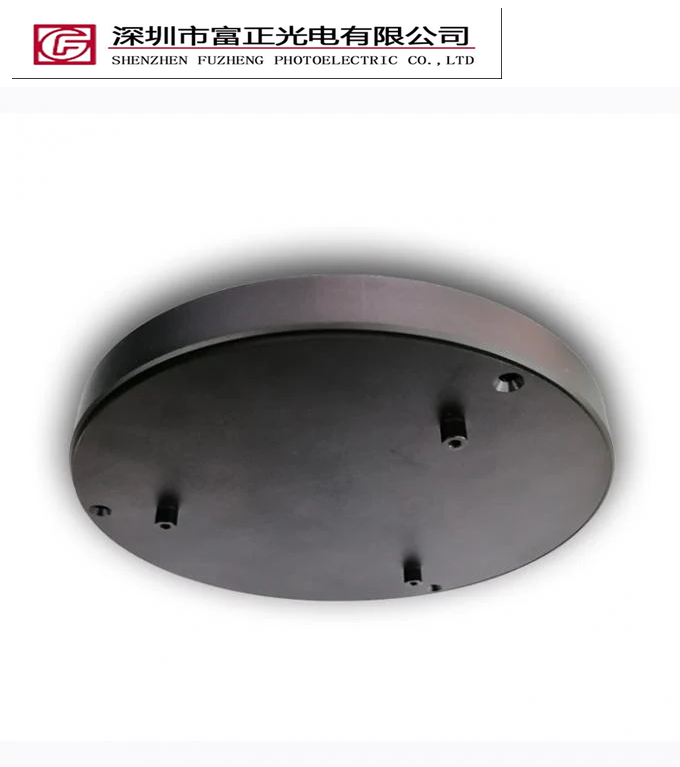

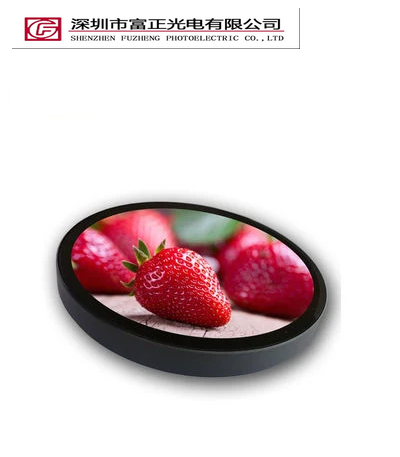

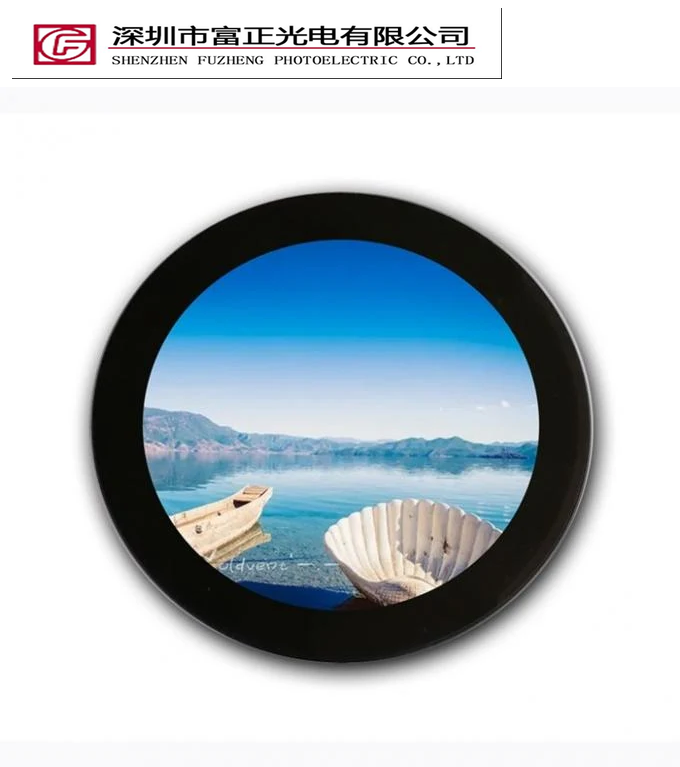

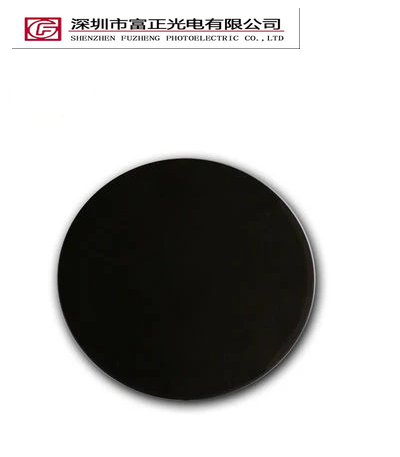

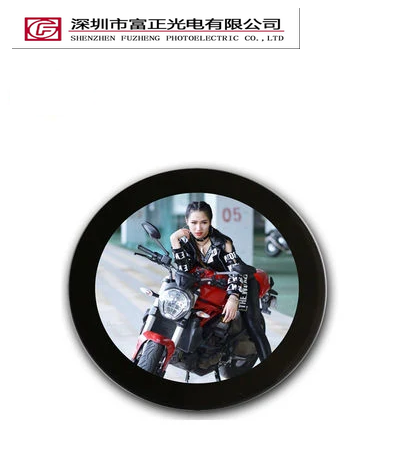

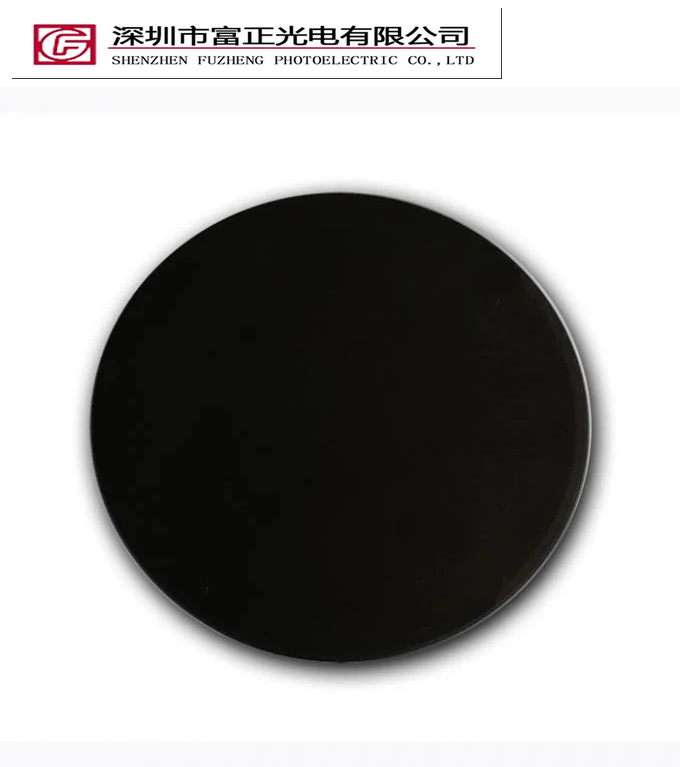

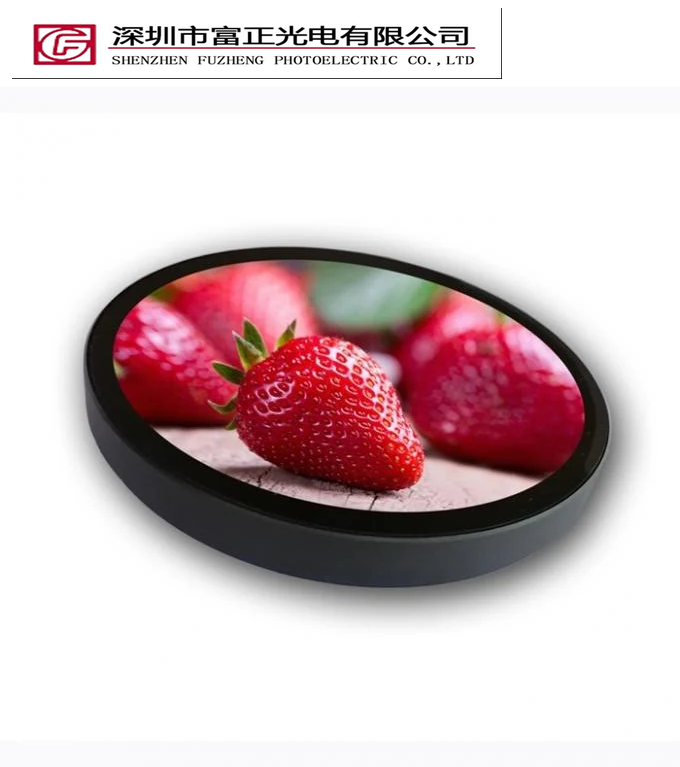

Product photographs
Mechanical drawings & documents
Request the Z050YMM-J40-68P0C mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z050YMM-J40-68P0C can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5-inch display format with your available viewing area, then check 1080 × 1080 pixel resolution, MINI HDMI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z050YMM-J40-68P0C configuration.
Z050YMM-J40-68P0C frequently asked questions
What specifications are listed for Z050YMM-J40-68P0C?
Resolution: 1080 × 1080 pixels; Module Dimensions: 148.1 × 148.1 × 3.205 mm; Interface: MINI HDMI; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z050YMM-J40-68P0C connect to a host system?
Z050YMM-J40-68P0C lists a MINI HDMI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z050YMM-J40-68P0C?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z050YMM-J40-68P0C so the exact assembly can be reviewed.
Where can I find the drawing for Z050YMM-J40-68P0C?
Request the mechanical drawing and electrical datasheet for Z050YMM-J40-68P0C. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z050YMM-J40-68P0C sample?
Include the model Z050YMM-J40-68P0C, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z050YMM-J40-68P0C reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
Compare more in Custom LCD Display Modules.
